Product description - StarUSA Group: Xeal custom and OEM/ODM industrial power supplies - 4k video

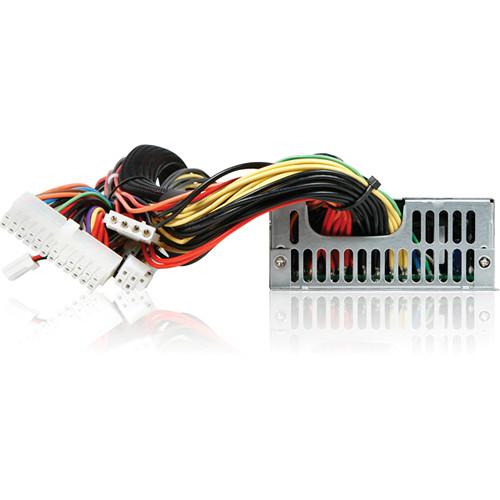

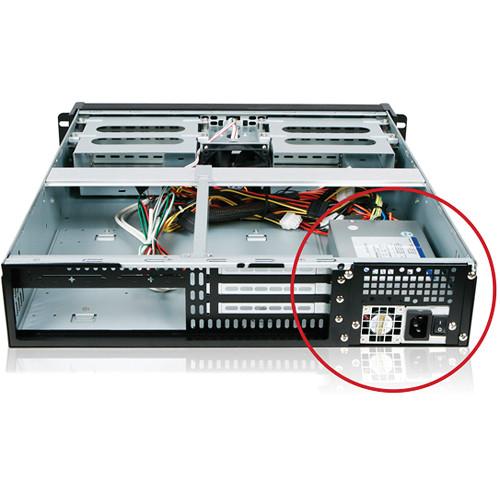

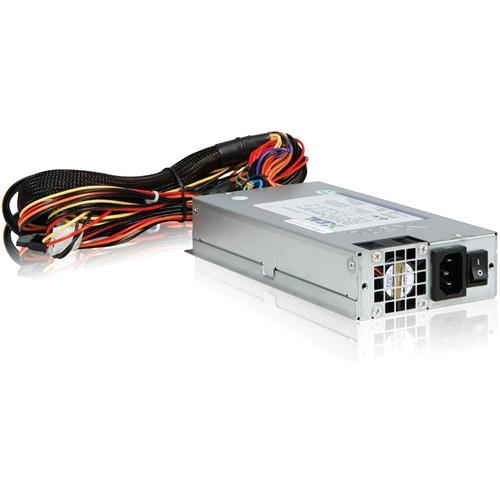

The iStar USA IS Series 1U 400W 80 Plus Switching Power Supply provides high performance and is designed to suitably fit into your 1U rackmount chassis. It supplies power to servers and compact PCs, and is suitable for use in space-constrained applications. The standard features include 80+ efficiency, triple circuit protection, and active PFC (power factor control) for industrial and high-performance system requirements. This single 1U 400W switching power supply meets EN61000-3-2 standards and equips full range input features. - 80 plus high efficiency & reliability
- Low noise and thermal-controlled fan
- Meets EN61000-3-2 standards
- 100,000 hours MTBF (Mean Time Between Failures)
UPC: 846813021685 In the Box iStarUSA IS Series 1U 400W 80 Plus Switching Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA IS Series 1U 400W 80 Plus Switching Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA IS-1U40PD8 Specs | Chassis Compatibility | D-106 1U Ultra-compact Rackmount Chassis
D-107 1.3U Industrial Leading Rackmount Chassis
D-107V2 1.3U Industrial Leading Rackmount Chassis
200 2U Compact Stylish Rackmount Chassis
D-200A-T Build-to-Order - 2U Compact Stylish Aluminum Rackmount Chassis
D-200L 2U High Performance Rackmount Chassis
D-200L-T Build-to-Order - 2U High Performance Rackmount Chassis
D-200S 2U Compact Stylish Rackmount Chassis
D-200-T Build-to-Order - 2U Compact Stylish Rackmount Chassis
D-200SE 2U Compact Stylish Rackmount Chassis
D-200LSE 2U High Performance Rackmount Chassis
D2-200 Build-to-Order - 2U Compact Stylish Rackmount Chassis
D2-200L-M4SA 2U 4 Hot-Swappable Rackmount Chassis
E-20 2U Rugged 15" Compact Rackmount Chassis
E-30 3U Rugged 15" Compact Rackmount Chassis
E-30-MATX 3U Military Compact Rackmount Chassis
V-1.3-M4SA 1.3U 4-Bay Storage Server Rackmount Chassis
E1M4 1U 4-Bay Storage Server Rackmount Chassis
E3M8 3U 8-Bay E-ATX Storage Server Rackmount Chassis
EA-105-JB 1U Internal Disk Array Storage Rackmount Chassis
EA-1M4EXP-JB 1U 4-Bay SAS Expander Storage JBOD Rackmount Chassis
EA-1M4-JB 1U 4-Bay Storage Rackmount Chassis
V-2-M2SA 2U 2-Bay Storage Server Rackmount Chassis
E2M2R 2U 2-Bay Server Rackmount Chassis
E3M8-25M2 3U EATX Hotswap Storage Server Rackmount Chassis
D-200SEA 2U Compact Stylish Rackmount Chassis with SEA Bezel | | Voltage | At 155 V:
Minimum: 90 VAC
Nominal: 100 to 120 VAC
Maximum: 132 VAC
Maximum Current: 6 A
At 230 V:
Minimum: 180 VAC
Nominal: 200 to 240 VAC
Maximum: 264 VAC
Maximum Current: 3 A | | Output | +12 V (Single Rall):
Maximum Load: 33 A
Minimum Load: 1 A | | Frequency | Minimum: 47 Hz
Nominal: 50 / 60 Hz
Maximum: 63 Hz | | Output Wattage | 400 W | | Efficiency | 80% | | Operating Temperature Range | 32 to 122°F (0 to 45°C) | | Non-operating Temperature | -40 to 158°F (40 to 70°C) | | Operating Humidity Range | 20 to 90% RH, non-condensing | | Non-Operating Humidity | 5 to 95% RH, non-condensing | | Connector Type | Main Connector: 24-pin
4-pin 12V: 1
8-pin EPS 12V: 1
Molex: 4
SATA: 2
Floppy: 1 | | Dimensions (W x H x D) | 3.94 x 1.60 x 7.87" (100.07 x 40.64 x 199.89 mm) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 10.6 x 7.1 x 2.6" |
