Product description - StarUSA Group: Xeal custom and OEM/ODM industrial power supplies - 4k video

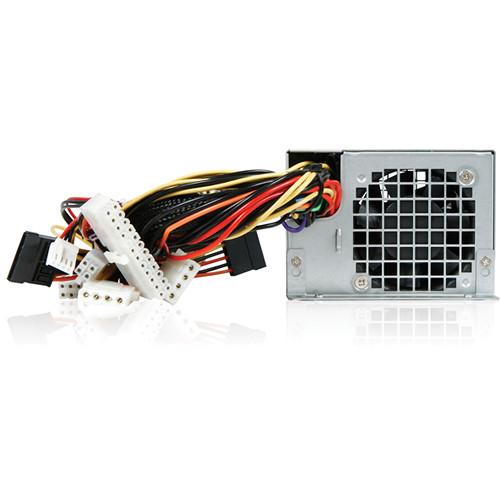

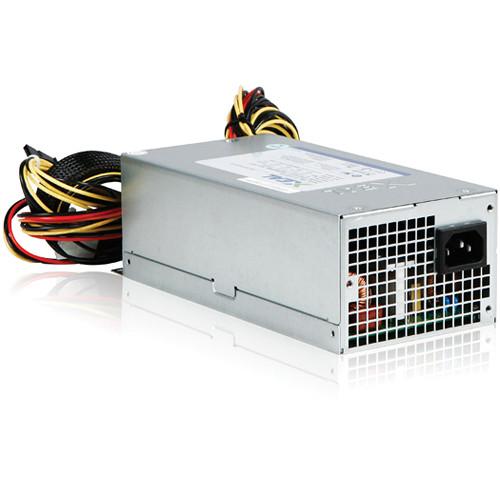

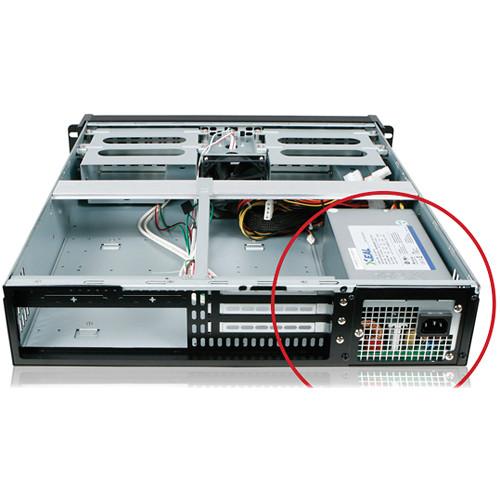

The iStar USA IS Series 460W 80 Plus Switching Power Supply provides high performance and is designed to easily fit into your 2U rackmount chassis. It supplies power to servers and compact PCs, and is suitable for use in space-constrained applications. Its standard features include 80+ efficiency, triple circuit protection, and active PFC (power factor control) for industrial and high-performance system requirements. This single 2U 460W switching power supply meets EN61000-3-2 standards and equips full range input features. - 80 plus high efficiency & reliability
- Low noise and thermal-controlled fan
- Meets EN61000-3-2 standards
- 100,000 hours MTBF (Mean Time Between Failures)
UPC: 846813021739 In the Box iStarUSA IS Series 2U 460W 80 Plus Switching Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA IS Series 2U 460W 80 Plus Switching Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA IS-2U46PD8 Specs | Chassis Compatibility | D-2002U Compact Stylish Rackmount Chassis
D-200A-T 2U Compact Stylish Aluminum Rackmount Chassis
D-200L2U High Performance Rackmount Chassis
D-200L-T 2U High Performance Rackmount Chassis
D-200-T 2U Compact Stylish Rackmount Chassis
D-200SE2U Compact Stylish Rackmount Chassis
D-200LSE 2U High Performance Rackmount Chassis
D2-200 2U Compact Stylish Rackmount Chassis
D2-200L-M4SA2U 4 Hot-Swappable Rackmount Chassis
D-300 3U Compact Stylish Rackmount Chassis
D-300A 3U Compact Stylish Aluminum Rackmount Chassis
D-300AS 3U Compact Stylish Aluminum Rackmount Chassis
D-300L3U High Performance Rackmount Chassis
D-300L-B6SA 3U High Performance Rackmount Chassis
D-300-MUSIC 3U Silent Rackmount Chassis
D-300SE 3U Compact Stylish Rackmount Chassis
D-300LSE 3U High Performance Rackmount Chassis
D-300ASE 3U Compact Stylish Aluminum Rackmount Chassis
D-300SASE3U Compact Stylish Aluminum Rackmount Chassis
D2-3003U Compact Stylish Rackmount Chassis
D2-300L-M6SA3U 6 Hot-Swappable Rackmount Chassis
E-207L 2U E-ATX 7 x 3.5" Bays Rackmount Chassis
E-212L 2U E-ATX 12 x 3.5" Bays Rackmount Chassis
E-204L 2U E-ATX 4 x 5.25" Bays Rackmount Chassis
E-306L 3U E-ATX 6 x 5.25" Bays Rackmount Chassis
V-3-M4SA 3U 4-Bay Storage Server Rackmount Chassis
E2M4 2U 4-Bay E-ATX Storage Server Rackmount Chassis
E2M12 2U 12-Bay Storage Server Rackmount Chassis
E2M8 2U 8-Bay Storage Server Rackmount Chassis
E2M10 2U 10-Bay Storage Server Rackmount Chassis
E306L-DE4 3U EATX Rugged Rackmount 4 x 3.5" Trayless Hotswap Chassis
E204L-M1B3SA 2U EATX Rugged Rackmount 4 x 3.5" Hotswap Chassis
E306L-DE6 3U EATX Rugged Rackmount 6 x 3.5" Trayless Hotswap Chassis
E306L-B5SA 3U EATX Rugged Rackmount 5 x 3.5" Trayless Hotswap Chassis
D-300-TS669 3U Compact Stylish Rackmount Chassis with 7" Touch Screen LCD
D-300A-TS669 3U Compact Stylish Aluminum Rackmount Chassis with 7" Touch Screen LCD
D-300L-TS669 3U High Performance Rackmount Chassis with 7" Touch Screen LCD
D-300-TS669 3U Compact Stylish Rackmount Chassis with 7" Touch Screen LCD
D-300A-TS669 3U Compact Stylish Aluminum Rackmount Chassis with 7" Touch Screen LCD
RG-3023H 3U Rugged 3 x 3.5" HDD Hotswap Rackmount Chassis
RG-2210 2U Rugged 2 x 5.25" Bays EATX High Performance Rackmount Chassis
RD-3410T 3U Rugged Compact Rackmount Chassis
E306L-DE5 3U EATX Rugged Rackmount 5 x 3.5" Trayless Hotswap Chassis
E306L-DE10 3U EATX Rugged Rackmount 10 x 3.5" Trayless Hotswap Chassis
E-204V2-L 2U E-ATX 4 x 5.25" Bays Rackmount Chassis
E-306V2-L 3U E-ATX 6 x 5.25" Bays Rackmount Chassis
D-200SEA 2U Compact Stylish Rackmount Chassis with SEA Bezel
D-300SEA 3U Compact Stylish Rackmount Chassis with SEA Bezel
E306V2L-DE8 3U EATX Rugged Rackmount 8 x 3.5" Trayless Hotswap Chassis | | Voltage | At 155 V:
Minimum: 90 VAC
Nominal: 100 to 120 VAC
Maximum: 132 VAC
Maximum Current: 7 A
At 230 V:
Minimum: 180 VAC
Nominal: 200 to 240 VAC
Maximum: 264 VAC
Maximum Current: 3.5 A | | Output | +12 V (Single Rall):
Maximum Load: 38 A
Minimum Load: 1 A | | Frequency | Minimum: 47 Hz
Nominal: 50 / 60 Hz
Maximum: 63 Hz | | Output Wattage | 460 W | | Efficiency | 80% | | Operating Temperature Range | 32 to 122°F (0 to 45°C) | | Non-operating Temperature | -40 to 158°F (40 to 70°C) | | Operating Humidity Range | 20 to 90% RH, non-condensing | | Non-Operating Humidity | 5 to 95% RH, non-condensing | | Connector Type | Main Connector: 24-pin
4-pin 12V: 1
8-pin EPS 12V: 1
Molex: 4
SATA: 2
Floppy: 1 | | Dimensions (W x H x D) | 3.94 x 1.60 x 7.87" (100.07 x 40.64 x 199.89 mm) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 10.6 x 7.2 x 3.7" |
