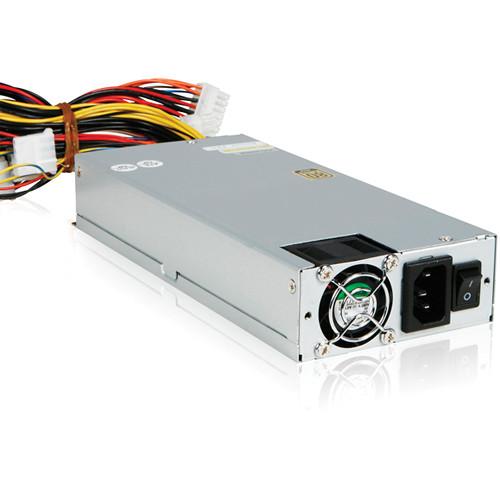

User Manual for iStarUSA IS Series1U 500W 80 Plus Gold Switching Power Supply Click to enlarge the picture
Contents of the user manual for the iStarUSA IS Series1U 500W 80 Plus
- Product category: Server Power Supplies iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Power Supplies
|
User manual for the iStarUSA IS Series1U 500W 80 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description - StarUSA Group: Xeal custom and OEM/ODM industrial power supplies - 4k video
The iStar USA IS Series 500W 80 Plus Gold Switching Power Supply easily fits into your 1U rackmount chassis. It supplies power to servers and compact PCs, and is suitable for use in space-constrained applications. Its standard features include 80+ gold high efficiency, triple circuit protection, and active PFC (power factor correction) for industrial and high-performance system requirements. This AC-line powered switching power supply comes with full range input features. - 80 plus gold high efficiency and reliability
- Minimum predicted MTBF of 100,000 hours of continuous operation at 77°F (25°C), 100% output load and nominal AC input voltage
- Meets EN61000-3-2 standard
UPC: 846813009546 In the Box iStarUSA IS Series1U 500W 80 Plus Gold Switching Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA IS Series1U 500W 80 Plus Gold Switching Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA IS-1U50PD8G Specs | | | Voltage Range | 90 to 264 VRMS | | Input Frequency | 47 to 63 Hz | | Inrush Current | At 115 V: 40 A
At 230 V: 80 A | | Input Line Connector | At 115 V: 8 A
At 230 V: 4 A | | Voltage | Low Voltage:
Minimum: 0 V
Maximum: 0.8 V
High Voltage: lin=-200 µA | | Current | Low Current:
Vin=0.4 V
-1.6 mA | | Open Circuit Voltage | lin=0 | | Efficiency | 90% | | Connector Type | Main Connector: 24-pin
4 + 4-pin 12 V: 1
8-pin EPS 12 V: 1
SATA: 4
Floppy: 1 | | | | Shock | Storage: -40G, 11 msec half-sine wave pulse in both directions on 3 mutually perpendicular axis
Operating: -10G, 11 msec half-sine wave pulse in both directions on 3 mutually perpendicular axis | | MTBF | 100,000 hours of continuous operation at 77°F (25°C), 100% output load, and nominal AC input voltage | | Standby Power Consumption | Input power <1 w at 5 vsb >PS_ON input signal at high state | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 176°F (-20 to 80°C) | | Operating Humidity | 85% RH, non-condensing | | Storage Humidity | 95% RH, non-condensing | | Dimensions (W x H x D) | 3.90 x 1.60 x 8.66" (99.06 x 40.64 x 219.96 mm) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 6.0" |
