Product description - Claytek WN-series rackmount server cabinet - iStarUSA Group

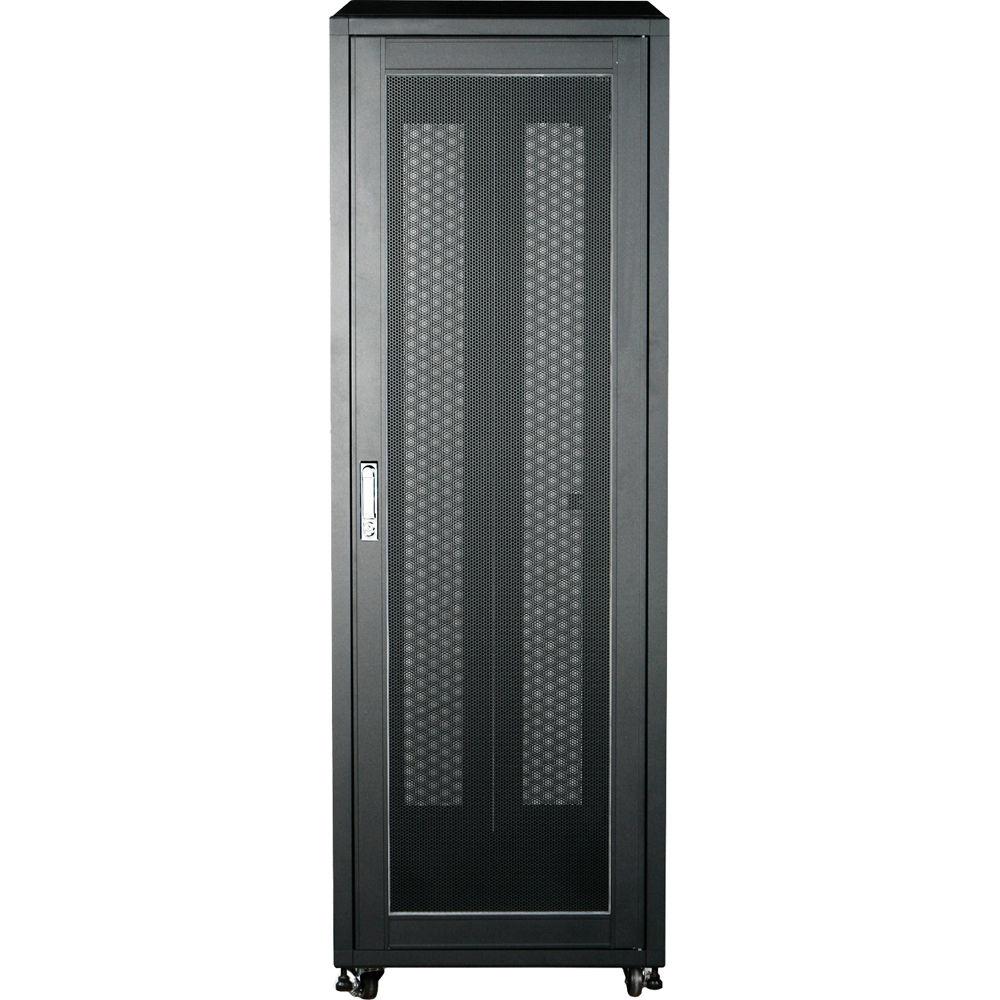

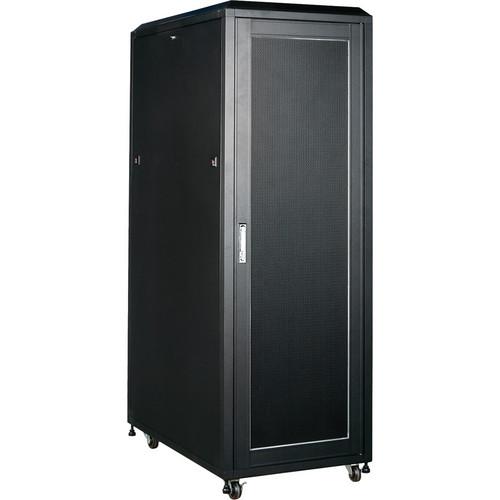

The iStarUSA Rack-mount Server Cabinet (1000mm Depth, 36U) is an effective solution for installing your rack-mount chassis and IT equipment such as computer units and servers. Its high-quality aluminum and steel construction ensures strength and durability, while allowing you to mount equipment weighing up to 2200 lb (997 kg).
Vented doors and AC cooling fans ensure consistent airflow which keeps the inside of the cabinet temperature within safe limits. Double rear doors require less space to open and provide easy access. In addition, the front / rear doors and side panels feature a locking mechanism for enhanced security and peace of mind. Casters and leveling feet ensure smooth movement of the rack and facilitate easy installation in any location. - Effective Rackmount Solution
-
- Protects equipment against environmental elements such as heat and dust
- Flexible Design
-

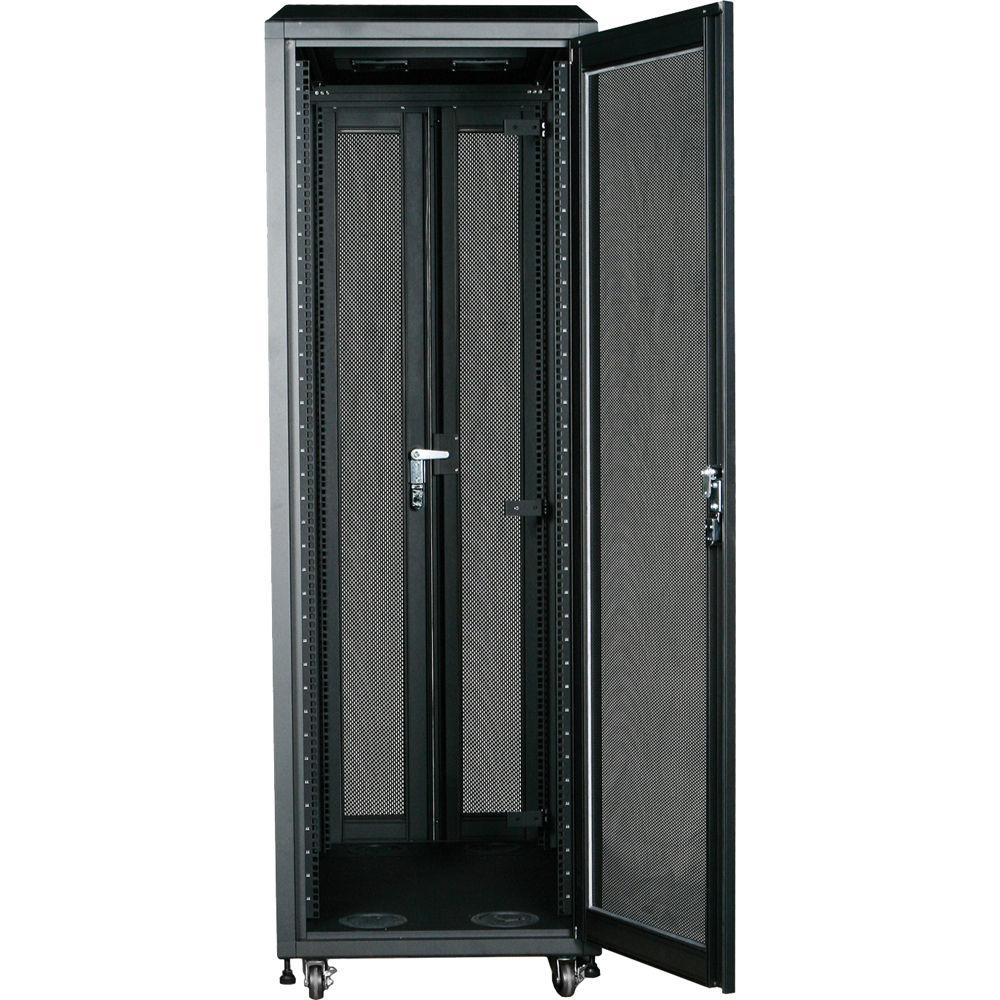

- Horizontally adjustable mounting rails for secure fit of rack-mount chassis

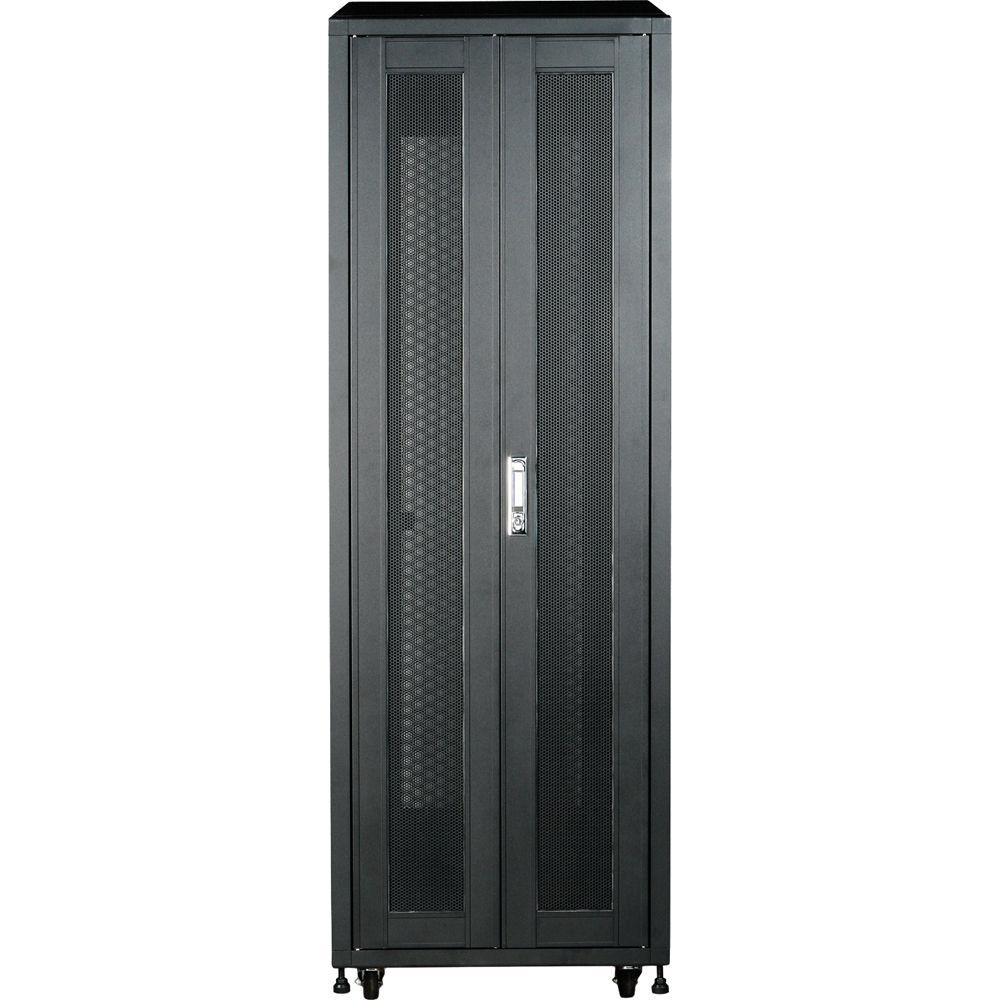

- Double rear doors provide convenience and take less space to open
- Custom front panel door with silk screen option

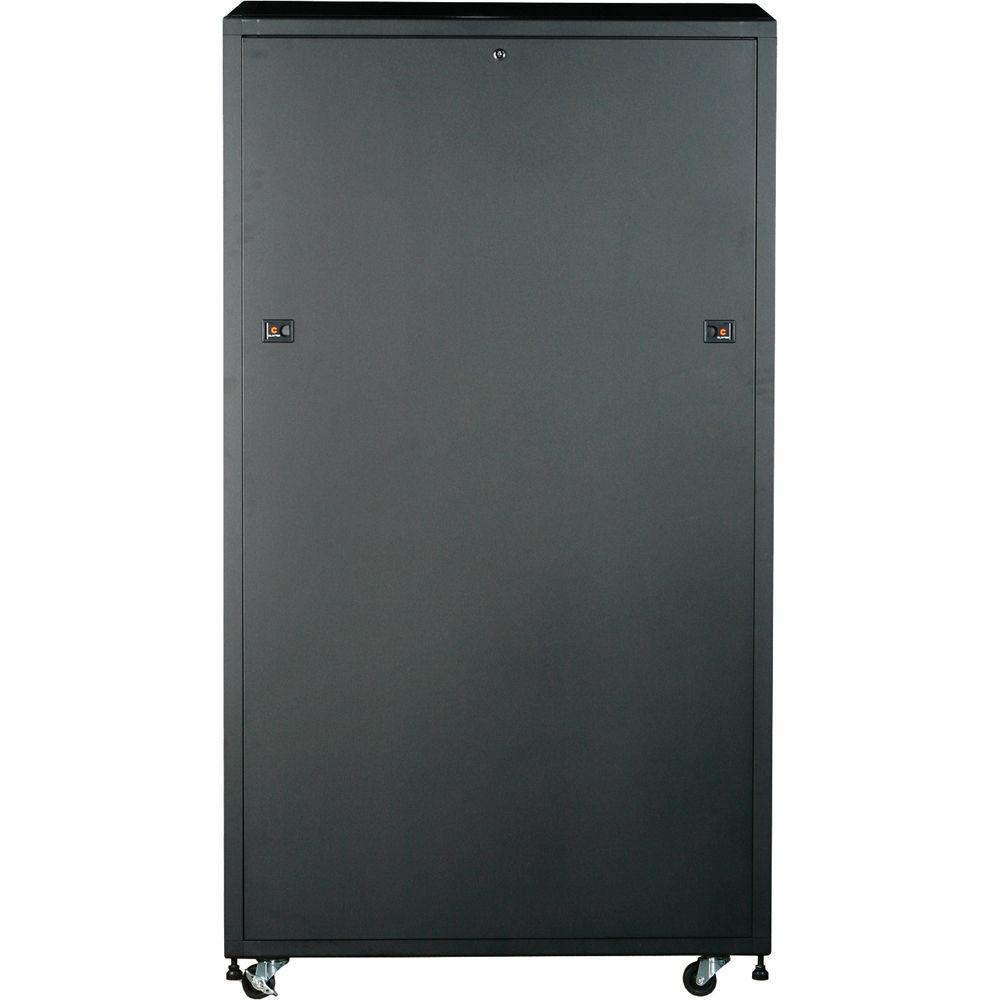

- Side panels with handy latches for easy equipment access and maintenance
- Portable
-

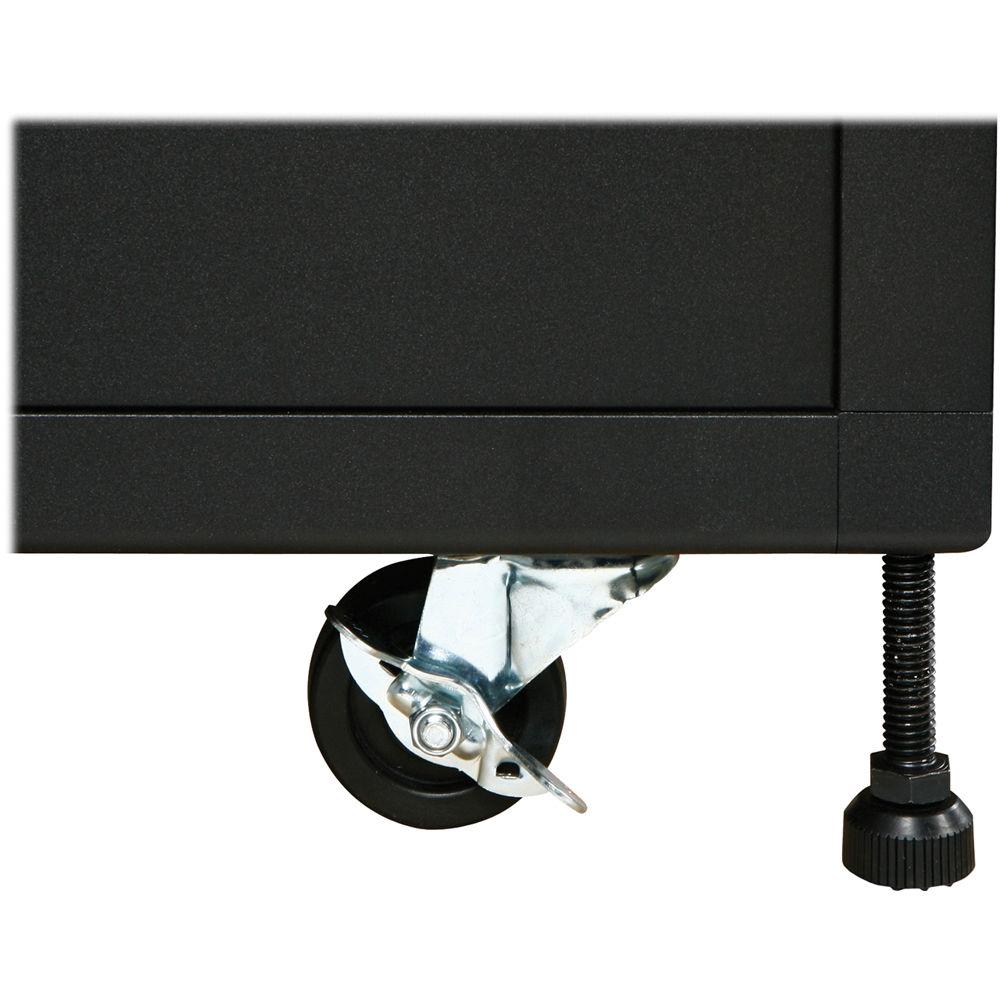

- Heavy-duty casters and feet leveling for smooth movement
- Locking mechanism on castor improves stability of the cart
- Passive Cooling
-

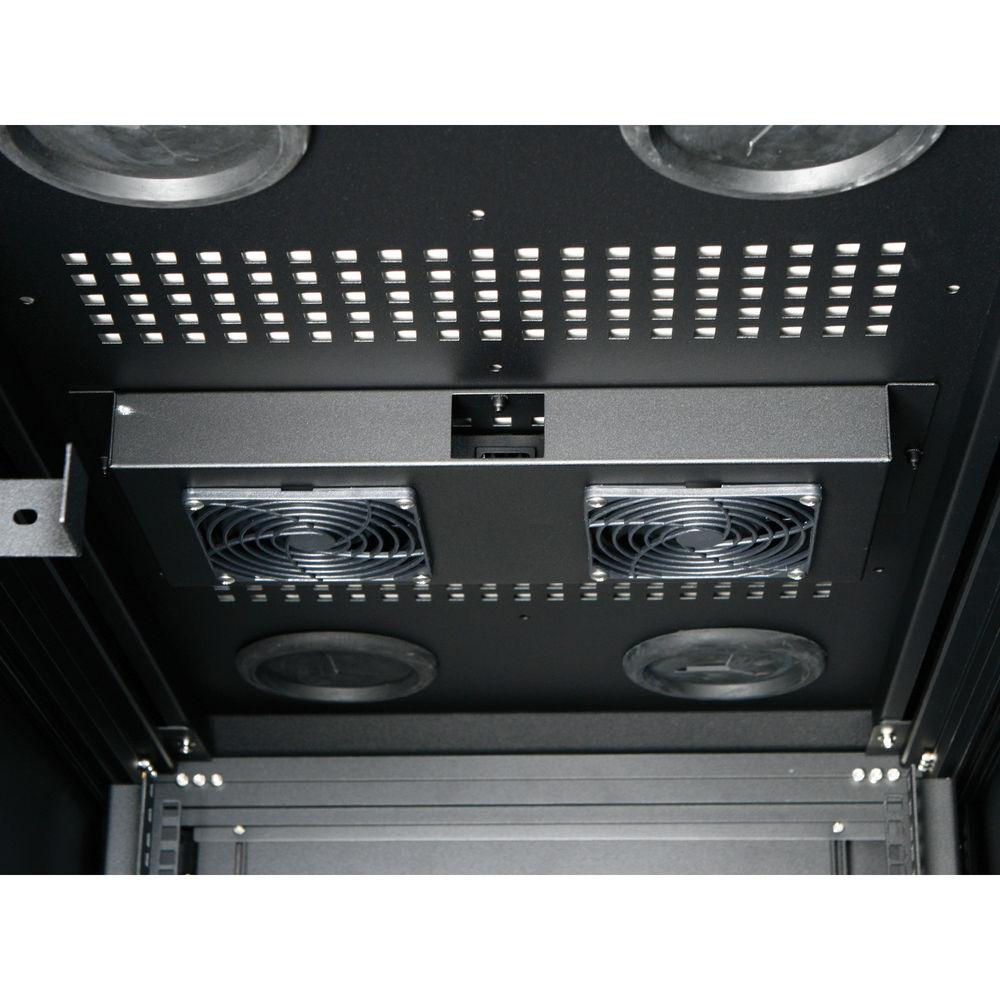

- Vented doors and cooling fans ensure maximum air flow to the equipment for passive cooling
- Enhanced Security
-

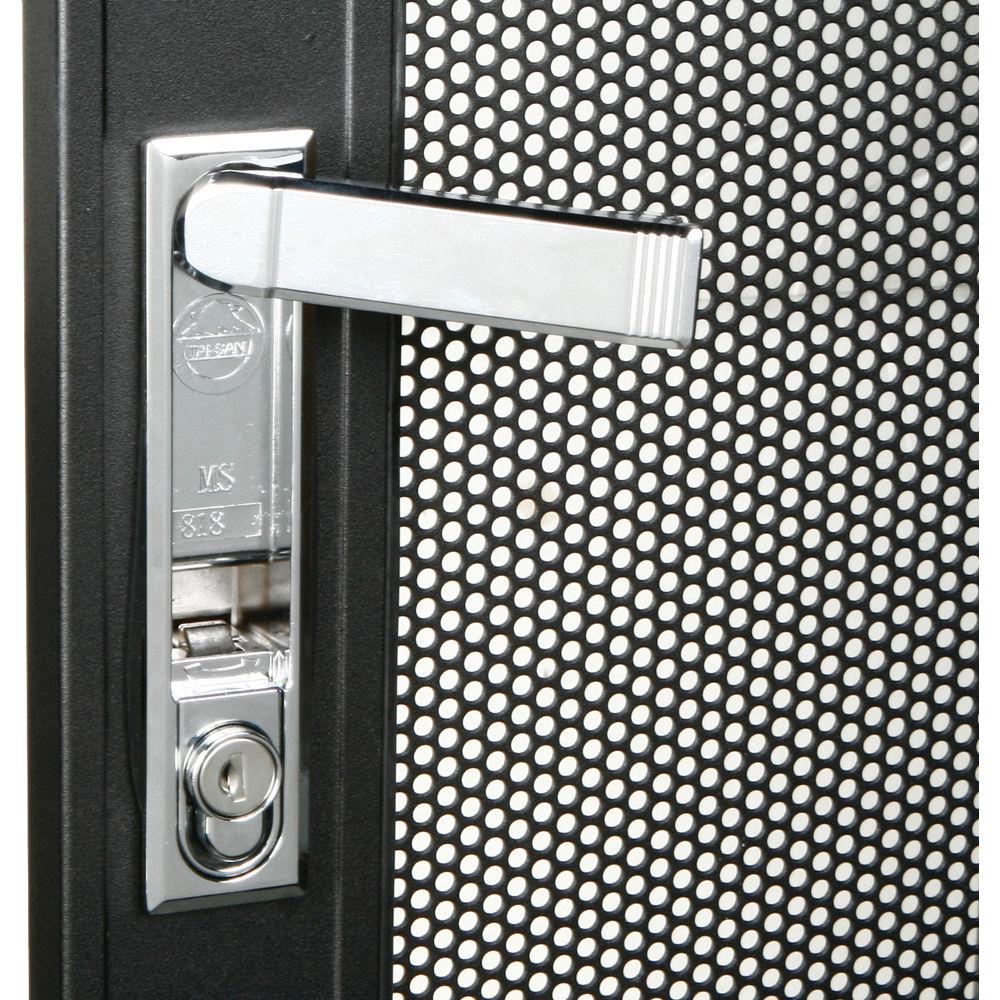

- Completely lockable front and rear doors and side panels prevent unauthorized access
- Easy Cable Management
-
- Cable entry provided from top, bottom, front, and back
- Clutter-free wiring for a professional look
UPC: 846813013376 In the Box iStarUSA Rack-mount Server Cabinet (1000mm Depth, 36U) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA Rack-mount Server Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA WN3610 Specs | Form Factor | 36U | | Material | Side Panel: SPCC t:0.8 mm
Horizontal Rails: SPCC t:2.0 mm
Vertical Rails: SPCC t:2.0 mm
Top Panel: SPCC t:1.2 mm | | Color | Black (RAL9011) | | Load Capacity | 2200 lb (997 kg) | | Depth | Supported Chassis Depth: 34.0" (863.6 mm) and under | | Internal Dimensions | Width: Post-to-post: 17.75" (450 mm)
Hole-to-hole: 18.5" (469 mm)
Height: 64.25" (1631 mm)
Depth: 34.25" (869 mm) | | Cooling | Up to 3 sets of 4.72" (120 mm) 120V AC fans can be installed on the top (p/n: WA-SF120-2FAN), pre-installed 1 set | | Dimensions (W x H x D) | 23.50 x 71.75 x 39.50" (597.00 x 1822.00 x 1,003.00 mm) | | Weight | 180 lb (81 kg) | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 275.0 x 77.0 x 40.0" |
