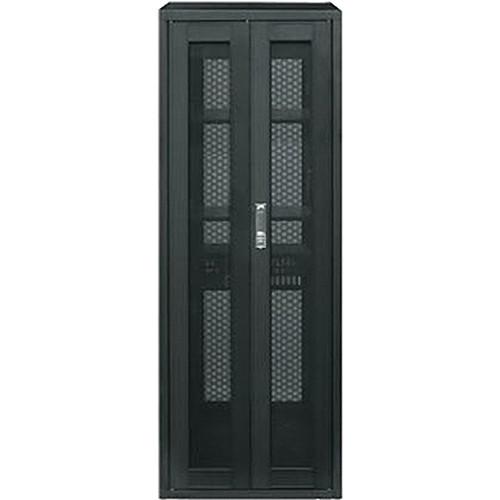

User Manual for iStarUSA Rack-mount Server Cabinet Click to enlarge the picture
Contents of the user manual for the iStarUSA Rack-mount Server Cabinet
- Product category: Rack Furniture iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Rack Furniture
 |
User manual for the iStarUSA Rack-mount Server Cabinet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description - Claytek WN-series rackmount server cabinet - iStarUSA Group
- iStarUSA Proudly Introduces the WN368

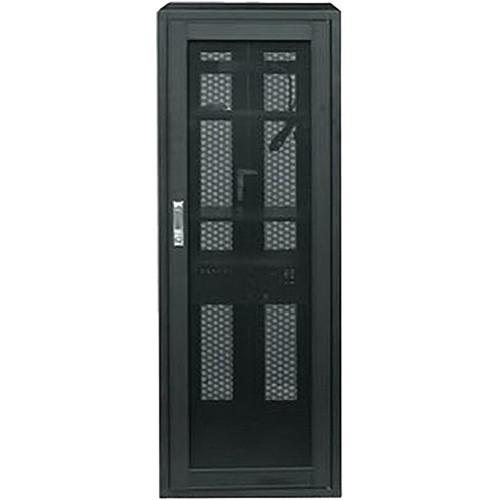

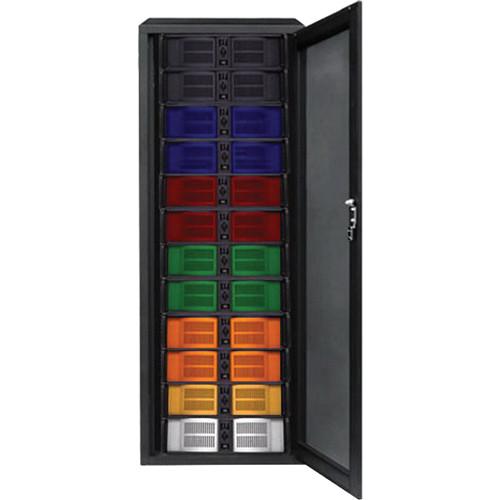

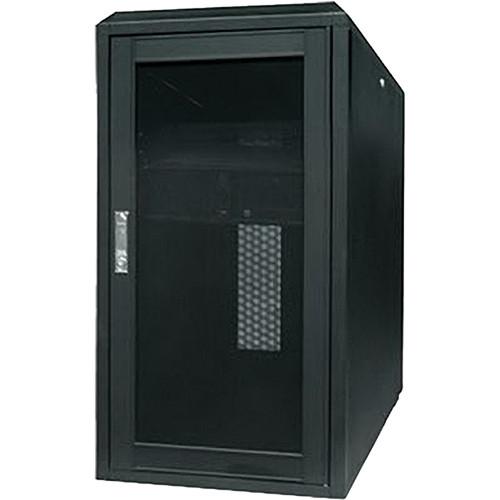

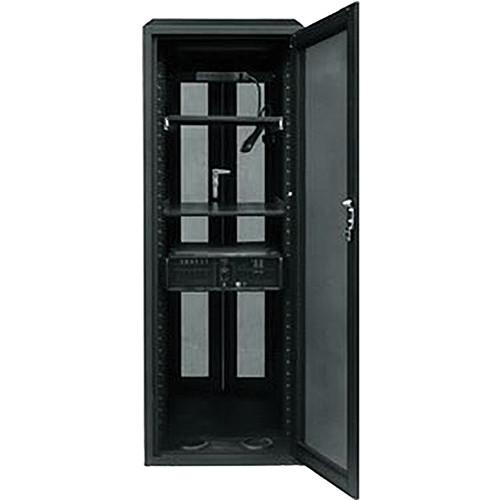

The iStarUSA Rack-mount Server Cabinet (800mm Depth, 36U) is an effective solution for installing your rack-mount chassis and IT equipment such as computer units and servers. Its high-quality aluminum and steel construction ensures strength and durability, while allowing you to mount equipment weighing up to 2200 lb (997 kg).
Vented doors and AC cooling fans ensure consistent airflow which keeps the inside of the cabinet temperature within safe limits. Double rear doors require less space to open and provide easy access. In addition, the front / rear doors and side panels feature a locking mechanism for enhanced security and peace of mind. Casters and leveling feet ensure smooth movement of the rack and facilitate easy installation in any location. - Effective Rackmount Solution
-
- Protects equipment against environmental elements such as heat and dust
- Flexible Design
-

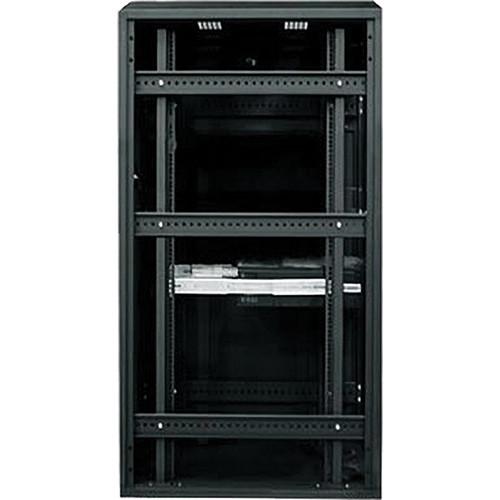

- Horizontally adjustable mounting rails for secure fit of rack-mount chassis
- Double rear doors provide convenience and take less space to open
- Custom front panel door with silk screen option

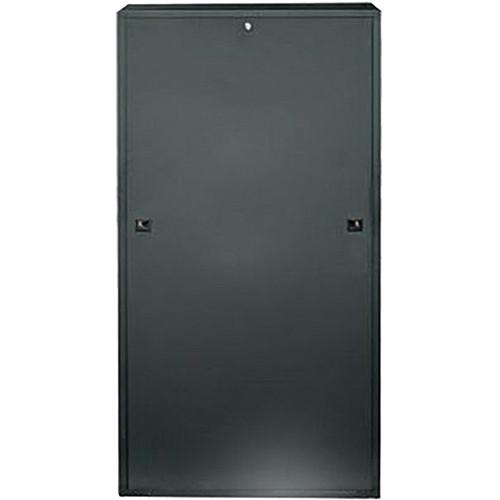

- Side panels with handy latches for easy equipment access and maintenance
- Portable
-
- Heavy-duty casters and feet leveling for smooth movement
- Locking mechanism on castor improves stability of the cart
- Passive Cooling
-
- Vented doors and cooling fans ensure maximum air flow to the equipment for passive cooling
- Enhanced Security
-
- Completely lockable front and rear doors and side panels prevent unauthorized access
- Easy Cable Management
-
- Cable entry provided from top, bottom, front, and back
- Clutter-free wiring for a professional look

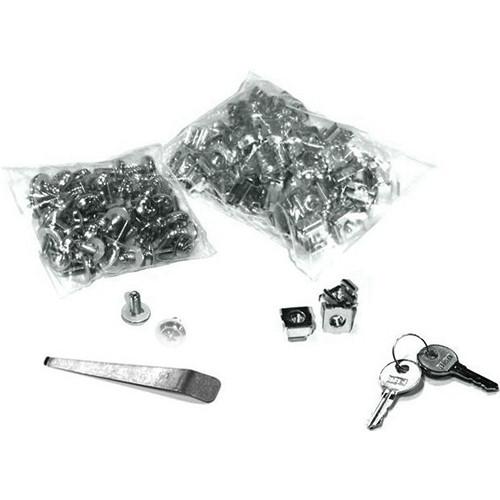

UPC: 846813013383 In the Box iStarUSA Rack-mount Server Cabinet (800mm Depth, 36U) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA Rack-mount Server Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA WN368 Specs | Form Factor | 36U | | Material | Side Panel: SPCC t:0.8 mm
Horizontal Rails: SPCC t:2.0 mm
Vertical Rails: SPCC t:2.0 mm
Top Panel: SPCC t:1.2 mm | | Color | Black (RAL9011) | | Load Capacity | 2200 lb (997 kg) | | Depth | Supported Chassis Depth: 27.5" (698.5 mm) and under | | Internal Dimensions | Width: Post-to-post: 17.75" (450 mm)
Hole-to-hole: 18.5" (469 mm)
Height: 64.25" (1631 mm)

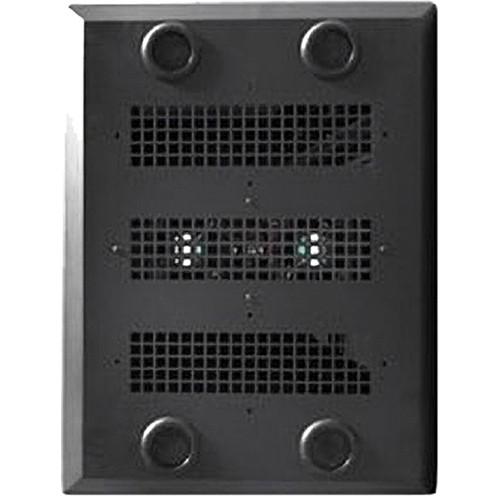

Depth: 26.5" (673 mm) | | Cooling | Up to 3 sets of 4.72" (120 mm) 120V AC fans can be installed on the top (p/n: WA-SF120-2FAN), pre-installed 1 set | | Dimensions (W x H x D) | 23.50 x 71.75 x 31.50" (597.00 x 1822.00 x 800.00 mm) | | Weight | 180 lb (81 kg) | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 245.0 x 77.0 x 33.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
