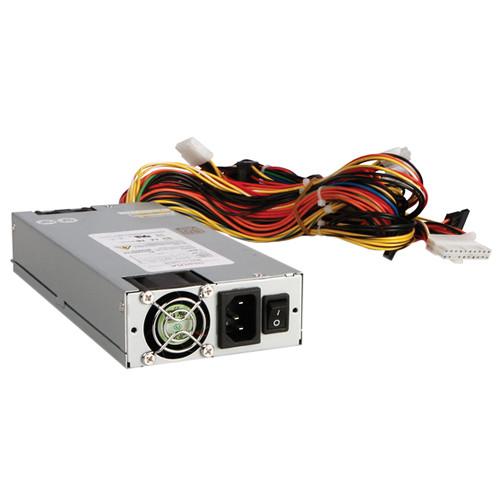

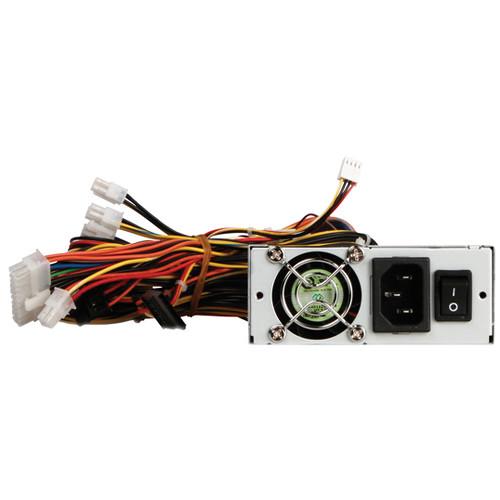

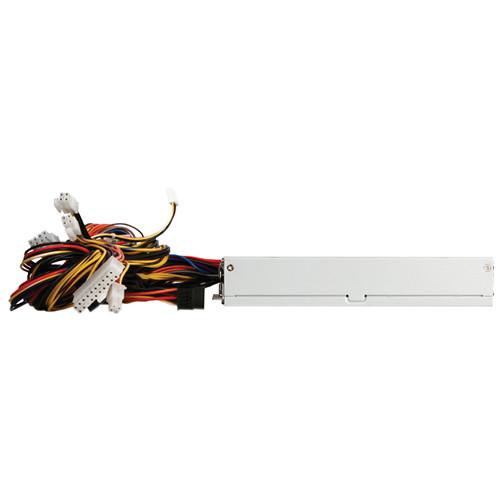

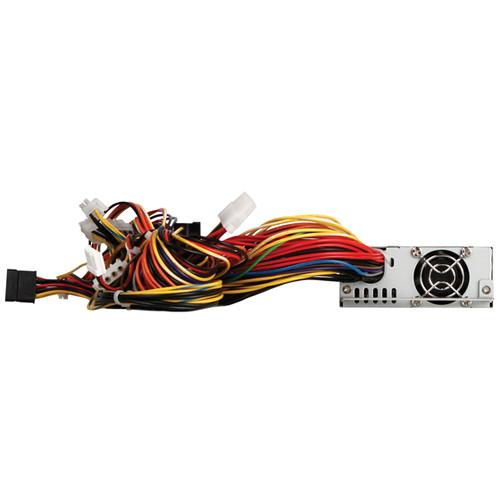

Product description The iStarUSA TC Series 1U 80 Plus Switching Power Supply (700W) is designed to suitably fit into your 1U rackmount chassis. It features thermal fan speed control, triple circuit protections, and Active PFC (Power Factor Correction). The TC-1U70PD8 is a compact and versatile 1U power supply. - 80 plus high efficiency and reliability
- Short circuits protection
- 100% Hi-pot, ATE, and burn-in tested
- Complies with ATX12V /EPS12V standard
- 100,000 hours of continuous operation at 25°, maximum output load, and nominal AC input voltage
UPC: 846813011020 In the Box iStarUSA TC Series 1U 80 Plus Switching Power Supply (700W) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA TC Series 1U 80 Plus Switching Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA TC-1U70PD8 Specs | Output Wattage | 700 W | | Connector Type | Main Connector: 20+4-pin
4-Pin 12 V: 1
8-Pin EPS 12 V: 1
6+2-Pin PCIE: 1
Molex: 5
SATA: 6
Floppy: 1 | | Output | At 12 V:
Maximum Load: 0.5 A
Normal Load: 7.5 A
Maximum Load: 16 A
Load Reg.: ±5%
Ripple & Noise: 120 mVpp | | Temperature | Operating Range: 32 to 122°F (0 to 50°C)
Storage Range: -4 to 176°F (-20 to 80°C) | | Humidity | Operating: 5 to 85% RH, non-condensing
Storage: 5 to 95% RH, non-condensing | | Shock | Storage: -40 G 11 ms half since wave pulse in both directions on three mutually perpendicular axes
Operating: -10 G 11 ms half since wave pulse in both directions on three mutually perpendicular axes | | Dimensions (W x H x D) | 3.94 x 1.59 x 8.66" (100.10 x 40.40 x 220.00 mm) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 6.0" |
