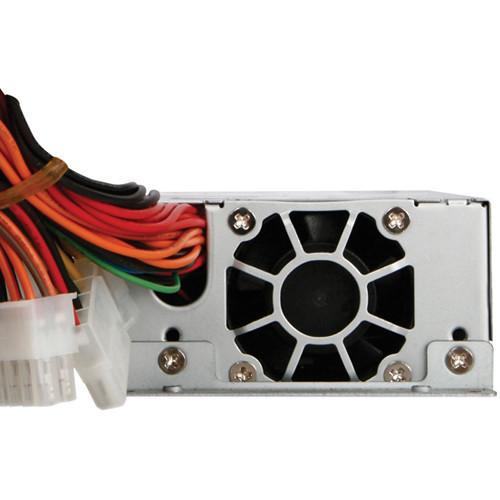

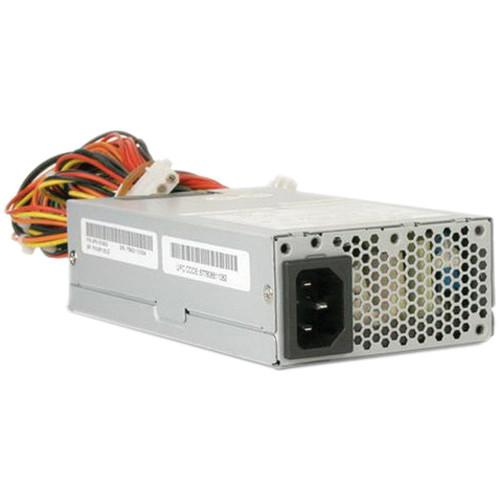

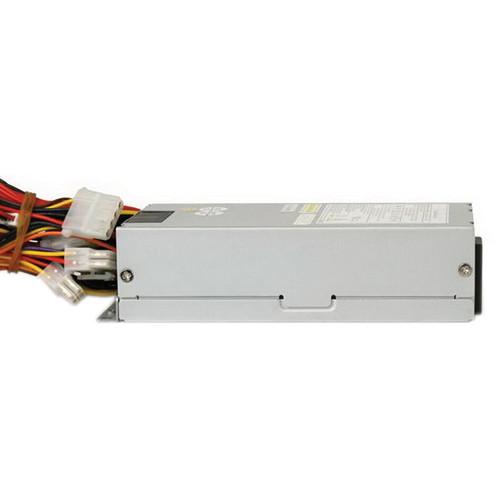

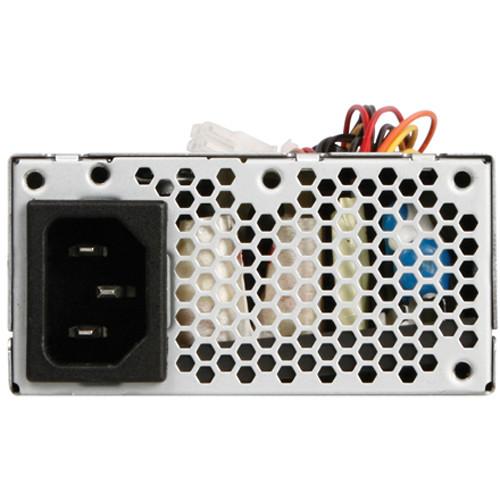

User Manual for iStarUSA TC Series Zeal 1U Flex ATX Power Supply Click to enlarge the picture
Contents of the user manual for the iStarUSA TC Series Zeal 1U Flex
- Product category: Server Power Supplies iStarUSA
- Brand: iStarUSA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iStarUSA Server Power Supplies
 |
User manual for the iStarUSA TC Series Zeal 1U Flex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iStarUSA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!
|
Product description The iStarUSA TC Series Zeal 1U Flex ATX Power Supply (150W) is designed to suitably fit into your 1U rackmount chassis. It features low noise, triple circuit protections, and active PFC. The industrial-graded TC-1U15FX1 is a compact and versatile 1U power supply. - Complies with Flex ATX and ATX12V standard
- Active PFC (power factor correction) meet EN61000-3-2
- Compatible with European Union Directive 2002/95/EC (RoHS)
- Output over voltage, short circuit, and over current protection
- 100% Hi-pot, ATE, and burn-in tested
- 100,000 hours of continuous operation at 25°, maximum output load, and nominal AC input voltage
UPC: 677808611235 In the Box iStarUSA TC Series Zeal 1U Flex ATX Power Supply (150W) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA TC Series Zeal 1U Flex ATX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA TC-1U15FX1 Specs | Compatible Chassis | D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis
D-118V2-ITX-DT 1U Compact Server/Desktop mini-ITX Chassis
S-21 Compact Stylish Mini-ITX Enclosure
D-218M2-ITX 2U Compact Dual Mini-ITX Rackmount Chassis
D-300S5 3U Compact Stylish Rackmount Chassis
D-118V2-ITX-WB 1U Compact Rackmount mini-ITX Chassis with wood front bezel
D-118V2-ITX-WB-DT 1U Compact mini-ITX Desktop Chassis with wood front bezel
S-40 Compact Stylish Mini-ITX Enclosure
S-35
D-A120T-ITX 1U 2x 3.5" Bay Tool-less Hot swap ITX Chassis
S-35-DE4 Compact Stylish 4x 3.5" Hotswap Trayless mini-ITX Tower
S-35-DE5 Compact Stylish 5x 3.5" Hotswap Trayless mini-ITX Tower
S-35-B4SA Compact Stylish 4x 3.5" Hotswap mini-ITX Tower
S-35-B5SA Compact Stylish 5x 3.5" Hotswap mini-ITX Tower
S-35-3M1 Compact Stylish 3x 3.5" Hotswap mini-ITX Tower
S-35-3DE1 Compact Stylish 3x 3.5" Hotswap Trayless mini-ITX Tower | | Output Wattage | 150 W | | Connector Type | Main Connector: 20+4-pin
4-Pin 12 V: 1
Molex: 3
SATA: 2
Floppy: 1 | | Output | At 12 V:
Nominal Regulation: ±5%
Ripple Noise: 120 mV
Minimum: 1.0 A
Maximum: 10.0 A | | Temperature | Operating Range: 32 to 122°F (0 to 50°C)
Storage Range: -4 to 176°F (-20 to 80°C) | | Humidity | Operating: 85% RH, non-condensing
Storage: 95% RH, non-condensing | | Shock | Storage: -40 G 11 ms half since wave pulse in both directions on three mutually perpendicular axes
Operating: -10 G 11 ms half since wave pulse in both directions on three mutually perpendicular axes | | Dimensions (W x H x D) | 3.20 x 1.60 x 5.90" (81.30 x 40.60 x 149.90 mm) | | | | Package Weight | 2.065 lb | | Box Dimensions (LxWxH) | 13.65 x 4.2 x 4.0" |
