Product description - Product Introduction: WS Series

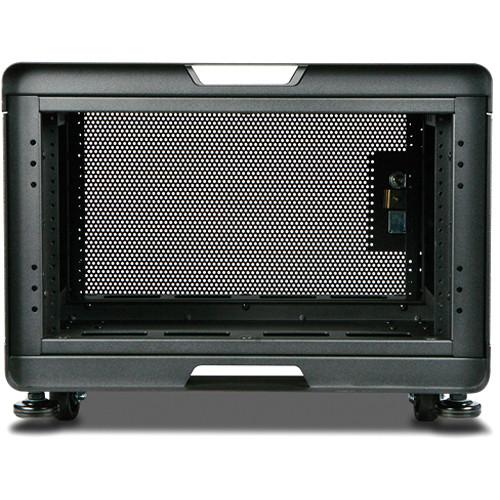

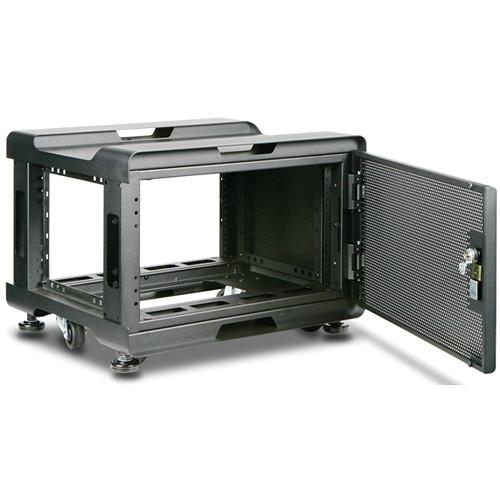

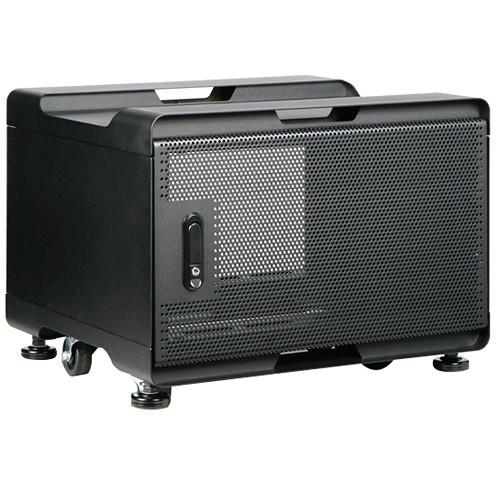

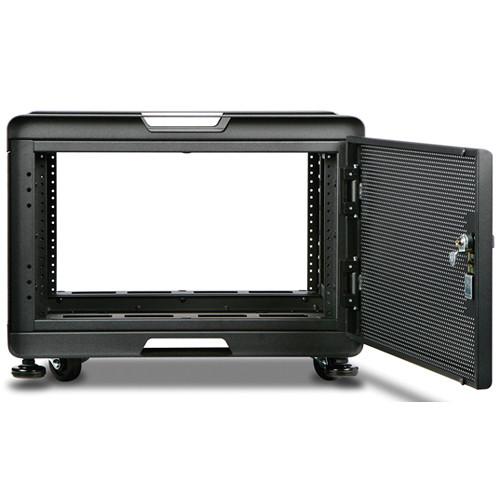

The WS-650B 9U 500mm Depth Audio/Video Rackmount Cabinet from iStarUSA is designed for office, small or medium businesses, and professional studio environments such as movie animation and music production. The 9U space supports a combination of standard rackmount equipment in a compact form factor, offering ease of maintenance and flexibility for different IT applications. The compact cabinet is built with a steel structure and vented doors. The front and rear doors are fully lockable to help prevent unauthorized access. This secure 19" rackmount cabinet is designed to store your equipment in a safe and easy way. -

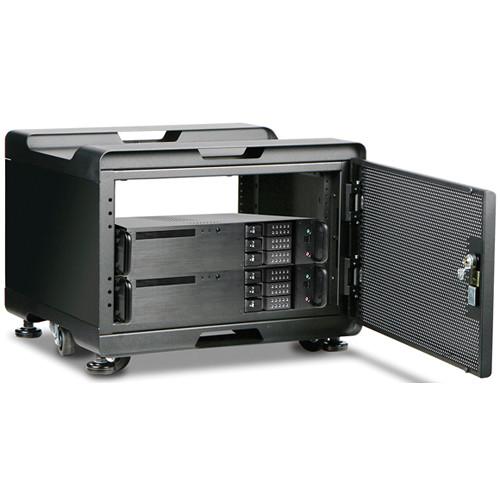

- Near-universal fit, accommodates most rackmount chassis and equipment
- Front security locks help prevent unauthorized access to equipment and data
- Horizontal, adjustable rails ensure an optimal fit of rackmount chassis
- Vented doors provide maximal airflow

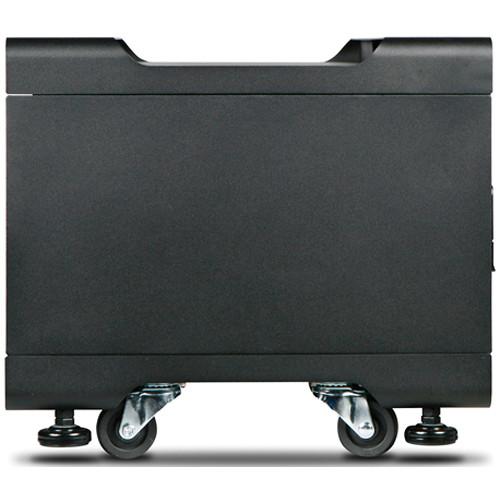

- Removable side panels for easy access
- Tapped mounting holes (M5 size) for audio and video equipment

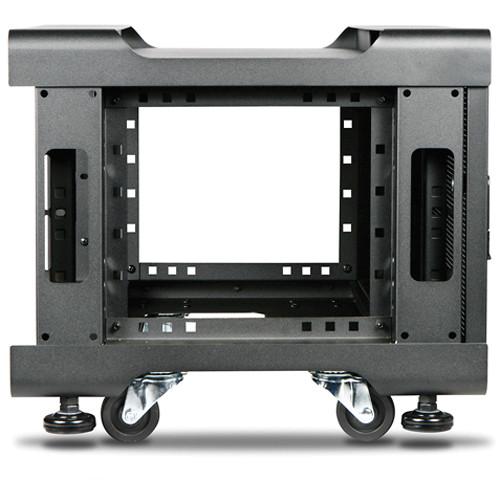

- Equiped with casters and feet
- Comes with M5 mounting screws and cage nuts
UPC: 846813024969 In the Box iStarUSA WS-650B 9U 500mm Depth Audio/Video Rackmount Cabinet Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iStarUSA WS-650B 9U 500mm Depth Audio Video Rackmount Cabinet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiStarUSA WS-650B Specs | Rack Units | 9U | | Material | Main Frame: SPCC t1.6
Mounting Rails: SPCC t2.0
Top and Bottom frame: SPCC T1.6 to 2.0
Side Panel: Aluminum t2.0
Vented Door: SPCC t1.2
| | Color | Black (RAL9011) | | Load Capacity | 660 lb (299 kg) | | Supported Chassis Depth | 14.5" (36.8 cm) and under | | Dimensions | External: 22.40 x 17.10 x 19.70" (569 x 434 x 500 mm)
Internal Depth: 14.5" (36.8 cm) max | | Compliance | RoHS | | Weight | 77 lb (34.9 kg) | | | | Package Weight | 77.0 lb | | Box Dimensions (LxWxH) | 23.0 x 23.0 x 21.0" | Note: - mounting rails need to be adjusted inward if chassis handles are more than 0.8", then the internal maximum depth from post-to-post is 12".
- a rear door is optional and can be purchased separately.
- HTS code: 8473.30.5100 (ECCN is not applicable).
