User Manual for Istorage 1TB diskAshur2 USB 3.1 Encrypted Portable HDD Click to enlarge the picture
Contents of the user manual for the Istorage 1TB diskAshur2 USB 3.1 Encrypted
- Product category: External Drives Istorage
- Brand: Istorage
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Istorage External Drives
|
User manual for the Istorage 1TB diskAshur2 USB 3.1 Encrypted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Istorage product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Istorage user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Istorage product will considerably shorten its lifespan!
|

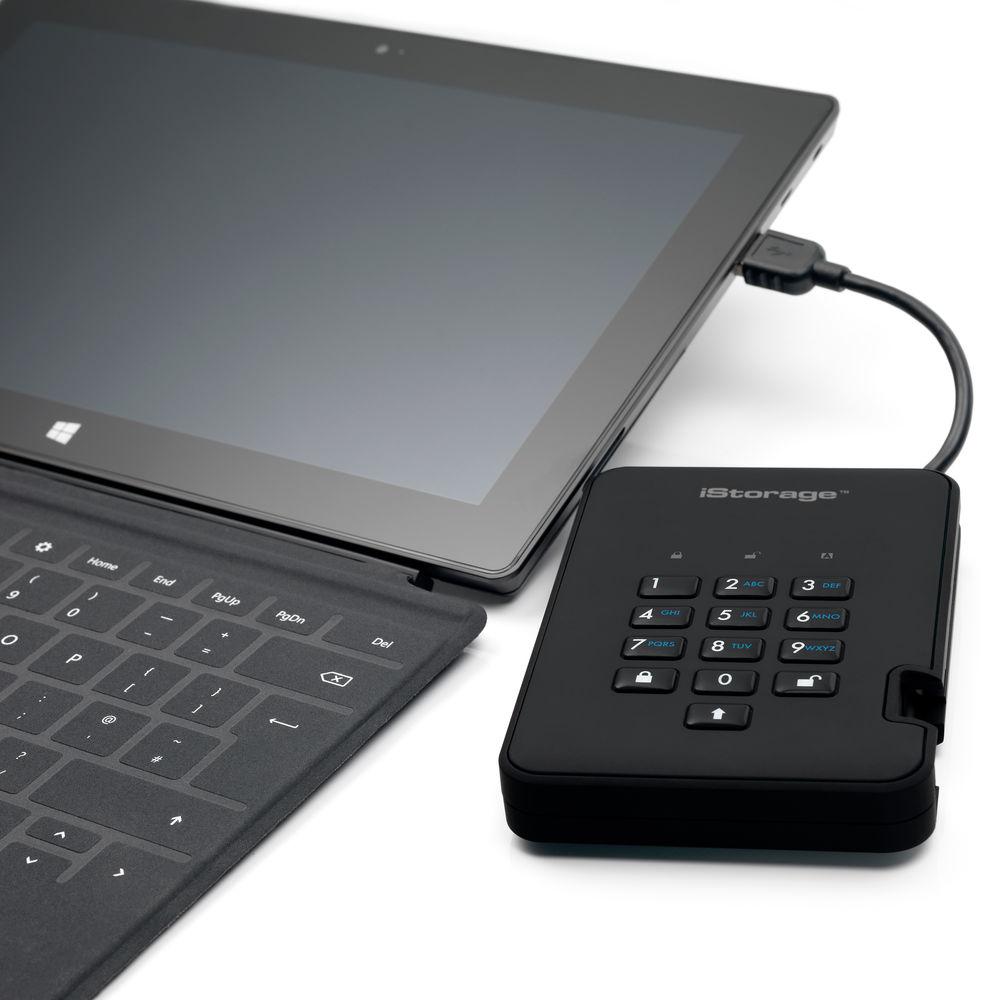

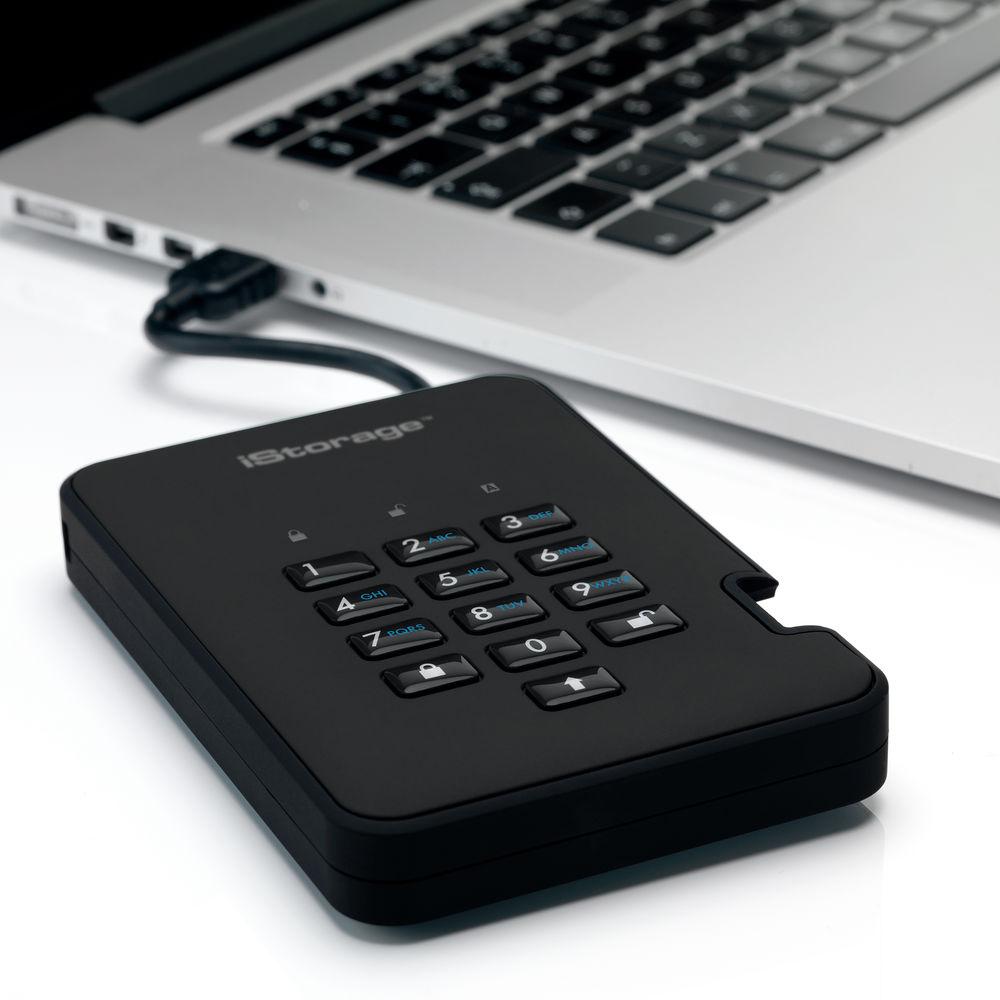

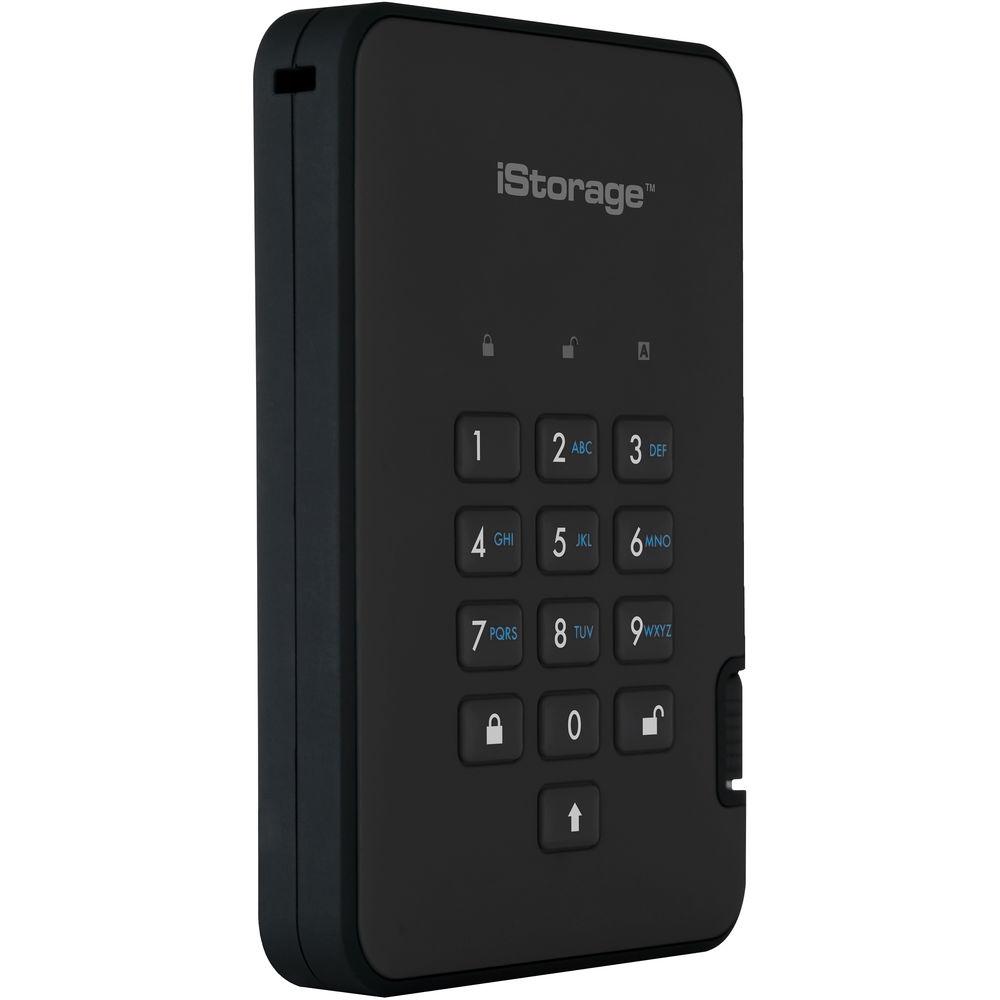

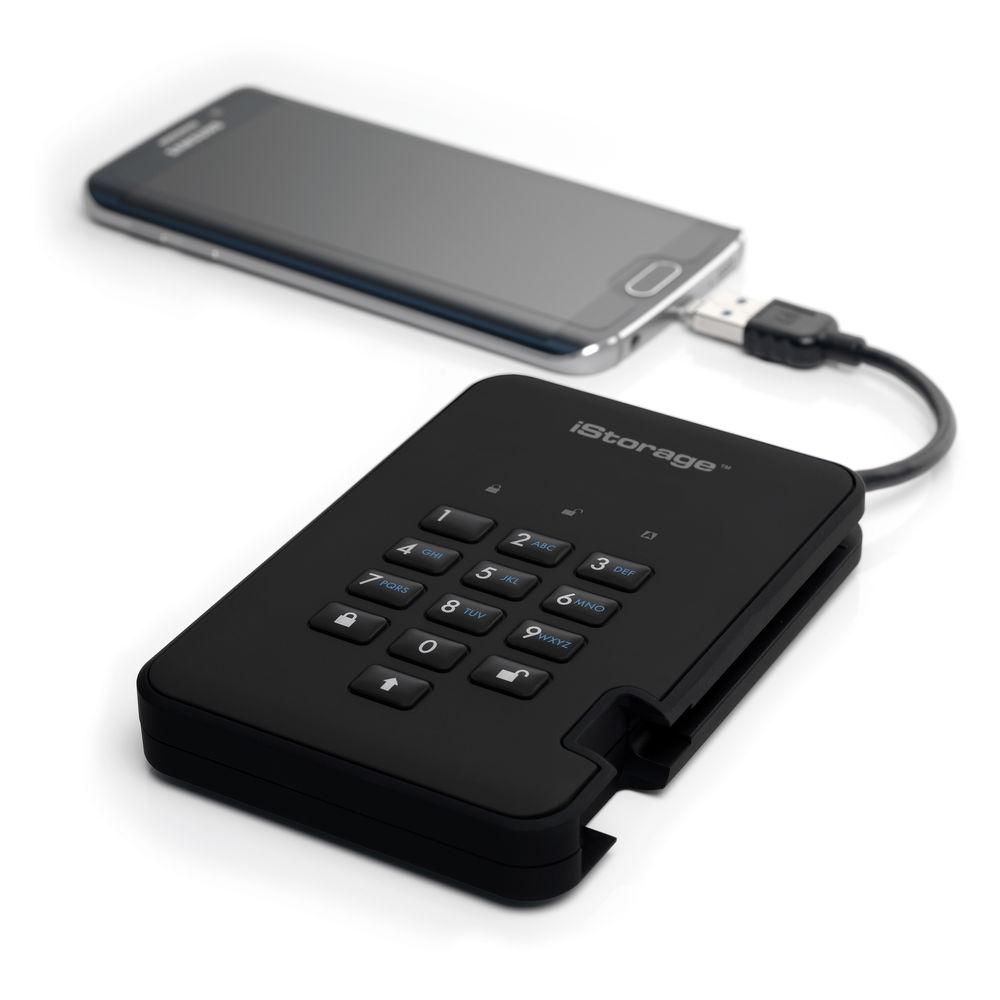

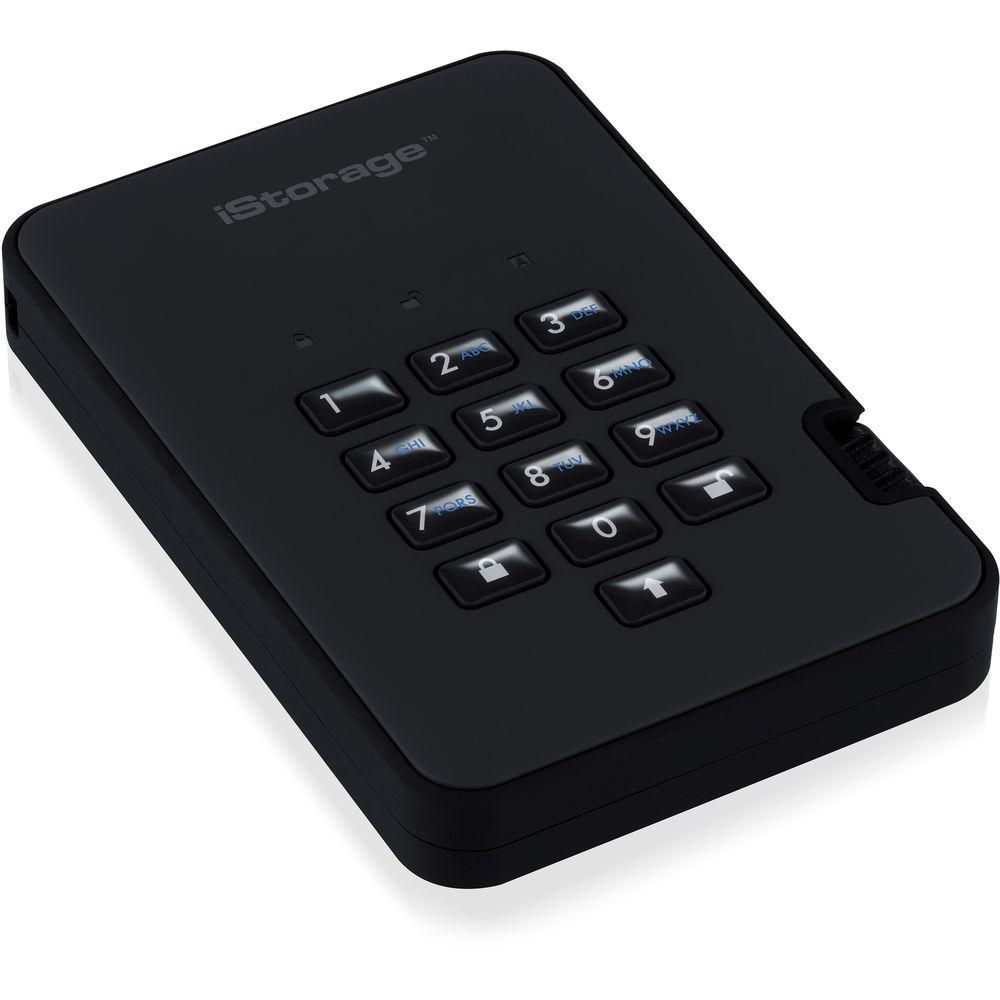

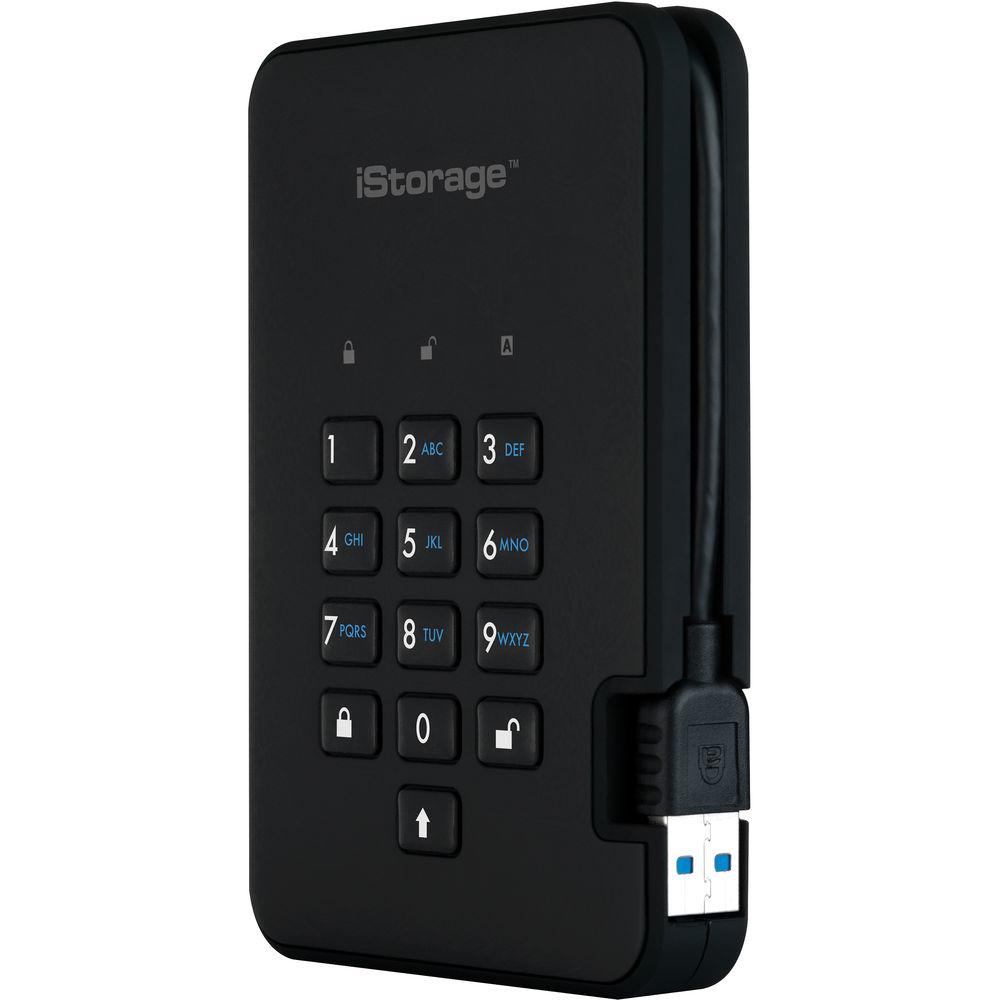

Product description NAB 2019: G-Tech, SanDisk, and WD Show Off Latest Storage Solutions Read More Guard your sensitive data from prying eyes with the phantom-black 1TB diskAshur2 USB 3.1 Encrypted Portable HDD from Istorage. Featuring real-time AES-XTS 256-bit hardware encryption and PIN authentication, this portable USB 3.1 HDD keeps personal and corporate data safe while offering fast read and write speeds of up to 148 and 140 MB/s respectively. The diskAshur2 HDD's easy-to-use keypad enables you to securely access your data with your own unique 7- to 15-digit PIN.
One of the underlying security features of the GDPR-compliant diskAshur2 HDD is its dedicated hardware-based secure microprocessor (Common Criteria EAL4+ ready), which employs built-in physical protection mechanisms to defend against external tamper, bypass attacks, and more. The diskAshur2 HDD renders automated attacks useless by entering the deadlock frozen state. With software-free setup and operation, the diskAshur2 HDD is platform/device independent and works across all operating systems including all versions of Windows, macOS, Linux, Android, Chrome, Thin Clients, Zero Clients, and embedded systems. - Water and dust resistant, IP56 rated
- No speed degradation—as fast as non-encrypted USB 3.1 HDDs
- No software or drivers required—100% hardware encryption
- Read-only (write protect) and read/write modes
- Super-speed USB 3.1 interface with integrated cable
- Unattended auto-lock feature
- OS and platform independent—works on any device with a USB port
- Layer of super-tough epoxy resin over all components
- EDGE (Enhanced Dual Generating Encryption) Technology
- The diskAshur2 HDD offers advanced portable data security via a built-in FIPS PUB 197 validated AES-XTS 256-bit hardware encryption engine. The data encryption key is randomly generated by a Common Criteria EAL4+ ready random number generator and protected by FIPS validated wrapping algorithms. A dedicated onboard Common Criteria EAL4+ ready microprocessor enhances security through true random number generation and built-in cryptography. Active-shield technology and physical mechanisms protect the drive from external tamper, bypass laser attacks, and fault injections.
The diskAshur2 HDD's microprocessor reacts to all forms of automated hacking attempts by entering the deadlock frozen state where the device can only restart through a power-on reset procedure. The security lock feature protects the device against any unauthorized firmware modifications from the host side (fully protected against BadUSB). The microprocessor uses algorithms to encrypt both the data and the encryption key, giving you the peace of mind of knowing that your data is protected at any given time. - FIPS PUB 197 Validated Encryption Algorithm
- Employing AES-XTS 256-bit hardware encryption, the diskAshur2 HDD seamlessly encrypts all data on the drive in real time, keeping your data safe even if the drive is removed from its enclosure.
- USB 3.1 Fast Transfer
- With USB 3.1 data transfer speeds of 148 MB/s (read) and 140 MB/s (write), the drive gives you fast access to your files. The diskAshur2 HDD is also backward compatible with USB 2.0 and 1.1 ports.
- Brute Force Hack Defense Mechanism
- The diskAshur2 HDD is intelligently programmed to protect against all forms of brute force attacks. After five consecutive incorrect PIN entries the drive freezes, requiring the drive to be disconnected and reconnected to the USB port to get five further PIN entry attempts. If five further consecutive incorrect PIN attempts are entered, the diskAshur2 HDD freezes again. To get five final PIN attempts (15 in total), the "shift" button must be pressed whilst inserting the USB cable into the USB port and then a preset PIN needs to be entered. On the fifteenth consecutive incorrect PIN entry, the diskAshur2 HDD assumes it is being attacked. At this point the drive deletes the encryption key and locks itself, rendering all data previously stored on it lost forever. In such an event the drive can be reset to factory default settings and redeployed.
- Self-Destruct Feature
- You can pre-program the diskAshur2 HDD with your own unique Self Destruct PIN which, once implemented, instantly deletes the encryption key, all PINs, and data, after which a new encryption key is created.
- Drive Reset Feature
- The diskAshur2 HDD also employs a drive reset feature, which can be implemented with a unique command. This clears all PINs and data, and creates a new randomly generated encryption key, enabling the drive to be reset and redeployed as many times as needed.
- Unattended Auto-Lock Feature
- The diskAshur2 HDD can be set to automatically lock after a predetermined length of time.
- Tamper-Proof Design
- In addition to incorporating a secure microprocessor and encrypting the data and the encryption key, the diskAshur2 HDD adds another barrier between your data and a hacker. All the components of the diskAshur2 HDD are completely covered by a layer of super-tough epoxy resin, which is virtually impossible to remove without causing permanent damage to the components. This barrier prevents potential hackers from accessing the drive's critical components.
- Data-at-Rest Protection
- All data and encryption keys are always encrypted while at rest.
- Wear-Resistant Epoxy-Coated Keypad
- The diskAshur2 HDD's wear-resistant epoxy-coated keypad hides key usage to avoid tipping off would-be hackers to commonly used keys.

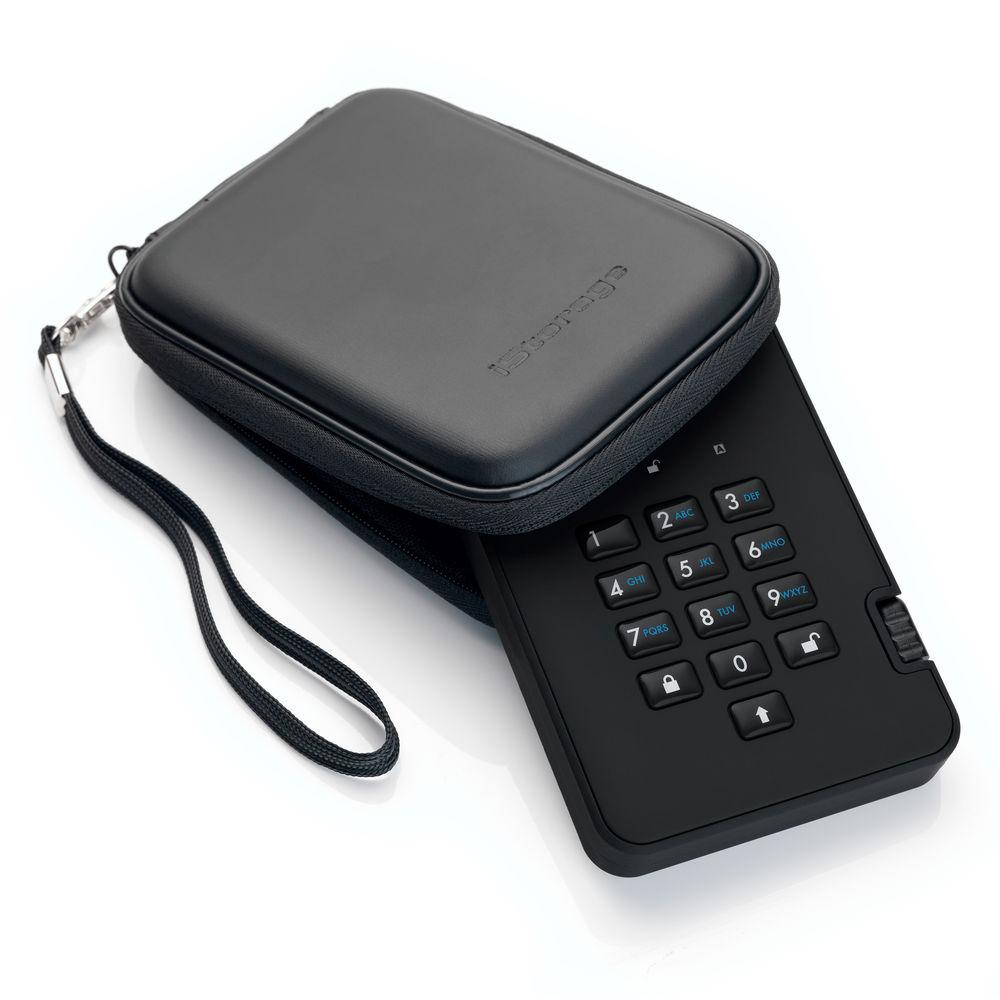

In the Box Istorage 1TB diskAshur2 USB 3.1 Encrypted Portable HDD (Phantom Black) Protective Travel Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Istorage 1TB diskAshur2 USB 3.1 Encrypted Portable HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIstorage IS-DA2-256-1000-B Specs Storage Capacity | 1 TB | Connection Interface | 1 x USB 3.1 Gen 1 (USB Type-A) | Maximum Read Speed | 148 MB/s | Maximum Write Speed | 140 MB/s | Encryption | 256-Bit XTS-AES | | Type | Hard Disk Drive | Rotational Speed | 5400 rpm | | Security Features | Password Protection | Bus Power | USB | IP Rating | IP56 | Dimensions (L x W x H) | 4.9 x 3.3 x 0.8" / 124.0 x 84.0 x 19.0 mm | Weight | 7.6 oz / 216 g |
