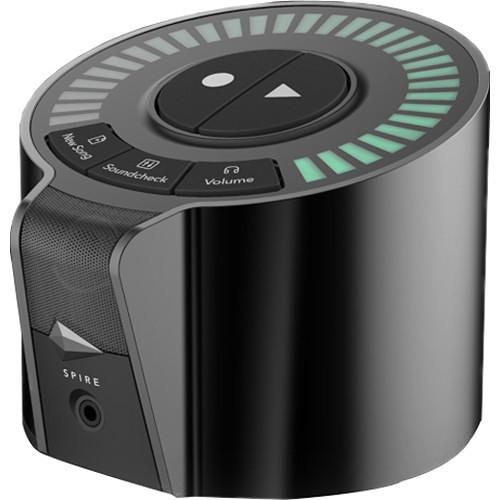

Product description The iZotope Spire Road Warrior Bundle provides several key products for recording and mixing music on the go, all while using iZotope's Spire tabletop wireless digital recorder. First, you get the Spire Studio itself. The Spire's travel bag is also included, so you can carry the Spire around with a measure of protection. Lastly, a pair of closed-back headphones are supplied—the Audio-Technica ATH-M30x, through which you can monitor your recordings and sketch out rough mixes. - Spire Studio Wireless Recorder Designed for singer/songwriters, mobile producers, and more, the iZotope Spire Studio Recorder is a table-top device that aims to help you record and mix with as few wires as possible. It might look like a typical digital assistant, but this unit is capable of recording up to eight tracks, and, with its corresponding Spire app, the unit allows you to mix all eight tracks right within your phone—or export tracks to your favorite DAW for building upon your sketches in the studio.The Spire is Wi-Fi enabled, showing up automatically within your iPhone. If you're using the Android app, the Spire will be found in your Samsung S6 (or later). Once you fire up the corresponding iOS or Andrioid app, configuring the device to record is relatively uncomplicated, thanks to its intuitive interface. Prominent record and playback buttons sit top-center, surrounded by a LED touchscreen that simultaneously displays levels and allows you to navigate through the app. The New Song button automatically opens a new song, while the Soundcheck button calibrates your Spire to receive optimum levels; simply tap the button, begin playing or singing, and the machine will handle the rest. When you record, audio will be beamed over Wi-Fi to your phone without loss in fidelity. Indeed, this device transmits audio at 24-bit/48 kHz, which is sufficient for studio-quality applications. Also, the preamps in the Spire were designed in conjunction with Grace Design, a well-regarded company. Mixing on the app is also a rather intuitive affair, with iZotope algorithms on hand for EQ, reverb, delay, and more to help you manipulate audio into a cohesive sonic picture. A metronome with tap-tempo capability is provided for keeping your tempi straight, while on the mixing side, volume and panning control is a matter of manipulating the X/Y-axis matrix with your finger.You can record through the Spire’s built-in microphone, which provides an omnidirectional capsule. Using processes derived from iZotope’s Ozone platform, signal derived from this microphone can be modified to approximate stereo, if that’s your desire. Two combination jacks on the back provide XLR or 1/4" connections, giving you the ability to plug-in your own microphones or instruments. Connecting an instrument or mic to input 1 will disable the built-in microphone; however, you can plug an instrument into input 2 and still use the built-in microphone to record. Near the combination jacks, you’ll find a push-button switch for sending phantom power to condenser microphones. Two 3.5mm headphone jacks are on hand, so you and a friend can both monitor signal. The unit ships with its own power supply, which charges the built-in battery, which lasts up to four hours at a clip. Note: Please note: You must have a Samsung S6 or later to use the Android app.

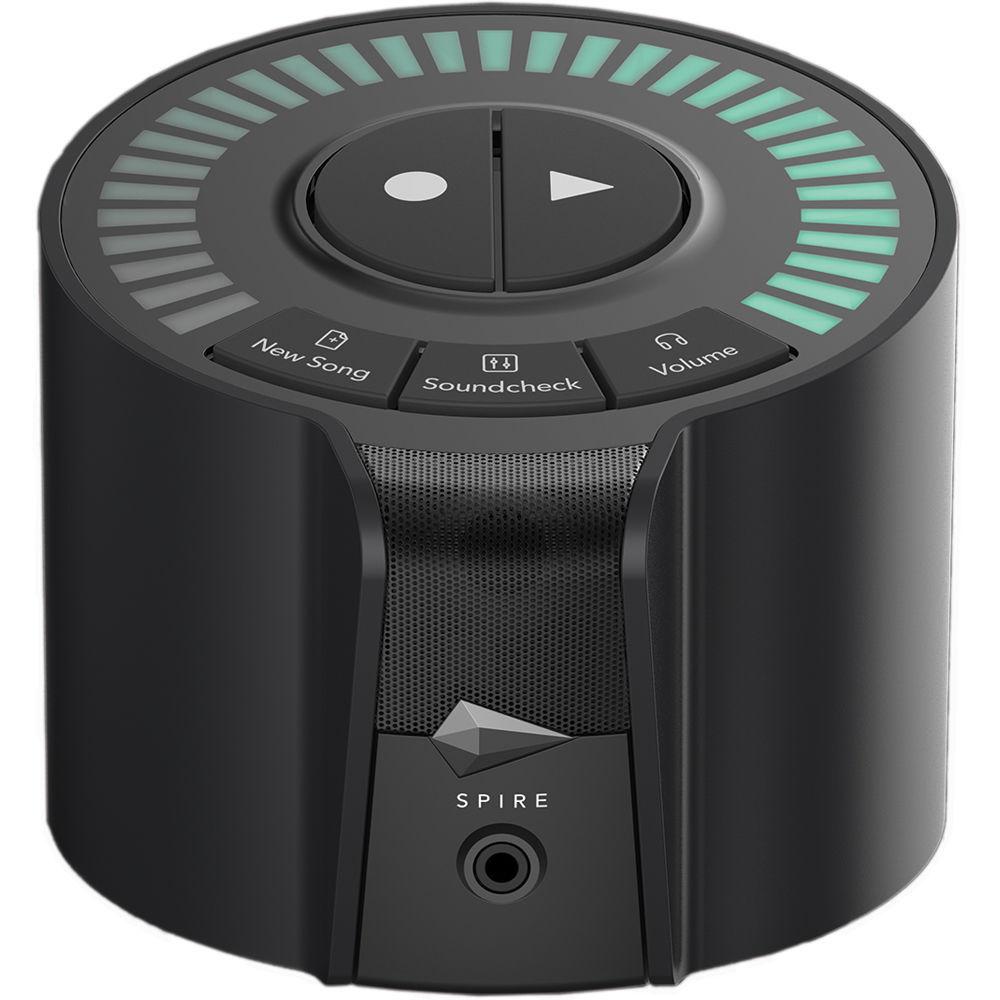

- Controls at a Glance
-
- Record Button: Tap this to record your music
- Play Button: Push this button to playback or pause your music
- New Song Button: This will select a new song within the Spire app
- Soundcheck Button: Tapping this button will automatically set your levels; simply push the button, make some noise, and let the Spire calibrate itself
- Volume Button: This increases the volume of your headphones
- LED Touchscreen: The multifunctional LED touchscreen can be used to monitor recording levels, and also, to navigate through options in your Spire app, once it’s connected

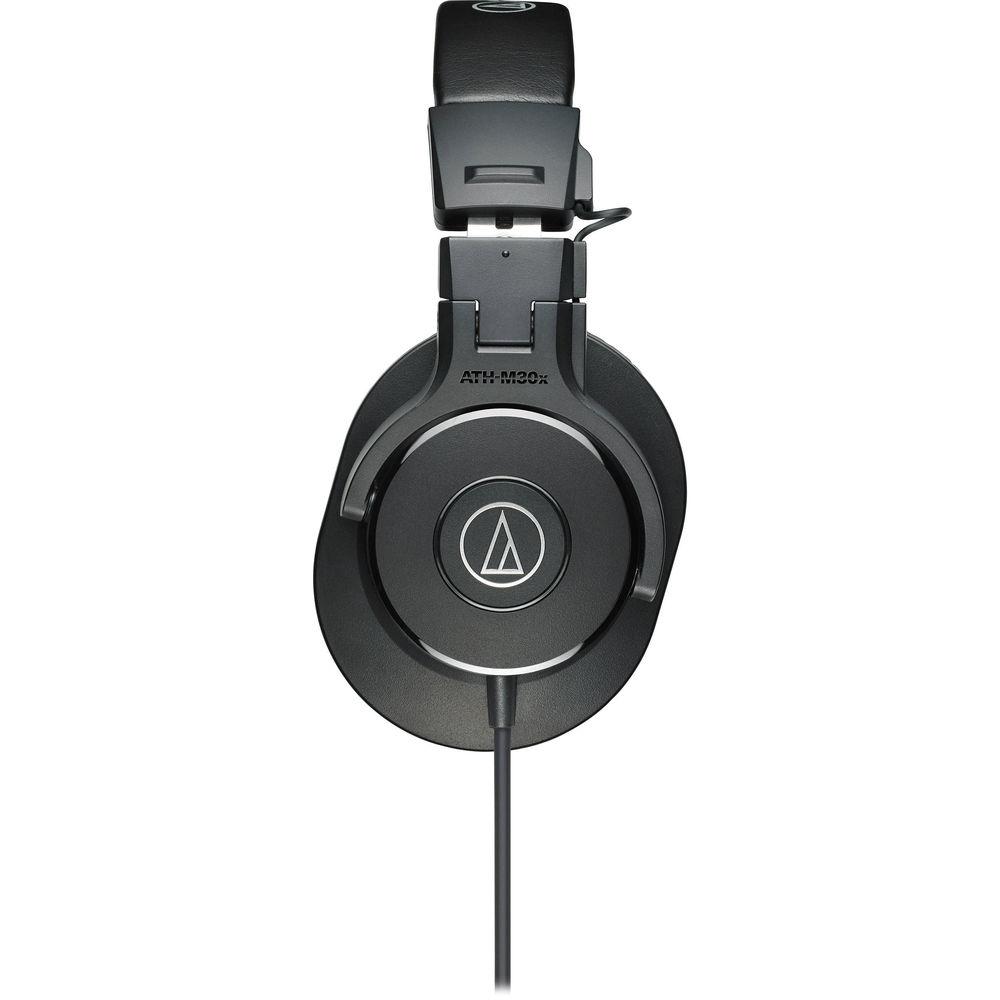

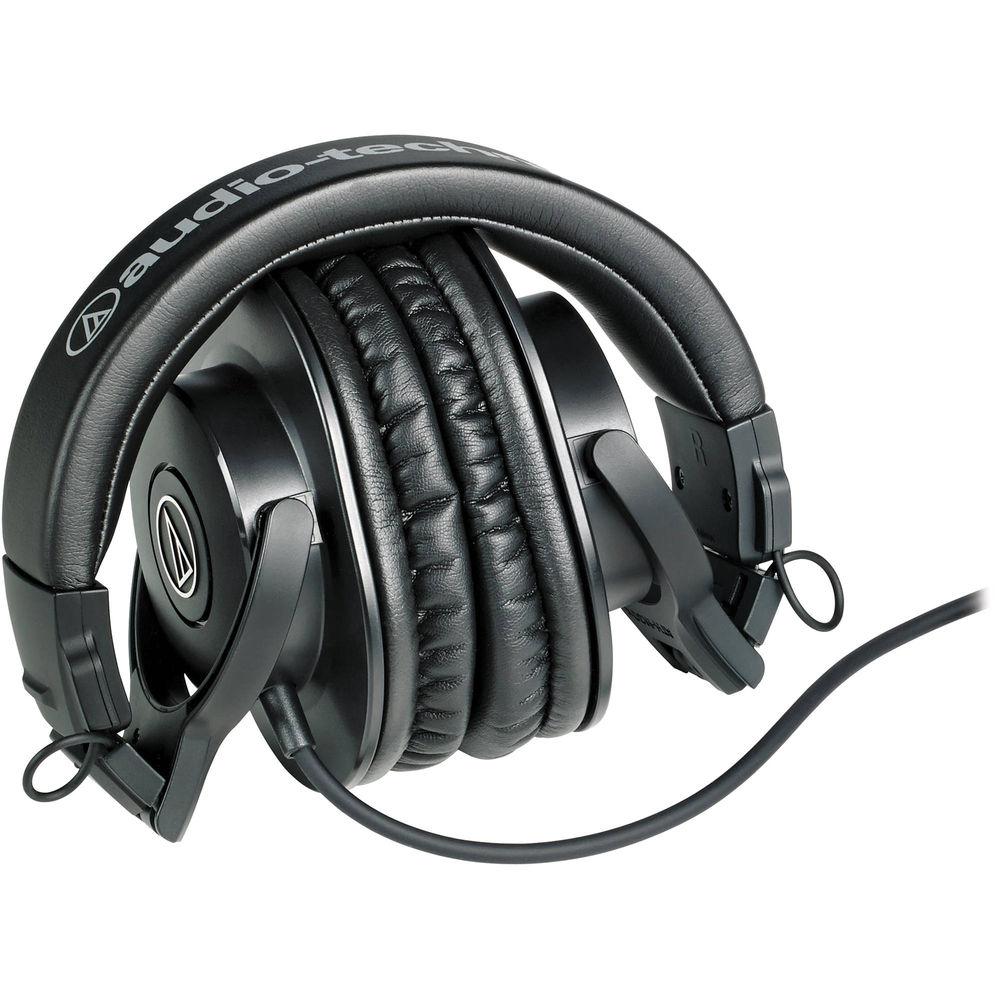

UPC: 040232483455 - ATH-M30x Monitor Headphones (Black) The black ATH-M30x Monitor Headphones from Audio Technica are designed for use in studio tracking, mixing, or field recording applications and feature 40mm Neodymium drivers with copper-clad aluminum voice coils tuned for detailed mid-range definition. The headphones have a circumaural, around-the-ear design that provides sound isolation in loud environments. The ATH-M30xs have a collapsible design that also allows for single-ear monitoring. A 1/4" screw-on adapter and carry pouch are included. UPC: 042005183524

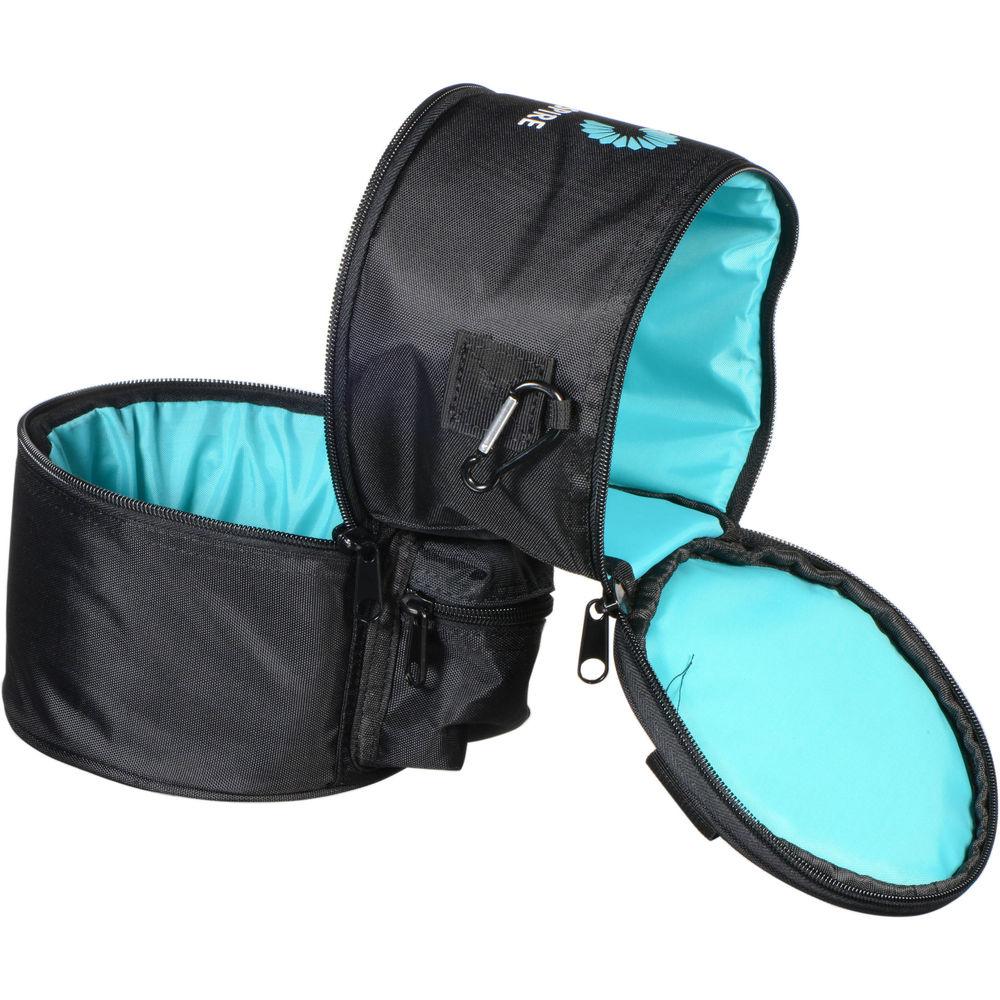

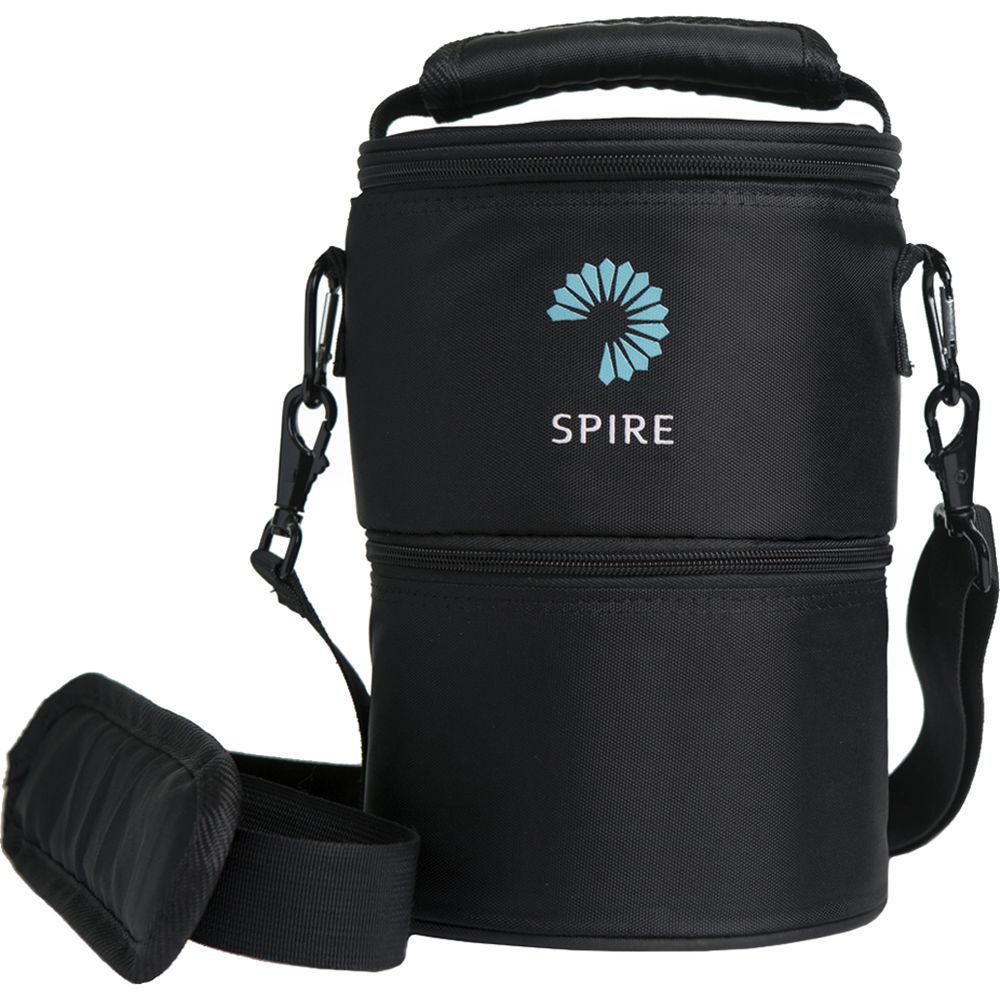

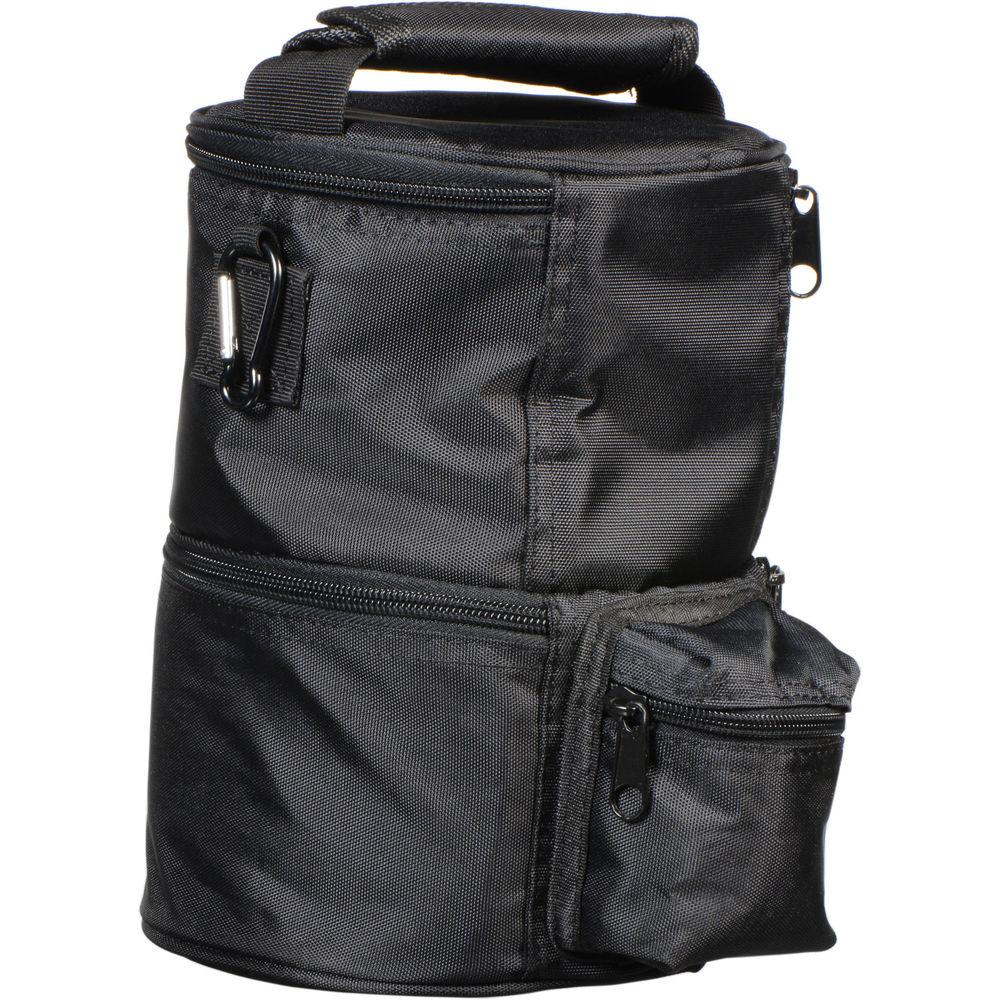

- Spire Studio Travel Bag Relatively lightweight at 1 lb, the iZotope Spire Studio Travel Bag is a rugged, soft carry bag that provides protection for your Spire Studio recorder whenever you need to transport it. It features two compartments—a bottom one for the Spire itself, and a top compartment for headphones, cables, and other ancillary items you might need to carry around with the Spire.
The bag itself is fashioned out of 1200D polyester covered EVA foam exterior. A padded shoulder strap with hook-and-loop fasteners facilitates ease during transportation. Furthermore, the travel bag is water-resistant. UPC: 040232691553 In the Box Bundle Items Spire Studio Wireless Recorder atdxaxfufzawux ATH-M30x Monitor Headphones (Black) Spire Studio Travel Bag
Also Includes - Limited 45-Day Warranty on Carry Bag
- Limited 1-Year Warranty on Spire Studio
- Limited 2-Year Warranty on Headphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the iZotope Spire Road Warrior Bundle with Carry Bag & Audio-Technica ATH-M30x in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Spire Studio Wireless Recorder

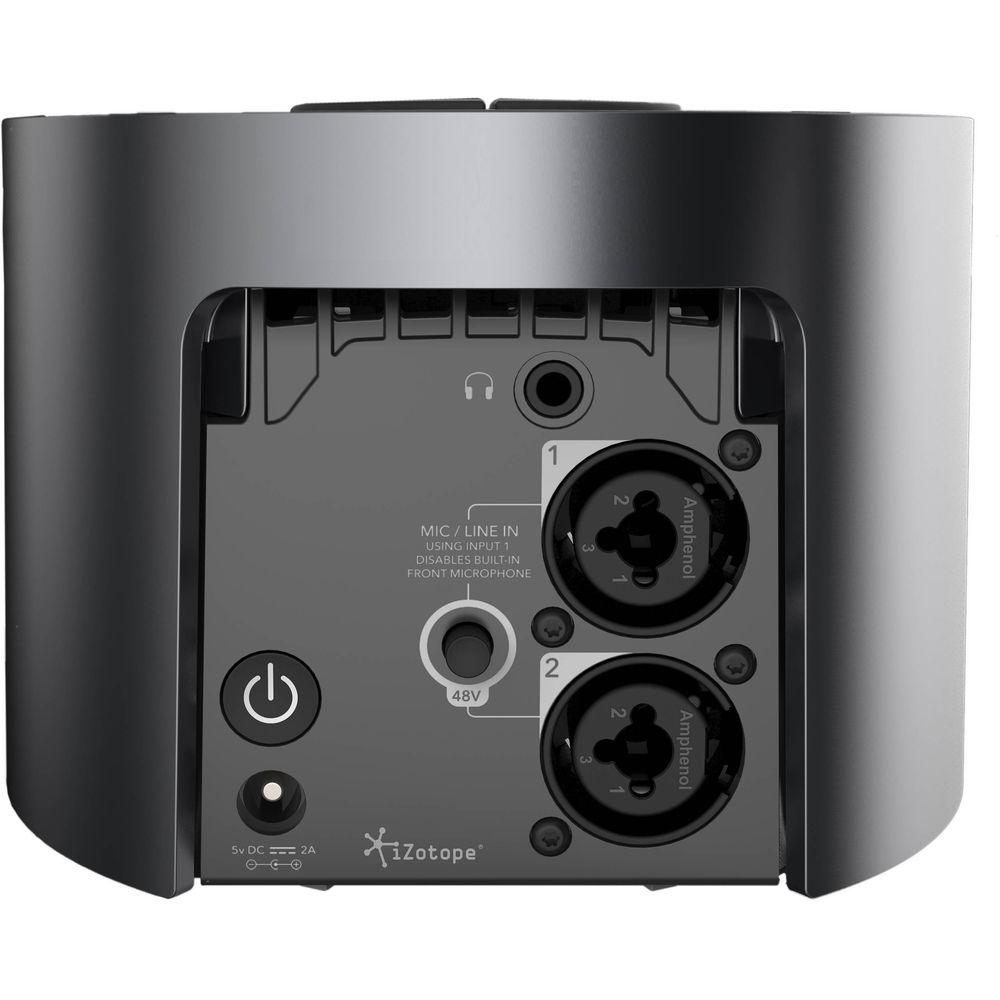

I/O | 1 x Built-in microphone 2 x XLR-1/4" combination inputs (top input disengages built-in mic) 2 x 3.5 mm headphone outputs | Controls | Record button Play button New Song button Soundcheck button Volume button | Bit Depth / Sample Rate | 24-bit / 48 kHz | Wi-Fi Connectivity | 802.11 b/g/n with 2.4 GHz | Phantom Power | 48 V for both combination inputs, available via push-button switch on rear panel | Power | Battery powered Included PSU/charger (5 VDC, 2 A) | Battery | Lithium-ion, rechargeable | Battery Life (approx.) | Up to 4 hours | System Requirements | iOS 10 or later, Android v7 or later with Samsung S6 or later | Dimensions | 4.4 x 3.4 x 4.8" / 11.1 x 8.7 x 12.3 cm | Weight | 1.4 lb / 0.4 kg | | Box Dimensions (LxWxH) | 7.2 x 5.5 x 5.4" | - ATH-M30x Monitor Headphones (Black)
| Driver Size | 1.6" / 40 mm | Magnet Type | Neodymium | Design | Over-Ear (Circumaural) | | Frequency Response | 15 Hz to 22 kHz | Sensitivity | 96 dB | Impedance | 47 Ohms | Maximum Power Handling | 1300 mW | | Audio Connector | 1/8" (3.5 mm) | | Box Dimensions (LxWxH) | 11.4 x 10.4 x 4.1" | - Spire Studio Travel Bag
Construction | Polyester covered EVA foam interior | Dimensions | 6.5 x 8.0 x 9.0" / 16.5 x 20.3 x 22.9 cm | Weight | 1.0 lb / 0.5 kg | | Box Dimensions (LxWxH) | 10.0 x 6.5 x 6.5" |
