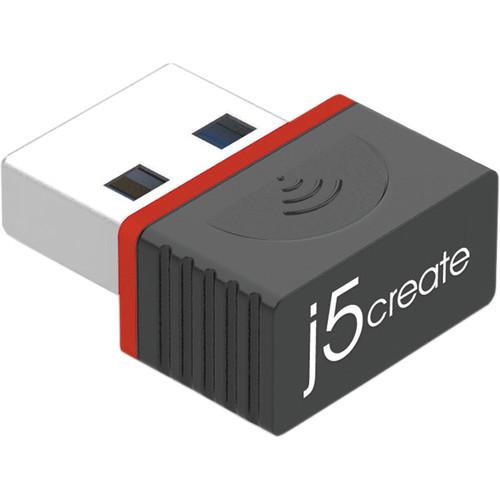

User Manual for j5create JUE301 Wireless 11N USB Mini Adapter Click to enlarge the picture
Contents of the user manual for the j5create JUE301 Wireless 11N USB Mini
- Product category: Wireless Adapters & Cards j5create
- Brand: j5create
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for j5create Wireless Adapters & Cards
 |
User manual for the j5create JUE301 Wireless 11N USB Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any j5create product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official j5create user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a j5create product will considerably shorten its lifespan!
|

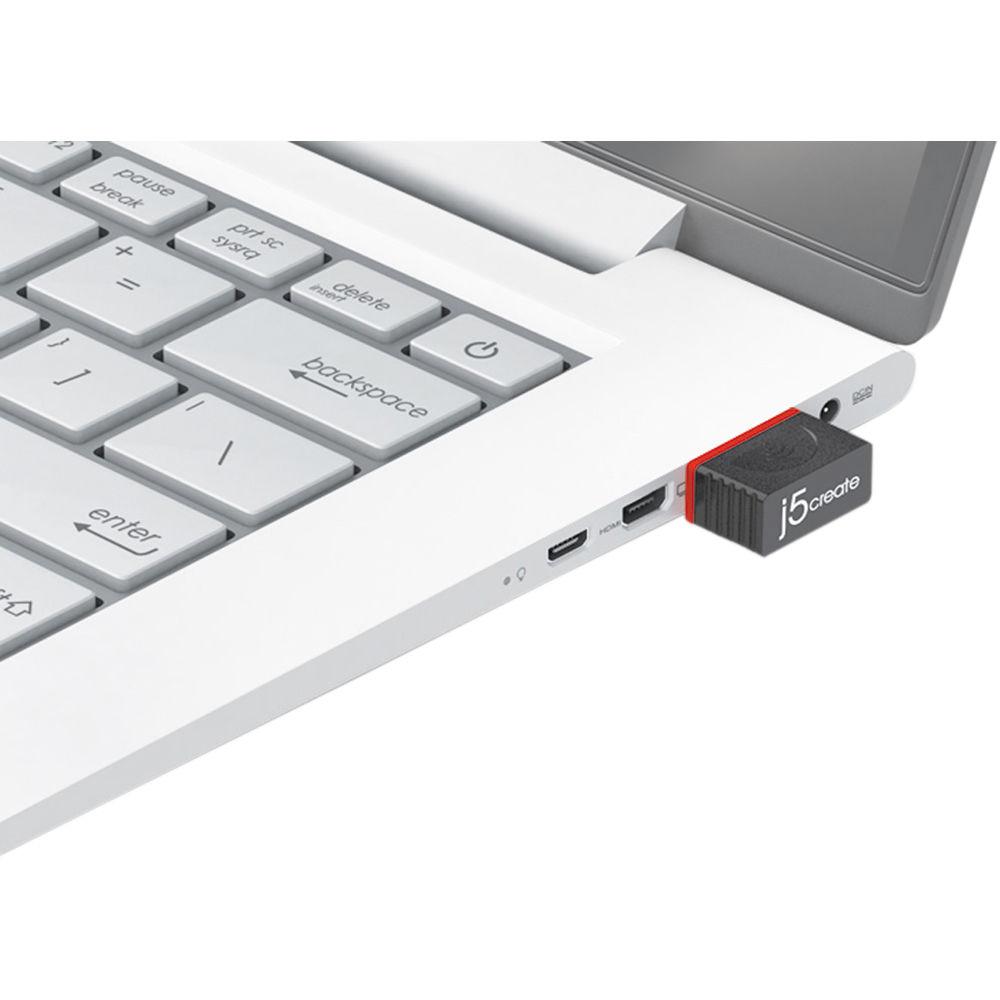

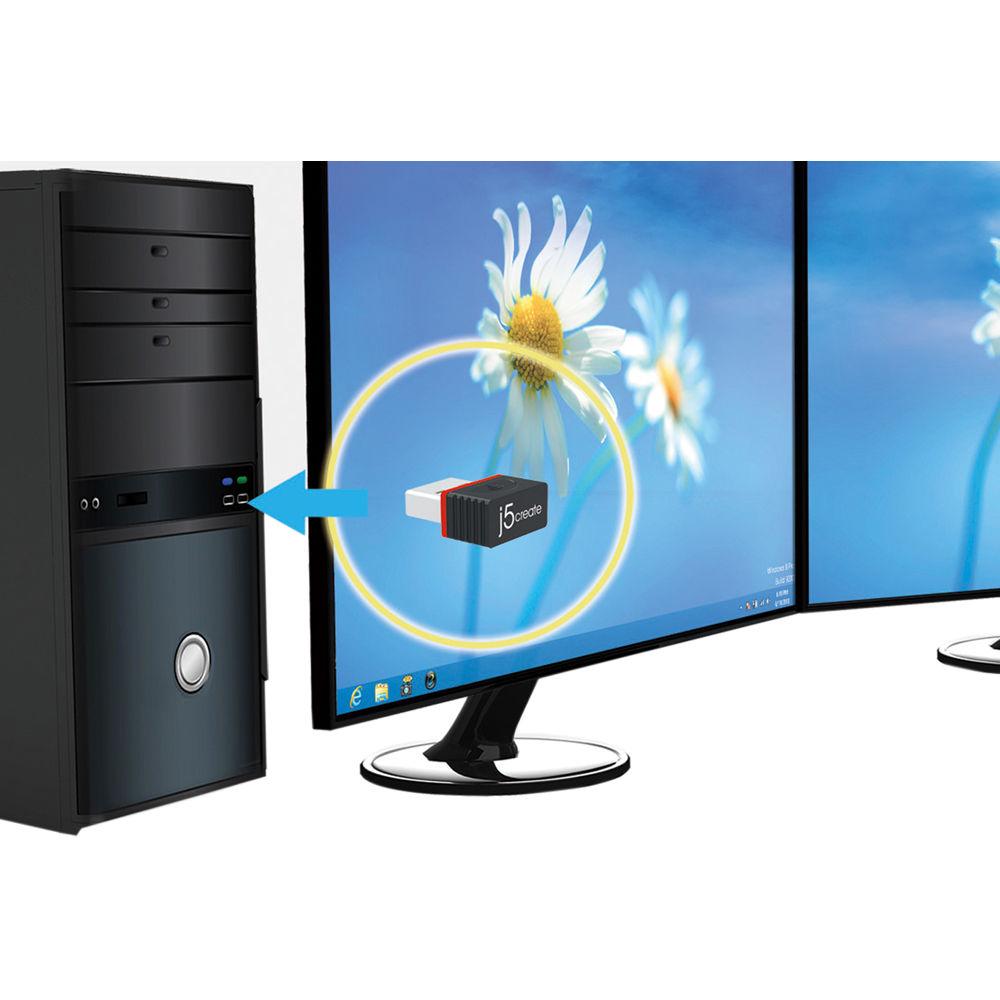

Product description This discrete, bus-powered JUE301 Wireless 11N USB Mini Adapter from j5create makes it easy to connect to a local Wi-Fi connection, and with support for data transfer rates of up to 150 Mbps you can download and transfer files quickly. This adapter comes compatible with 802.11b/g/n Wi-Fi network protocols and operates on the 2.4 GHz frequency. In addition to enhanced wireless connectivity, you can take advantage of WPA, WPA2, and WEP encryption modes to ensure your wireless connection is secure. - Complies with IEEE 802.11n standard and IEEE 802.11g / IEEE 802.11b standards
- 2.4 GHz wireless operating frequency
- Wireless data rates up to 150 Mbps
- WEP 64/128 bit and WPA/WPA2/TKIP/AES encryption mode
- Portable mini adapter built-in PIFA antenna
- Connects directly to a USB port; supports USB 2.0
- Supports 20 MHz / 40 MHz bandwidth; multiple BSSID; QoS-WMM, WMM-PS
- One Transmit and one receive path (1T1R)
- Auto-sensing and auto-negotiating to determine the connection speed of either 10, 100, or 1000 Mbps
- Supports infrastructure and ad-hoc modes
- Low power with advanced power
UPC: 847626001086 In the Box j5create JUE301 Wireless 11N USB Mini Adapter Driver CD Table of Contents
|
Upload User Manual
Have you got an user manual for the j5create JUE301 Wireless 11N USB Mini Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersj5create JUE301 Specs | Standards | IEEE 802.11n
IEEE 802.11g
IEEE 802.11b | | Interface | USB 2.0 | | Transmission Rate | 11b: 1 / 2 / 5.5 / 11 Mbps
11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
11n: Up to 150 Mbps | | Frequency Range | 2.412 ~ 2.4835 GHz | | Operating Channels | 1 ~ 14 (2.4 GHz) | | Transmit Power | 18 dBm (typical) | | Spectrum System | DSSS | | Modulation | CCK / OFDM / BPSK / QPSK / QAM | | Receiver Sensitivity | 11n: -68 dBm @ 130 M / -68 dBm @ 108 M
11g: -69 dBm @ 54 M
11b: -85 dBm @ 11 M | | Encryption | WPA / WPA2 / WPA-WPA2 / 802.1x
64 / 128 bit WEP encryption
WPS (PIN, PBC) | | Antenna | Built-in PIFA antenna | | Power Mode | Bus-powered | | Housing Material | ABS | | System Requirements | Microsoft Windows 10 / 8.1 / 8 / 7 / Vista / XP (32-bit or 64-bit)
Available USB port
Driver not required for Windows 10 / 8.1
Driver will automatically install on Windows 8 | | Dimensions | 0.9 x 0.6 x 0.3" / 23.0 x 15.8 x 7.8 mm | | Weight | 0.08 oz / 2.5 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.8 x 3.8 x 1.1" |
