User Manual for j5create Mini DisplayPort to Dual DisplayPort Adapter Click to enlarge the picture
Contents of the user manual for the j5create Mini DisplayPort to Dual DisplayPort
- Product category: Computer Monitor Adapters j5create
- Brand: j5create
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for j5create Computer Monitor Adapters
 |
User manual for the j5create Mini DisplayPort to Dual DisplayPort contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any j5create product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official j5create user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a j5create product will considerably shorten its lifespan!
|

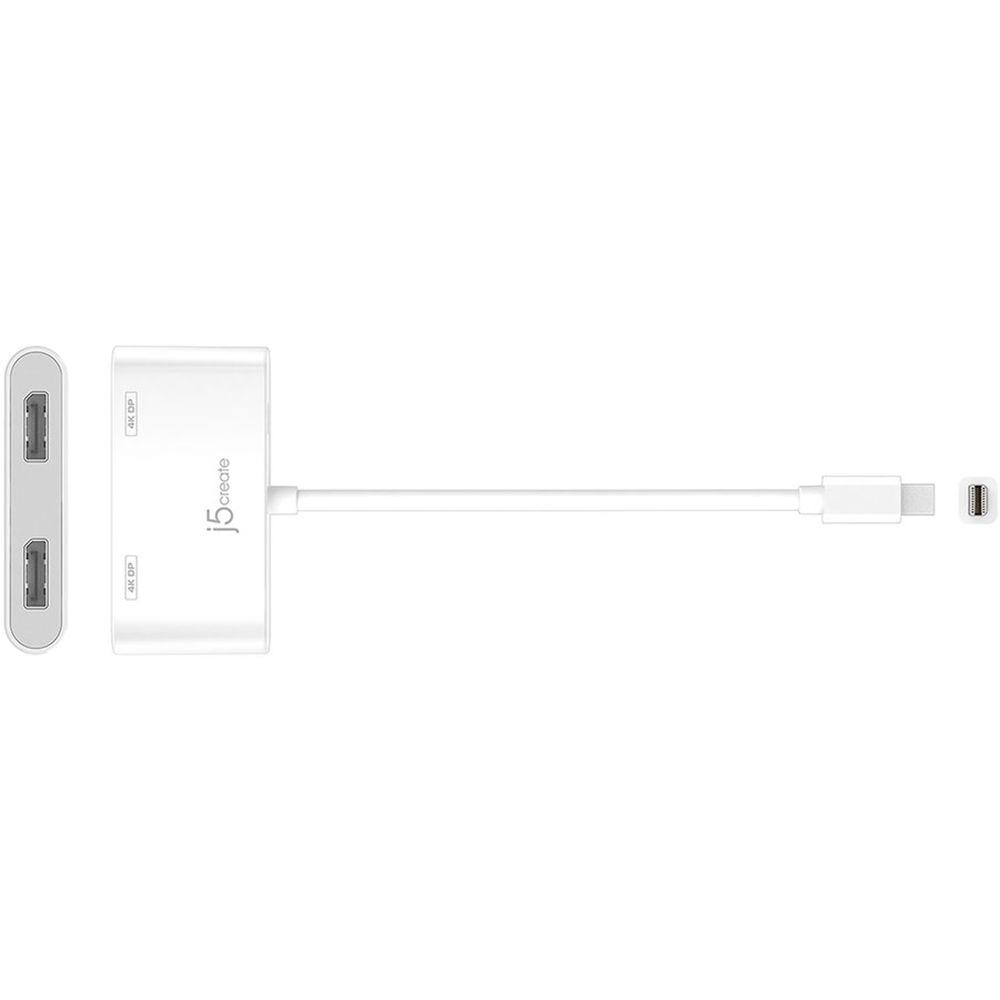

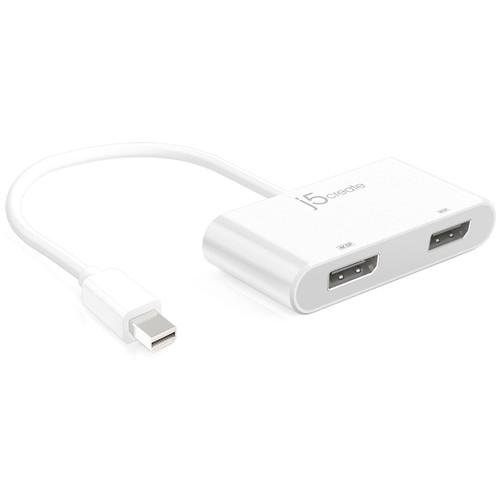

Product description Expand your connectivity options for your Mini DisplayPort-enabled computer with the Mini DisplayPort to Dual DisplayPort Adapter from j5create. This adapter features a tethered Mini DisplayPort cable that's meant to connect to your system's Mini DisplayPort interface. Once connected, the adapter makes it possible to plug in dual DisplayPort displays, which can be configured to work simultaneously with extended mode, expansion mode, or mirror mode. Furthermore, this adapter from j5create supports resolutions up to 4K at 60 Hz to ensure you receive crisp picture quality. A 7.8" micro-USB to USB Type-A cable is also included to power the adapter. System Requirements - Dedicated graphics with DisplayPort 1.2 or later, Multi-Stream Transport technology, and High Bit Rate 2
- Requires an external USB power source
- Extended dual HDMI supported by Windows computers only, while Mac systems support mirror mode only
Compatibility - ASUS N550J
-
- DisplayPort Version: DisplayPort 1.2
- MST: Yes
- Graphics Card: NVIDIA GeForce 750M
- Lenovo ThinkPad Yoga 14 20FY
-
- DisplayPort Version: DisplayPort 1.2
- MST: Yes
- Graphics Card: Intel HD Graphics 620/NVIDIA GeForce 950M
- Microsoft Surface 3
-
- DisplayPort Version: DisplayPort 1.1
- MST: No
- Graphics Card: Intel HD Graphics (Cherry Trail)
- Microsoft Surface Book
-
- DisplayPort Version: DisplayPort 1.2
- MST: Yes
- Graphics Card: Intel HD Graphics 520
- Microsoft Surface Pro
-
- DisplayPort Version: DisplayPort 1.1
- MST: No
- Graphics Card: Intel HD Graphics 4000
- Microsoft Surface Pro 2
-
- DisplayPort Version: DisplayPort 1.2
- MST: Yes
- Graphics Card: Intel HD Graphics 4400
- Microsoft Surface Pro 3
-
- DisplayPort Version: DisplayPort 1.2
- MST: Yes
- Graphics Card: Intel HD Graphics 4200/Intel HD Graphics 4400/Intel HD Graphics 5000
- Microsoft Surface Pro 4
-
- DisplayPort Version: DisplayPort 1.2
- MST: Yes
- Graphics Card: Intel HD Graphics 515/Intel HD Graphics 520/Intel Iris 540
UPC: 847626001864 In the Box j5create Mini DisplayPort to Dual DisplayPort Adapter 7.8" Micro USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the j5create Mini DisplayPort to Dual DisplayPort Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersj5create JDA146 Specs | | | Connector 1 | Mini DisplayPort | | Connector 2 | 2 x DisplayPort 1.2 Female | | | | Maximum Resolution Support | 3840 x 2160 at 60 Hz | | Converter Type | Passive | | Audio Support | Yes | | | | Cable Length | 5.9" / 14.99 cm | | | | Power Source | Power Adapter | | Power Rating | 5 VDC | | | | Material | Plastic | | Dimensions | 3.0 x 1.3 x 0.6" / 7.6 x 3.3 x 1.6 cm | | Weight | 0.1 lb / 42.5 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 1.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
