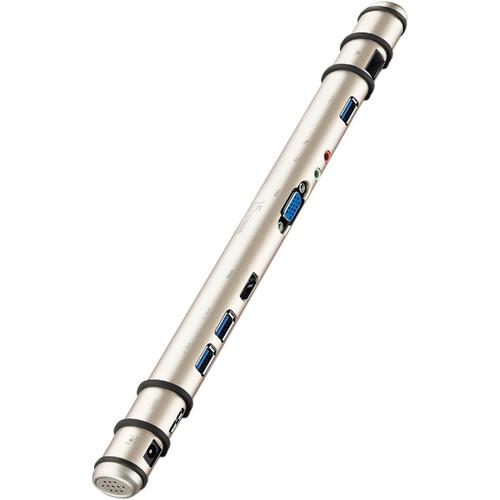

User Manual for j5create Mini Ultra Station Universal USB Dock Click to enlarge the picture
Contents of the user manual for the j5create Mini Ultra Station Universal USB
- Product category: Docking Stations & Port Replicators j5create
- Brand: j5create
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for j5create Docking Stations & Port Replicators
 |
User manual for the j5create Mini Ultra Station Universal USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any j5create product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official j5create user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a j5create product will considerably shorten its lifespan!
|

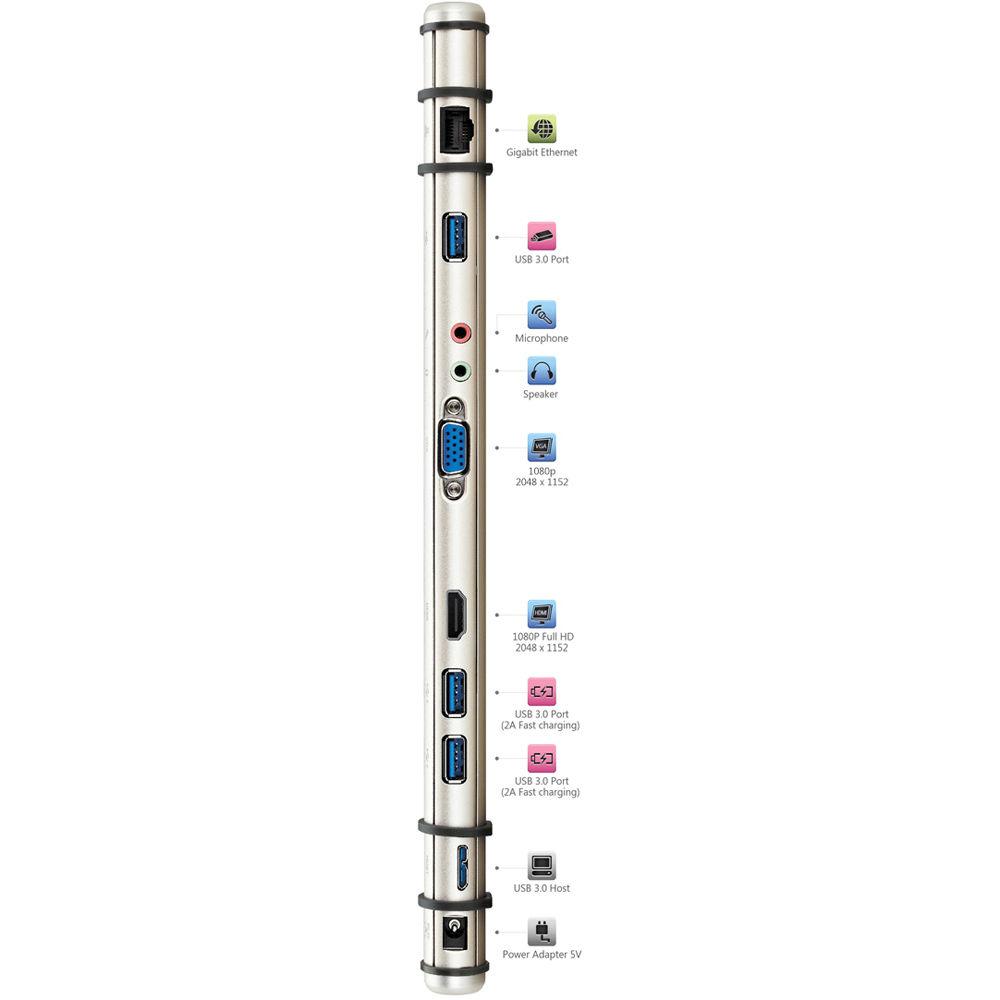

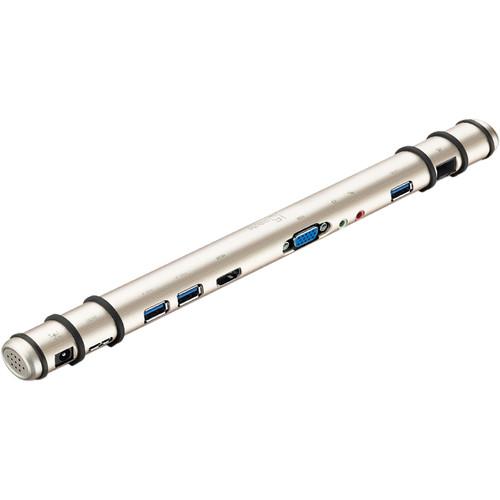

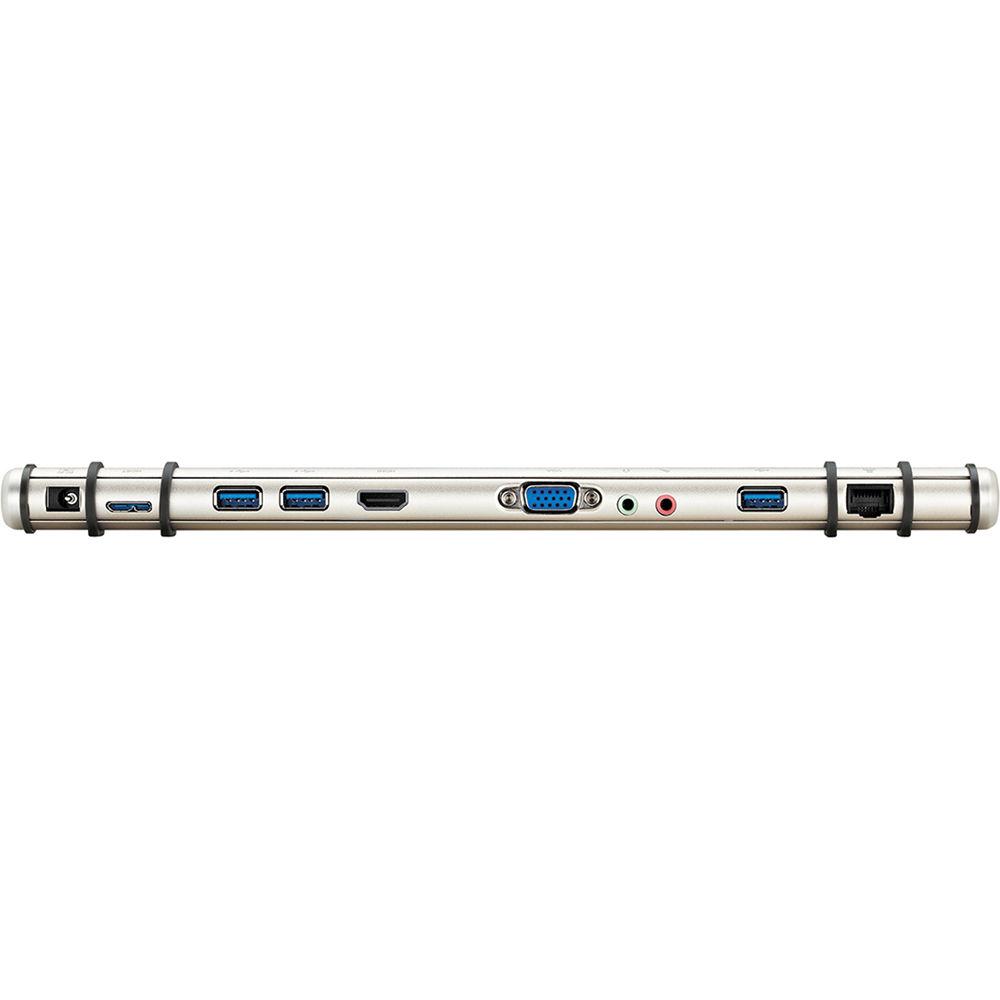

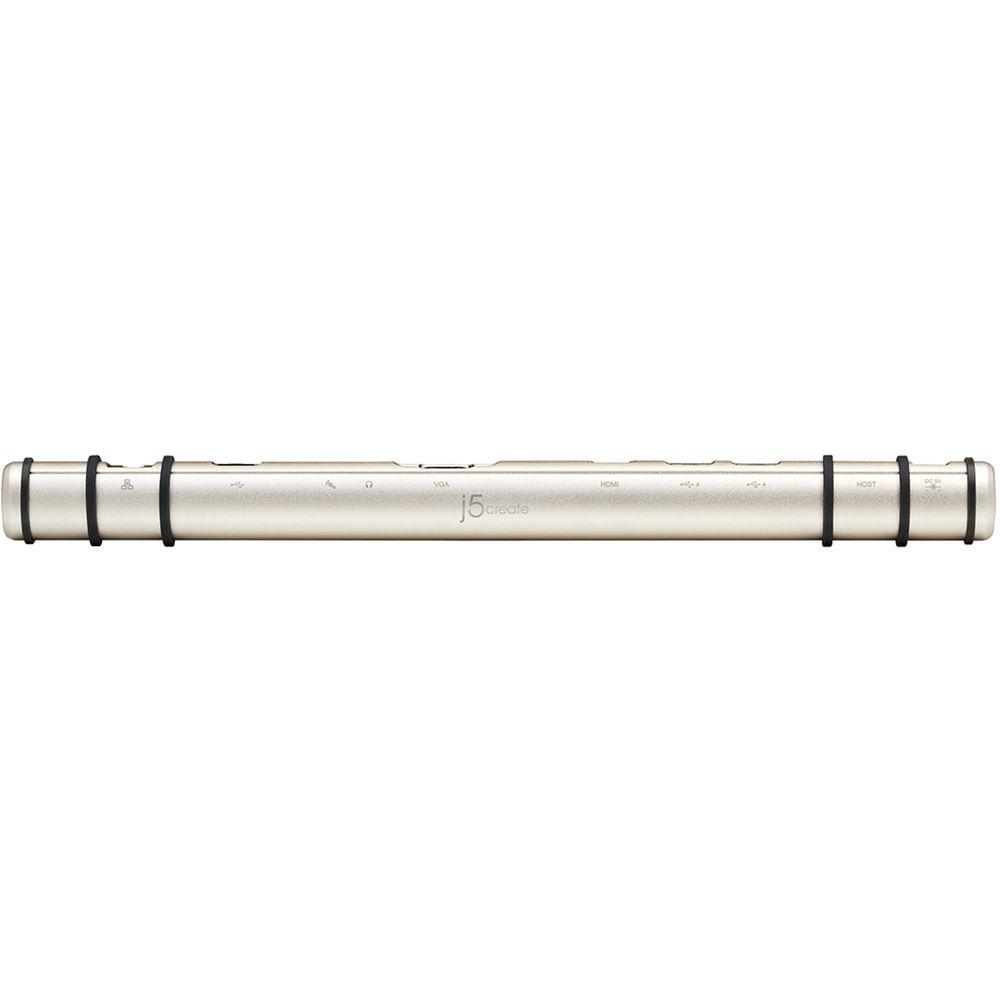

Product description Expand the connectivity of your laptop with the Mini Ultra Station Universal USB Dock from j5create. This hub features three USB 3.0 Type-A ports, two of which support 2A fast charging, a single HDMI port, a single VGA port, a single RJ45 Ethernet port, and dual 3.5mm audio jacks.

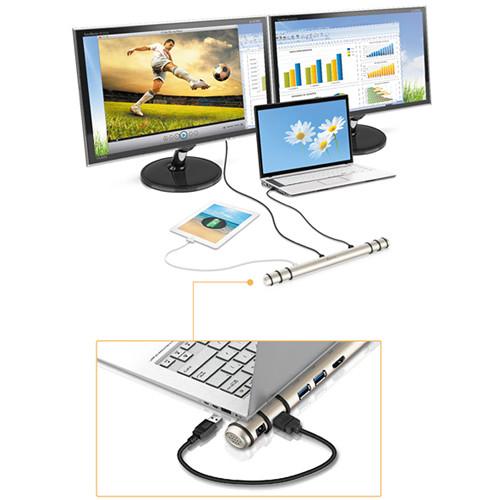

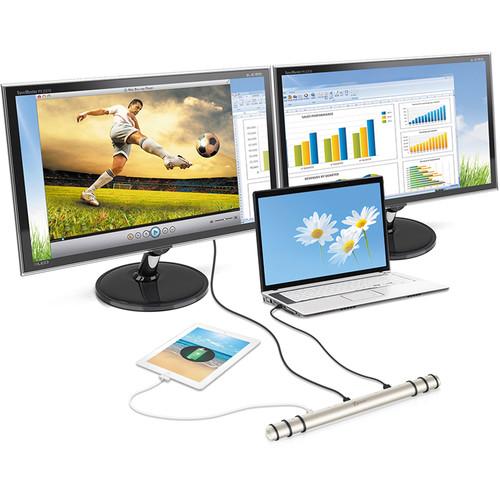

Simply plug in this Mini Ultra Station into your Windows or Mac computer and connect a variety of peripherals, including a mouse, keyboard, speakers, and more. You can even use the hub to connect to an Ethernet LAN if your computer is without a network port. If additional displays are needed the VGA and HDMI ports support resolutions up to 2048 x 1152 along with support for 1080p video playback. The displays can be set to a variety of viewing specifications including primary, extended, and mirror making it easy to view your content how you want. - USB 3.0 SuperSpeed
-
- Transfer rates of up to 5 Gbps, enable bulky file backup
- Hot-swapping connect and disconnect without powering down
- Two ports support fast charging BC V1.2 for charging up to 2 A
- Dual HDMI / VGA Display & Sound
-
- Supports VGA & HDMI dual display resolutions up to 2048 x 1152 @ 32-bit
- Supports 1080p video playback
- Supports display modes: primary, extended, and mirror
- Display Rotation: 0°, 90°, 180°, 270°
- 3.5mm audio in and out
- Supports audio output through an HDMI connection
- USB 3.0 Gigabit Ethernet
-
- Quickly add a Gigabit Ethernet port over USB 3.0
- USB 3.0 plug-and-play and backwards compatible with USB 2.0/1.1
- Transfer all of your files almost instantly over a true Gigabit network
- IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
- Activity and link LED indicators

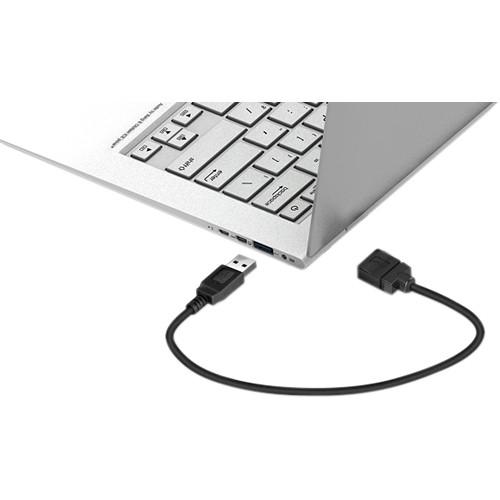

UPC: 847626001956 In the Box j5create Mini Ultra Station Universal USB Dock USB 3.0 Cable Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the j5create Mini Ultra Station Universal USB Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersj5create JUD531 Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A
2 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x VGA
1 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Headphone

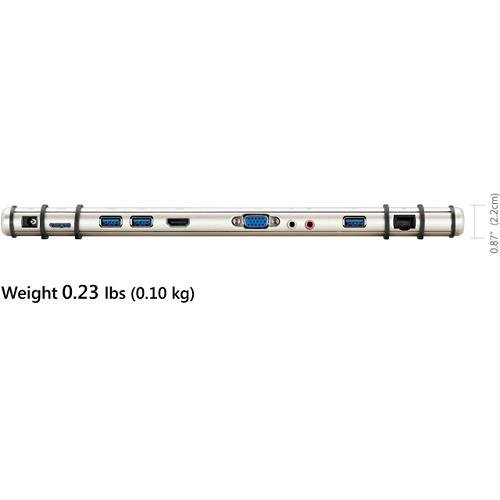

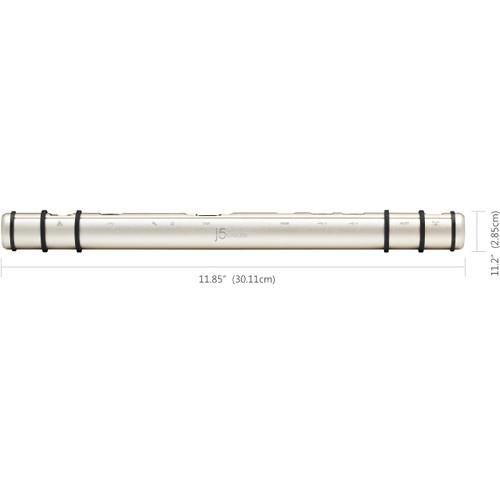

1 x 1/8" / 3.5 mm Microphone | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Micro-B Male | | | | Maximum Resolution Supported | 2048 x 1152 | | Operating System Support | Windows, macOS/OS X | | | | Power Source | Bus Powered | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 5 VDC at 3 A | | | | Cable Length | 23.6" / 60 cm | | Enclosure Material | Aluminum | | Dimensions | 11.85 x 1.12 x 0.87" / 30.11 x 2.85 x 2.2 cm | | Weight | 0.2 lb / 106.5 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 13.7 x 5.6 x 2.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
