User Manual for j5create USB 3.0 Boomerang Docking Station Click to enlarge the picture
Contents of the user manual for the j5create USB 3.0 Boomerang Docking Station
- Product category: Docking Stations & Port Replicators j5create
- Brand: j5create
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for j5create Docking Stations & Port Replicators
 |
User manual for the j5create USB 3.0 Boomerang Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any j5create product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official j5create user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a j5create product will considerably shorten its lifespan!
|

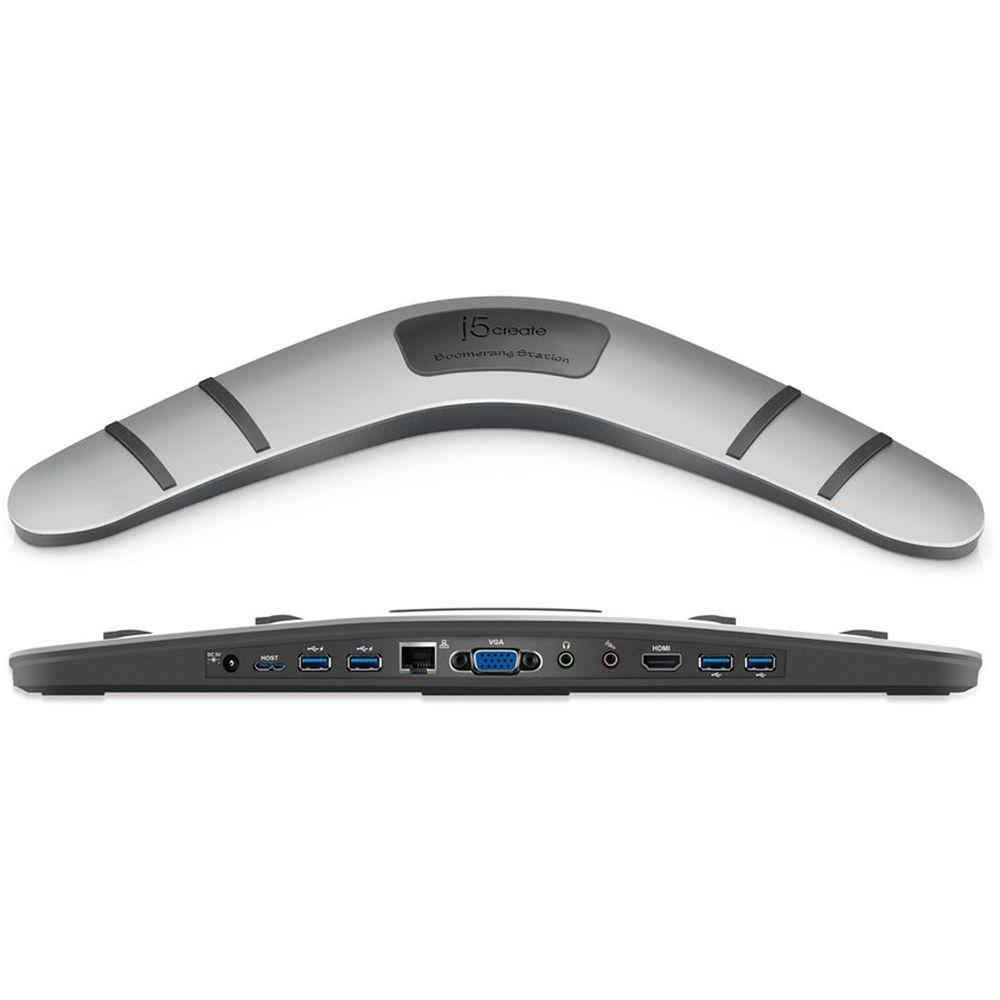

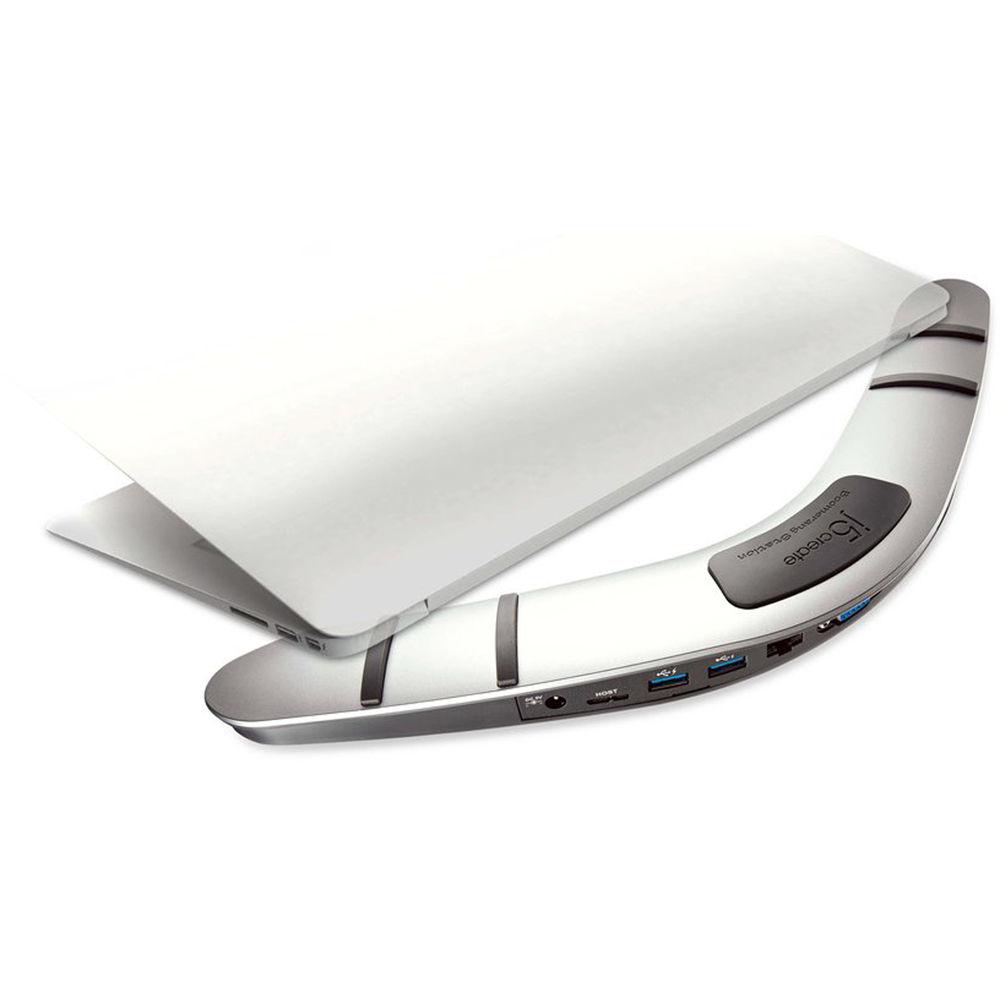

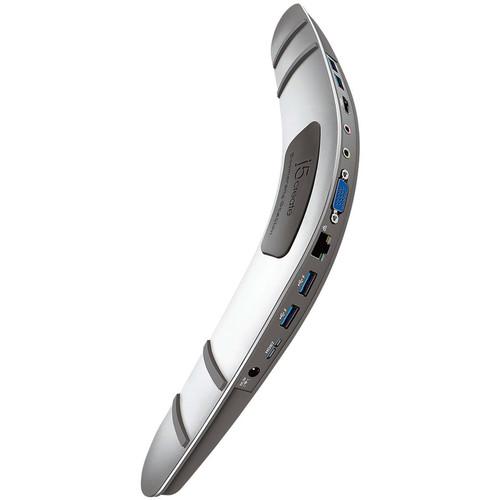

Product description The USB 3.0 Boomerang Docking Station from j5create allows you to add a second monitor via its HDMI or VGA port, which deliver 1080p resolution. When you need to get things done, connect peripherals like keyboards, mice, and drives in one of the Boomerang Docking Station's four USB 3.0 ports. Furthermore, you can join wireless networks with its integrated Gigabit Ethernet port.
In terms of sound, j5reate has equipped the Boomerang Docking Station with two 3.5mm audio jacks for a microphone input and a speaker stereo output. Moreover, the Boomerang Docking Station is designed to be durable with a solid aluminum construction with an ABS plastic housing. - Video & Audio Support
- View video content from your Mac or Windows system on a connected display via HDMI or VGA, which delivers a resolution of 1080p.
- Over Voltage Protection
- You can charge your devices in a fast and safe manner when connected to this station.
- High-Speed Ethernet
- Quickly connect your computer via the built-in Gigabit Ethernet port.
- 2 x 2A Fast Charge Ports
- Charge all of your devices simultaneously.
- 4 x USB 3.0
- Expand your access to multiple devices with four SuperSpeed USB 3.0 ports, which transfers up to 5 Gb/s. USB 3.0 and USB 3.1 Gen 1 are synonymous.
- Durable Design
- This boomerang station is made with a solid aluminum construction
- Full Screen Video Playback
-
- Two 2K (2048 x 1152 at 60 Hz) full-screen video playback
- CPU: Intel Core i7 Quad-Core
- RAM: 8GB memory or higher
- Graphics card: Intel HD Graphics 4000 / ATI HD 7xxx / NVIDIA 5XXM or higher
- Minimum Requirements
-
- CPU: Intel Core i3 Dual-Core 2.8 GHz
- RAM: 2GB memory or higher
- Playback Requirements
-
- One 2K (2048 x 1152 at 60 Hz) full-screen video playback
- CPU: Intel Core i5 Quad-Core
- RAM: 4GB memory or higher
- System Requirements
-
- Microsoft Windows 7 or higher (32-bit or 64-bit)
- Mac OS X 10.8 or later
- Available USB 3.1 / 3.0 / 2.0 port (USB 3.1 / 3.0 recommended)
UPC: 847626001895 In the Box j5create USB 3.0 Boomerang Docking Station Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the j5create USB 3.0 Boomerang Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersj5create Boomerang Station Specs | | | USB | 4 x USB 3.1 Gen 1 Type-A
2 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x VGA (Female)
1 x HDMI (Female) | | Audio | 1 x 1/8" / 3.5 mm Microphone
1 x 1/8" / 3.5 mm Line-Out | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Micro-B Female | | Connection Type | Integrated Cable | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 2048 x 1152 at 60 Hz (Dual Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | Windows, macOS/OS X | | UASP Support | No | | | | Power Source | Bus Powered | | Total Current Output | 4 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Cable Length | 0 to 23.62" / 0 to 60 cm | | Enclosure Material | ABS, Aluminum, Plastic | | Lock Slot | No | | Dimensions | 13.78 x 1.18 x 4.76" / 35 x 3 x 12.1 cm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 5.0" |
