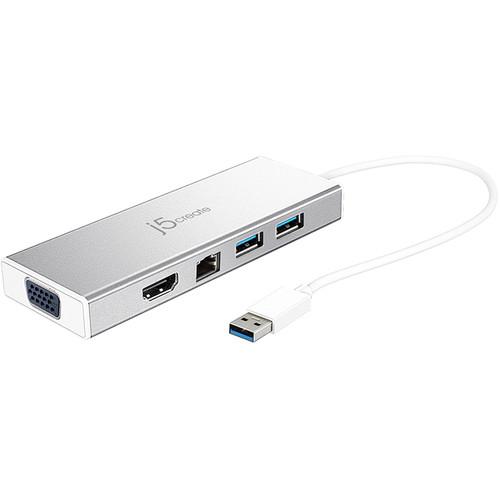

Product description Plug two monitors into your computer's USB 3.1 Gen 1 port using the USB 3.1 Gen 1 Mini Dock from j5create. This USB dock comes equipped with one HDMI port, one VGA port, dual USB 3.1 Gen 1 ports, and one RJ45 Ethernet port, making it easy to plug in dual displays, USB peripherals, and a network cable all into one device. The bus powered dock also allows users to set the displays to any of three viewing modes that include primary mode, extended mode, and mirroring mode. Setup is simple as the plug-and-play dock comes compatible with both Windows and Mac based computers. -
- Easily add two extra displays to any computer
- Fast installation with a simple USB plug-in
- Primary mode - open individual applications on each monitor
- Extended mode - extend your desktop across multiple displays
- Mirroring mode - clone one screen onto another
- USB 3.1 Gen 1 Type-A connector
- USB 3.1 Gen 1 Type-A connector
- VGA-DB 15-pin connector
- HDMI Type-A connector
- Gigabit Ethernet RJ45 connector
- USB micro-B connector
- USB 3.1 Gen 1
- USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
UPC: 847626001932 In the Box j5create USB 3.1 Gen 1 Mini Dock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the j5create USB 3.1 Gen 1 Mini Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersj5create JUD380 Specs | | | USB | 2 x USB 3.1 Gen 1 Type-A
1 x USB (Unspecified Type) Micro-B | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x VGA

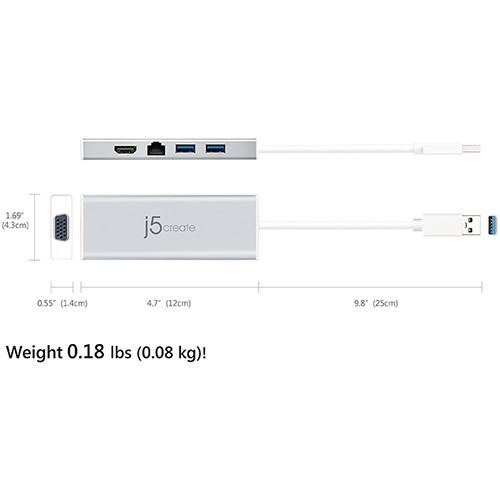

1 x HDMI | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-A Male | | | | Operating System Support | Windows, macOS/OS X | | | | Cable Length | 7.9" / 200 mm | | Enclosure Material | Aluminum | | Dimensions | 4.7 x 0.6 x 1.7" / 119.6 x 14.15 x 42.8 mm | | Weight | 2.9 oz / 82.6 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.8 x 4.9 x 1.2" |
