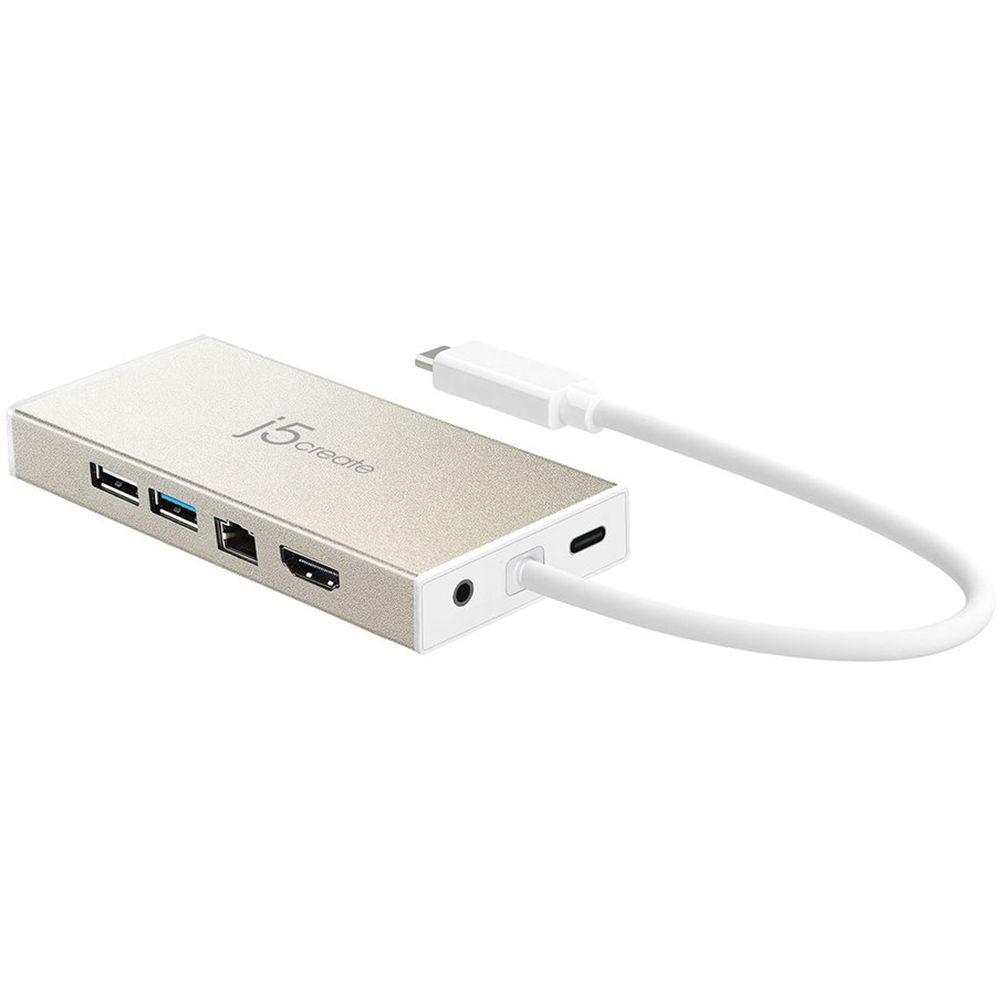

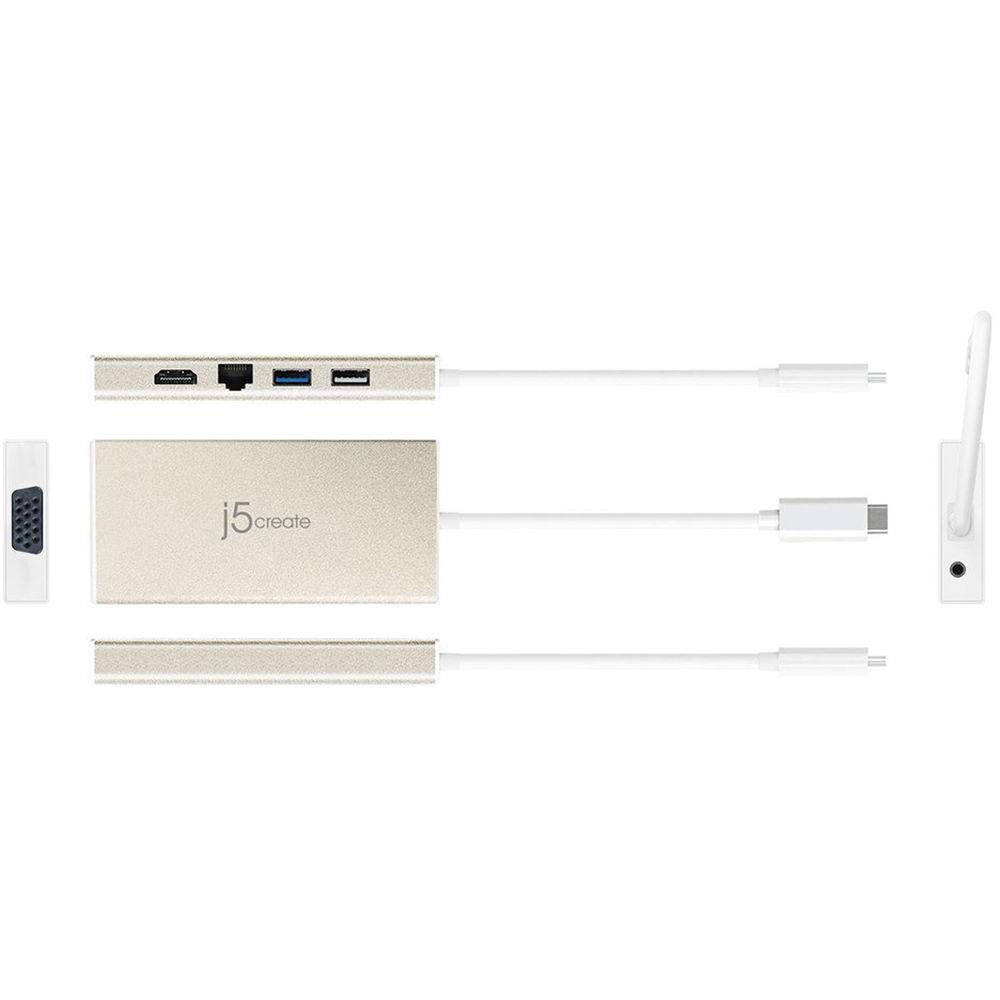

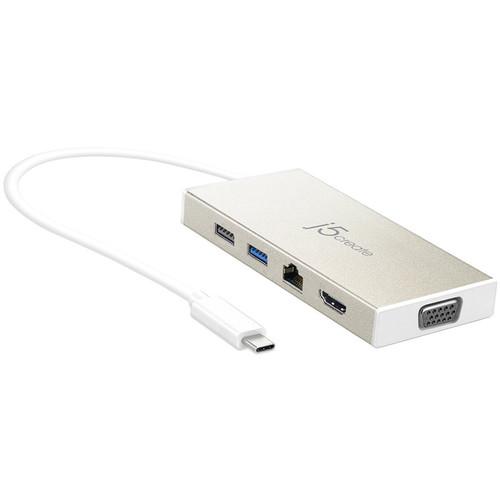

Product description The USB 3.1 Type-C Mini Dock from j5create provides extra connectivity for your computer. This pocket-sized adapter allows you to add an additional USB Type-A peripheral, an HDMI or VGA monitor, and can even connect to wireless networks via its integrated Gigabit Ethernet port. Furthermore, this adapter supports up to 4K resolution and dual-display setups. The USB Type-C cable's connector has a slim and reversible design, so there is no wrong way to plug it in. Additionally, USB Type-C offers efficient power delivery and fast data transfer rates up to 10 Gb/s. - Dual-HDMI/VGA individual display output.
- Supports 1080p at 60Hz resolutions up to 2048 x 1152.
- Supports HDMI 4K at 30 Hz.
- Add a Gigabit Ethernet port to connect to wireless networks.
- 4K Ultra HD
- High definition HDMI 2.0 output with 3840 x 2160 at 30 HZ max resolution. Extend your visual workplace with excellent dual-video HDMI.
- HDMI or VGA
- HDMI resolution up to 4K at 30 Hz or VGA up to 1920 x 1200 at 60 Hz.
- Transfer Speed
- USB Type-C downstream port supports 900 mA charging, power delivery 2.0 max 60W and data transfer up to 5 Gb/s.
- No External Power Adapter Needed
- Optional power adapter can be connected for charging a laptop or other power consumption device.
- Plug-and-Play
- No need for any software installation or configuration.
- Environmentally Friendly
- Aluminum enclosure that is non-toxic and recyclable.
- Connect Anywhere
- Small, compact, and lightweight. Slip it into your laptop bag and take it with you anywhere.
- System Requirements
-
- Available USB Type-C port (USB 3.1 is recommended).
- Available DisplayPort alternative mode over USB Type-C port.
- Available USB power delivery 2.0 over USB Type-C to support upstream charging.
- HDMI: DisplayPort v1.2 is required on a graphics card or video source to support 4K at 30 Hz resolution.
- VGA: DisplayPort v1.1a is required on a graphics card to support 1920 x 1200 at 60 Hz.
UPC: 847626001963 In the Box j5create USB 3.1 Type-C Mini Dock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the j5create USB 3.1 Type-C Mini Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersj5create JCD376 Specs | | | USB | 1 x USB 3.1 Gen 1 Type-A
1 x USB 2.0 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI (Female)
1 x VGA (Female) | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 2 Type-C Male | | Connection Type | Integrated Cable | | | | Maximum Resolution Supported | 3840 x 2160 at 30 Hz
1920 x 1200 at 60 Hz | | Data Transfer Rate | 10 Gb/s USB 3.1 Gen 2 | | Operating System Support | Windows, macOS/OS X | | UASP Support | No | | | | Cable Length | 0 to 8.27" / 0 to 21 cm | | Lock Slot | No | | Dimensions | 2.1 x 4.5 x 0.6" / 5.33 x 11.43 x 1.52 cm | | Weight | 0.2 lb / 90.7 g | | | | Package Weight | 0.38 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
