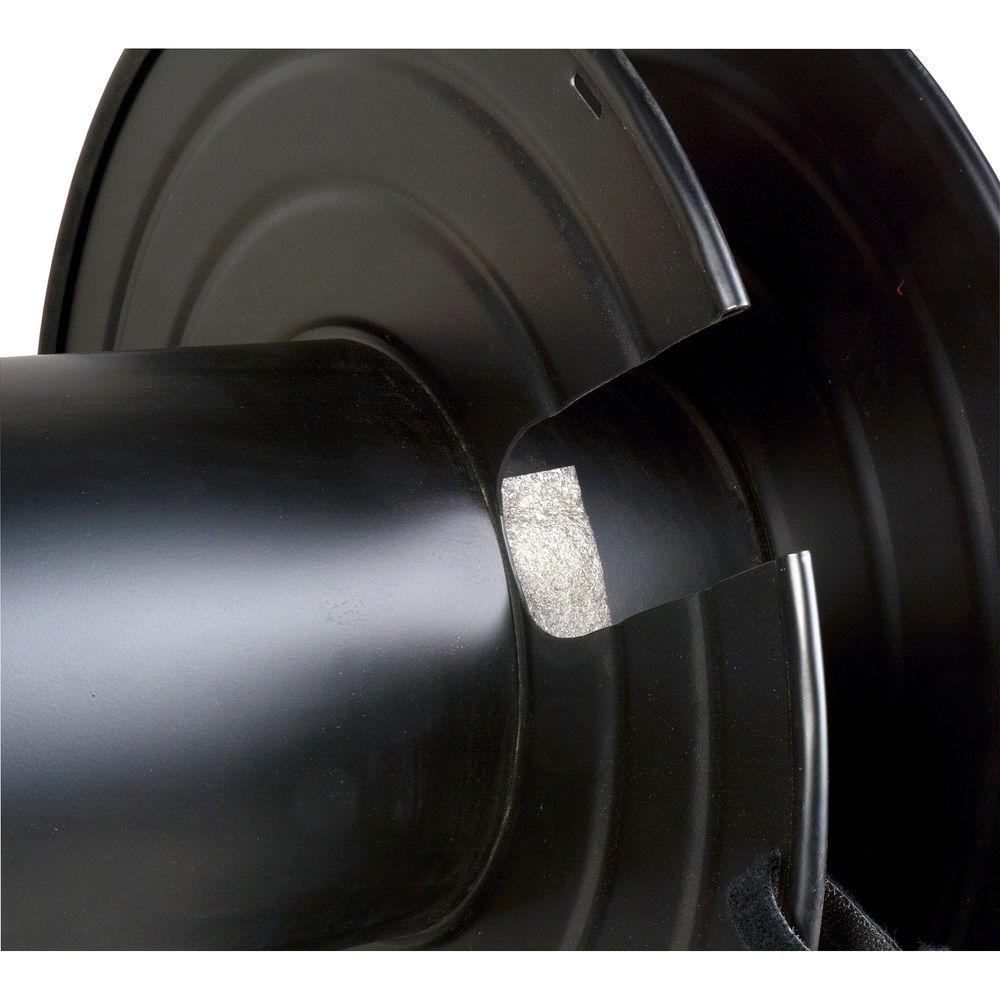

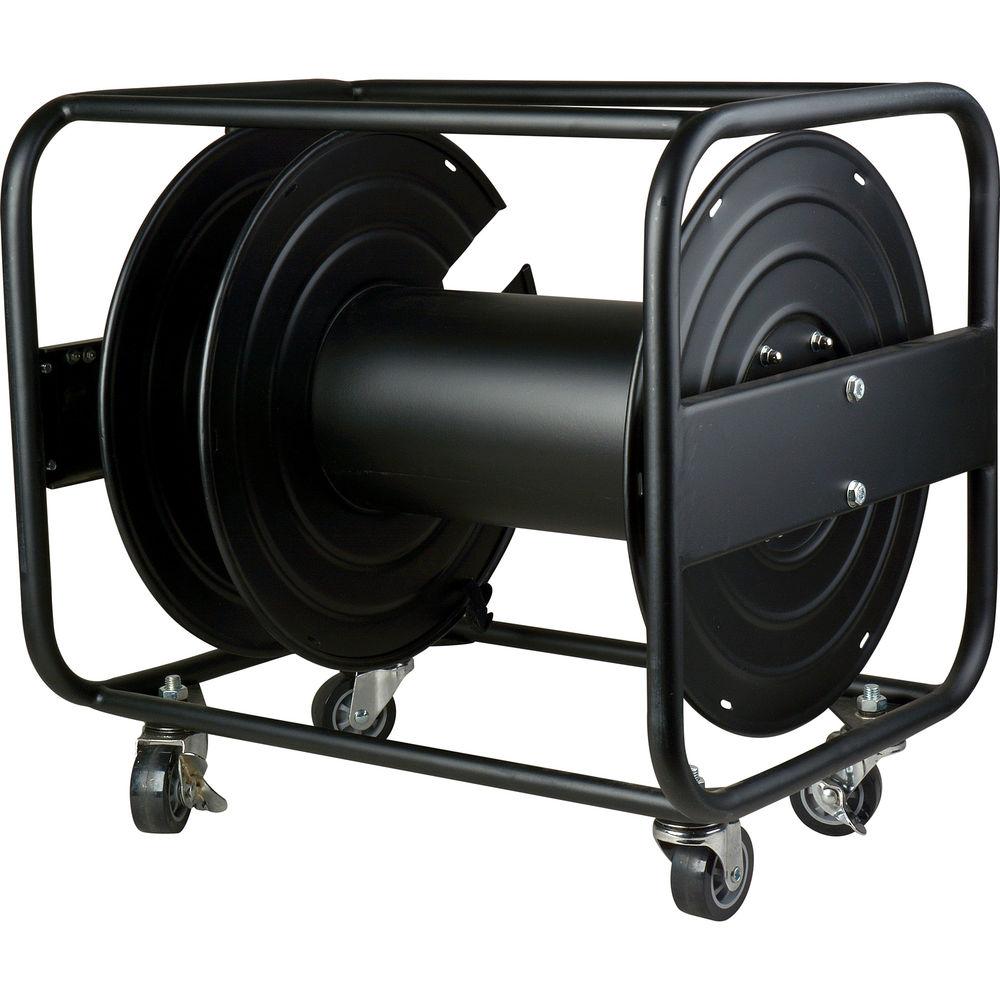

Product description Safely store up to 4500' of fiber optic cable with the JackReel XL1 High-Capacity Cable Reel. Its capacity is 4500' for 0.2" OD cable, 2500' for 0.3" OD cable, or 1100' for 0.4" OD cable. It is designed to hold multi-channel tactical fiber optic cables, SMPTE fiber optic camera cables, audio snake cables, and more. Its drum has been fashioned to protect the bend radius of fiber optic cables while its drum divider plate protects connectors and fan-outs, separating them from the main cable run during storage and rollout.

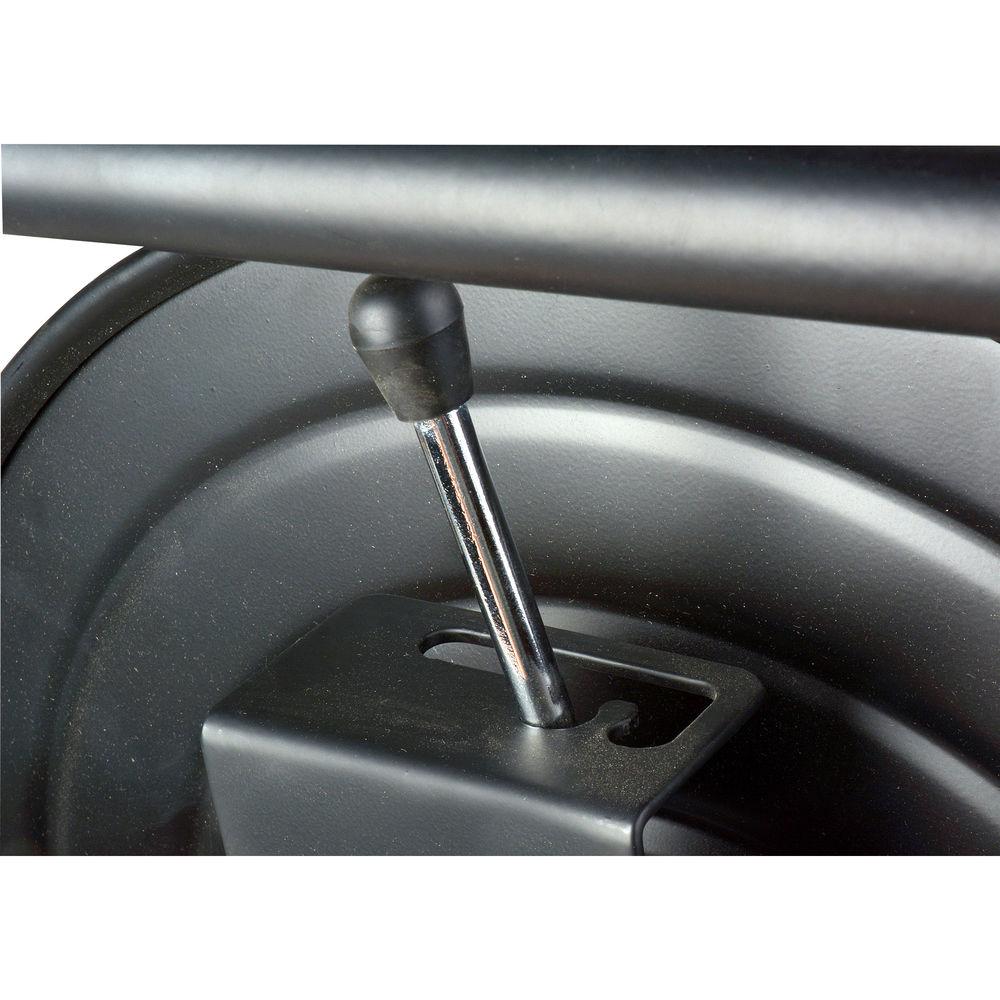

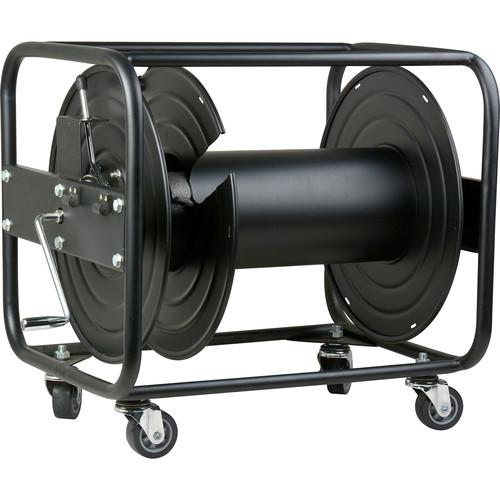

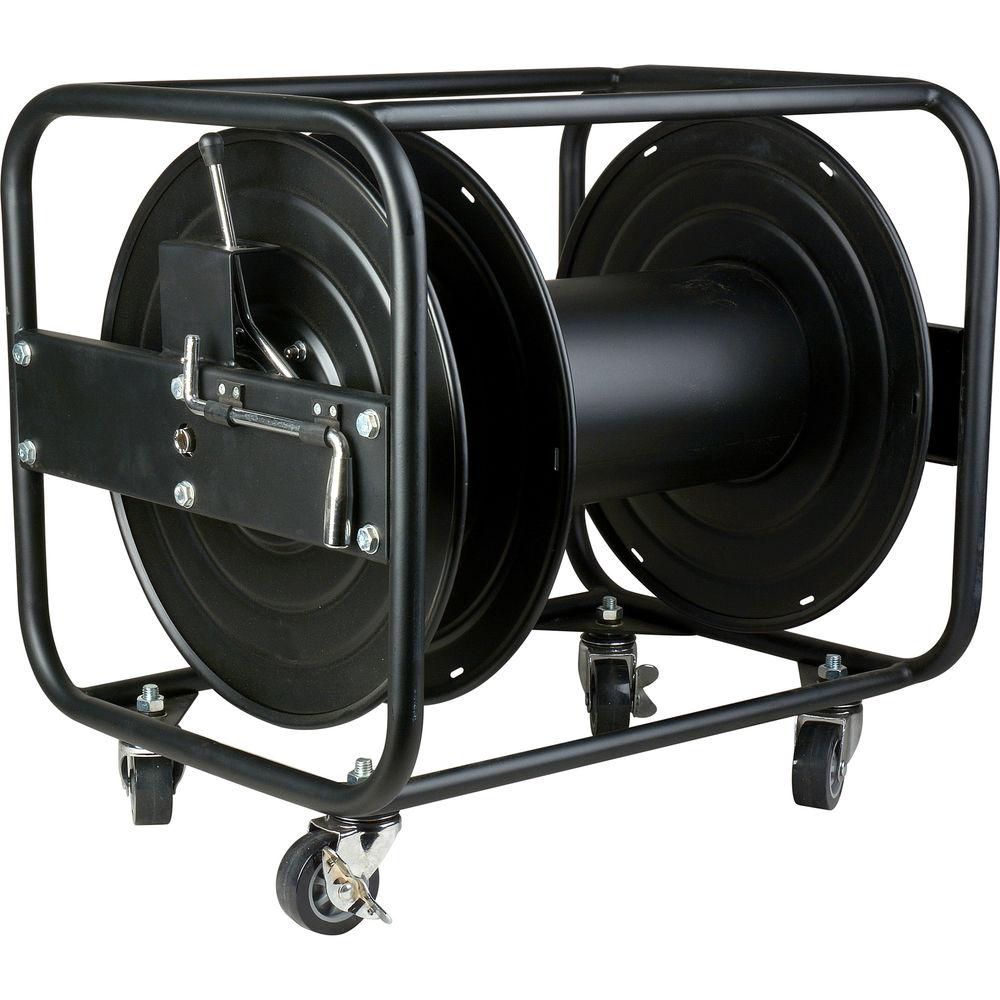

The XL1 features steel construction with a round-tubing protective frame, a winding handle with storage, locking casters, and a 3-position brake lock: Free Spool, Soft Brake, and Full Lock. The adjustable cam-lock drag brake allows for fast cable rollout and storage. The reel has a matte black finish to minimize visual distractions while on set. - Split drum for safe and easy connector pigtail storage
- Non-reflective black paint finish
- Tubular steel construction
- 3-position brake lock: Free Spool, Soft Brake, and Full Lock
- Winding handle with storage
In the Box JackReel XL1 High-Capacity Cable Reel for Fiber Optic Cables Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JackReel XL1 High-Capacity Cable Reel for Fiber Optic Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJackReel JACKREEL-XL1 Specs | Material | Tubular steel | | Capacity | 0.2" (5.0 mm) OD Cable: 4500.0' (1371.6 m)
0.3" (7.0 mm) OD Cable: 2500.0' (762.0 m)
0.4" (9.5 mm) OD Cable: 1100.0' (335.3 m) | | Dimensions (W x H x D) | With Casters: 21.8 x 21.2 x 17.9" (55.2 x 53.8 x 45.4 cm)
Without Casters: 21.8 x 17.9 x 17.9" (55.2 x 45.4 x 45.4 cm)
Center Hub Overall Width: 17.6" (44.8 cm)
Center Hub Main Hub Width, Outside: 14.0" (35.6 cm)
Center Hub Main Hub Width, Inside: 13.4" (34.0 cm)
Center Hub Divider Width, Outside: 4.0" (10.2 cm)
Center Hub Divider Width, Inside: 3.3" (8.4 cm) | | Weight | 35.0 lb (15.9 kg) | | | | Package Weight | 43.0 lb | | Box Dimensions (LxWxH) | 23.0 x 18.5 x 18.2" |
