User Manual for JAUNT ONE VR Camera System with Starter Kit Click to enlarge the picture
Contents of the user manual for the JAUNT ONE VR Camera System with
- Product category: All 360 Video Cameras JAUNT
- Brand: JAUNT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JAUNT All 360 Video Cameras
 |
User manual for the JAUNT ONE VR Camera System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JAUNT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JAUNT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JAUNT product will considerably shorten its lifespan!
|

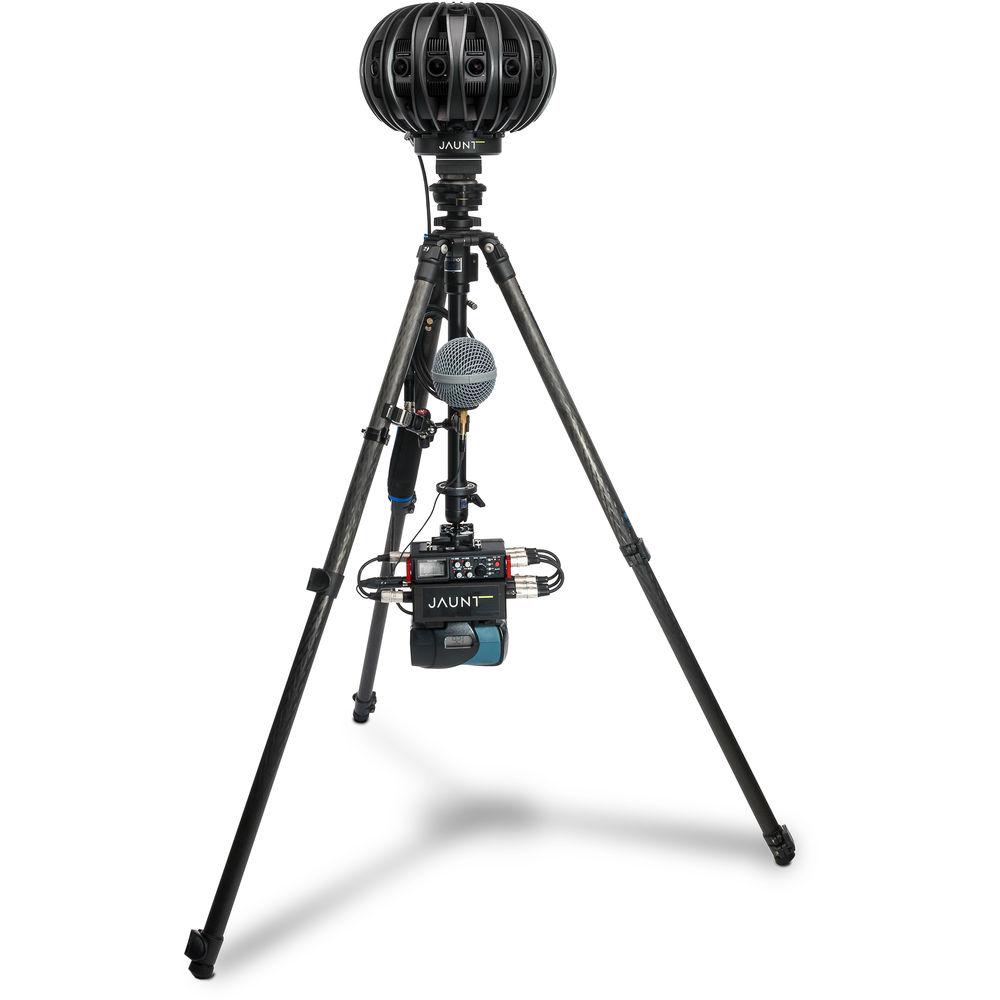

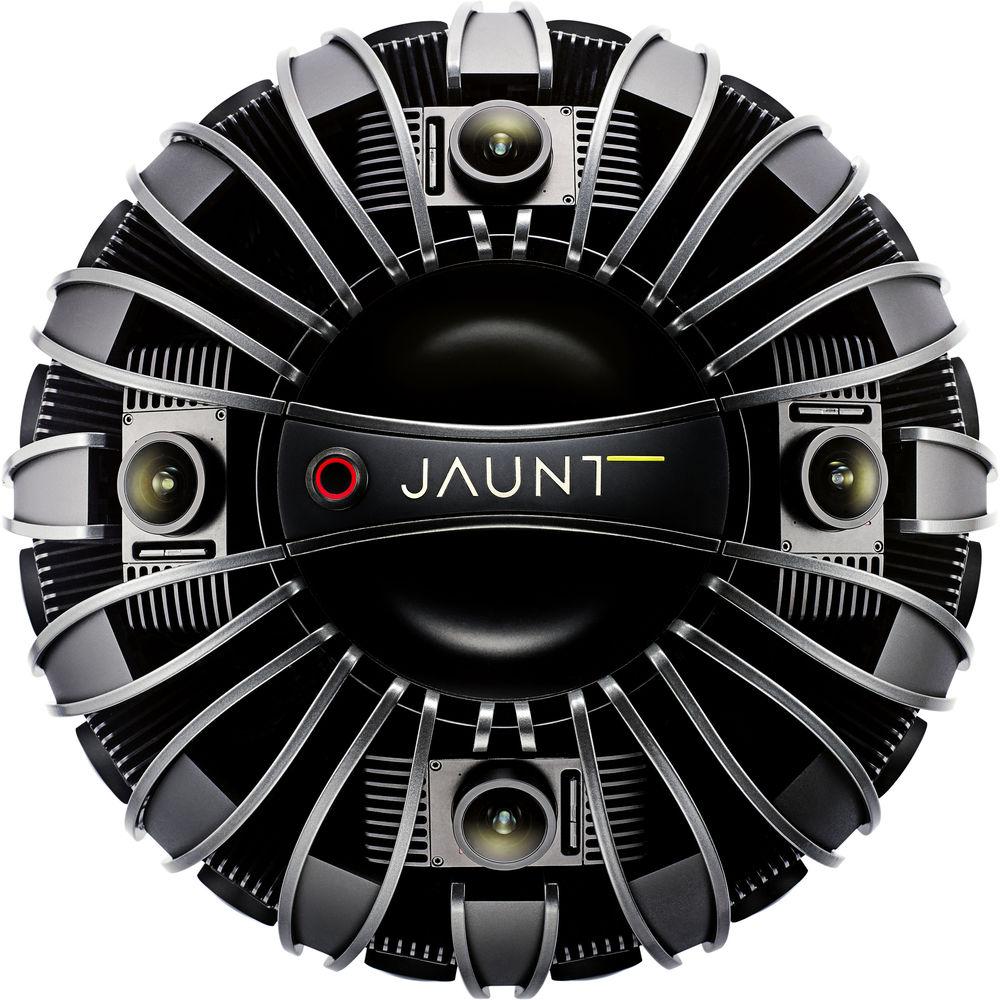

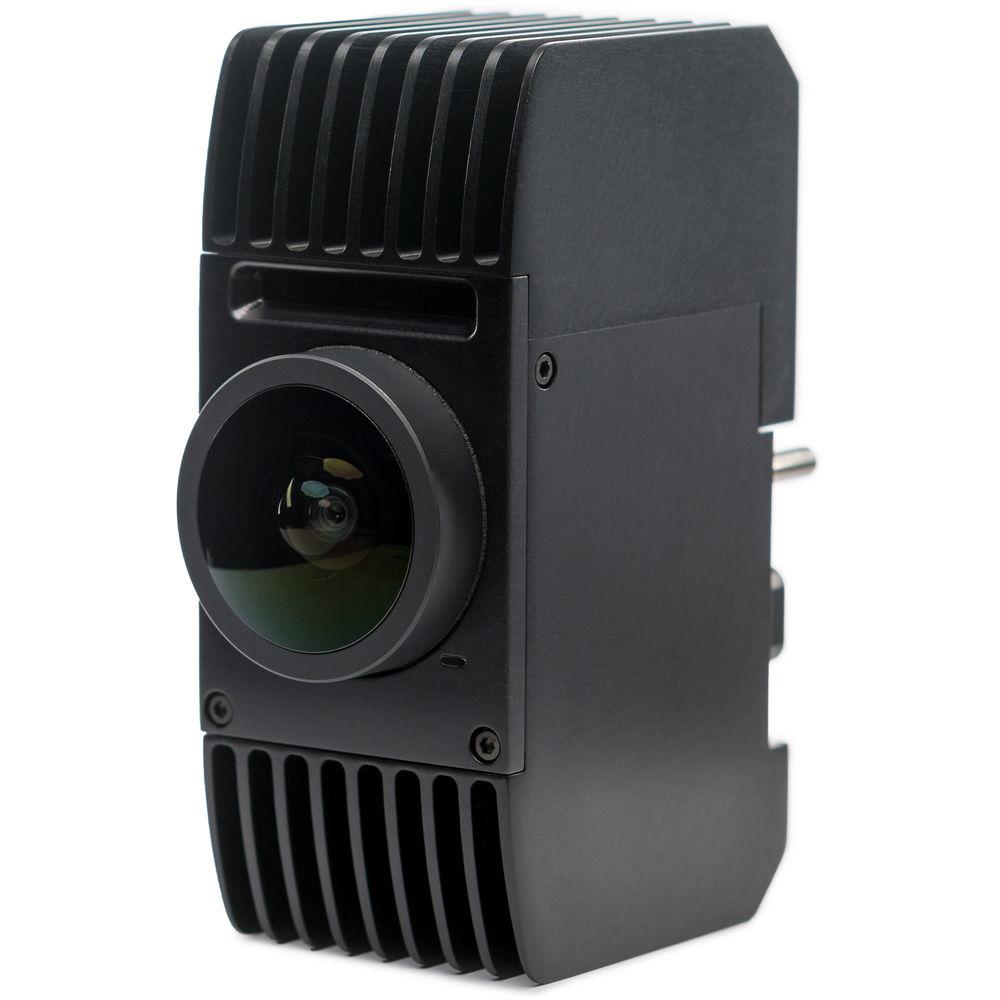

Product description With the JAUNT ONE VR Camera System with Starter Kit you get nearly everything you need to start creating high-resolution spherical VR content. The JAUNT ONE Camera system that is included can capture spherical video that can be rendered out at up to 8K resolution, per eye. The starter kit includes many essentials such as control and power cables for the JAUNT ONE, a Gold mount battery plate for power, 24 memory cards (one for each JAUNT ONE camera unit), card readers, cable management accessories, and a Pelican case for fitting everything, including the JAUNT ONE. See below for more information on the individual items included in this starter kit. - ONE VR Camera System Capture immersive stereoscopic, high-resolution spherical video with the JAUNT ONE Camera System. 24 individual cameras are encased in the body of the JAUNT ONE system, facilitating 360° video recording, with each camera capturing in HD resolution with 10 stops of dynamic range. Dynamic exposure adjustment allows scenes with up to 18 stops of dynamic range to be fully represented. The lenses on the camera modules have a 130° FOV and a fixed f/2.9 aperture for bright, low-noise images and flexible stitching options. Behind each lens is a 1/1.2" global-shutter sensor able to capture up to 120 fps for slow motion. After recording upload the individual camera recordings to Jaunt Cloud Services, where the video from the 24 camera modules can be stitched and rendered out to a maximum resolution of 8Kx4K in each eye.
Jaunt Production Tools - Jaunt ONE Controller
- This macOS program manages camera settings and configures shooting modes, enables a live viewfinder, formats media, and reviews camera diagnostic information.
- Jaunt Slate
- Available for iOS, the Jaunt Slate app can automatically sync programmed metadata with every recording. Operator, scene, take, location, and other types of metadata can be entered.
- Jaunt Media Manager
- Ingest, organize, preview, and upload recorded media to the cloud using your Mac.
- Jaunt Player
- A custom spherical video player for macOS featuring 2D and 3D display of 360° videos, side-by-side stereo display for capable monitors, TVs, and head-mounted-displays, ambisonic audio playback (in-video or standalone 4-channel .wav files) and visualization, playlist management, DAW synchronization, and more.
Key Features - 24 synchronized global shutter sensors
- Stereoscopic 360° coverage
- Up to 8K resolution per eye after processing
- Dynamic exposure adjustment for high dynamic range
- Remote camera control and live monitoring
- Starter Kit JAUNT's Starter Kit gives you everything you need to start shooting with your JAUNT ONE camera. The included cables connect to a power source and controlling computer as well as a separately available wired remote trigger. A Gold Mount battery plate is included for remote operation. Twenty-four 64GB memory cards are included, providing over two hours of recording time, as are eight card readers which can be used to offload recorded media. Two USB hubs, with four ports each, can handle all the card readers for a compact setup. Cases and pouches to store the aforementioned cables, cards, and card accessories are also included.Other items provided in this kit are a bubble level for precise camera leveling and a lens cleaning kit for maintaining the lenses on the JAUNT ONE camera. All the accessories and the camera unit itself can be packed into the Pelican 1640 case, using the custom-cut foam insert, ensuring protection during transport and storage.
In the Box Bundle Items ONE VR Camera System cvsuwywqbuecarcuwfuvbuzueb Starter Kit - Power Cable for JAUNT ONE
- Wired Remote Trigger for JAUNT ONE
- Pelican 1640 Case with Custom-Cut Foam
- QR-UNIV Universal Gold Mount Battery Adapter
- 24 x SanDisk Extreme PRO 64GB SDXC Memory Cards
8 x - MobileLite G4 Multi-Function SD / microSD Card Reader
Table of Contents
|
Upload User Manual
Have you got an user manual for the JAUNT ONE VR Camera System with Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ONE VR Camera System
| | | Sensor | 1/1.2" HD, global shutter | | Frame Rate | 25/29.97/50/59.94/120 fps | | ISO | 540 - 1600 | | Dynamic Range | 10 stops per module
Up to 18 stops per scene | | Lens | FOV: 130° diagonal
Aperture: f/2.9 (fixed) | | Recording Media | SD Card, Class 10 minimum | | Recording Time | 64 GB SD card (per camera): 2h, 20m | | | | Output Resolution | Up to 8Kx4K per eye after stitching | | FOV | Full Stereoscopic: 360x110°
Monoscopic: 360x360° | | Power | 12-17 VDC, 9 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | Diameter: 12.8" / 32.5 cm
Height: 9.9" / 25.2 cm
Base Width: 5.7" / 14.5 cm | | Weight | 23 lb / 10.4 kg | - Starter Kit
| | | Material | Copolymer | | Type of Closure | Double throw latches | | Waterproofing | Watertight to 30' (O-Ring sealed) | | Maximum Buoyancy | 365 lb / 165.56 kg | | Interior Fitting | Custom-cut foam | | Interior Dimensions | 23.7 x 24 x 13.9" / 60.2 x 60.9 x 35.3 cm | | Exterior Dimensions | 27.2 x 27.5 x 16.30" / 69.1 x 69.8 x 41.4 cm | | Weight | 34 lb / 15.42 kg |
