Product description - JBL 104 Compact Reference Monitors

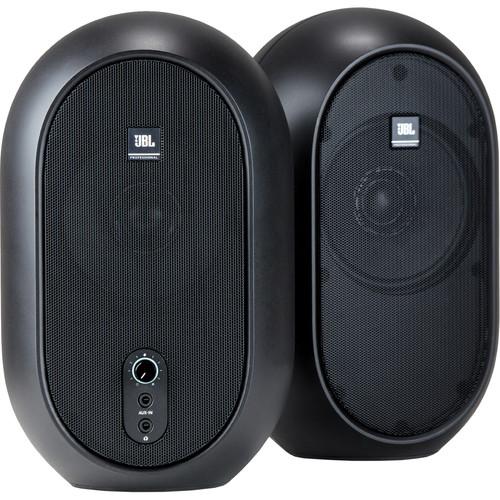

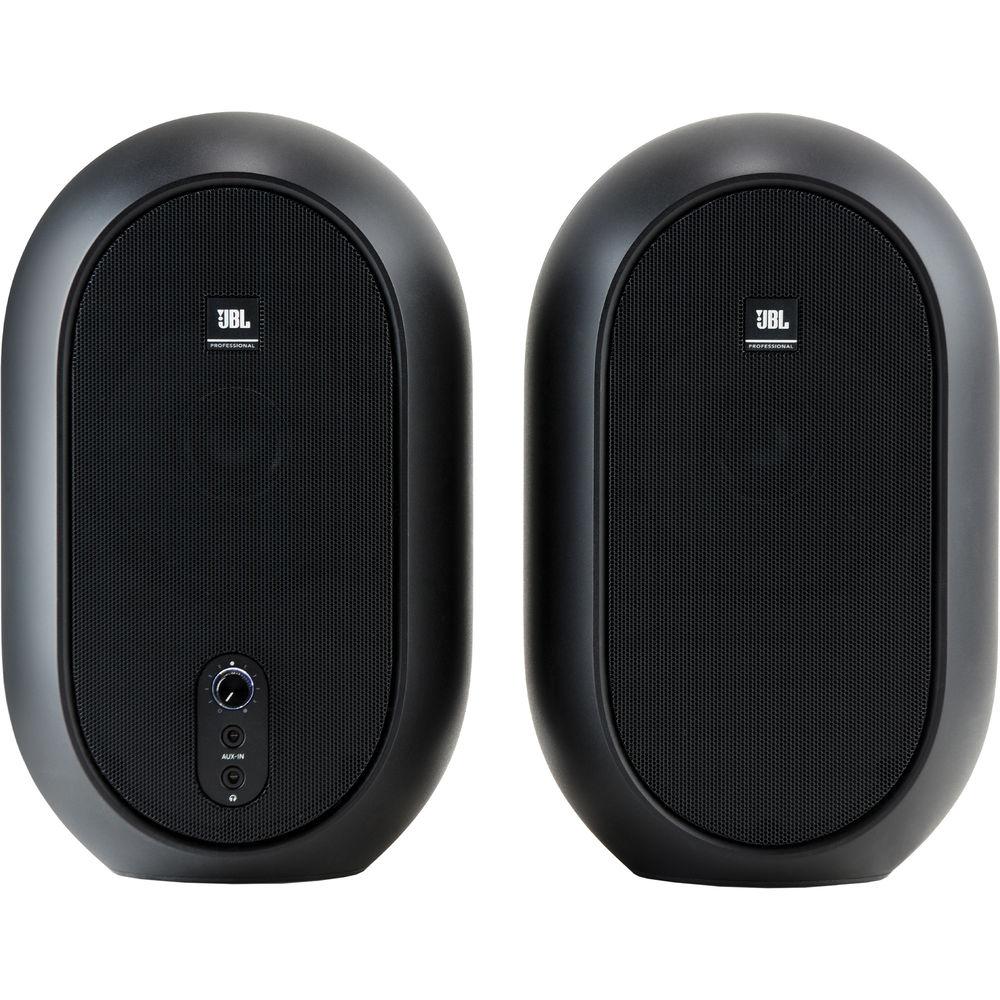

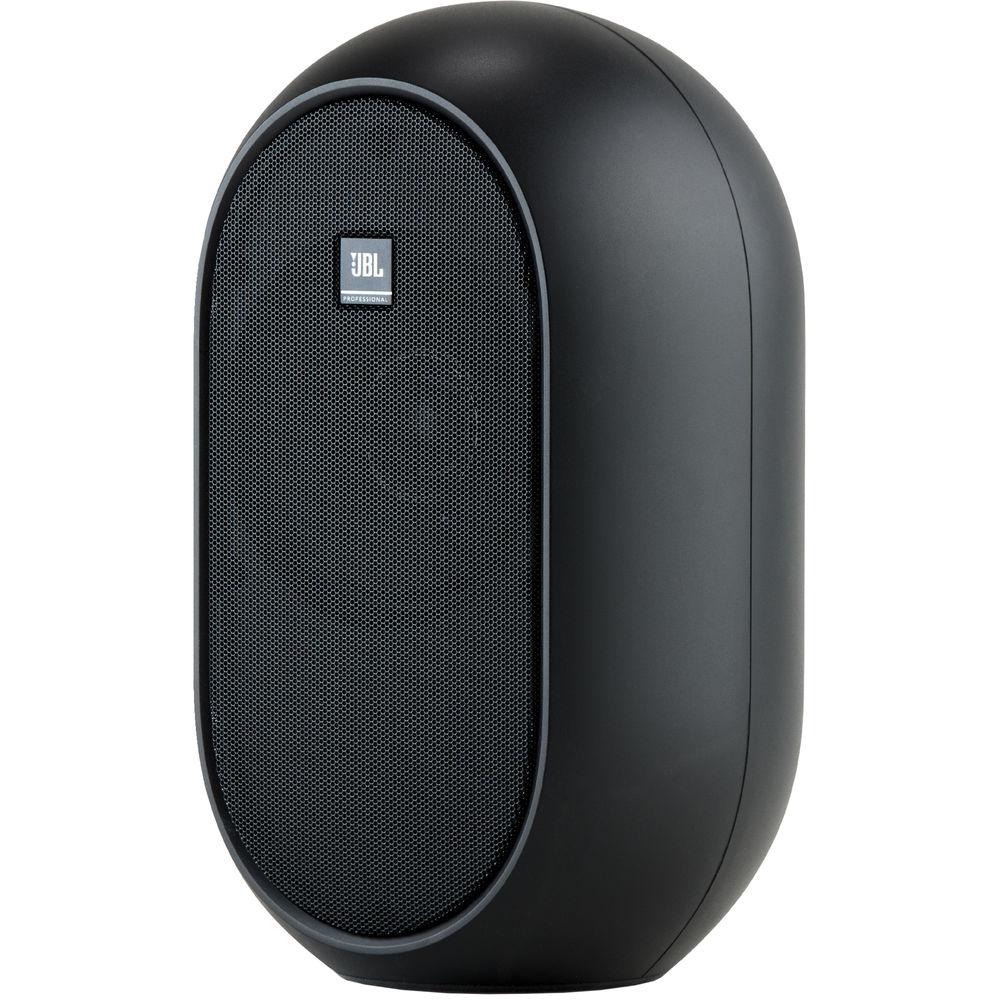

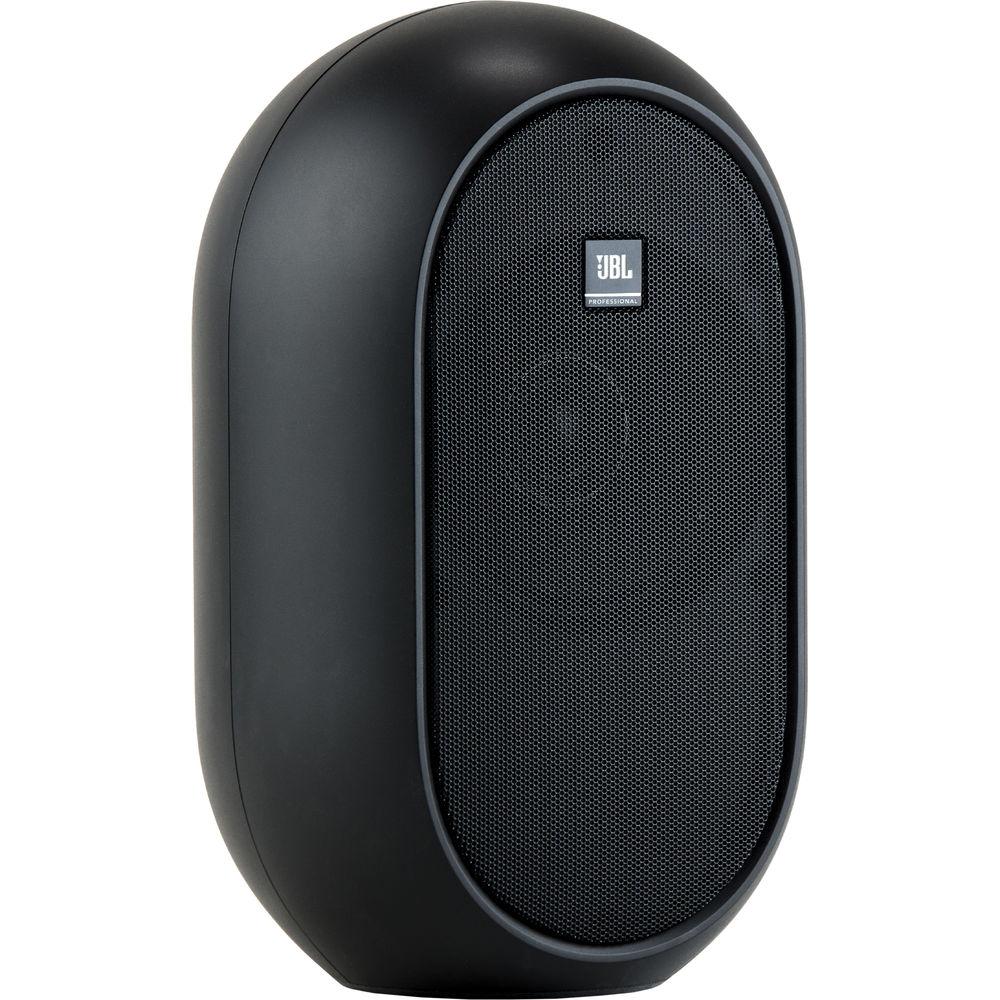

Designed for desktop applications, the JBL 1 Series 104 comprises a pair of monitors suitable for both consumer and critical referencing. These monitors employ a coaxial design to give you a smooth representation of the frequency spectrum, so that you have a more accurate picture of the sonic information coming your way. As such, these speakers are useful for home-recording studios, podcasters, video editors who pay attention to sound, and anyone looking for accurate, yet portable monitors.

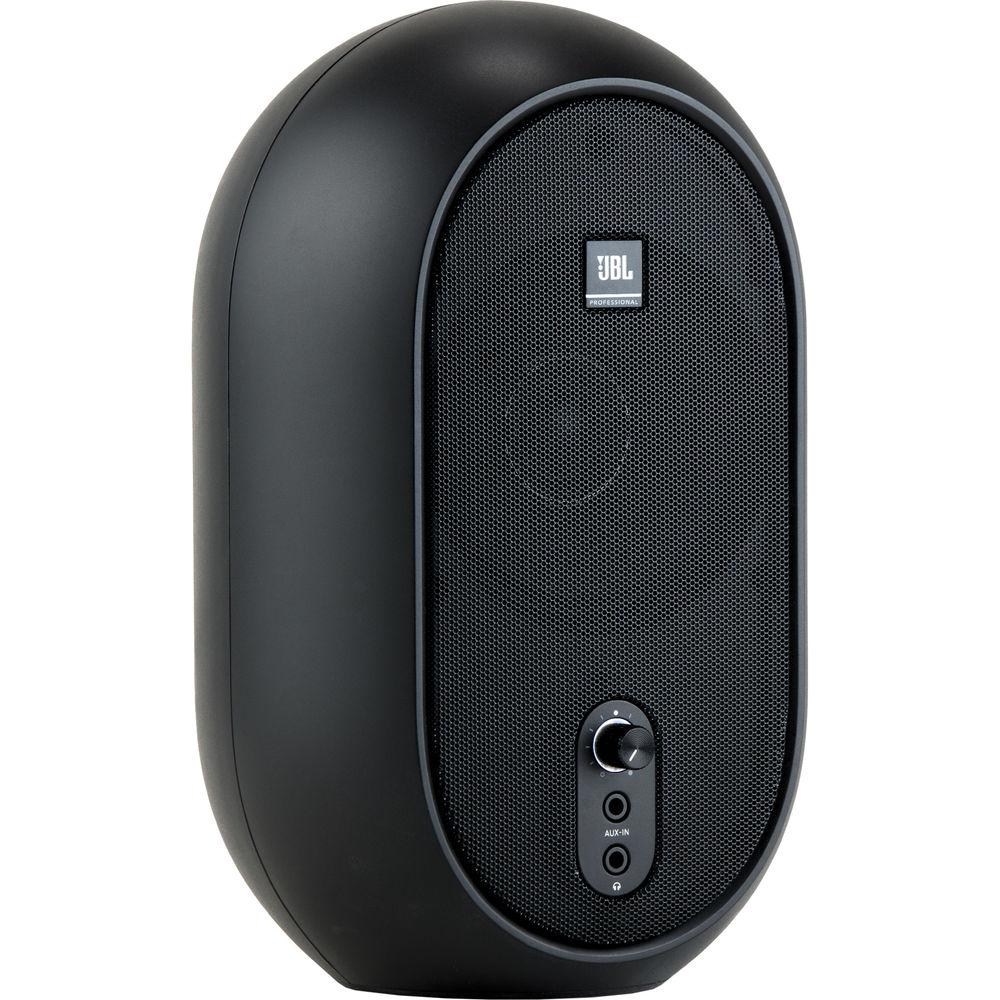

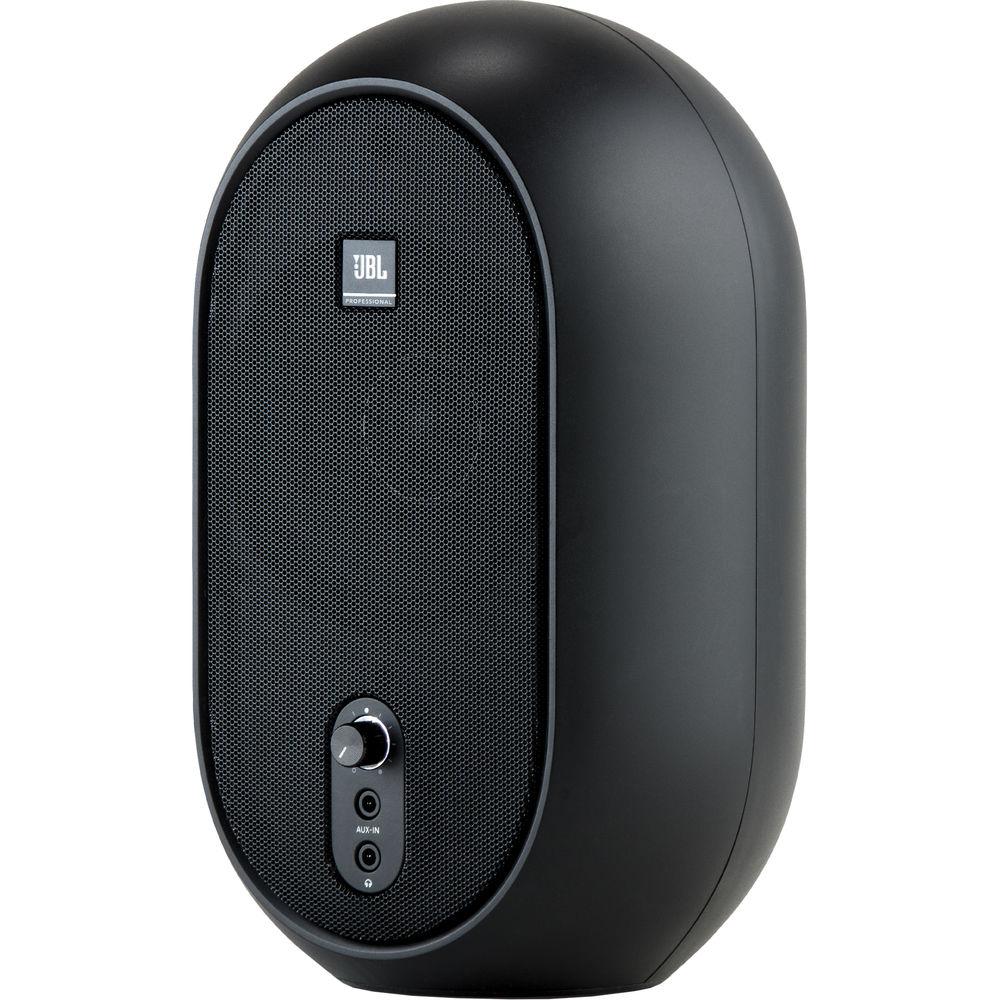

A 4.5" low-frequency driver and a 0.75" high-frequency driver are situated in a coaxial design, while a 60W amplifier distributes 30W of Class-D power to each speaker. Set your monitoring level with the front-panel volume knob on the master speaker, and you'll find accurate sonic representation at any volume. The frequency response is 60 Hz to 20 kHz, but a low-frequency port ensures presence in the low registers to better judge bass content.

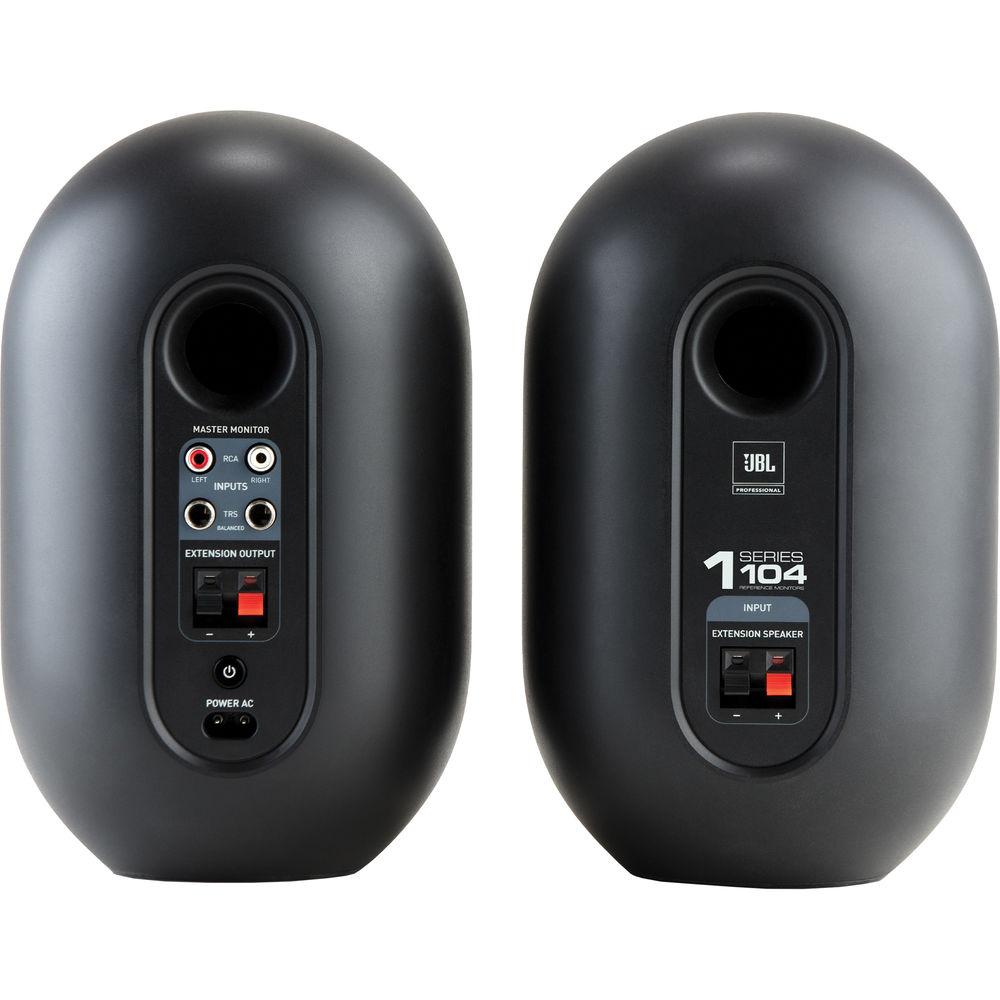

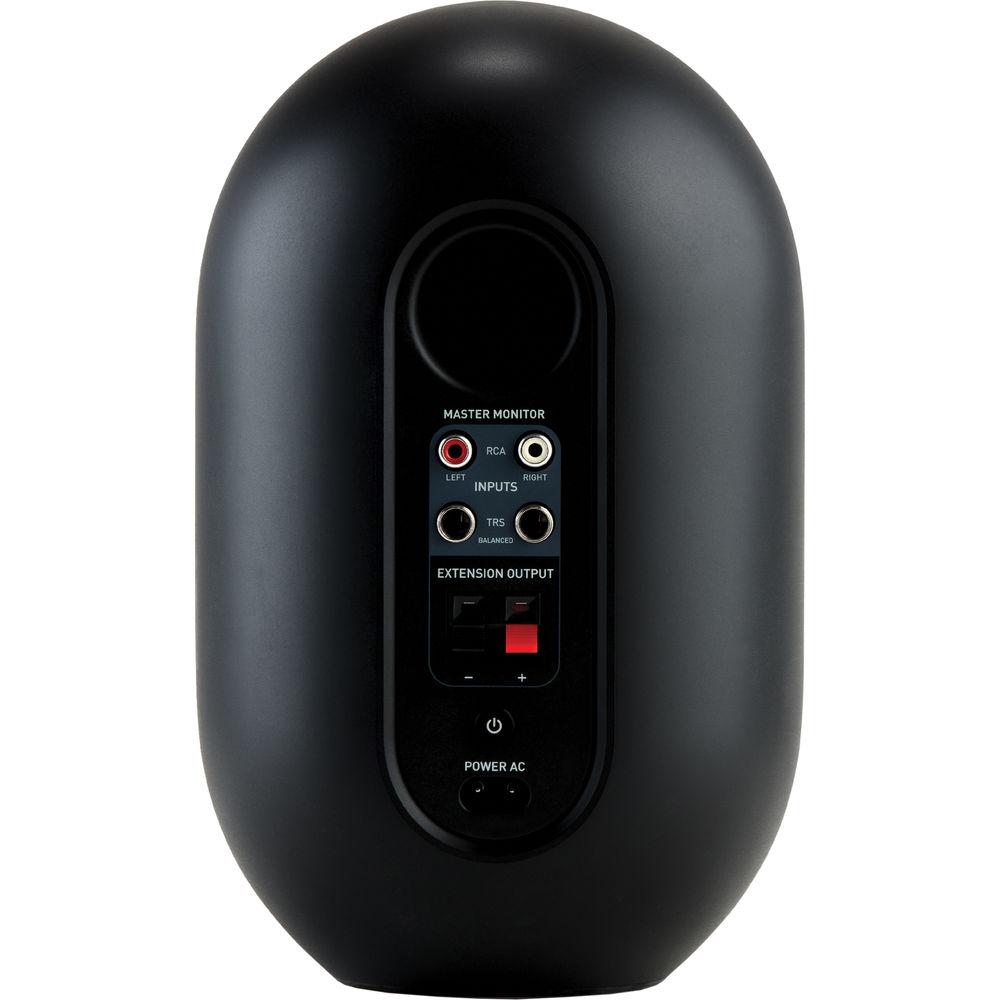

Inputs are made possible through balanced 1/4" jacks, a 3.5mm termination for auxiliary devices, or through unbalanced RCA connections. A front-panel headphone jack on the master speaker mutes the speakers and outputs signal directly to your favorite pair of cans. Included with the monitors are a 6.6' extension monitor speaker wire, a 3.5mm to RCA audio cable (perfect for stereo receivers, for example), and a power cable. - Key Features at a Glance
-
- Coaxial 4.5" LF driver and 0.75" soft-dome HF driver
- Contoured low-frequency port
- Integrated 60W Class-D power amplifier
- 30 watts distributed to each speaker
- Acoustically optimized for desktop placement
- 3 sets of inputs allow connection with professional equipment, personal music players, and consumer products
- Front-panel volume control

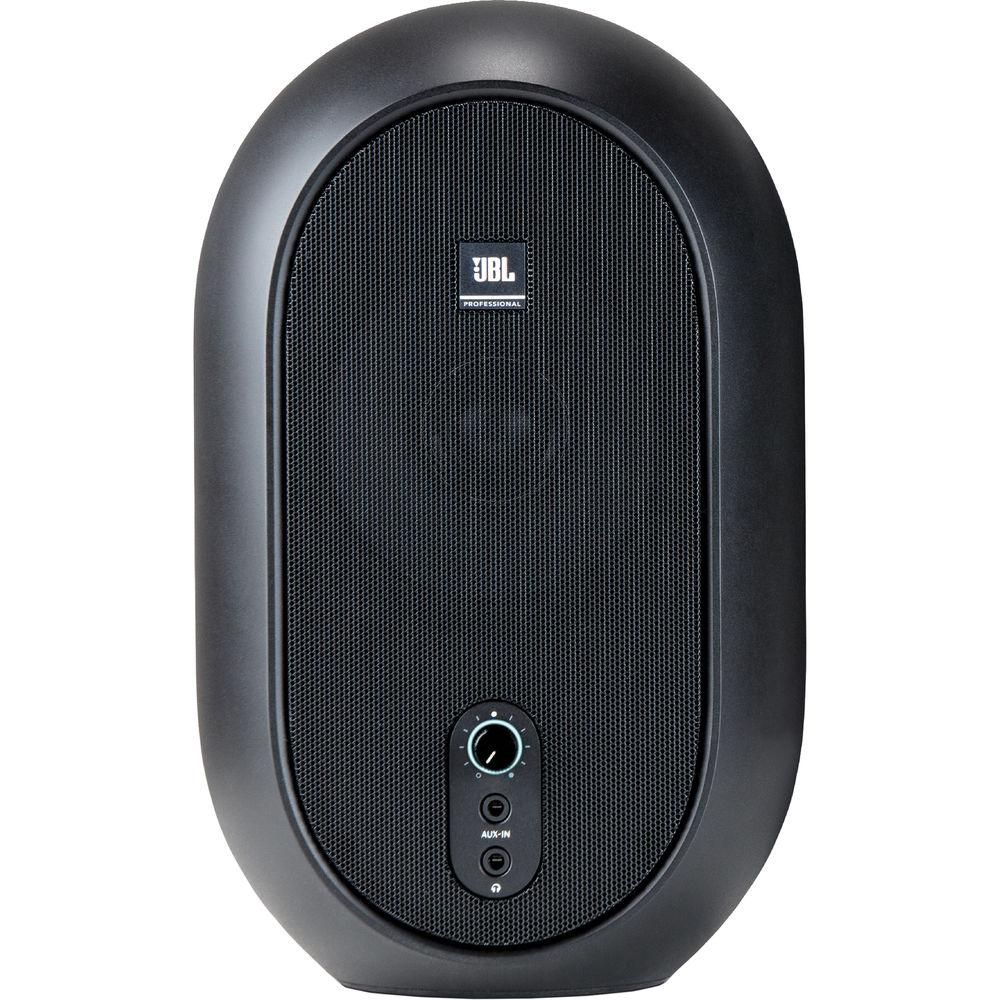

- Front-panel headphone jack with speaker mute feature
UPC: 691991015519 In the Box JBL 1 Series 104 Compact Powered Desktop Reference Monitors Extension Monitor Speaker Wire (6.6' / 2.0m) 3.5mm to RCA Audio Cable Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 1 Series 104 Compact Powered Desktop Reference Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL JBL104SET Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex | | Power Rating | 30 W RMS per Channel | | Drivers | LF Driver: 1 x 4.65" / 118 mm Coaxial Dome
HF Driver: 1 x 0.75" / 19 mm Coaxial Dome | | Amplification | 2 x Full-Range Amplifier: Class-D Rated at 30 W 1 x 60W CLass-D power distributed to each speaker | | | | Frequency Range | 60 Hz to 20 kHz | | Maximum Sound Pressure Level (SPL) | 104 dB Momentary Peak | | Signal-to-Noise Ratio | 75 dBA | | Total Harmonic Distortion (THD) | <1% | | Maximum Input Level | +6 dBV (Unbalanced)
+20.3 dBu (Balanced) | | Dispersion | 120 x 80° (Horizontal x Vertical) | | Protections and Limiting | Limiter | | | | Crossover Frequency | High-Pass Frequency: 1725 Hz, 6 dB/Octave Slope | | | | I/O | 2 x 1/4" TRS Balanced Female Analog Input
2 x RCA Unbalanced Female Analog Input
1 x 1/8" / 3.5 mm TRS Unbalanced Female Analog Input
1 x 1/8" / 3.5 mm TRS Unbalanced Female Analog Output | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | | | Enclosure Material | ABS | | Dimensions (W x H x D) | 6.0 x 4.9 x 9.7" / 153.0 x 124.0 x 247.0 mm (Each) | | Weight | 4.5 lb / 2.0 kg (Active Speaker)
3.8 lb / 1.7 kg (Passive Speaker) | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 13.5 x 12.5 x 9.0" |
