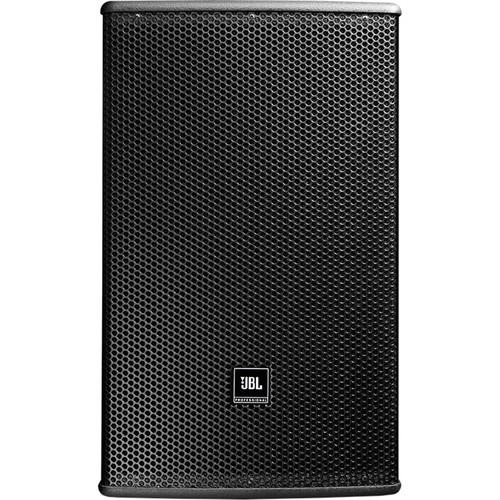

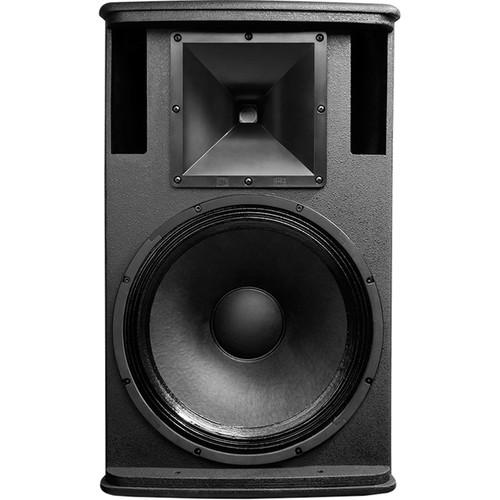

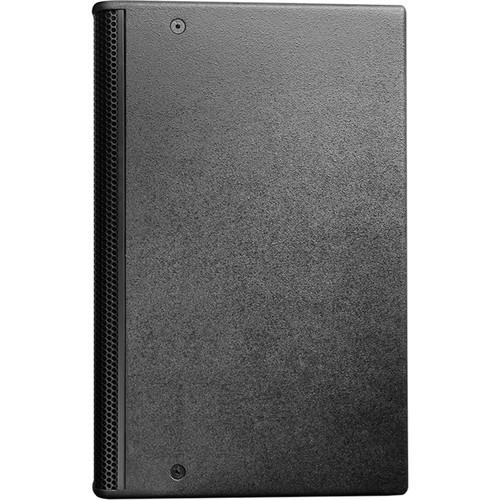

Product description The white 2-Way Full-Range 15” Loudspeaker System from JBL is comprised of a 15” low frequency driver and a 1” exit/1.5” voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount or similar type mounting. The system is suitable for a wide variety of fixed installation applications. - General
-
- Robust 15mm enclosure with black textured finish
- 15” LF transducer
- 90° x 90° Waveguide with a 1” exit
- 1.5" voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
- Applications
-
- Performing spaces
- Clubs & bars
- Houses of worship
- Multimedia spaces
- Retail & hospitality spaces
- Presentation suites
- Educational facilities
In the Box JBL 2-Way Full-Range 15" Passive Loudspeaker System (White) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 2-Way Full-Range 15" Passive Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AC599-WH Specs | Frequency Response | 60 Hz to 20 kHz (-10 dB)
75 Hz to 18 kHz (±3 dB) | | System Sensitivity | 98 dB (1 W @ 1 m) | | Nominal Impedance | 8 Ohms | | Maximum SPL | 122 dB (128 dB peak) @ 1 m | | Power Rating | Long-Term System (IEC): 250/500/1000 W (Continuous/Program/Peak)
2 Hours System (AES): 350 W (1400 W peak) | | Coverage Pattern | 90° x 90° (H x V) | | Crossover | 1.5 kHz | | Low Frequency Driver | 1 x 15" (38 cm) woofer driver with 2.5" (6.6 cm) voice-coil | | High Frequency Driver | 1 x 2408H-2 driver with 1" (2.5 cm) exit/ 1.5" (3.5 cm) voice-coil | | Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals | | Enclosure | 0.6" (1.5 cm) multi-ply hardwood | | Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing | | Dimensions (H x W x D) | 26.7 x 16.5 x 17.5" / 68.0 x 42.0 x 44.5 cm |
