User Manual for JBL 2-Way Full-Range 15" Passive Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL 2-Way Full-Range 15" Passive Loudspeaker
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
 |
User manual for the JBL 2-Way Full-Range 15" Passive Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

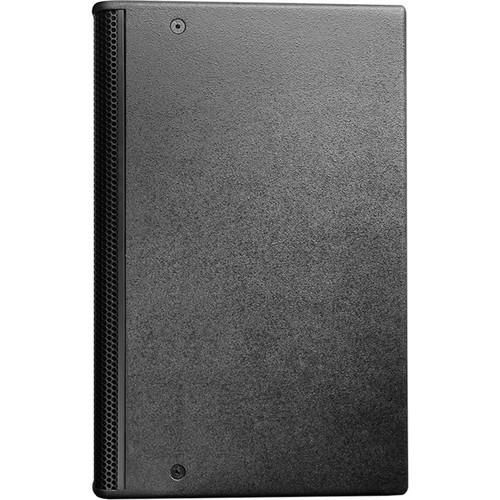

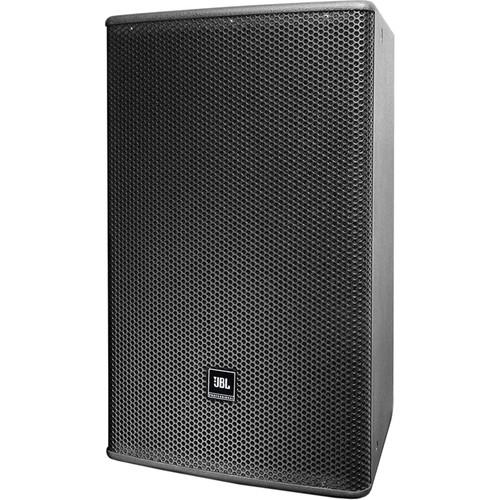

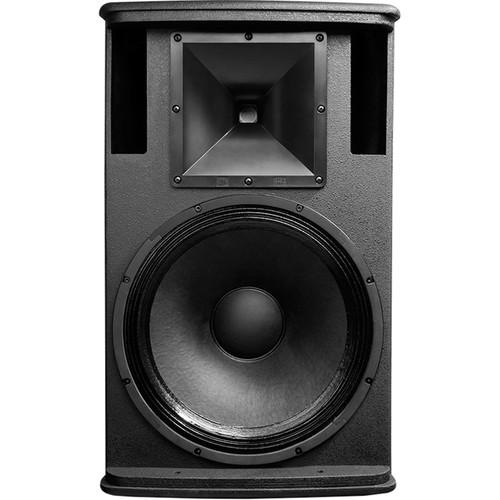

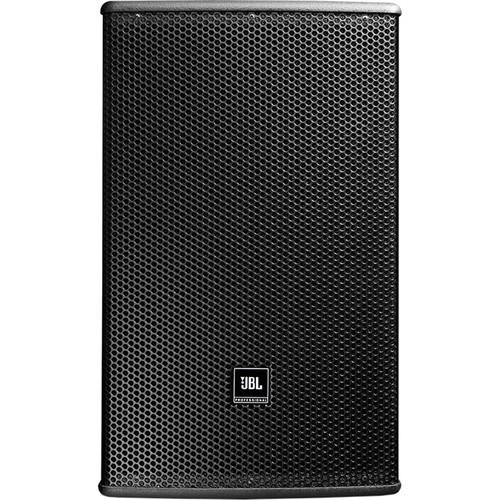

Product description The black 2-Way Full-Range 15” Loudspeaker System from JBL is comprised of a 15” low frequency driver and a 1” exit/1.5” voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount or similar type mounting. The system is suitable for a wide variety of fixed installation applications. - General
-
- Robust 15mm enclosure with black textured finish
- 15” LF transducer
- 90° x 90° Waveguide with a 1” exit
- 1.5" voice-coil compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for ultimate flexibility
- Applications
-
- Performing spaces
- Clubs & bars
- Houses of worship
- Multimedia spaces
- Retail & hospitality spaces
- Presentation suites
- Educational facilities
UPC: 691991001307 In the Box JBL 2-Way Full-Range 15" Passive Loudspeaker System (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 2-Way Full-Range 15" Passive Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AC599 Specs | Frequency Response | 60 Hz to 20 kHz (-10 dB)
75 Hz to 18 kHz (±3 dB) | | System Sensitivity | 98 dB (1 W @ 1 m) | | Nominal Impedance | 8 Ohms | | Maximum SPL | 122 dB (128 dB peak) @ 1 m | | Power Rating | Long-Term System (IEC): 250/500/1000 W (Continuous/Program/Peak)
2 Hours System (AES): 350 W (1400 W peak) | | Coverage Pattern | 90° x 90° (H x V) | | Crossover | 1.5 kHz | | Low Frequency Driver | 1 x 15" (38 cm) woofer driver with 2.5" (6.6 cm) voice-coil | | High Frequency Driver | 1 x 2408H-2 driver with 1" (2.5 cm) exit/ 1.5" (3.5 cm) voice-coil | | Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals | | Enclosure | 0.6" (1.5 cm) multi-ply hardwood | | Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing | | Dimensions (H x W x D) | 26.7 x 16.5 x 17.5" / 68.0 x 42.0 x 44.5 cm |
