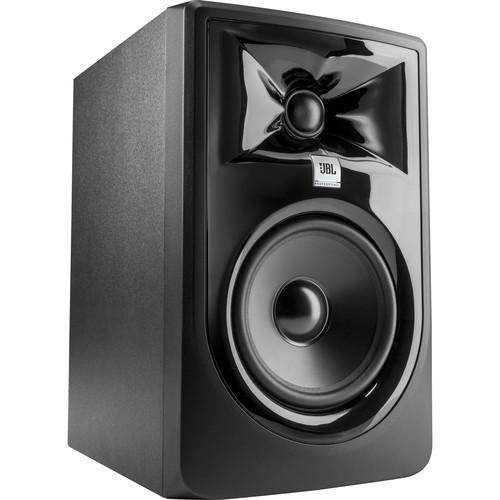

User Manual for JBL 305P MkII - Powered 5" Two-Way Studio Monitor Click to enlarge the picture
Contents of the user manual for the JBL 305P MkII - Powered 5"
- Product category: Studio Monitors JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Studio Monitors
|
User manual for the JBL 305P MkII - Powered 5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL 305P MkII - Powered 5" Two-Way Studio Monitor is a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace. The magnetically-shielded 305P MkII features dual 41W Class-D amplifiers, which power the 5" low frequency woofer and woven-composite 1" neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 49 Hz to 20 kHz with a peak SPL of 108 dB.
The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response. The 305P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature dented level control. Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 305P MkII ships with a power cord. -
- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
- High-quality JBL transducers for optimized transient response and improved linearity
- Patented Slip Stream low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range
- Boundary EQ settings compensate for low-frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
- Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio
UPC: 691991007705 In the Box JBL 305P MkII - Powered 5" Two-Way Studio Monitor Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 305P MkII - Powered 5" Two-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL 305P MKII Specs | Drivers | LF Driver: 5.0" / 127.0 mm
HF Driver: 1.0" / 25.4 mm
HF Driver Type: Soft dome | | Crossover | 1725 Hz 4th order acoustic Linkwitz-Riley | | Magnetic Shielding | Yes | | Input Sensitivity | 92 dB at 3.3' / 1 m (-10 dBV input) | | Power Configurations | Bi-amplified | | HF Driver Power Amp | 41 W, Class-D | | LF Driver Power Amp | 41 W, Class-D | | Frequency Response | 49 Hz to 20 kHz (±3 dB) | | Frequency Range | 43 Hz to 24 kHz (-10 dB) | | Low Frequency Extension | 43 Hz | | SPL | Continuous: 94 dB
Peak: 108 dB | | Maximum Input | Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu | | THD | System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria: 0.2% THD @ 1 kHz / 2.83 VRMS output; <1% THD @ 1 kHz, full rated output | | Signal to Noise Ratio | 75 dBA (A-weighted), 70 dBr (unweighted), relative to 2.83 VRMS output | | Dispersion | H x V: 120° x 90° | | Inputs | 1 x XLR female (balanced)
1 x TRS female (balanced) | | HF Trim Control | -2 dB, 0 dB, +2 dB | | Equalization | Boundary EQ:
LF Shelf at 50 Hz: -3 dB, -1.5 dB, 0 dB | | Enclosure Type | Ported | | Construction Material | MDF: 0.6" / 15.0 mm | | Finish | Matte black PVC | | Baffle | Injection-molded structural ABS | | Power | 100 to 240 VAC (±10%), 50 / 60 Hz | | Dimensions (H x W x D) | 11.7 x 7.3 x 9.1" / 297.2 x 185.4 x 231.1 mm | | Weight | 10.4 lb / 4.7 kg | | | | Package Weight | 12.55 lb | | Box Dimensions (LxWxH) | 14.0 x 12.0 x 10.0" |
