JBL 306P MkII - Studio Monitor

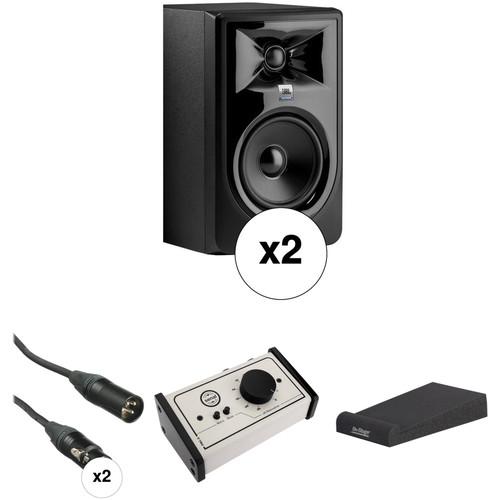

User Manual for JBL 306P MkII - Studio Monitor Kit with Passive Monitor Controller, Speaker Pads, and Cables

• Product category: Studio Monitors JBL
• Brand: JBL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for JBL Studio Monitors

Product description

• 2 x JBL 306P MkII - Powered 6.5" Two-Way Studio Monitor The JBL 306P MkII - Powered 6.5" Two-Way Studio Monitor is a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace. The magnetically-shielded 306P MkII features dual 56W Class-D amplifiers, which power the 6.5" low frequency woofer and woven-composite 1" neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 47 Hz to 20 kHz with a peak SPL of 110 dB.

  The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response. The 306P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature dented level control. Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 306P MkII ships with a power cord.
  • • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
    • High-quality JBL transducers for optimized transient response and improved linearity
    • Patented Slip Stream low-frequency port for superior bass performance at all playback levels
    • Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range
    • Boundary EQ settings compensate for low-frequency variants introduced by the environment
    • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
    • Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control
    • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
    • Strenuous JBL 100-hour full-power test ensures years of reliability
    • Sleek, modern design provides a visual upgrade to any studio
  UPC: 691991007712
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267
• Senal PMC-II Passive Monitor Controller The PMC-II Passive Monitor Controller from Senal is for anyone using powered monitors that needs a precise and easy way to control monitor volume. Featuring XLR/TRS combo inputs as well as TRS stereo mini-jack inputs, the controller is compatible with a variety of professional and consumer audio equipment, and it can be used anywhere a separate volume controller is needed. Designed to be inserted between powered monitors and a computer, a sound card, or an audio interface, the PMC-II adds the convenience of accurately adjusting your monitors' volume without having to access the computer or sound card's volume control. In addition, it is equipped with a 1/8" TRS stereo mini-input jack and is compatible with any smartphone, tablet, MP3 player, or device with a stereo mini-jack output. The PMC-II's passive design won't alter or color the sound originating from the computer or device that it is connected to. Built with a steel housing and solid wood panels, the PMC-II is an effective, stylish, and dependable addition to any workstation or studio.
  Precision Volume Control
  • The PMC-II allows you to accurately adjust the volume of your monitors without having to access your computer or sound card's volume controls
  Passive Design
  • There is no need for a power supply to operate it, and thanks to its passive design, it doesn't alter or color the original sound from your computer or other device
  Multiple Inputs
  • XLR/TRS combo and 1/8" stereo mini inputs offer compatibility with computers, sound cards, and portable devices with a 1/8" stereo output such as an iPhone or tablet
  Multiple Outputs
  • XLR and 1/8" stereo mini-jack outputs ensure compatibility with several monitor formats for professional, project, or home studio applications
  Oversize Control Knob
  • The oversize control knob ranges from 0 to -85 dB of attenuation so that you can easily and accurately control monitor volume
  Mute Button
  • A mute button allows you to quickly silence the output
  Mono Button
  • The mono button is ideal for listening to mixes in mono to check for balance or phasing issues
  Steel Housing
  • The PMC-II is a durable and stylish addition to any workstation or studio
  UPC: 847628594135
• On-Stage ASP3001 Foam Speaker Platforms (Small, Pair) The pair of small Foam Speaker Platforms from On-Stage are for decoupling studio monitors from their workspace. They offer to isolate the true tone and frequency ranges during playback of recordings in project studios, mix rooms, broadcast TV facilities, and more. The speaker platforms will accommodate studio monitors up to 6.5" in width and 11.5" in depth and prevent bass frequency build up from the hard surfaces of your desk. By creating separation between the speakers and the work surface, musicians and studio engineers will enjoy a more accurate audio picture of their recordings.
  • Will accommodate studio monitors up to 6.5" in width and 11.5" in depth
  • Dense foam absorbs vibrations and stabilizes frequencies
  • Two included wedges (per base platform) allow you to customize the angle of your speakers
  UPC: 659814128310

• 2 x 306P MkII - Powered 6.5" Two-Way Studio Monitor fadwxaacfuqc
• Power Cord
• Limited 2-Year Warranty

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

• Senal - PMC-II Passive Monitor Controller

• On-Stage - ASP3001 Foam Speaker Platforms (Small, Pair)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x JBL 306P MkII - Powered 6.5" Two-Way Studio Monitor

  Drivers	LF Driver: 6.5" / 165.1 mm HF Driver: 1.0" / 25.4 mm HF Driver Type: Soft dome
  Crossover	1425 Hz 4th order acoustic Linkwitz-Riley
  Magnetic Shielding	Yes
  Input Sensitivity	92 dB at 3.3' / 1 m (-10 dBV input)
  Power Configurations	Bi-amplified
  HF Driver Power Amp	56 W, Class-D
  LF Driver Power Amp	56 W, Class-D
  Frequency Response	47 Hz to 20 kHz (±3 dB)
  Frequency Range	39 Hz to 24 kHz (-10 dB)
  Low Frequency Extension	39 Hz
  SPL	Continuous: 92 dB Peak: 110 dB
  Maximum Input	Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu
  THD	System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement Electrical Distortion Criteria: 0.2% THD @ 1 kHz / 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
  Signal to Noise Ratio	75 dBA (A-weighted), 70 dBr (unweighted), relative to 2.83 VRMS output
  Dispersion	H x V: 120° x 90°
  Inputs	1 x XLR female (balanced) 1 x TRS female (balanced)
  HF Trim Control	-2 dB, 0 dB, +2 dB
  Equalization	Boundary EQ: LF Shelf at 50 Hz: -3 dB, -1.5 dB, 0 dB
  Enclosure Type	Ported
  Construction Material	MDF: 0.6" / 15.0 mm
  Finish	Matte black PVC
  Baffle	Injection-molded structural ABS
  Power	100 to 240 VAC (±10%), 50 / 60 Hz
  Dimensions (H x W x D)	14.2 x 8.8 x 11.1" / 360.7 x 223.5 x 281.9 mm
  Weight	13.4 lb / 6.1 kg

  Box Dimensions (LxWxH)	16.5 x 13.3 x 11.75"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"

• Senal PMC-II Passive Monitor Controller

  Product Type	Monitor controller
  Design	Passive
  Channels	2
  Input Connections	2 x XLR/1/4" (6.3 mm) TRS combo 1/8" (3.5 mm) stereo TRS mini-jack
  Output Connections	2 x XLR 1/8" (3.5 mm) stereo TRS mini-jack
  Line Output Level	Max: 20 dBu
  Output Level	-20 dB
  Output Impedance	600 Ohms
  Input Impedance	10,000 Ohms balanced, 5000 Ohms unbalanced
  Frequency Response	10 Hz to 40 kHz
  Total Harmonic Distortion	0.001%
  Attenuation	85 dB (attenuator) 112 dB (attenuator and mute)
  Controls	Volume knob, mute button, mono button
  Dimensions (H x W x D)	2.4 x 6.4 x 3.3" (6.2 x 16.4 x 8.5 cm)
  Weight	1.6 lb (726 g)

  Box Dimensions (LxWxH)	8.0 x 3.8 x 3.2"

• On-Stage ASP3001 Foam Speaker Platforms (Small, Pair)

  Dimensions (W x L x H)	6.5 x 11.5 x 1.5" (17 x 29 x 3.8 cm) per platform
  Weight	0.15 lb (68 g) each

  Box Dimensions (LxWxH)	12.2 x 7.6 x 3.4"
