Product description

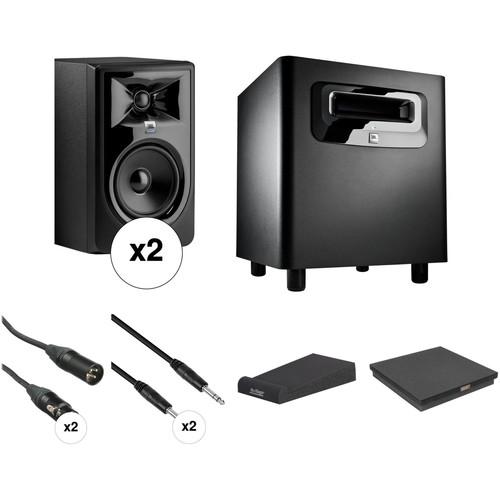

• 2 x JBL 306P MkII - Powered 6.5" Two-Way Studio Monitor The JBL 306P MkII - Powered 6.5" Two-Way Studio Monitor is a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace. The magnetically-shielded 306P MkII features dual 56W Class-D amplifiers, which power the 6.5" low frequency woofer and woven-composite 1" neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 47 Hz to 20 kHz with a peak SPL of 110 dB.

  The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response. The 306P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature dented level control. Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 306P MkII ships with a power cord.
  • • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
    • High-quality JBL transducers for optimized transient response and improved linearity
    • Patented Slip Stream low-frequency port for superior bass performance at all playback levels
    • Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range
    • Boundary EQ settings compensate for low-frequency variants introduced by the environment
    • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
    • Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control
    • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
    • Strenuous JBL 100-hour full-power test ensures years of reliability
    • Sleek, modern design provides a visual upgrade to any studio
  UPC: 691991007712
• JBL LSR310S 200W Powered Subwoofer The LSR310S 200W Powered Subwoofer from JBL is a 200-watt Class-D subwoofer that has been optimized for use in JBL's 3 Series of speakers. The subwoofer is designed for use in music recording, mix, and post-production 5.1 applications. It features a 10-inch speaker and JBL's Slip Stream Port to provide a peak output of 113 dB.

  A selectable Extended Low Frequency (XLF) effect allows you to augment the low frequency response found in many dance clubs, allowing you use the LSR310S to provide a sonic picture of how your tracks will sound at the club. It also has a selectable input sensitivity and 3 crossover settings including 80Hz, XLF (120Hz), and external, allowing the use of an external crossover. UPC: 050036904636
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274
• 2 x Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (10') The 10 foot PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable from Pearstone features Rean connectors with nickel-plated contacts on both ends, 24-gauge oxygen-free copper conductors, and spiral shielding to protect against EMI and RFI noise. Additionally, twin conductive PVC shields reduce electrostatic noise and provide a clean signal path while retaining good flexibility for those occasions that demand it.

  The connector's molded strain relief over metal shells provides excellent durability and allows for increased protection between the OFC conductors and the connectors. The cable is ideal for both live and studio applications, including connecting powered speakers to studio monitor controllers, or connecting synthesizers and outboard gear to mixers, or wherever balanced connections are indicated.
  • Rean male 1/4" TRS connectors with nickel-plated contacts on both ends of the interconnect cable offer excellent durability
  • 24-gauge OFC conductors maximize conductivity, making the cable ideal for both live and studio applications
  • Spiral shielding rejects both EMI and RFI noise and offers a clean signal path
  • Twin conductive PVC shields minimize electrostatic noise, while being flexible and durable for running the cable in tight spots
  • Metal shells provide rigid strain relief and protect the solder points between the OFC conductors and the connectors for greater cable longevity
  UPC: 847628580435
• On-Stage ASP3001 Foam Speaker Platforms (Small, Pair) The pair of small Foam Speaker Platforms from On-Stage are for decoupling studio monitors from their workspace. They offer to isolate the true tone and frequency ranges during playback of recordings in project studios, mix rooms, broadcast TV facilities, and more. The speaker platforms will accommodate studio monitors up to 6.5" in width and 11.5" in depth and prevent bass frequency build up from the hard surfaces of your desk. By creating separation between the speakers and the work surface, musicians and studio engineers will enjoy a more accurate audio picture of their recordings.
  • Will accommodate studio monitors up to 6.5" in width and 11.5" in depth
  • Dense foam absorbs vibrations and stabilizes frequencies
  • Two included wedges (per base platform) allow you to customize the angle of your speakers
  UPC: 659814128310
• Auray ISO-SUB Subwoofer Isolation Stabilizer The ISO-SUB Subwoofer Isolation Stabilizer from Auray is for improving the sound and resolution of a subwoofer. It is used to reduce vibrations and unwanted resonance that can make a subwoofer sound muddy, and is ideal for home theater, studio, and stereo-system applications. A sturdy, fabric-covered wooden base with EVA (ethylene-vinyl acetate) padding isolates and stabilizes the speaker, and a high-density acoustic foam decouples the speaker from the floor so low frequencies sound clearer and more focused. The ISO-SUB's design preserves the accuracy and clarity of your subwoofer and decreases the transmission of vibrations to adjacent rooms and other spaces.
  Improves the Sound of Your Subwoofer
  • Without the proper isolation, a subwoofer can sound muddy. The ISO-SUB provides a subwoofer with a high-density acoustic-foam platform that minimizes vibrations and resonance to clarify and sharpen the SUB's sound
  Minimizes Resonant Coupling
  • If the subwoofer makes other surfaces vibrate, it diminishes its clarity and accuracy. The ISO-SUB minimizes resonant coupling from the floor or stage so that all you hear is the pure, low-end bass sound coming from the subwoofer
  Prevents Speaker Recoil
  • The EVA padding on the surface of the ISO-SUB prevents speaker recoil by eliminating the speaker's back-to-front motion. This stability enhances speaker accuracy by eliminating the transmission of vibrations to other surfaces
  UPC: 847628597884

• 2 x 306P MkII - Powered 6.5" Two-Way Studio Monitor wrrbqrasxefyrcewuevqedusbyaq
• Power Cord
• Limited 2-Year Warranty

• LSR310S 200W Powered Subwoofer

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black wrrbqrasxefyrcewuevqedusbyaq

• 2 x Pearstone - PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (10')

• On-Stage - ASP3001 Foam Speaker Platforms (Small, Pair)

• Auray - ISO-SUB Subwoofer Isolation Stabilizer wrrbqrasxefyrcewuevqedusbyaq

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x JBL 306P MkII - Powered 6.5" Two-Way Studio Monitor

  Drivers	LF Driver: 6.5" / 165.1 mm HF Driver: 1.0" / 25.4 mm HF Driver Type: Soft dome
  Crossover	1425 Hz 4th order acoustic Linkwitz-Riley
  Magnetic Shielding	Yes
  Input Sensitivity	92 dB at 3.3' / 1 m (-10 dBV input)
  Power Configurations	Bi-amplified
  HF Driver Power Amp	56 W, Class-D
  LF Driver Power Amp	56 W, Class-D
  Frequency Response	47 Hz to 20 kHz (±3 dB)
  Frequency Range	39 Hz to 24 kHz (-10 dB)
  Low Frequency Extension	39 Hz
  SPL	Continuous: 92 dB Peak: 110 dB
  Maximum Input	Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu
  THD	System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement Electrical Distortion Criteria: 0.2% THD @ 1 kHz / 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
  Signal to Noise Ratio	75 dBA (A-weighted), 70 dBr (unweighted), relative to 2.83 VRMS output
  Dispersion	H x V: 120° x 90°
  Inputs	1 x XLR female (balanced) 1 x TRS female (balanced)
  HF Trim Control	-2 dB, 0 dB, +2 dB
  Equalization	Boundary EQ: LF Shelf at 50 Hz: -3 dB, -1.5 dB, 0 dB
  Enclosure Type	Ported
  Construction Material	MDF: 0.6" / 15.0 mm
  Finish	Matte black PVC
  Baffle	Injection-molded structural ABS
  Power	100 to 240 VAC (±10%), 50 / 60 Hz
  Dimensions (H x W x D)	14.2 x 8.8 x 11.1" / 360.7 x 223.5 x 281.9 mm
  Weight	13.4 lb / 6.1 kg

  Box Dimensions (LxWxH)	16.5 x 13.3 x 11.75"

• JBL LSR310S 200W Powered Subwoofer

  Speaker	10" (254 mm) high-excursion woofer, down-firing
  Low Frequency Extension	27 Hz
  Amplifier	200 W Class D
  Crossover	Crossover Settings: 80 Hz, XLF, external
  Peak Level	Peak: 113 dB
  Input	2 x XLR 2 x TRS balanced
  Output	2 x XLR
  Maximum Input	+20.3 dBu
  Crossover	80 Hz, XLRF (120 Hz), or External
  Power	100-240 VAC, ±10%, 50/60 Hz
  Dimensions (H x W x D)	17.7 x 15.0 x 15.7" / 448.3 x 381.0 x 397.5 mm
  Weight	34.3 lb / 15.6 kg

  Box Dimensions (LxWxH)	21.0 x 19.4 x 19.3"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"

• 2 x Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (10')

  Connector 1	1 x 1/4" TRS Male Straight
  Connector 2	1 x 1/4" TRS Male Straight
  Connector Brand	Rean
  Cable Length	10' / 3 m
  Shielding	92% Copper Spiral
  Wire Gauge	24 AWG
  Contact Plating	Nickel
  Jacket Type	Polyvinyl Chloride (PVC)
  Conductor Material	Oxygen-Free Copper (OFC)

  Box Dimensions (LxWxH)	12.0 x 6.3 x 0.2"

• On-Stage ASP3001 Foam Speaker Platforms (Small, Pair)

  Dimensions (W x L x H)	6.5 x 11.5 x 1.5" (17 x 29 x 3.8 cm) per platform
  Weight	0.15 lb (68 g) each

  Box Dimensions (LxWxH)	12.2 x 7.6 x 3.4"

• Auray ISO-SUB Subwoofer Isolation Stabilizer

  Material of Construction	High-density acoustic foam Fabric-covered base Ethylene-vinyl acetate (EVA) padding
  Dimensions (H x W x D)	2 x 15 x 15" (5.1 x 38.1 x 38.1 cm)
  Weight	4.7 lb (2.1 kg)

  Box Dimensions (LxWxH)	16.5 x 15.9 x 2.7"
