User Manual for JBL 3730 Three-Way ScreenArray Cinema Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL 3730 Three-Way ScreenArray Cinema Loudspeaker
- Product category: In-Wall Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL In-Wall Speakers
|
User manual for the JBL 3730 Three-Way ScreenArray Cinema Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

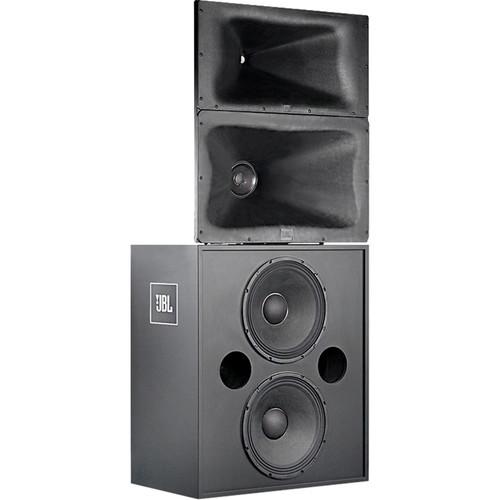

Product description Designed to accurately reproduce digital cinema soundtracks, the switchable passive/bi-amplified JBL Professional 3730 is a 3-way cinema loudspeaker system that provides superior coverage, maximum power handling, and uniform acoustic power output along with low distortion. The system's wide dynamic range and extended bandwidth reproduce sound exactly as it was recorded.
The low-frequency enclosure features two 15" drivers while the 6.5" mid-driver and high-frequency compression driver are equipped with a molded aperture waveguide, which compensates for high-frequency spreading caused by perforated screens for improved audience coverage. The ScreenArray design provides ideal power response and directivity control with seamless transitions between acoustic sections. The shallow profile of the JBL 3730 is ideal for minimum behind-screen depth requirements. -
- Three-way ScreenArray design for maximum output, optimal coverage, and minimum distortion
- Bi-amplified or fully passive switchable operation
- SSC (Screen Spreading Compensation)
- Molded Optimized Aperture Waveguide technology for low distortion and uniform frequency response
- Low-frequency section features dual 15” transducers with ribbon wire voice coils for low distortion and high efficiency
- Flat front waveguide design for easy baffle wall installation
- Shallow profile for minimum behind-screen depth requirements
In the Box JBL 3730 Three-Way ScreenArray Cinema Loudspeaker System (Bi-Amp/Passive) Limited 5-Year Warranty on Drivers Limited 2-Year Warranty on Enclosure Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 3730 Three-Way ScreenArray Cinema Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL 3730 Specs | | | Frequency Range | 30 Hz to 18 kHz | | Nominal Coverage Angle | H: 90°
V: -30/+20° | | Passive | Crossover Frequencies: 450 Hz, 2 kHz
System Sensitivity: 105 dB SPL, 2.83 V at 3.3' / 1 m
Nominal Impedance: 4 Ohms
Minimum Impedance: 2.7 Ohms at 150 Hz
Input Power Handling (AES 100-Hour Rating): 600 W | | Bi-Amping | Input Power Handling (AES 2-Hour Rating):
LF: 500 W
M/HF: 125 W | | Sensitivity | HF/LF: 105 dB, 2.83 V at 3.3' / 1 m | | | | Low Frequency Transducer | 2 x M115-8A 15" / 380 mm, 2.5" / 61 mm Edgewound Ribbon Voice Coil Transducers Mounted in a 4509 LF Enclosure | | Input Connectors | Push Terminal Binding Posts | | Impedance | Nominal Impedance: 4 Ohms
Minimum Impedance 2.7 Ohms at 150 Hz | | Input Power | Input Power Handling (AES 2-Hour Rating): 500 W, (600 W Recommended Amplifier) | | Sensitivity | Free-Field Sensitivity: 104 dB SPL, 2.83 V at 3.3' / 1 m | | | | Mid Frequency Driver | Mid Frequency Transducer (Ships Fully Assembled): 1 x 195H, 6.5" / 165 mm Diameter, 1.5" / 38 mm voice coil | | High Frequency Transducer | 1 x 2414H, 1" / 25 mm Polymer Diaphragm, Neodymium Compression Driver | | Input Connectors | Screw Terminal Barrier Strip | | Nominal Impedance | MF: 8 Ohms
HF: 8 Ohms
M/HF: 4 Ohms
M/HF Minimum Impedance: 3 Ohms at 1850 Hz | | Sensitivity | MF: 104 dB SPL, 2.83 V at 3.3' / 1 m
HF: 106 dB SPL, 2.83 V at 3.3' / 1 m
M/HF Free-Field Sensitivity: 105 dB, 2.83 V at 3.3' / 1 m | | Power Handling | M/HF Input Power Handling (AES 2-Hour Rating): 125 W | | | | Dimensions (H x W x D) | System: 68.3 x 30 x 17.8" / 173.3 x 76.2 x 45 cm
Low Frequency Component: 34.8 x 30 x 17.8" / 88.2 x 76.2 x 45 cm
M/HF Component: 33.5 x 30 x 14.1" / 85 x 76.2 x 35.8 cm | | Weight | System: 147 lb / 66.7 kg
Low Frequency Component: 123 lb / 55.8 kg
M/HF Component: 24 lb / 11 kg |
