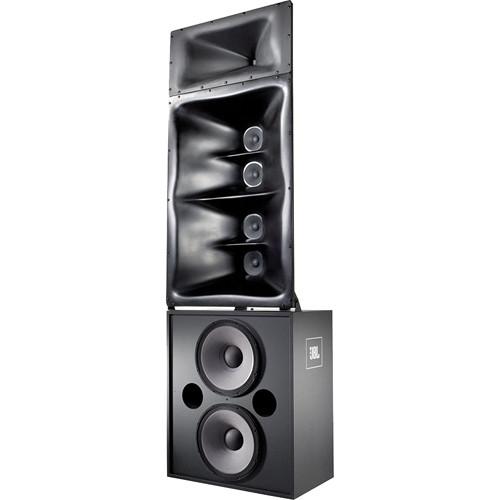

User Manual for JBL 4732-T 3-Way ScreenArray Passive Cinema Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL 4732-T 3-Way ScreenArray Passive Cinema
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL 4732-T 3-Way ScreenArray Passive Cinema contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description Designed to accurately reproduce digital cinema soundtracks, the passive, tri-amplified JBL Professional 4732T is a 3-way cinema loudspeaker system that provides superior coverage, maximum power handling, and uniform acoustic power output, along with low distortion. The system's wide dynamic range and extended bandwidth reproduce sound exactly as it was recorded.
The low-frequency enclosure features two patented Differential Drive 15" low-frequency woofers for improved power handling and reduced distortion, while the four 6.5" mid-drivers and 3" high-frequency compression driver are equipped with molded waveguides. The compression driver's waveguide compensates for high-frequency spreading caused by perforated screens for improved audience coverage. The ScreenArray design provides an ideal power response and directivity control with seamless transitions between acoustic sections. The shallow profile of the JBL 4732 is ideal for minimum behind-screen depth requirements. -
- Three-way ScreenArray design for maximum output, optimal coverage, and minimum distortion
- Large format 3” neodymium, titanium diaphragm, high-frequency compression driver
- Patented Differential Drive 15” low-frequency woofers for improved power handling and reduced distortion
- Molded Optimized Aperture Waveguide technology for low distortion and uniform frequency response
- SSC (Screen Spreading Compensation)
- Focused coverage technology
- Flat front waveguide design for easy baffle wall installation
- Shallow profile for minimum behind-screen depth requirements
In the Box JBL 4732-T 3-Way ScreenArray Passive Cinema Loudspeaker System (Tri-Amp) Limited 5-Year Warranty on Drivers Limited 2-Year Warranty on Enclosure Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 4732-T 3-Way ScreenArray Passive Cinema Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL 4732-T Specs | | | Frequency Range | 30 Hz to 20 kHz | | Frequency Response ± 3dB | 40 Hz to 19 kHz | | Nominal Coverage Angle | H: 90°
V: -30/+20° | | SPL | 130 dB at 3.3' / 1 m, 136 dB Peak | | Crossover | 1.2 kHz | | | | Low Frequency Transducer | 2 x 265H-2 15" / 380 mm Diameter Differential Drive Edgewound Ribbon Voice Coil Transducers Mounted in a 4509 LF Enclosure | | Input Connectors | Push Terminal Binding Posts | | Impedance | Nominal Impedance: 4 Ohms
Minimum Impedance 3.3 Ohms at 230 Hz | | Input Power | Input Power Handling (AES 100-Hour Rating): 500 W (44.5 V)
Input Power Handling (AES 2-Hour Rating): 800 W (56.5 V) | | Sensitivity | Free-Field Sensitivity: 104 dB SPL, 2.83 V at 3.3' / 1 m | | | | Mid Frequency Driver | Mid Frequency Transducer (Ships Fully Assembled): 4 x 165H, 6.5" / 165 mm Diameter, 1.5" / 38 mm Voice Coil | | High Frequency Transducer | 1 x 2432H, 3" / 75 mm Titanium Diaphragm and Voice Coil Diameter, 1.5" / 38 mm Exit Diameter | | Input Connectors | Screw Terminal Barrier Strip | | Nominal Impedance | MF: 4 Ohms
HF: 8 Ohms | | Minimum Impedance | 3.5 Ohms at 300 Hz | | Sensitivity | Free-Field Sensitivity
MF: 109 dB SPL, 2.83 V at 3.3' / 1 m
HF: 115 dB SPL, 2.83 V at 3.3' / 1 m | | Power Handling | M/HF Input Power Handling (AES 100-Hour Rating):
MF: 200 W, 400 W Recommended Amplifier
HF: 85 W, 200 W Recommended Amplifier | | | | Dimensions (H x W x D) | System: 95.6 x 30 x 17.8" / 242.8 x 76.2 x 45 cm
Low Frequency Component: 34.8 x 30 x 17.8" / 88.2 x 76.2 x 45 cm
M/HF Component: 60.8 x 30 x 17.8" / 154.4 x 76.2 x 45 cm | | Weight | System: 186 lb / 84.4 kg
Low Frequency Component: 107 lb / 48.5 kg
M/HF Component: 78 lb / 35.4 kg |
