User Manual for JBL 7-Series 705P 5" Bi-Amplified Master Reference Monitor Click to enlarge the picture
Contents of the user manual for the JBL 7-Series 705P 5" Bi-Amplified Master
- Product category: Studio Monitors JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Studio Monitors
 |
User manual for the JBL 7-Series 705P 5" Bi-Amplified Master contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

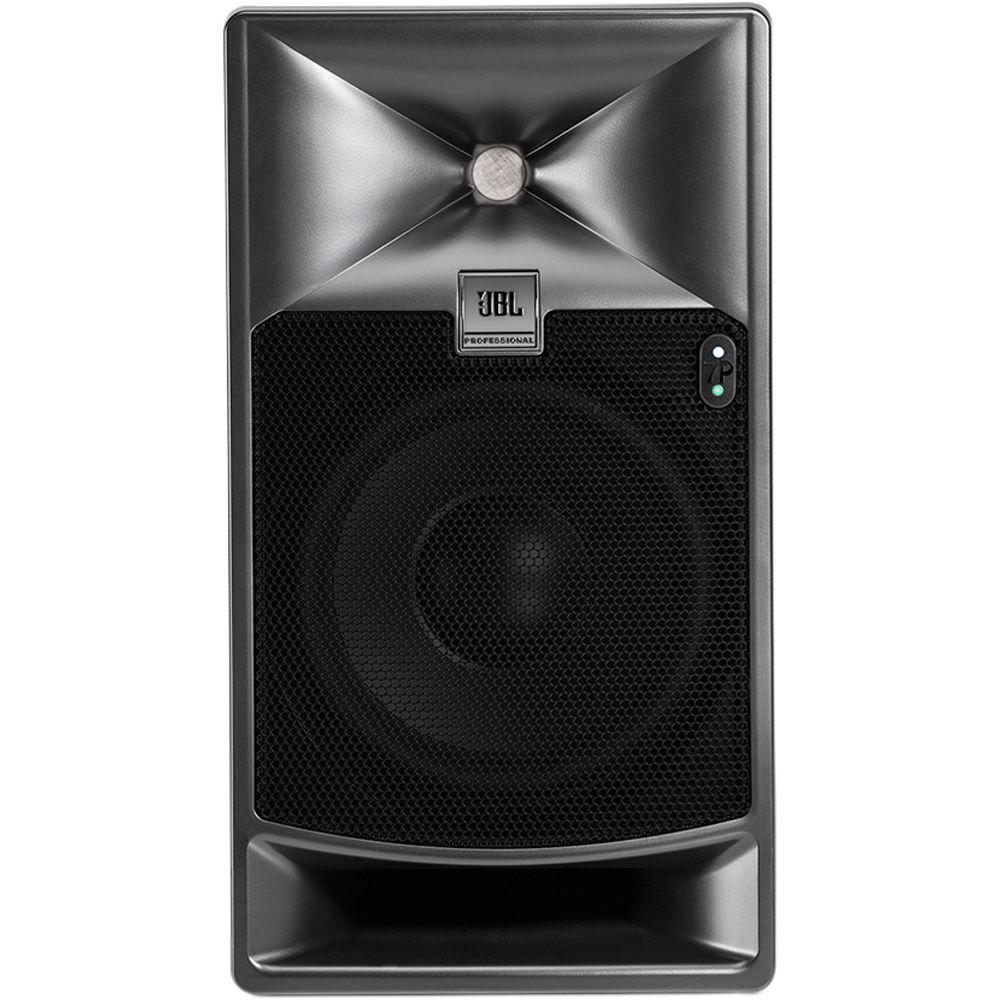

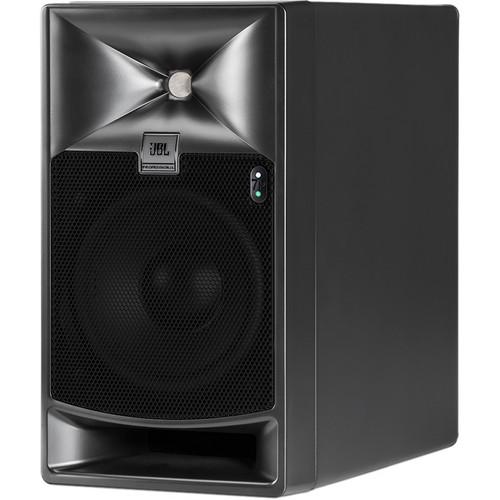

Product description The single 7-Series 705P 5" Bi-Amplified Master Reference Monitor from JBL is a self-powered reference monitor for critical music recording, film post, and broadcast-production applications. The speaker features JBL's popular Image Control Waveguide but with a smaller footprint and can be used to deliver and expansive soundstage, with accuracy in a broad range of rooms. The 2409H high-frequency compression driver incorporates a low-mass, annular diaphragm to deliver smooth response beyond 36 kHz with very low distortion. The 725G low-frequency transducer provides 14mm peak-to-peak excursion with greater linearity, delivering low-frequency output below 39 Hz. The drivers of the 705P are offered to deliver two to three times the output of existing studio monitors. Furthermore, JBL's Image Control Waveguide ensures accuracy and neutrally while providing a wide sweet spot with increased sonic detail. The speakers dual-amplification system features a 120W amp for the 2409H high-frequency transducer and a 250W amp is dedicated to the 725G low-frequency transducer. This combination provides better output and allows greater listening distances, which is suitable for post-production or mastering environments. Finally, the speaker also features on-board room equalization for compensating for adverse effects of room acoustics. In addition to twelve bands of Room EQ, eight bands of User EQ allow for customized response curves when placed behind a perforated cinema screen. User-enabled digital delay allows virtual alignment of speakers relative to the listening position, while additional AV Synchronization delay is available to compensate for latency in video displays. - Integrated dual-amplification system with internal floating-point DSP.
- Compact enclosures for easy placement and installation.

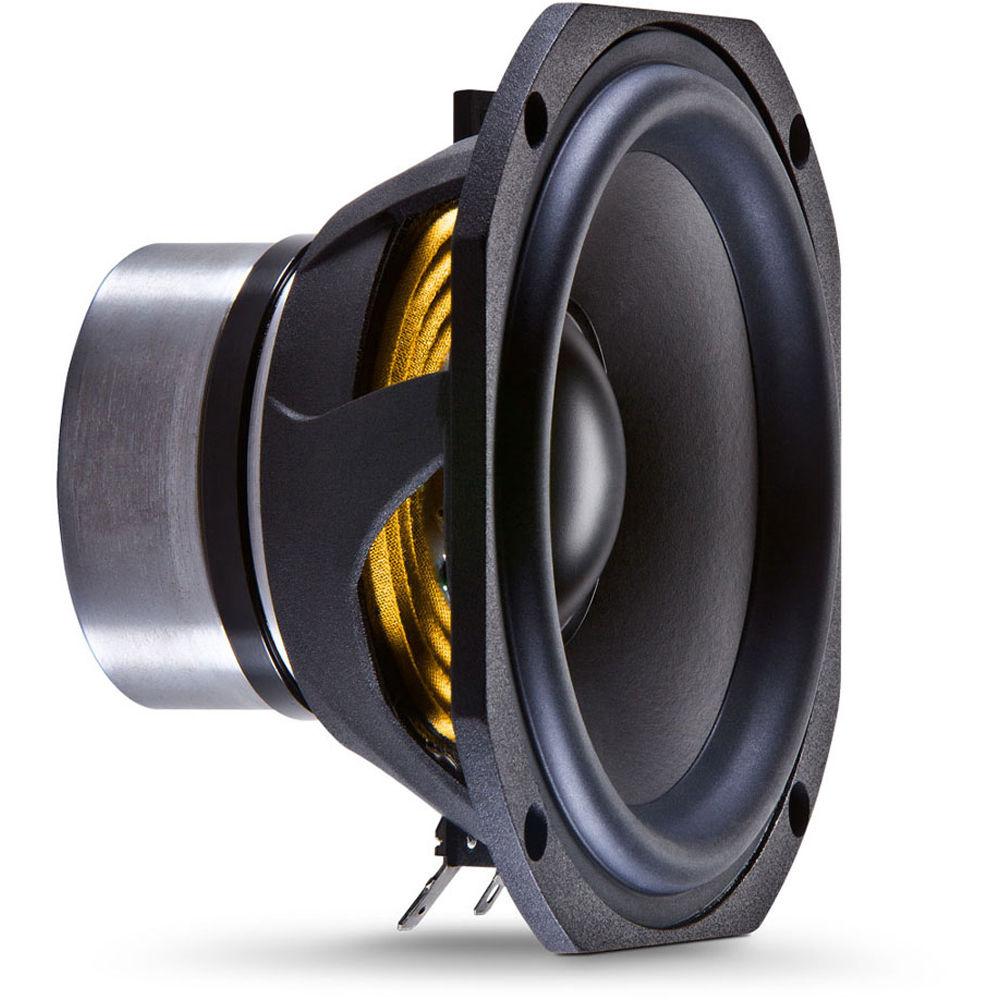

- JBL 725G low-frequency transducer delivers low-distortion and high SPL.

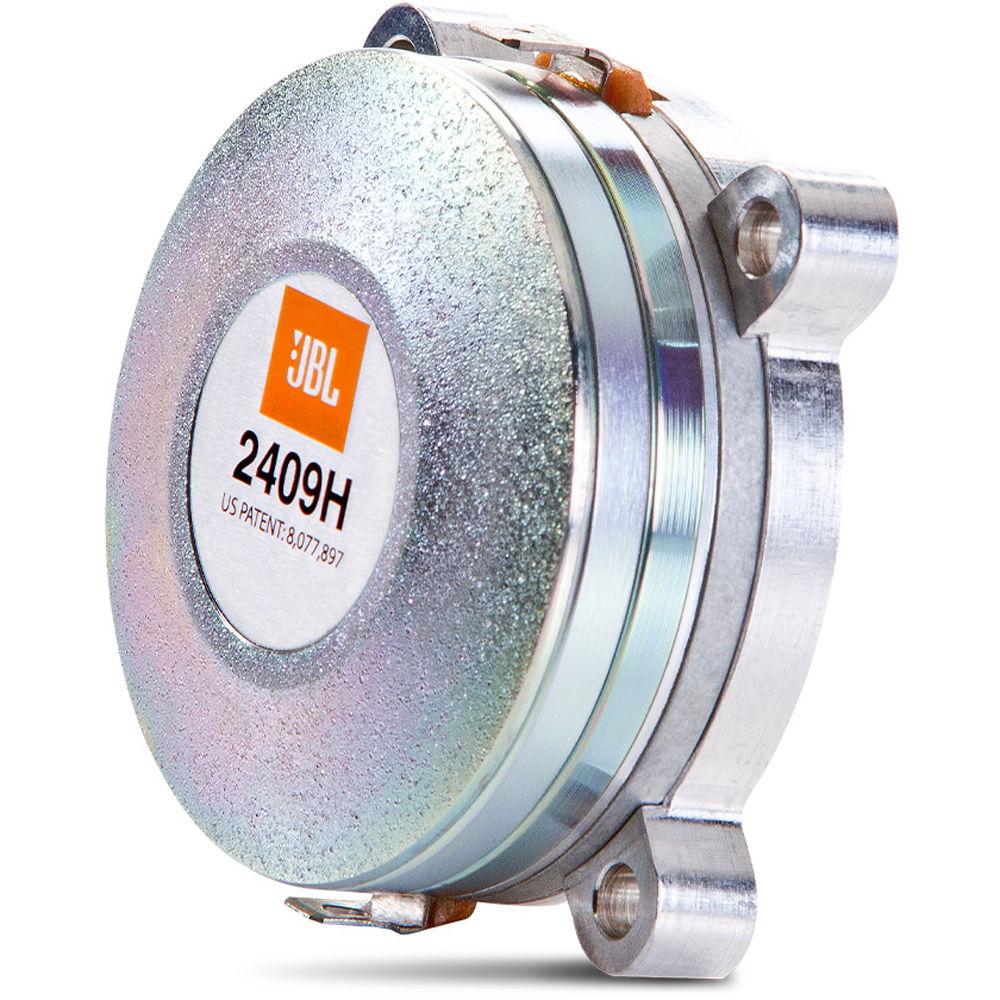

- JBL 2409H high-frequency transducer with low-mass annular diaphragm.
- 2-channel Class-D amplifier HF 120W / LF 250W.
- 192 kHz, 32-bit floating-point processing.
- 12 bands of Room EQ, 8 bands of User EQ.
- 6 factory presets, 6 user-defined presets.
- 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay.
- 1 x XLR-1/4" balanced combination analog-audio input.
1 x XLR AES3 format digital input with 1 x XLR pass-through output. - Digital input accepts sample rates of up to 192 kHz.
- User-enabled sample rate converters.
- RJ-45 network connection for Harman HiQnet connectivity.

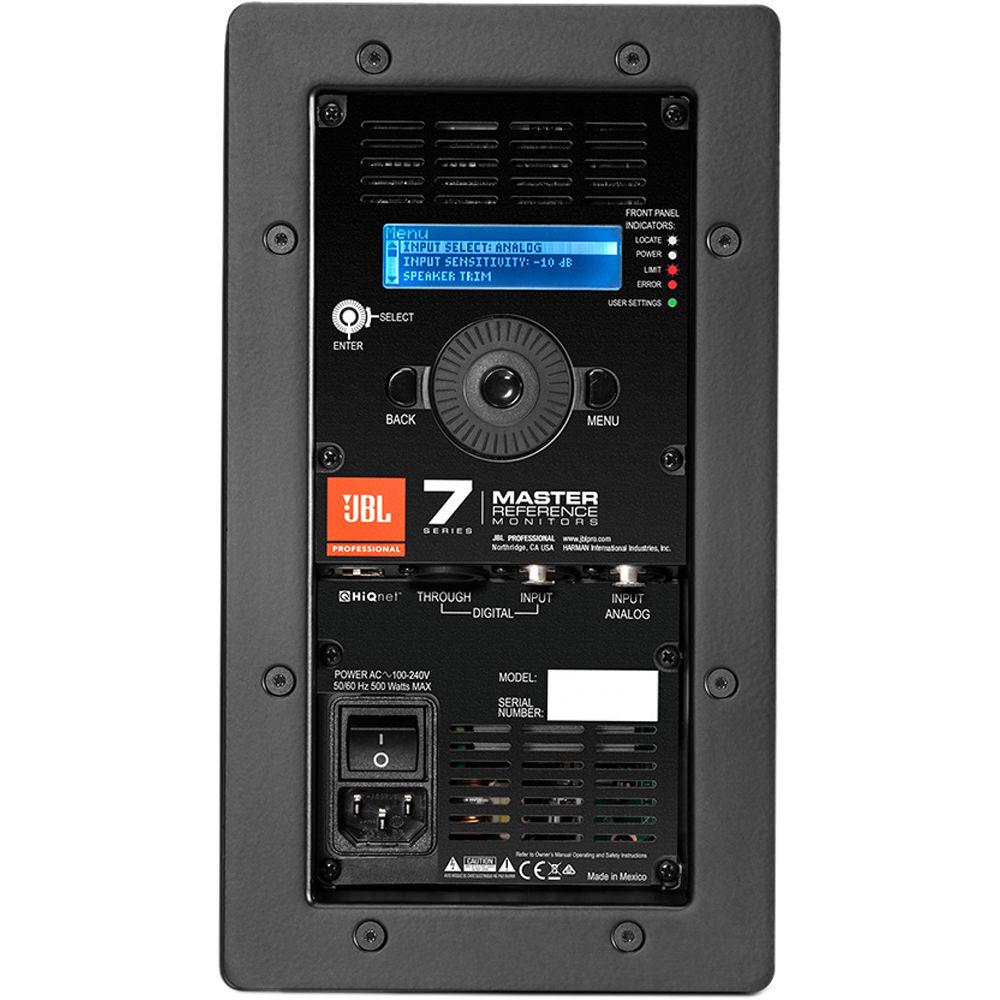

- Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay.
- Top, bottom, and rear mounting points; birch plywood cabinets reinforced for safe mounting.
- Protective, steel grilles.
UPC: 691991006326 In the Box JBL 7-Series 705P 5" Bi-Amplified Master Reference Monitor (Single) Power Cord Limited 5-Year Warranty User Manual PDF 5.9mbrdqywwytrwdyfa Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 7-Series 705P 5" Bi-Amplified Master Reference Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL 705P Specs | Frequency Response | -1.5 dB @ 48 Hz to 23 kHz | | Frequency Range | 39 Hz to 36 kHz | | Maximum SPL | >101 dB SPL at 3.3' / 1 m (80 Hz to 20 kHz) | | LF Driver | 725G | | HF Driver | 2409H | | LF Driver Size | 5" / 12.7 cm | | HF Driver Size | Not specified by manufacturer | | Crossover Frequency | 1.9 kHz | | Input Connectors | 1 x XLR-1/4" balanced combo analog audio input
1 x XLR AES3 format digital input | | Output Connectors | 1 x XLR AES3 pass-through output | | AES / EBU Input Sampling Rate | Up to 192 kHz | | Material of Construction | Birch plywood reinforced for mounting | | Mounting | Top, bottom, and rear mounting points
2-hole mounting pattern | | Dimensions (H x W x D) | 10.5 x 5.9 x 8.1" (267 x 149 x 206 mm) | | Weight | 9.0 lb (4.08 kg) each | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 16.0 x 14.5 x 10.1" |
