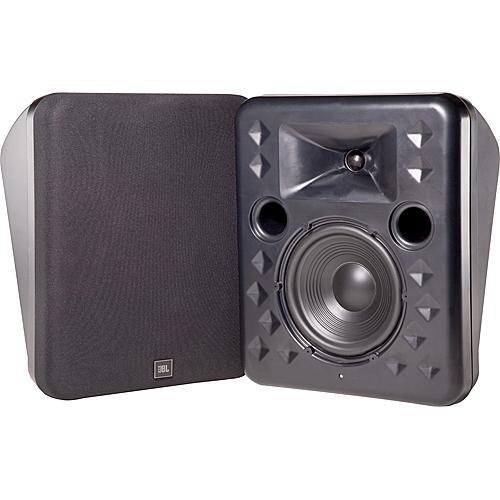

User Manual for JBL 8320 Compact Cinema Surround Speakers Click to enlarge the picture
Contents of the user manual for the JBL 8320 Compact Cinema Surround Speakers
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL 8320 Compact Cinema Surround Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL 8320 Compact Cinema Surround Speakers are full-range speakers specifically intended for cinema surround sound and theater installation. The compact, full-range enclosure features an 8" woofer and 1" high frequency driver that are capable of 150 watts continuous (600 watts peak) power. The lightweight, molded cabinets feature a 20° angle for downward firing while mounted high on walls. Top mounted 5-way binding post connections are mounted on the top (instead of the rear) for easy access and installation. - 150 watt continuous, 600 watts peak
- 8" woofer and 1" soft dome driver
- 20° downward facing angle
- 50Hz to 20kHz Frequency Range
- High Sensitivity, 91dB SPL, 1W, 3.3' (1m)
- Uniform horizontal and vertical coverage
- Internal Thermomaster technology allows for unprecedented high frequency power in a compact molded enclosure.
- Convenient mounting design uses JBL QuickMount, Omnimount or APC Multimount brackets
- Special cabinet shape incorporates 20° angled front baffle
- SMPTE/ISO2969 Curve X high frequency de-emphasis
- Lightweight, rigid molded enclosure
- Input terminals located on top of cabinet for quick access
In the Box JBL 8320 Compact Cinema Surround Speakers 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 8320 Compact Cinema Surround Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL 8320 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 600 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 1" / 25.4 mm | | LF Driver | 1 x 8" / 20.3 cm Woofer | | | | Frequency Response | 50 Hz to 20 kHz | | Maximum SPL | 122 dB | | Speaker Sensitivity | 94 dB SPL (Half-Space)
91 dB SPL (Full-Space) | | | | Dimensions | 16.0 x 13.5 x 8.8" / 406.0 x 343.0 x 224.0 mm | | Weight | 11 lb / 5 kg | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 19.5 x 19.5 x 16.0" |
