User Manual for JBL 9300 2-Way Passive Cinema Surround Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL 9300 2-Way Passive Cinema Surround
- Product category: In-Wall Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL In-Wall Speakers
 |
User manual for the JBL 9300 2-Way Passive Cinema Surround contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

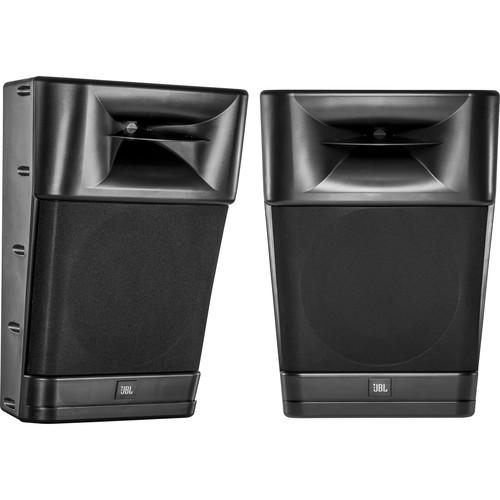

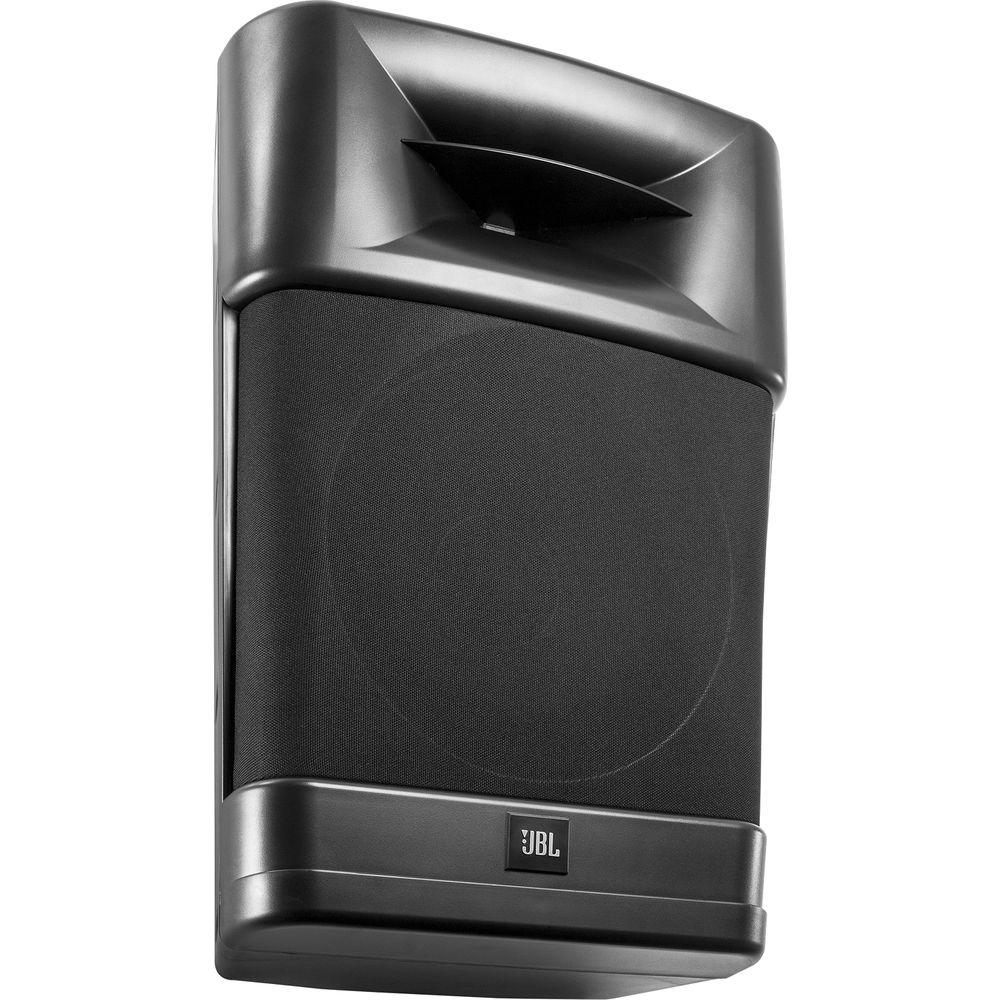

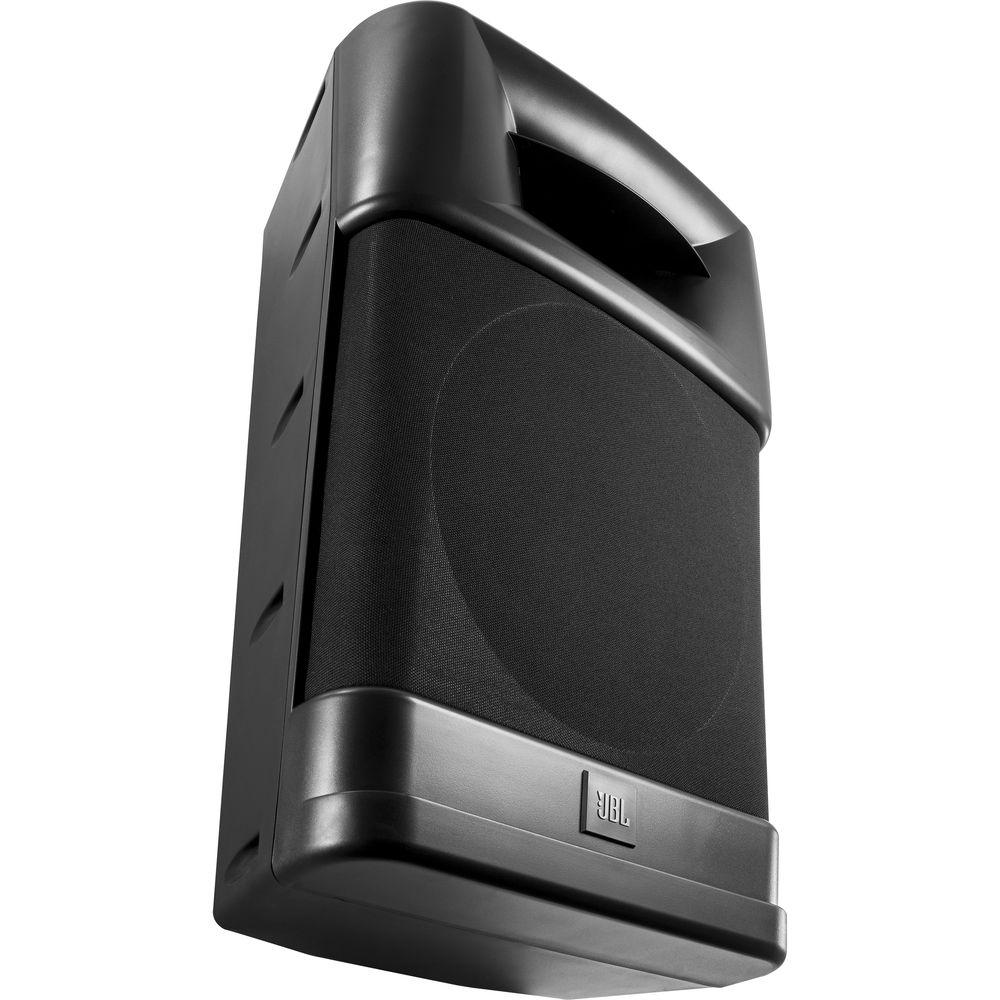

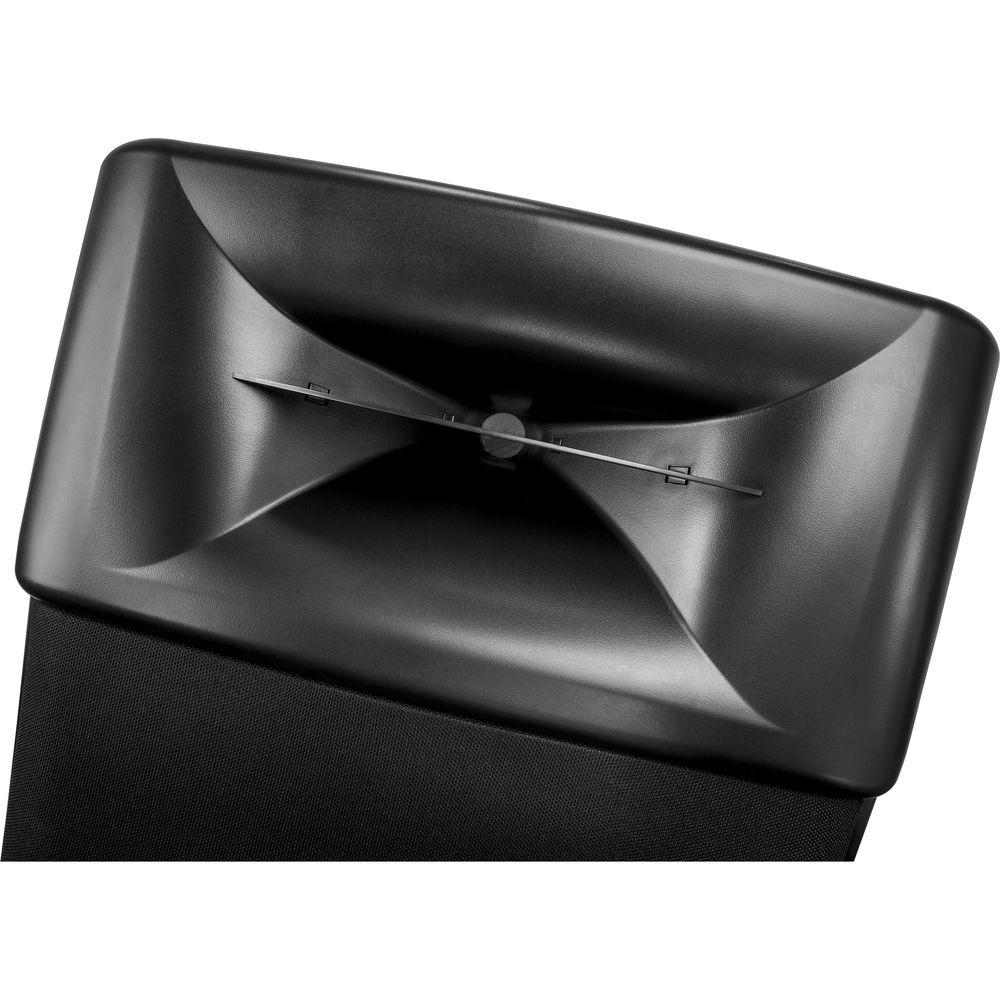

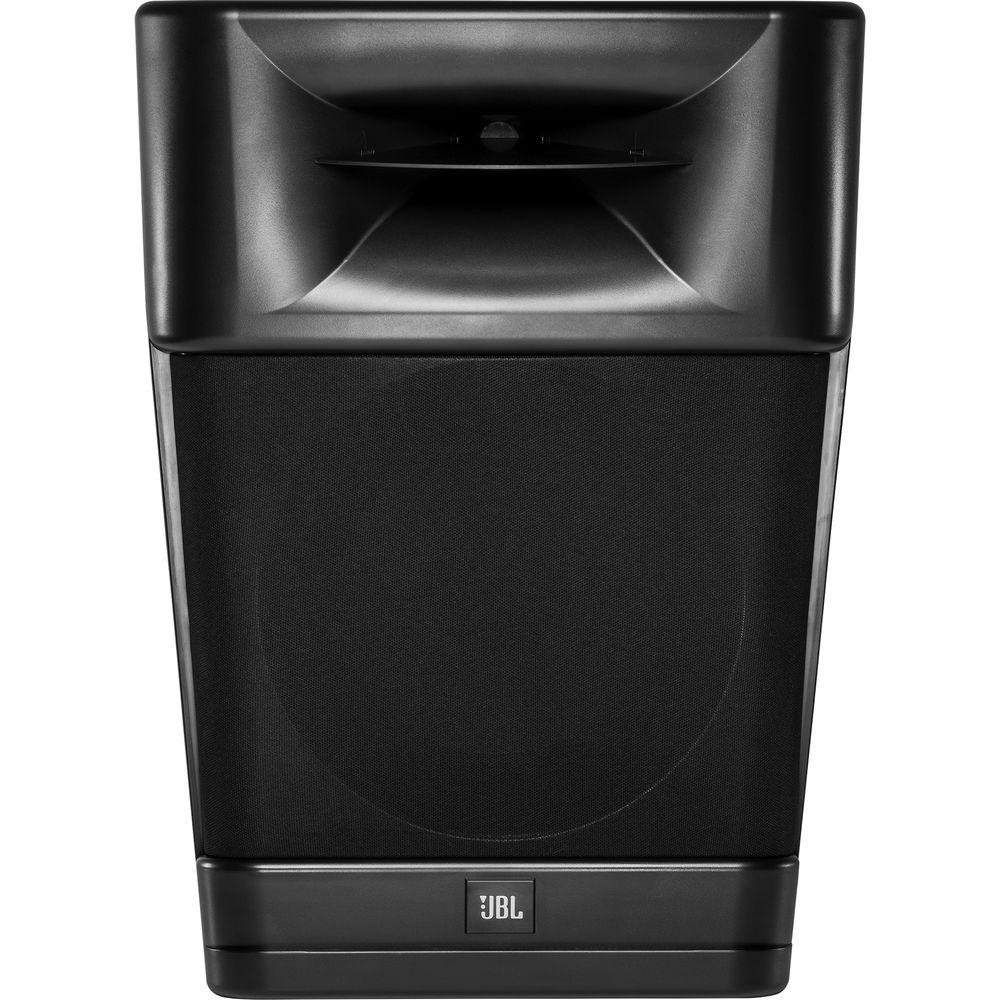

Product description The pair of JBL 9300 2-Way Passive Cinema Surround Loudspeakers feature a 1" HF horn and 10" woofer. The horn offers studio-quality performance with pattern control tailored to multiplex theater geometries. The loudspeaker uses a wave shaping vane which distributes acoustic energy in proper proportion to the room. This technique provides a wavefront that is sculpted to the room geometry and provides very precise mapping capability. This shaping also allows the loudspeaker to orient to the wall naturally while directing the acoustic energy to the seats.By mounting the surrounds at a 15° angle toward the screen, the hot spots are eliminated and overall coverage maps are dramatically improved, and those seats in close proximity to a surround have a much improved experience. The 9300 system provides 3 mounting planes for easy installation in any geometry. - 250W power handling capability

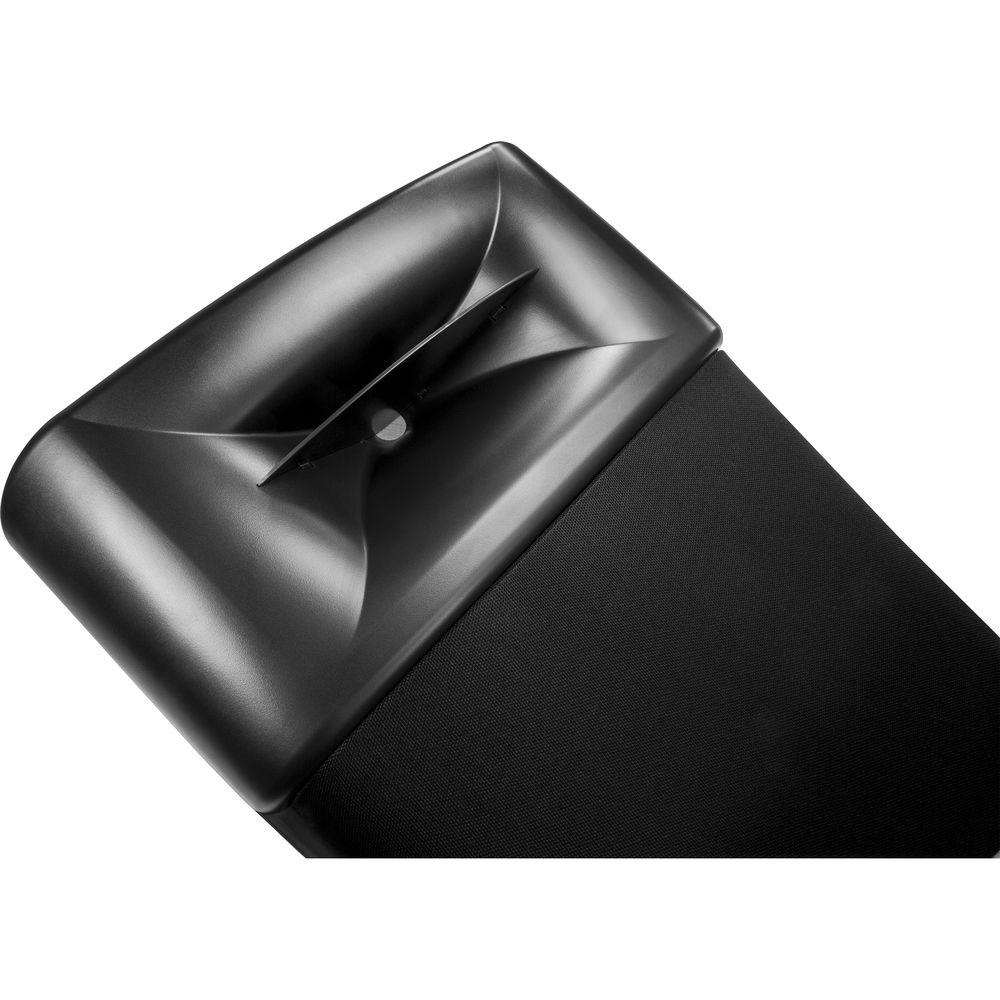

- High frequency horn features JBL Image Control technology for precise pattern control

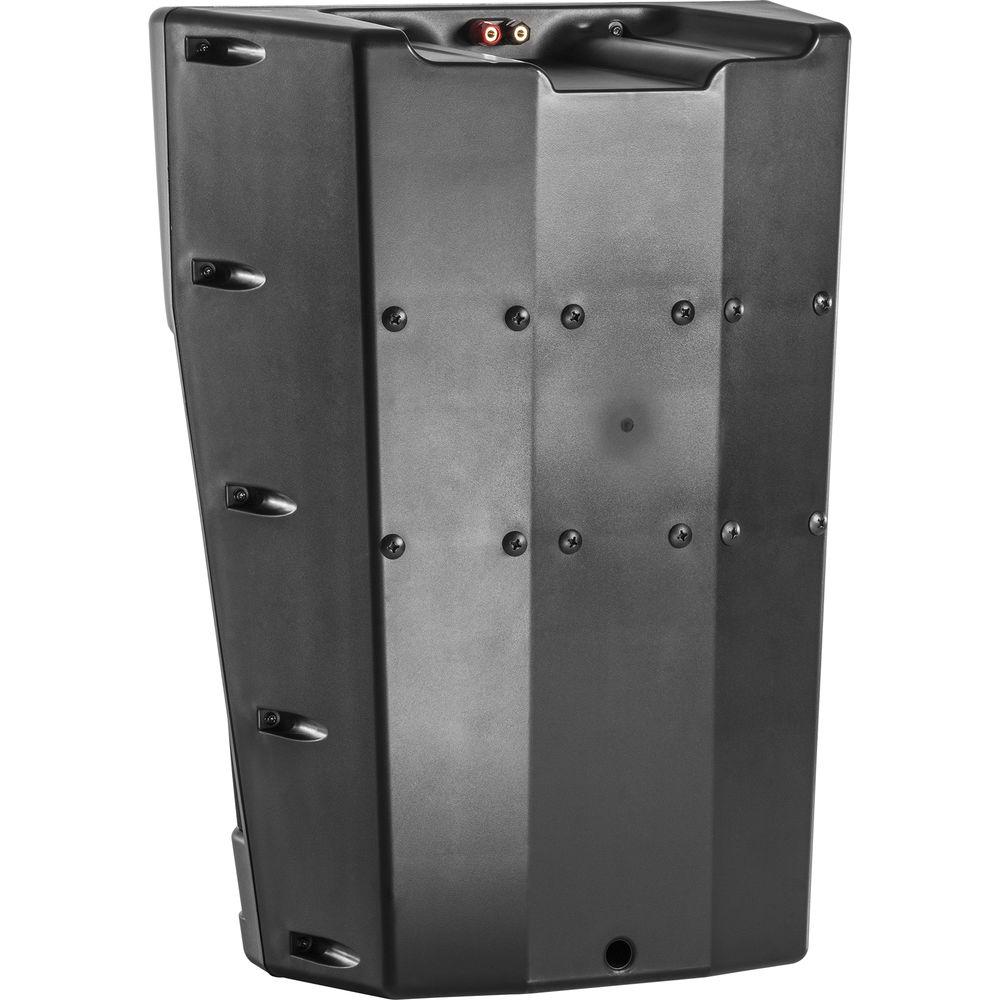

- 3 separate horizontal mounting planes at 15° angles for specific positioning to improve coverage

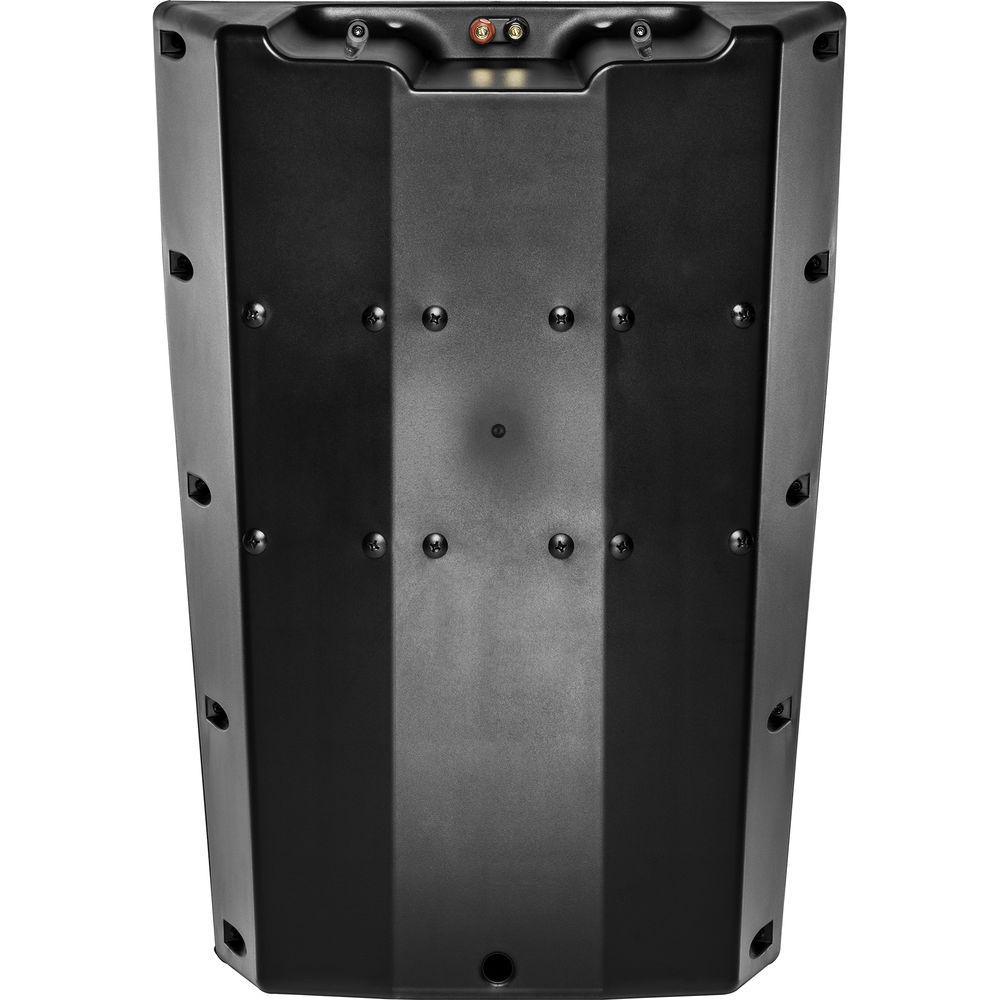

- Input terminals on top of cabinet for easy access
- Lightweight, rigid molded enclosure
- Uniform asymmetric 60° vertical coverage and 110° horizontal coverage
Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 9300 2-Way Passive Cinema Surround Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL 9300 Specs | Active or Passive | Passive | | Frequency Response | Frequency Range (-10 dB): 50 Hz to 25 kHz (2π) / 60 Hz to 25 kHz (4π)
Frequency Range (±3 dB): 60 Hz to 20 kHz (2π) / 100 Hz to 20 kHz (4π) | | Coverage Pattern | 110 x 60° asymmetric >2 kHz | | Power Capacity | 30 V @ 100 hours, 40 V @ 2 hours, IEC/Pink
250 W continuous pink noise | | Maximum Sound Pressure Level (SPL) | 120 dB continuous, 126 dB peak | | Nominal Sensitivity | 96 dB SPL @ 2.83 V | | Impedance | 8 Ohms | | Crossover | 2800 Hz | | Low Frequency Driver | 610H - 10" (250 mm), 2" (51 mm) voice coil | | High Frequency Driver | 2414H-1 - 1" (25 mm), 1" (25 mm) voice coil | | Enclosure Material | Not specified by the Manufacturer | | Polarity | System Polarity: Woofer (IEC), HF (JBL) | | Protection | System Protection: Network only | | Input Connections | System Input Type: Banana | | Enclosure Volume | 1700 in2 (10967.72 cm2) (unoccupied) | | Dimensions (H x W x D) | 22 x 16 x 11" (55.88 x 40.64 x 27.94 cm) | | Weight | 21 lb (9.53 kg) |
