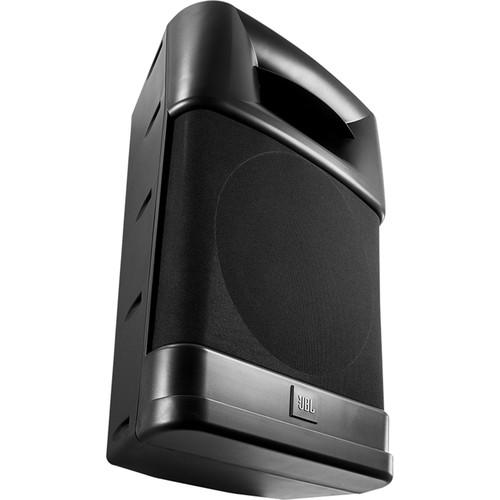

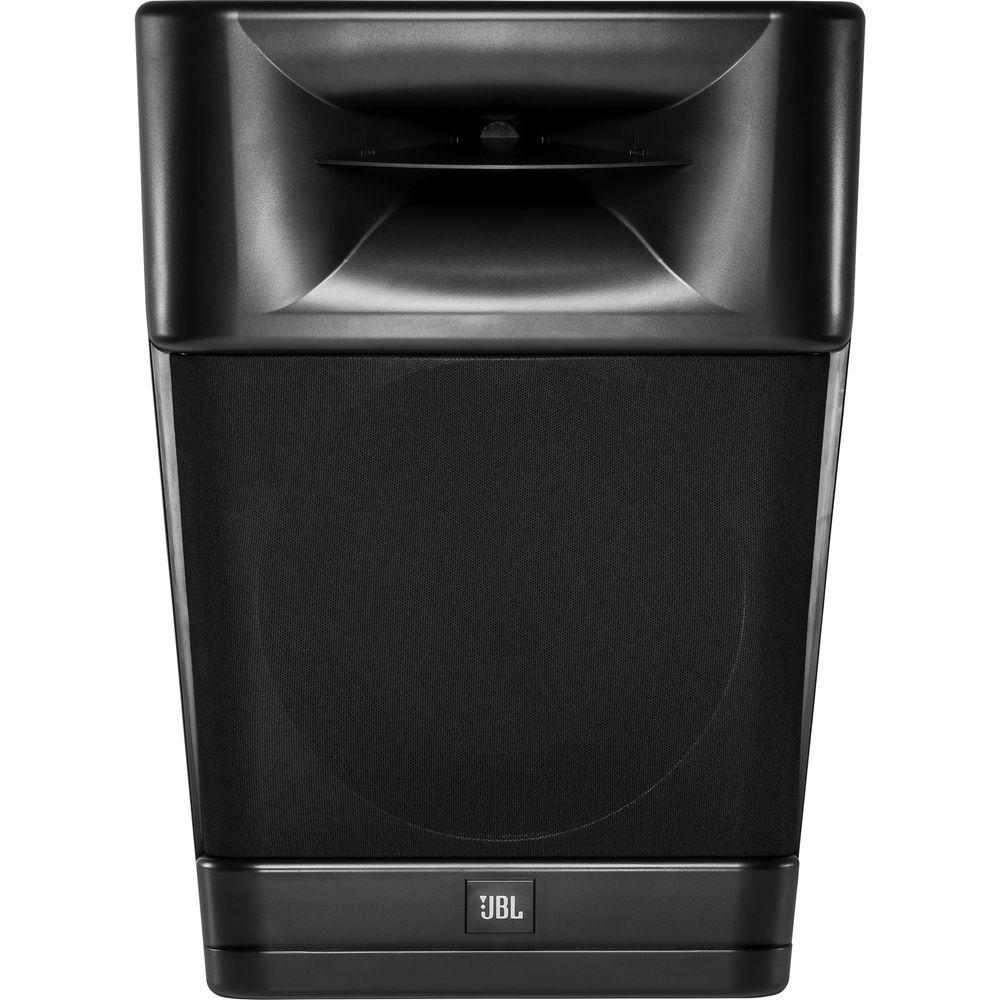

Product description The pair of JBL 9310 2-Way Passive High-Power Cinema Surround Loudspeakers feature a 1" HF horn and 10" woofer. The horn offers studio-quality performance with pattern control tailored to multiplex theater geometries. The loudspeaker uses a wave shaping vane which distributes acoustic energy in proper proportion to the room. This technique provides a wavefront that is sculpted to the room geometry and provides very precise mapping capability. This shaping also allows the loudspeaker to orient to the wall naturally while directing the acoustic energy to the seats.
By mounting the surrounds at a 15° angle toward the screen, the hot spots are eliminated and overall coverage maps are dramatically improved, and those seats in close proximity to a surround have a much improved experience. The 9310 system provides 3 mounting planes for easy installation in any geometry. - 350W power handling capability
- High frequency horn features JBL Image Control technology and Wave Shaping Vane for precise pattern control

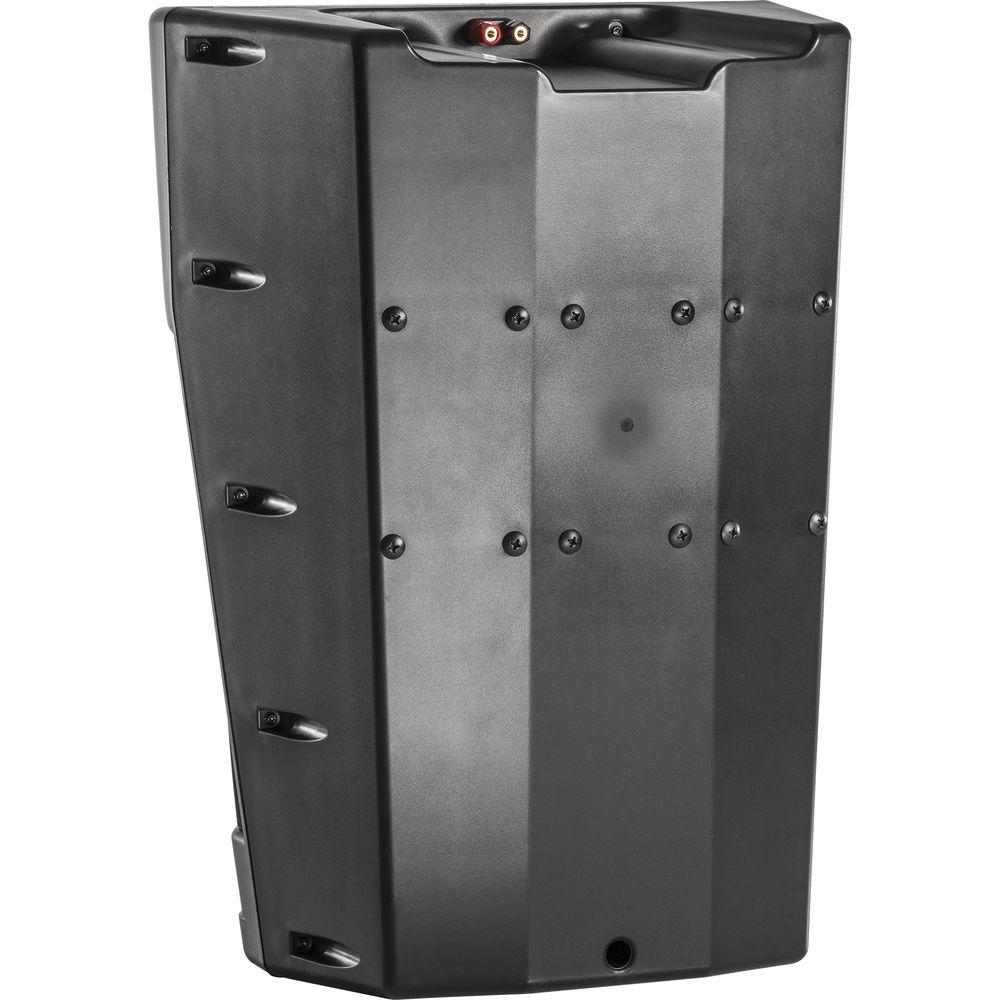

- Three separate horizontal mounting planes at 15° angles for specific positioning to improve coverage
- Input terminals on top of cabinet for easy access
- Lightweight, rigid molded enclosure
- Uniform asymmetric 60° vertical coverage and 110° horizontal coverage
In the Box JBL 9310 2-Way Passive High-Power Cinema Surround Loudspeaker (Pair) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL 9310 2-Way Passive High-Power Cinema Surround Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL 9310 Specs | Active or Passive | Passive | | Frequency Range | -10 dB: 50 Hz to 25 kHz (2π) / 60 Hz to 25 kHz (4π)
±3 dB: 60 Hz to 20 kHz (2π) / 100 Hz to 20 kHz (4π) | | Maximum Sound Pressure Level (SPL) | Continuous: 124 dB
Peak: 130 dB | | Coverage Pattern | 110° x 60° asymmetric > 1 kHz | | Nominal Sensitivity | 99 dB SPL @ 2.83 V | | Impedance | Rated: 8 Ohms
Minimum: 7 Ohms @ 200 Hz | | Crossover Frequencies | 2600 Hz | | Low Frequency Transducer | M110-8 | | High Frequency Transducer | 2414H | | Polarity | System Polarity: Woofer (IEC), HF (IEC) | | Power Capacity | 40 V @ 100 hours, 48 V @ 2 hours
IEC/Pink 350 W continuous power | | Enclosure Material | Not specified by the manufacturer | | Protection | System Protection: Network only | | System Input | Type: Banana | | Enclosure Volume | 1700 in2 (10967 cm2) (unoccupied) | | Dimensions | 22.0 x 16.0 x 11.0" (55.9 x 40.6 x 27.9 cm) | | Weight | 25.0 lb (11.3 kg) | | | | Package Weight | 58.5 lb | | Box Dimensions (LxWxH) | 24.0 x 23.5 x 18.5" |
