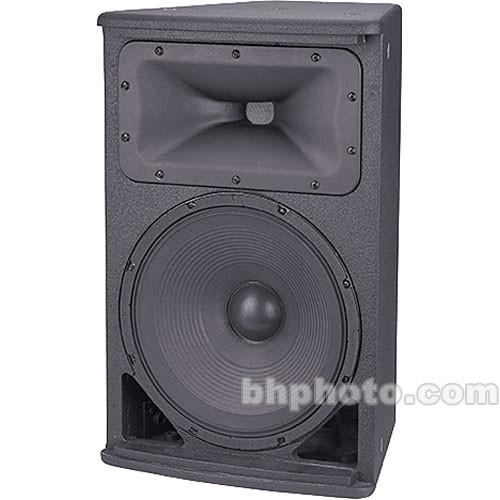

User Manual for JBL AC-2212 00 - 12" 2-Way Bi-Amp Ready 250-Watt Fixed Installation P.A. Speaker - Black Click to enlarge the picture
Contents of the user manual for the JBL AC-2212 00 - 12" 2-Way
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL AC-2212 00 - 12" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL AC-2212/00 is a 2-way passive, suspension-ready installation P.A. speaker with a 250-watt continuous, 1000-watt peak power-handling and external bi-amping capability. The speaker is equipped with a 12" LF driver and a 1.5" horn-loaded compression driver, housed in a rugged 11-ply birch plywood enclosure. The speaker may be either rigged and flown via 15 integral suspension points, or wall mounted, and loop-thru connectivity on a Speakon(TM) paralleled connector is also provided. - 2-way suspension-ready bi-ampable passive installation P.A. speaker with 100° x 100° horn
- 250 watts continuous, 1000-watt peak power handling capacity
- 12" LF driver with 2.5" voice coil
- 1.5" horn-loaded compression driver
- PT (Progressive Transition)(TM) waveguide for reliable, low distortion pattern control over extended dispersion angle
- High-slope crossover minimizes band overlap
- Speakon(TM) and Barrier Strip connectors, speakon wired in parallel with barrier strip for loop-thru connection
- 15 suspension points for flying, 4 Omnimount(TM) ceiling or wall mount points
In the Box JBL AC-2212/00 - 12" 2-Way Bi-Amp Ready 250-Watt Fixed Installation P.A. Speaker - Black 15 x Suspension Points 4 x M6 Ceiling/Wall Mounting Points 5 Year Warranty Brochure PDF 357.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AC-2212 00 - 12" 2-Way Bi-Amp Ready 250-Watt Fixed Installation P.A. Speaker - Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AC2212/00 Specs | | | Configuration | 2-Way | | Total Power Capacity | 250 W RMS
1000 W Peak | | System Impedance | 8 Ohms | | | | LF Voice Coil | 2.5" / 6.35 cm | | | | Frequency Response | 55 Hz to 17 kHz ±3 dB | | Maximum SPL | 126 dB (Passive)
126 dB (LF, Bi-Amp)
132 dB (HF, Bi-Amp) | | Speaker Sensitivity | 95 dB SPL | | | | Audio I/O | 1 x speakON NL4
1 x Barrier Strip | | | | Crossover | 1.3 kHz, 24 dB/Octave | | | | Package Weight | 54.3 lb | | Box Dimensions (LxWxH) | 23.5 x 15.25 x 15.25" |
