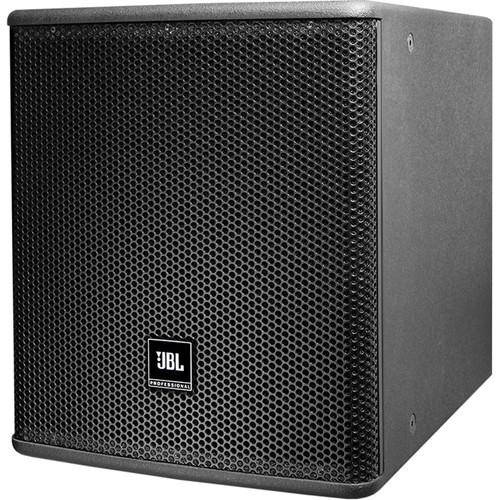

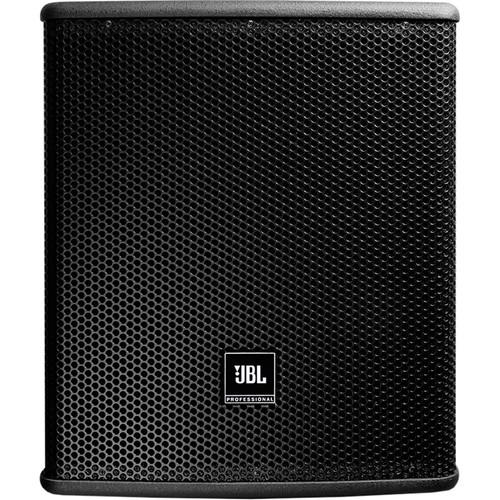

User Manual for JBL AC115S 15" High-Power Subwoofer System Click to enlarge the picture
Contents of the user manual for the JBL AC115S 15" High-Power Subwoofer System
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL AC115S 15" High-Power Subwoofer System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

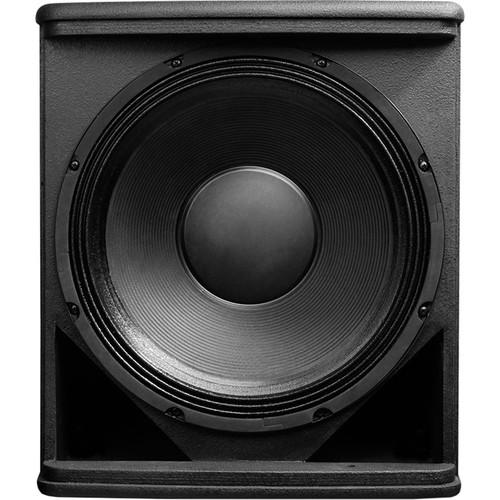

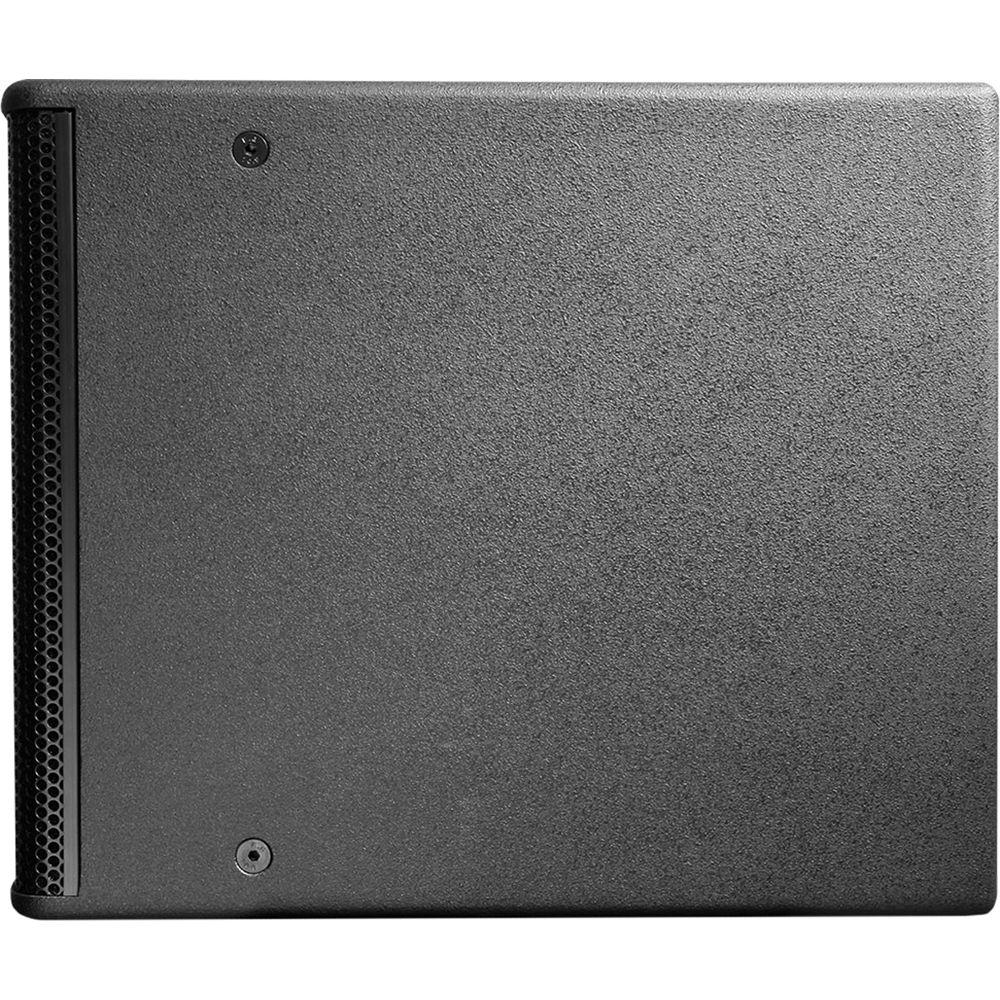

Product description The black AC115S 15" High-Power Subwoofer System from JBL comes with one 15" low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for flexibility. The subwoofer features one 15" driver with 3" voice coil. In addition, the subwoofer comes in a 3/4" multi-ply hardwood plywood enclosure. - High power and long excursion driver for lower frequency reproduction
- High sensitivity with lower power compression
- Large port for high output and low-frequency reinforcement
- Multiple attachment points
- Applications
- Performing spaces
Clubs and bars
Houses of worship
Multimedia spaces
Retail and hospitality spaces
Presentation suites
Educational facilities UPC: 691991001314 In the Box JBL AC115S 15" High-Power Subwoofer System (Black) Limited 5-Year Warranty Brochure PDF 435.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AC115S 15" High-Power Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AC115S Specs | Active or Passive | Passive | | Frequency Response ± 3dB | 40 Hz to 250 Hz | | Frequency Range | -10 dB: 32 to 250 Hz | | Power Capacity | Long-Term System: 400 W/800 W/1600 W (Continuous/Program/Peak)
System Power Rating (AES): 500 W (2000 W peak), 2 hours | | Maximum Sound Pressure Level (SPL) | 3.2' (1 m): 120 dB (126 dB peak) | | Nominal Sensitivity | 1 W @ 3.2' / 1 m: 94 dB | | Impedance | 8 Ohms | | Crossover | Not specified by the manufacturer | | Low Frequency Driver | 1 x 15" (381 mm) driver (P/N: 5055679), with 3" (75 mm) voice-coil | | Enclosure Material | 3/4" (18 mm) multi-ply hardwood plywood
Grille: Powder coated, 0.05" (1.5 mm) perforated steel, with acoustically transparent black foam backing | | Input Connections | Dual Neutrik NL4MP connectors plus covered barrier trip terminals | | Mounting | 12 x M10 threaded suspension points | | Dimensions | 19 x 16.5 x 23.6" (483 x 419 x 600 mm) | | Weight | 52.9 lb (24 kg) |
