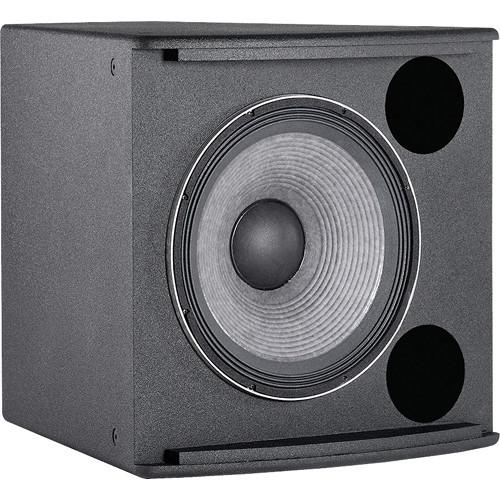

Product description The black AL7115 Single 15" Low-Frequency Speaker Module from JBL is equipped with the patented JBL 2265 HPL Differential Drive 15" transducer, which features a Differential Drive, dual 3" voice coil - dual magnetic gap transducer. The 1000 watt rated speaker is mounted in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points for array flying and mounting, with pre-engineered array bracketry available as an option.
The AL7115 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications. It is designed to work with the AM7200 models in a low-profile array application where a full-range three-way system is desired. Complementing the AM7200/64 and AM7200/95, the AL7115 15" low-frequency speaker module, when utilizing the optionally purchased PAF-3K planar array frame kit, can be fitted between two AM7200 mid-high loudspeakers, creating a low-profile, three-wide array system. - 1 x 15" 2265H Differential Drive Low- Frequency Driver
- Large vent area for high output with low distortion
- Arrays with various AE Series mid-high frequency and compact 2-way models
- Applications include:
Performing arts facilities
Theatrical sound design
Auditoriums
Houses of worship
Live clubs
Dance-clubs/discotheques
Sports facilities
Themed entertainment venues In the Box JBL AL7115 Single 15" Low-Frequency Speaker Module (Black) 5-Year Limited Warranty on Speaker and 2-Year Limited Warranty on Cabinet Brochure PDF 279.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AL7115 Single 15" Low-Frequency Speaker Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AL7115 Specs | Frequency Range | 40 Hz to 4.2 kHz (-10 dB) | | Frequency Response ± 3dB | 47 Hz to 3.0 kHz | | Transducer Power Rating | 1000 W (4000 W peak), 2 hours (AES) | | Long-Term System Power Rating | 600 W (2400 W peak), 100 hours (IEC) | | Maximum SPL | 50 Hz to 125 Hz: 127 dB-SPL cont. avg. (133 dB peak)
125 Hz to 800 Hz: 126 dB-SPL cont. avg. (132 dB peak) | | System Sensitivity | @(dB SPL, 1W @ 1m)
50 Hz to 125 Hz: 97 dB
125 Hz to 800 Hz: 97 dB | | Nominal Impedance | 8 ohms | | Low Frequency Driver | 1 x JBL 2265H 15" (380 mm) Differential Drive driver with 3" (75 mm) dual voice coil | | Enclosure | Trapezoidal with 15 degree side angles

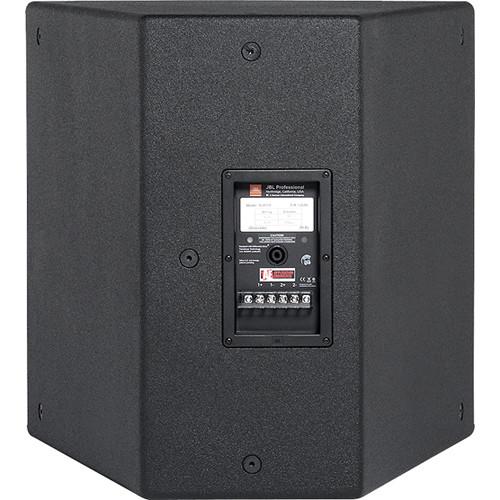

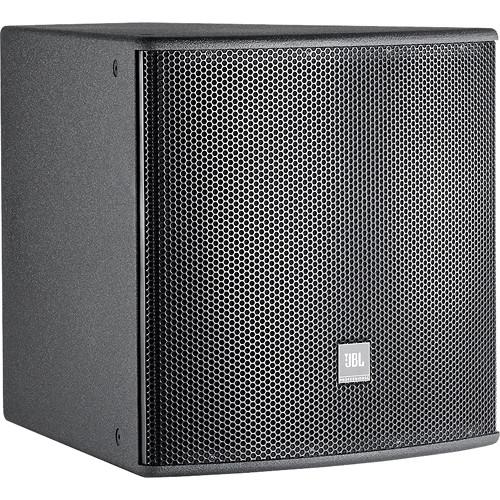

5/8" (16 mm) exterior grade 11-ply Finnish birch plywood | | Suspension Support | 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware | | Finish | Black DuraFlex™ finish | | Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing | | Input Connectors | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
(Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 0.375" (9 mm) spade lugs
Speakon in parallel with barrier strip for loop-through | | Environment Requirements | Mil-Std 810
IP-x3 per IEC529 | | Dimensions (H x W x D) | 21.6 x 22.1 x 25.9" (548 x 561 x 657 mm)(vertical cabinet orientation) | | Weight | 57 lb (25.9 kg) | | | | Package Weight | 68.0 lb | | Box Dimensions (LxWxH) | 29.5 x 26.0 x 23.5" |
