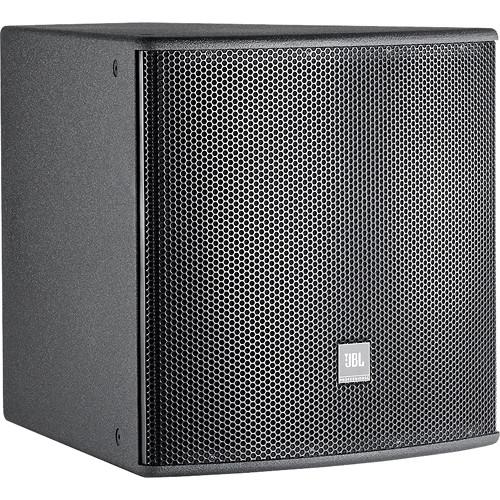

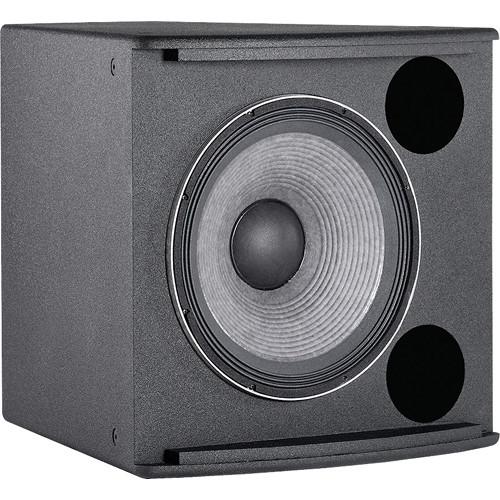

Product description Intended for performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance clubs/discos, sports facilities, and themed entertainment venues among others, the JBL AL7115-WRC High-Power Single 15" Low-Frequency Loudspeaker (Weather Protection) uses a single 15" 2265H differential-drive low-frequency driver loaded into a front-loaded vented trapezoidal box to deliver a frequency response of 40 Hz to 4.2 kHz (-10 dB). The transducer is rated at 1000W (4000W peak) at 2 hours with a long-term system power rating of 600W (2400W peak) for 100 hours.
As part of the company's AE Application Engineered Series of speakers, the unit is outfitted with M10 threaded suspension points. Pre-engineered array brackets are available (sold separately) for building larger configurations. In the Box JBL AL7115-WRC High-Power Single 15" Low-Frequency Loudspeaker (Weather Protection) 5-Year Limited Warranty on Speaker and 2-Year Limited Warranty on Cabinet Brochure PDF 279.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AL7115-WRC High-Power Single 15" Low-Frequency Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

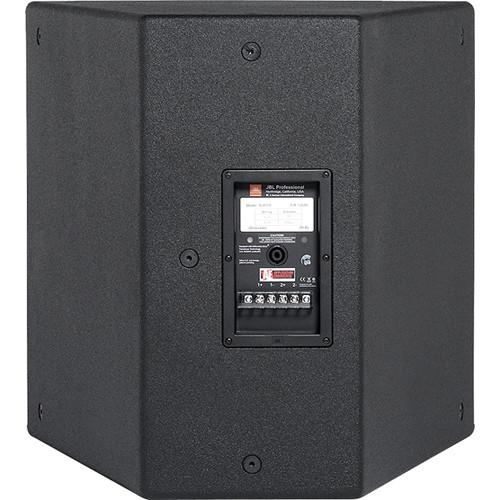

Technical parametersJBL AL7115 Specs | Input Connectors | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through | | Frequency Response | -10 dB: 40 Hz to 4.2 kHz ±3 dB: 47 to 3,000 Hz | | Transducer Power Rating | 1000 W (4000 W peak), 2 hours (AES) | | Long-Term System Power Rating | 600 W (2400 W peak), 100 hours (IEC) | | Maximum SPL | 50 to 125 Hz: 127 dB-SPL cont avg (133 dB peak)
125 to 800 Hz: 126 dB-SPL cont avg (132 dB peak) | | Sensitivity | dB-SPL {:. 1 W at 1 m)
50 to 125 Hz: 97 dB
125 to 800 Hz:97 dB | | Nominal Impedance | 8 ohms | | Driver | 1x JBL 2265H 15" (38.0 cm) Differential driver with 2x 3.0" (7.5 cm) dual voice coil | | Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior-grade 11-ply Finnish birch plywood | | Suspension Attachment | 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware | | Finish | Black DuraFlex finish | | Grille | Powder-coated 14-gauge perforated steel, with acoustically transparent black foam backing. | | Environmental Specifications | Mil-Std 810; IP-x3 per IEC529 | | Dimensions (H x W x D) | 21.6 x 22.1 x 25.9" (54.8 x 56.1 x 65.7 cm) | | Weight | 57.0 lb (24.9 kg) |
