User Manual for JBL AM5212 00 Passive Biamp 2-Way 12" Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL AM5212 00 Passive Biamp 2-Way
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL AM5212 00 Passive Biamp 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

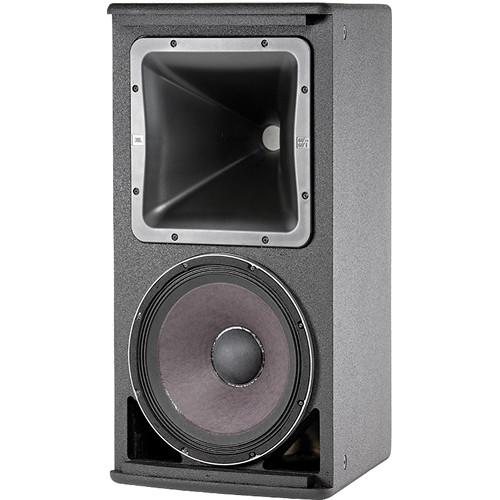

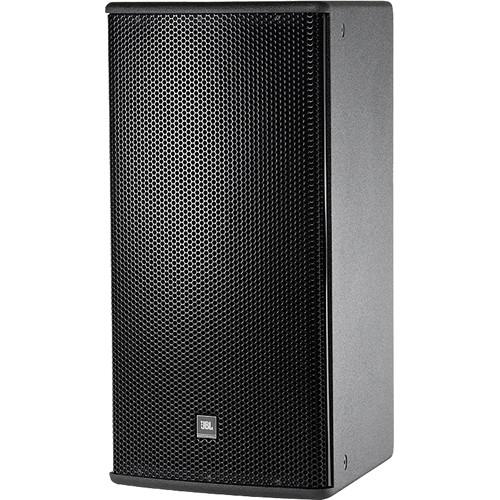

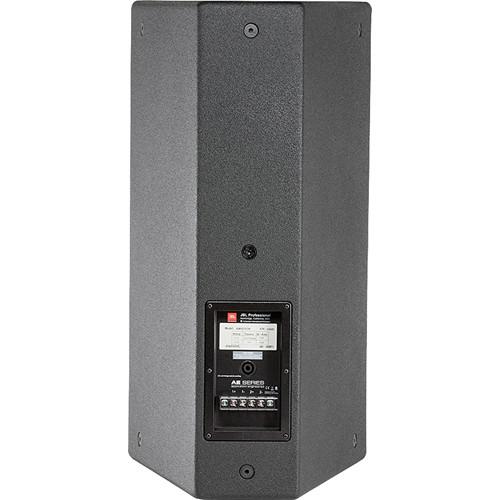

Product description The black JBL Professional AM5212/00 Passive 2-Way 12" Loudspeaker System is a versatile, medium-power speaker well suited for professional installations such as performing arts facilities, theatureal sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The AM5212/00 is comprised of the JBL Differential Drive, dual-voice coil and dual-magnetic gap 262H-1 (12") low-frequency driver, and 2408H-1 high-frequency 1.5" exit, 1.5" voice-coil compression driver. The large format PT Progressive Transition waveguide provides a 100° x 100° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The AM5212/00 will perform as either a bi-amped or passive cabinet, at the flick of a switch. - 262H-1 Differential Drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large Progressive Transition (PT) waveguide for remarkable pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
In the Box JBL AM5212/00 Passive/Biamp 2-Way 12" Loudspeaker System (Black) Limited 5-Year Warranty on Components Limited 2-Year Warranty on Enclosure Brochure PDF 914.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM5212 00 Passive Biamp 2-Way 12" Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM5212 Specs | Active or Passive | Passive | | Low Frequency Driver | 1 x JBL 262H-1 12" / 305 mm Driver with 2" / 50.8 mm Dual Voice Coil
Nominal Impedance: 8 Ohms
Sensitivity: 97 dB SPL (1W @ 1m, within Operational Band) | | High Frequency Driver | JBL 2408H-1, 1.5" / 38 mm Exit Compression Driver, 1.5" / 38 mm Voice Coil
Nominal Impedance: 8 Ohms
Sensitivity: 111 dB SPL (1W @ 1m) | | Frequency Range | 37 Hz to 20 kHz (-10 dB) | | Frequency Response ± 3dB | 43 Hz to 20 kHz | | Coverage Pattern | 100° x 100° | | Coverage Modes | Bi-Amp / Passive Switchable | | Directivity Factor | 8.3 dB (Q) | | Directivity Index | 9.2 dB | | Crossover Point | 1.6 kHz (Passive) | | Transducer Power Rating | 400 W (1600 W Peak), 2 hr
300 W (1200 W Peak), 100 hr
HF: 40 W (160 W Peak), 2 hr | | Long-Term System Power Rating | 300 W (1200 W Peak) 100 Hr (IEC) | | Maximum SPL | Bi-Amp Mode:
LF: 122 dB-SPL Cont Avg (128 dB Peak)
HF: 127 dB-SPL cont avg (133 dB Peak) | | System Sensitivity | Passive Mode: 115 dB SPL (1W @ 1m) | | Horn Waveguide | PT-H1010HF-1 | | Enclosure Material | Trapezoidal with 15 Degree Side Angles, 5/8" / 16 mm Exterior Grade 11-Ply Birch Plywood | | Suspension Attachment | 15 Points (4 Top, 4 Bottom, 2 each Side, 3 Rear), M10 Threaded Hardware | | Finish | Black DuraFlex Finish | | Grille | Powder Coated 14 Gauge Perforated Steel, with Acoustically Transparent Black Foam Backing | | Environmental Specifcations | Mil-Std 810; IP-x3 per IEC529 | | Dimensions | 28.06 x 14.6 x 18.1" / 713 x 371 x 458 mm | | Weight | 45 lb / 20.2 kg | | | | Package Weight | 49.0 lb | | Box Dimensions (LxWxH) | 29.5 x 19.25 x 15.75" |
