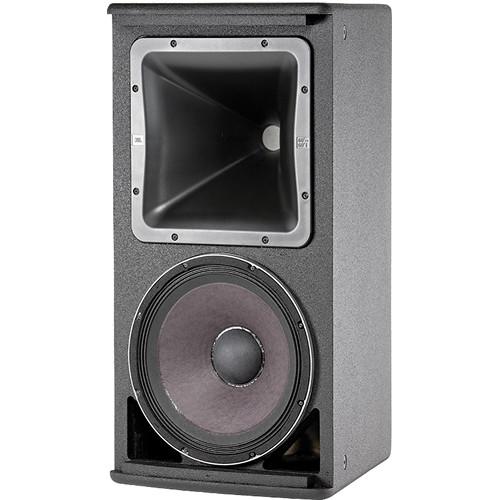

Product description The JBL AM5212/26-WRC Weather-Resistant Speaker is a lightweight, 2-way medium power loudspeaker system that features the JBL differential drive dual voice coil and dual magnetic gap 262H-1 12" low-frequency driver, and the 2408H-1 high frequency 1.5" exit, 1.5" voice-coil compression driver. A 120° x 60° coverage pattern is provided by the large format PT-H126HF-1 Progressive Transition waveguide, which rotates so that the loudspeaker system can be used in either vertical or horizontal orientation.
The heavily braced trapezoid birch enclosure has a DuraFlex finish and is constructed to maximize low-frequency performance. This speaker is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications, which includes but is not limited to: performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues. - Designed for moderate weather resistance
- 120° x 60° coverage with rotatable waveguide
- 262H-1 Differential Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- Large PT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp / Passive Switchable
In the Box JBL AM5212/26-WRC Weather-Resistant Speaker (Black) 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM5212 26-WRC Weather-Resistant Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM5212 Specs | Frequency Range | (-10 dB): 37 Hz to 20 kHz | | Frequency Response ± 3dB | 43 Hz to 18 kHz | | Coverage Pattern | 120° x 60° | | Directivity | Directivity Factor (Q): 8.2
Directivity Index (DI): 9.1 dB | | Crossover Type | Bi-amp / Passive; switchable | | Crossover Frequency | 1.5 kHz | | Transducer Power Rating | All AES:
LF: 400 W (1600 W peak), 2 hrs
300 W (1200 W peak), 100 hrs
HF: 40 W (160 W peak), 2 hrs | | Long-Term System Power Rating | IEC: Passive Mode: 300 W (1200 W peak), 100 hrs | | Maximum SPL | Bi-amp Mode:
LF: 122 dB-SPL cont avg (128 dB peak)
HF: 129 dB-SPL cont avg (135 dB peak)
Passive Mode:
121 dB-SPL cont avg (127 dB peak) | | System Sensitivity | (1W @ 1m): Passive Mode: 96 dB SPL | | Low Frequency Driver | 1 x JBL 262H-1 12" (300 mm) driver with 2" (50.8 mm) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity (1 W @ 1 m): 97 dB SPL | | High Frequency Driver | 1 x JBL 2408H-1, 1.5" (38 mm) exit compression driver
1.5" (38 mm) voice coil
Nominal Impedance: 8 ohms
Sensitivity (1 W @ 1 m): 113 dB SPL

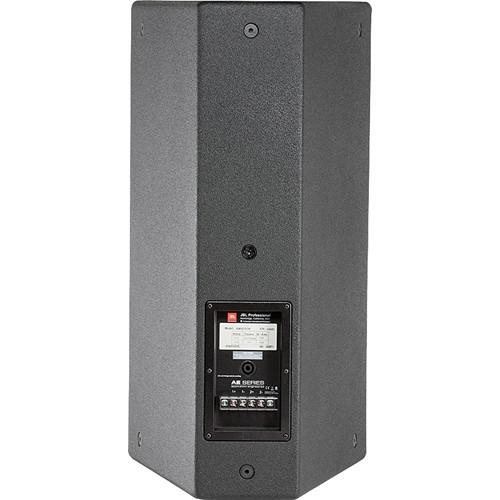

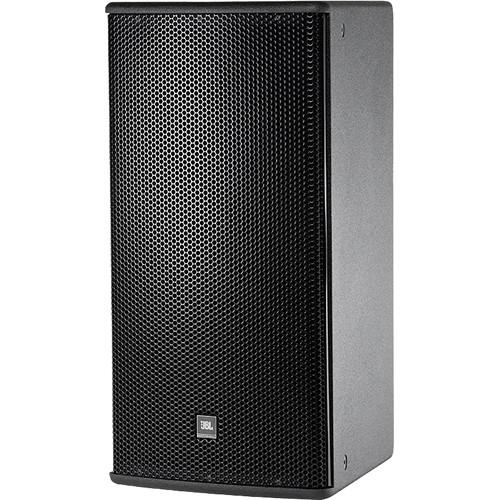

Waveguide: PT-H126HF-1 | | Construction | Trapezoidal shape with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply birch plywood | | Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware | | Cabinet Finish | Black DuraFlex finish | | Grille Material | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing | | Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
Barrier terminals accept up to 10 AWG (5.2 sq mm) wire or max width 0.375" (9 mm) spade lugs
Speakon in parallel with barrier strip for loop-through | | Environmental Specifications | Mil-Std 810; IP-x3 per IEC529 | | Dimensions | 28 x 14.5 x 18" (71.1 x 36.9 x 45.8 cm) | | Weight | 45 lb (20.2 kg) | | | | Package Weight | 49.0 lb | | Box Dimensions (LxWxH) | 29.5 x 19.25 x 15.75" |
