User Manual for JBL AM5215 95-WRC Weather-Resistant Speaker Click to enlarge the picture
Contents of the user manual for the JBL AM5215 95-WRC Weather-Resistant Speaker
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL AM5215 95-WRC Weather-Resistant Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

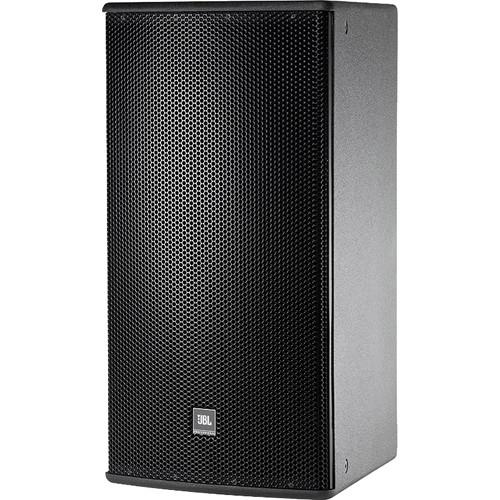

Product description The JBL AM5215/95-WRC Weather-Resistant Speaker is a lightweight, 2-way, full-range medium-power loudspeaker system that features the JBL differential-drive dual-voice coil and dual-magnetic gap 265H-1 15" low-frequency driver, and the 2408H-1 high-frequency 1.5" exit, 1.5" voice-coil compression driver. A 90 x 50° coverage pattern is provided by the large format PT-H95HF-1 Progressive-Transition waveguide, which rotates so that the loudspeaker system can be used in either vertical or horizontal orientation. Its high-slope passive network minimizes band overlap. Its well-controlled off-axis response enhances the cabinet's arrayability.
The heavily braced trapezoid birch enclosure has a DuraFlex finish and is constructed to maximize low-frequency performance. This speaker is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications, which includes but is not limited to: performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues. - Designed for moderate weather resistance
- 90 x 50° coverage with rotatable waveguide
- 265H-1 Differential-Drive Low-Frequency Driver
- 2408H-1 High-Frequency Compression Driver
- PT-H95HF-1 Large PT Progressive-Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide allows vertical or horizontal orientation
- Bi-Amp / Passive Switchable
In the Box JBL AM5215/95-WRC Weather-Resistant Speaker (Black, 90 x 50°) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM5215 95-WRC Weather-Resistant Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM5215/95 Specs | Frequency Range | (-10 dB): 35 Hz to 20 kHz | | Frequency Response ± 3dB | 41 Hz to 18 kHz | | Coverage Pattern | 90 x 50° | | Directivity | Directivity Factor (Q): 11.6
Directivity Index: 10.6 dB | | Crossover Type | Bi-amp / Passive; switchable | | Passive Crossover Frequency | 1.8 kHz | | Transducer Power Rating | All AES:
LF: 500 W (2000 W peak), 2 hrs
350 W (1400 W peak), 100 hrs
HF: 40 W (160 W peak), 2 hrs | | Long-Term System Power Rating | IEC: Passive Mode: 350 W (1400 W peak), 100 hrs | | Maximum SPL | Bi-amp Mode:
LF: 125 dB-SPL cont avg (131 dB peak)
129 dB-SPL cont avg (135 dB peak)
Passive Mode:
124 dB-SPL cont avg (130 dB peak) | | System Sensitivity | (1 W @ 1 m): Passive Mode: 98 dB SPL | | Low Frequency Driver | 1 x JBL 262H-1 12" (300 mm) driver with 2" (50.8 mm) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity (1 W @ 1 m): 97 dB SPL | | High Frequency Driver | 1 x JBL 2408H-1, 1.5" (38 mm) exit compression driver
1.5" (38 mm) voice coil
Nominal Impedance: 8 ohms
Sensitivity (1 W @ 1 m): 113 dB SPL
Waveguide: PT-H95HF-1 | | Construction | Trapezoidal shape with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply birch plywood | | Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware | | Cabinet Finish | Black DuraFlex finish | | Grille Material | Powder-coated 14-gauge perforated steel, with acoustically transparent black-foam backing | | Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
Barrier terminals accept up to 10 AWG (5.2 sq mm) wire or max width 0.375" (9 mm) spade lugs
Speakon in parallel with barrier strip for loop-through | | Environmental Specifications | Mil-Std 810; IP-x3 per IEC529 | | Dimensions (H x W x D) | 30.8 x 16.5 x 19.8" (781 x 420 x 503 mm) | | Weight | 55 lb (25 kg) | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 32.5 x 21.0 x 17.75" |
