User Manual for JBL AM6200 95 8" 2-Way 350W High-Power Mid-High Frequency Loudspeaker with Rotatable Horn

Click to enlarge the picture
JBL AM6200 95 8" 2-Way 350W High-Power Mid-High Frequency Loudspeaker with Rotatable Horn Contents of the user manual for the JBL AM6200 95 8" 2-Way 350W
  • Product category: PA Speakers JBL
  • Brand: JBL
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for JBL PA Speakers

User manual for the JBL AM6200 95 8" 2-Way 350W contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any JBL product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!



Product description

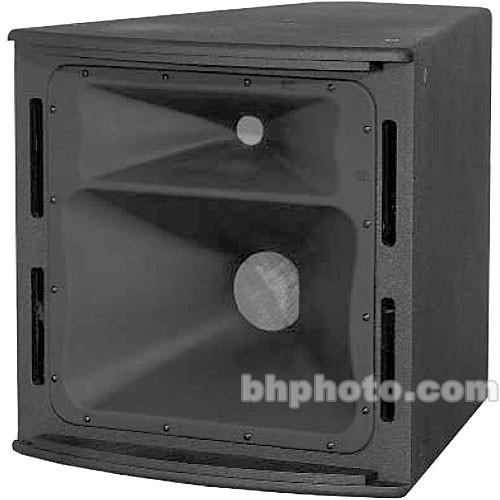

The black AM6200/95 8" 2-Way 350W High-Power Mid-High Frequency Loudspeaker from JBL is a high power mid-high frequency loudspeaker system comprised of one 8" Cone Midrange Compression Driver (CMCD) and one 1.5" exit, 3" voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well controlled 90° by 50° coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. The AM6200/95 loudspeaker is suitable for a wide variety of fixed installation applications.
  • 90° x 50° coverage, rotatable for use in either vertical or horizontal orientation
  • Cone Midrange Compression Driver (CMCD) provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency
  • Progressive Transition (PT) Waveguide for excellent pattern control with low distortion Bi-Amp/Passive switchable
  • Separately available planar array frame kits for multiple array configurations
  • Black DuraFlex finish
  • Suitable for use with LF and/or subwoofer reinforcement in applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance clubs/discotheques, sports facilities, and themed entertainment venues
  • Suitable for use without LF or subwoofer reinforcement in voice-only PA and delay fill applications
In the Box JBL AM6200/95 8" 2-Way 350W High-Power Mid-High Frequency Loudspeaker with Rotatable Horn (Black)
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the JBL AM6200 95 8" 2-Way 350W High-Power Mid-High Frequency Loudspeaker with Rotatable Horn in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    JBL AM6200/95 Specs

    Frequency Range 200 Hz to 19 kHz, -10 dB (bi-amp mode, with recommended active tuning)
    Frequency Response 250 Hz to 17 kHz, ±3 dB (bi-amp mode, with recommended active tuning)
    Coverage Pattern 90° x 50°, rotatable waveguide
    Directivity Factor 10
    Directivity Index 10 dB
    Crossover Modes: Bi-amp/Passive switchable
    Passive Slopes: 4th order (24 dB/oct) Linkwitz-Riley HP & LP, 2.1 kHz Resultant engineered acoustical response of crossover network and components
    Transducer Power Rating MF: 350 W (1400 W peak), 100 hours
    HF: 75 W (300 W peak), 2 hours AES standard, one decade pink noise with 6 dB crest factor within device's operational band, free air, long-term 100 hour rating
    Power Capacity Long-Term: MF/HF: 350 W (1400 W peak), 100 hours IEC standard, full bandwidth pink noise with 6 dB crest factor, 100 hours.
    Maximum Sound Pressure Level (SPL) Bi-Amp Mode:
    MF: 133 dB-SPL continuous averaged(139 dB peak)
    HF: 132 dB-SPL continuous averaged (138 dB peak)

    Passive Mode:
    MF/HF: 132 dB-SPL continuous averaged (138 dB peak) Calculated based on power rating and sensitivity, exclusive of power compression
    Sensitivity Passive Mode: 108 dB SPL, 1W/1m
    Midrange Frequency Drivers JBL CMCD-81H Cone Midrange Compression Driver with integral 8" (200 mm) diameter Differential Drive dual voice-coil internal driver
    Impedance 8 Ω (nominal)
    Sensitivity 108 dB SPL, 1W/1m
    High Frequency Driver JBL 2431H 1.5" (38.0 mm) exit compression driver, 3" (75 mm) voice coil
    Impedance 8 Ω (nominal)
    Sensitivity 113 dB SPL, 1W/1m
    Horn Waveguide PT-K95MH
    Enclosure Trapezoidal with 15° side angles, 0.63" (1.60 cm) exterior grade 11-ply Finnish birch plywood
    Suspension Points: 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
    Finish DuraFlex finish
    Grille Powder coated 14-gauge perforated steel, with acoustically transparent black foam backing
    Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
    Barrier terminals accept up to 10 AWG (5.2 mm2) wire or 0.375" (9 mm) maximum width spade lugs
    Speakon in parallel with barrier strip for loop-through
    Environmental Mil-Std 810; IP-x3 per IEC529
    Dimensions 21.6 x 22.1 x 25.9" (54.8 x 56.1 x 65.7 cm) (vertical orientation)
    Weight 64 lb (29 kg)
