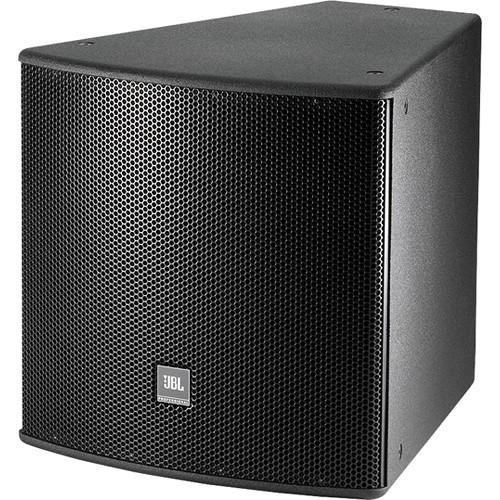

Product description The black AM7200/64 High-Power Mid-High Frequency WRC Loudspeaker with Rotatable Horn from JBL is a weather-resistant speaker cabinet loaded with one 8" Cone Midrange Compression Driver (CMCD) and one 1.5" exit 3" voice-coil HF compression driver. The multi-band Progressive-Transition (PT) mid-high frequencywaveguide provides well-controlled 60 x 40° coverage and is rotatable forcabinet positioning in either a horizontal or vertical orientation. High-slopecrossovers minimize band overlap and well-controlled off-axis responseenhances arrayability.
Please note: The WRC speaker cabinet is intended for outdoor placementwhere the loudspeaker will be sheltered from direct exposure to the elements.
The AM7200/64 is part of JBL's AE Application Engineered Series, aversatile family of loudspeakers adding flexibility to a wide variety of fixed-installation applications. The cabinet is designed to work with the optional AL7115 single 15" low-frequency module in a low-profile array application where a full-range three-way system is desired.
AE Series mid-high models utilize JBL's CMCD (Cone Midrange Compression Driver) technology. In addition to providing increased output and lower distortion, this cone-based true compression-driver design extends bandwidth (both up and down in frequency) to cover the entire vocal range seamlessly. Additionally featured are the PT-K64MH injection-molded rotatable Progressive-Transition waveguide and the 2432H 1.5" exit, 3" diaphragm compression driver.
The cabinet is fitted with M10 threaded suspension points. Pre-engineeredarray bracketry is available optionally as an additional purchase. The array frame kit can be fitted between two AM7200 mid-high loudspeakers to form a low-profile three-wide array with the optional AL7115 15" low-frequency module. - 262H-1 Differential-Drive low-frequency driver
- 2408H-1 high-frequency compression driver
- Large PT-K64MH Progressive-Transition waveguide for usable pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Weather-resistant loudspeaker cabinet
In the Box JBL AM7200/64 High-Power Mid-High Frequency WRC Speaker with Rotatable Horn (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM7200 64 High-Power Mid-High Frequency WRC Speaker with Rotatable Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM7200/64 Specs | Active or Passive | Passive | | Midrange Driver | 1 JBL CMCD-82H Cone Midrange-Compression Driver with integral 8" (200 mm) diameter Differential-Drive dual voice-coil internal driver
Nominal Impedance: 8 ohms
Sensitivity: 108 dB SPL (1 W @ 1 m) | | High Frequency Driver | JBL 2432H, 1.5" (38 mm ) exit compression driver, 3" (75 mm ) voice coil
Nominal Impedance: 8 ohms
Sensitivity: 115 dB SPL (1W @ 1m) | | Frequency Range | 260 Hz to 20 kHz (-10 dB) | | Frequency Response ± 3dB | 330 Hz to 18 kHz | | Coverage Pattern | 60 x 40° | | Directivity Factor | 11.0 dB (Q) | | Directivity Index | 10.5 dB | | Crossover Supported | Bi-amp / Passive switchable | | Crossover Frequency | 2.3 kHz | | Transducer Power Rating | MF: 350 W (1400 W peak), 2 hrs
HF: 100 W (400 W peak), 2 hrs | | Long-Term System Power Rating | MF/HF: 200 W (800 W peak), 100 hrs | | Maximum SPL | Bi-amp Mode:
MF: 133 dB-SPL cont avg (139 dB peak)
HF: 135 dB-SPL cont avg (141 dB peak)
Passive Mode:
MF/HF: 133 dB-SPL cont avg (139 dB peak) | | System Sensitivity | Passive mode: 108 dB, SPL(1 W @ 1 m) | | Horn Waveguide | PT-K64MH | | Enclosure Material | Trapezoidal with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood | | Suspension Attachment | 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware | | Finish | Black DuraFlex finish | | Grille | Powder-coated 14-gauge perforated steel, with acoustically transparent black-foam backing | | Input Connection Type | NL4 Neutrik Speakon and CE-compliant covered barrier-strip terminals. Barrier terminals accept up to 0.2 sq" (5.2 sq mm) (10 AWG) wire or max width .375" (9 mm) spade lugs. Speakon in parallel with barrier strip for loop-through. | | Environmental Specifications | Mil-Std 810; IP-x3 per IEC529 | | Dimensions | 21.6 x 22.1 x 25.9" (548 x 561 x 657 mm) | | Weight | 60 lb (27.2 kg) |
