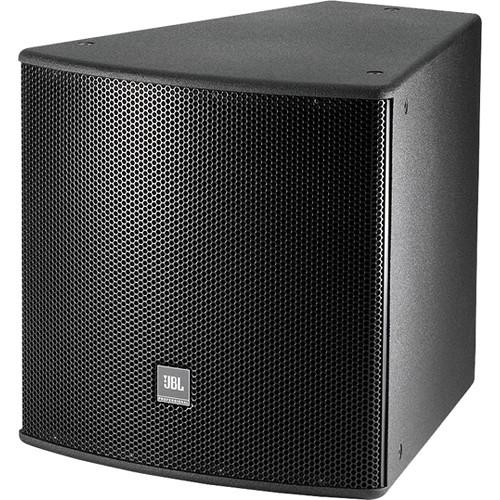

User Manual for JBL AM7200 95 High Power Mid-High Frequency Loudspeaker with Rotatable Horn Click to enlarge the picture
Contents of the user manual for the JBL AM7200 95 High Power Mid-High
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL AM7200 95 High Power Mid-High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The white AM7200/95 High Power Mid-High Frequency Loudspeaker with Rotatable Horn from JBL is comprised of one 8" Cone Midrange Compression Driver (CMCD) and one 1.5" exit 3" voice-coil HF compression driver. The multi-band Progressive Transition (PT) mid-high frequency waveguide provides well-controlled 90° x 50° coverage and is rotatable for cabinet positioning in either a horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability.
The AM7200/95 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers adding flexibility to a wide variety of fixed installation applications. The cabinet is designed to work with the optional AL7115 single 15" low-frequency module in a low-profile array application where a full-range three-way system is desired.
AE Series mid-high models utilize JBL's CMCD Cone Midrange Compression Driver technology. In addition to providing increased output and lower distortion, this cone-based true compression driver design extends bandwidth (both up and down in frequency) to cover the entire vocal range seamlessly. Additionally featured are injection molded rotatable Progressive Transition waveguides and the 2432H 1.5" exit, 3" diaphragm compression driver.
The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available optionally as an additional purchase. The array frame kit can be fitted between two AM7200 mid-high loudspeakers to form a low-profile three-wide array with the optional AL7115 15" low-frequency module. In the Box JBL AM7200/95 High Power Mid-High Frequency Loudspeaker with Rotatable Horn (White) Limited 5-Year Warranty Brochure PDF 57.3kbzwfqubeyyquustaszyeebcdztcabrbbrfyt Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM7200 95 High Power Mid-High Frequency Loudspeaker with Rotatable Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM7200 Specs | Active or Passive | Passive | | Midrange Driver | 1 JBL CMCD-82H Cone Midrange Compression Driver with integral 8" (200 mm) diameter Differential Drive dual voice-coil internal driver
Nominal Impedance: 8 ohms
Sensitivity: 108 dB SPL (1 W @ 1 m) | | High Frequency Driver | JBL 2432H, 1.5" (38 mm ) exit compression driver, 3" (75 mm ) voice coil
Nominal Impedance: 8 ohms
Sensitivity: 113 dB SPL (1W @ 1m) | | Frequency Range | 260 Hz to 20 kHz (-10 dB) | | Frequency Response ± 3dB | 330 Hz to 18 kHz | | Coverage Pattern | 90° x 50° | | Directivity Factor | 11.0 dB (Q) | | Directivity Index | 10.5 dB | | Crossover Supported | Bi-amp / Passive switchable | | Crossover Frequency | 2.2 kHz | | Transducer Power Rating | MF: 350 W (1400 W peak), 2 hrs
HF: 100 W (400 W peak), 2 hrs | | Long-Term System Power Rating | MF/HF: 200 W (800 W peak), 100 hrs | | Maximum SPL | Bi-amp Mode:
MF: 133 dB-SPL cont avg (139 dB peak)
HF: 133 dB-SPL cont avg (139 dB peak)
Passive Mode:
MF/HF: 133 dB-SPL cont avg (139 dB peak) | | System Sensitivity | Passive mode: 108 dB dB SPL (1W @ 1m) | | Horn Waveguide | PT-K95MH | | Enclosure Material | Trapezoidal with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood | | Suspension Attachment | 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware | | Finish | White DuraFlex finish | | Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing | | Input Connection Type | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 0.2 sq" (5.2 sq mm) (10 AWG) wire or max width .375" (9 mm) spade lugs. Speakon in parallel with barrier strip for loop-through. | | Environmental Specifications | Mil-Std 810; IP-x3 per IEC529 | | Dimensions | 21.6 x 22.1 x 25.9" (548 x 561 x 657 mm) | | Weight | 60 lb (27.2 kg) |
