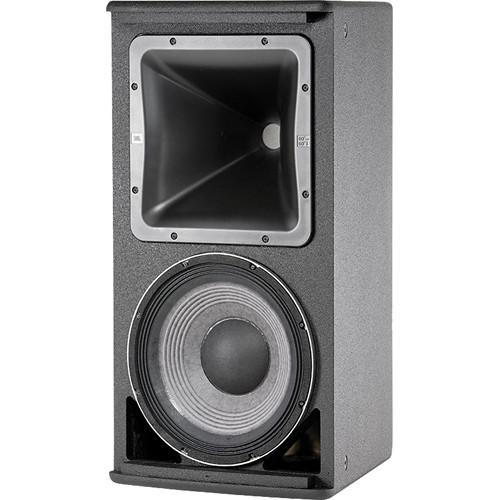

Product description The black, 60° x 40° coverage JBL AM7212/64-WRC Weather-Resistant Speaker is a lightweight, 2-way high-power loudspeaker system that features the JBL Differential Drive dual voice coil and dual magnetic gap 2262H-1 12" low-frequency driver, and the 2432H-1 high-frequency 1.5" exit 3" voice-coil compression driver. A 60° x 40° coverage pattern is provided by the large format PT-H64HF-1 Progressive Transition waveguide. The loudspeaker system can be positioned in either a vertical or horizontal orientation. Moreover, the speaker's high-slope passive network minimizes band overlap and its well-controlled off-axis response enhances arrayability.

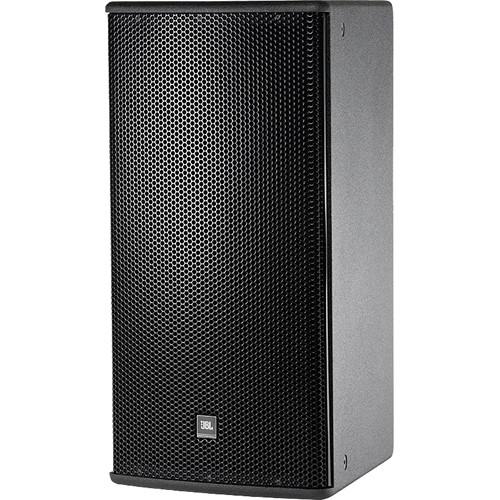

The AM7212/64-WRC is intended for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. Its heavily braced trapezoid multi-ply birch enclosure has a DuraFlex finish and is constructed to maximize low-frequency performance. Furthermore, the enclosure is fitted with fifteen M10 threaded attachment points, and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection.
The JBL AM7212/64-WRC is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications, which includes but is not limited to: performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues. - Designed for moderate weather resistance
- 262H-1 Differential Drive low-frequency driver
- 2432H-1 High-frequency compression driver
- PT-H64HF-1 Large PT Progressive Transition rotatable waveguide for excellent pattern control and low distortion
- The speaker can be positioned for vertical or horizontal orientation
- Bi-Amp / Passive Switchable
In the Box JBL AM7212/64-WRC Weather-Resistant Speaker (60° x 40°, Black) 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM7212 64-WRC Weather-Resistant Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM7212/64 Specs | Frequency Range | (-10 dB): 36 Hz to 20 kHz | | Frequency Response ± 3dB | 43 Hz to 20 kHz | | Coverage Pattern | 60° x 40° | | Directivity | Directivity Factor (Q): 16.7
Directivity Index (DI): 12.3 dB | | Crossover Type | Bi-amp / Passive; switchable | | Crossover Frequency | 1.8 kHz | | Transducer Power Rating | All AES:
LF: 1000 W (4000 W peak), 2 hrs
700 W (2800 W peak), 100 hrs
HF: 100 W (400 W peak), 2 hrs | | Long-Term System Power Rating | IEC: Passive Mode: 600 W (2400 W peak), 100 hrs | | Maximum SPL | Bi-amp Mode:
LF: 126 dB-SPL cont avg (132 dB peak)
HF: 135 dB-SPL cont avg (141 dB peak)
Passive Mode:
121 dB-SPL cont avg (127 dB peak) | | System Sensitivity | (1W @ 1m): Passive Mode: 95 dB SPL | | Low Frequency Driver | 1 x JBL 2262H-1 12" (300 mm) driver with 3" (76.2 mm) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity (1 W @ 1 m): 96 dB SPL | | High Frequency Driver | 1 x JBL 2432H-1, 1.5" (38 mm) exit compression driver
3" (76 mm) voice coil
Nominal Impedance: 8 ohms
Sensitivity (1 W @ 1 m): 115dB SPL

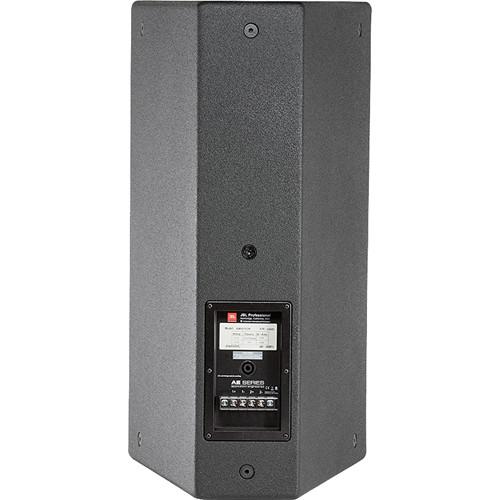

Waveguide: PT-H64HF-1 | | Construction | Trapezoidal shape with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood | | Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware | | Cabinet Finish | Black DuraFlex finish | | Grille Material | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing | | Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
Barrier terminals accept up to 10 AWG (5.2 sq mm) wire or max width 0.375" (9 mm) spade lugs
Speakon in parallel with barrier strip for loop-through | | Environmental Specifications | Mil-Std 810; IP-x3 per IEC529 | | Dimensions | 28 x 14.5 x 18" (71.1 x 36.9 x 45.8 cm) | | Weight | 51 lb (23.1 kg) |
