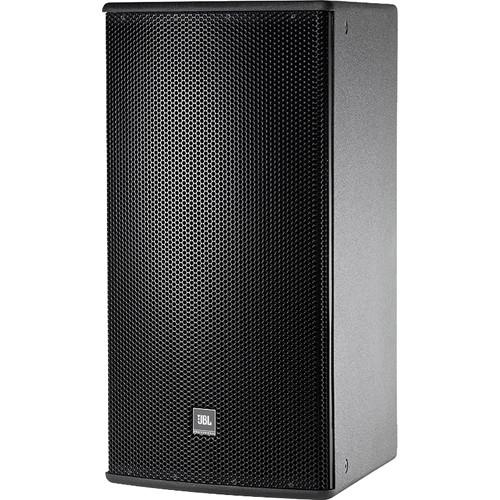

User Manual for JBL AM7215 64-WRC Weather-Resistant Speaker Click to enlarge the picture
Contents of the user manual for the JBL AM7215 64-WRC Weather-Resistant Speaker
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL AM7215 64-WRC Weather-Resistant Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The black, 60 x 40° coverage JBL AM7215/64-WRC Weather-Resistant Speaker is a lightweight, 2-way high-power loudspeaker system that features the JBL Differential-Drive dual-voice coil and dual-magnetic gap 2265H-1 15" low-frequency driver, and the 2432H-1 high-frequency 1.5" exit, 3" voice-coil compression driver. A 60 x 40° coverage pattern is provided by the large-format PT-H64HF-1 Progressive-Transition waveguide. The loudspeaker system can be positioned in either a vertical or horizontal orientation. Moreover, the speaker's high-slope passive network minimizes band overlap and its well-controlled off-axis response enhances arrayability.
The AM7215/64-WRC is intended for outdoor placementwhere the loudspeaker will be sheltered from direct exposure to the elements. Its heavily braced trapezoid multi-ply birch enclosure has a DuraFlex finish and is constructed to maximize low-frequency performance. Furthermore, the enclosure is fitted with fifteen M10 threaded-attachment points, and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam toprovide additional driver protection.
The JBL AM7215/64-WRC is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications, which includes but is not limited to: performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues. - Designed for moderate weather resistance
- 262H-1 Differential-Drive low-frequency driver
- 2432H-1 High-frequency compression driver
- PT-H64HF-1 Large PT Progressive Transition rotatable waveguide for excellent pattern control and low distortion
- The speaker can be positioned for vertical or horizontal orientation
- Bi-Amp / Passive Switchable
In the Box JBL AM7215/64-WRC Weather-Resistant Speaker (60 x 40°, Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM7215 64-WRC Weather-Resistant Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM7215/64 Specs | Frequency Range | (-10 dB): 36 Hz to 20 kHz | | Frequency Response ± 3dB | 40 Hz to 18 kHz | | Coverage Pattern | 60 x 40° | | Directivity | Directivity Factor (Q): 18.1
Directivity Index (DI): 12.6 dB | | Crossover Type | Bi-amp / Passive; switchable | | Crossover Frequency | 1.8 kHz | | Transducer Power Rating | All AES:
LF: 1000 W (4000 W peak), 2 hrs
750 W (3000 W peak), 100 hrs
HF: 100 W (400 W peak), 2 hrs | | Long-Term System Power Rating | IEC: Passive Mode: 600 W (2400 W peak), 100 hrs | | Maximum SPL | Bi-amp Mode:
LF: 128 dB-SPL cont avg (134 dB peak)
HF: 135 dB-SPL cont avg (141 dB peak)
Passive Mode:
124 dB-SPL cont avg (130 dB peak) | | System Sensitivity | (1W @ 1m): Passive Mode: 98 dB SPL | | Low Frequency Driver | 1 x JBL 2265H-1 15" (380 mm) driver with 3" (76 mm) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity (1 W @ 1 m): 98 dB SPL | | High Frequency Driver | 1 x JBL 2432H-1, 1.5" (38 mm) exit compression driver
3" (76 mm) voice coil
Nominal Impedance: 8 ohms
Sensitivity (1 W @ 1 m): 115 dB SPL
Waveguide: PT-H64HF-1 | | Construction | Trapezoidal shape with 15° side angles, 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood | | Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware | | Cabinet Finish | Black DuraFlex finish | | Grille Material | Powder-coated 14-gauge perforated steel, with acoustically transparent black-foam backing | | Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier-strip terminals
Barrier terminals accept up to 10 AWG (5.2 sq mm) wire or max width 0.375" (9 mm) spade lugs
Speakon in parallel with barrier strip for loop-through | | Environmental Specifications | Mil-Std 810; IP55 per IEC529 | | Dimensions | 30.8 x 16.5 x 19.8" (78.1 x 42.0 x 50.3 cm) | | Weight | 60 lb (27.2 kg) |
