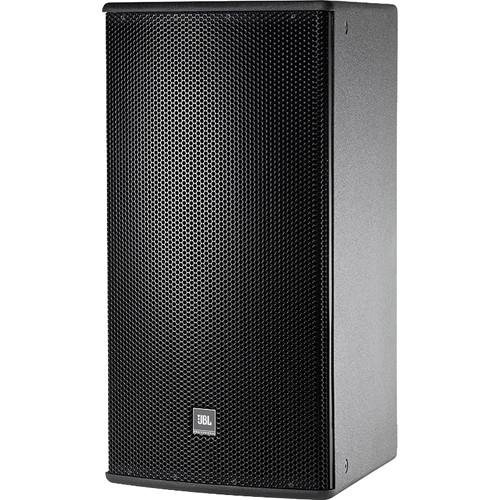

Product description The black AM7215/66 2-Way Loudspeaker System with 1 x 15" LF Speaker from JBL is a high-power, lightweight, 2-way, full range loudspeaker. It is comprised of the JBL Differential Drive, dual voice coil and dual magnetic gap 2265H (15") low frequency driver, and 2432H high frequency 1.5" exit, 3" voice-coil compression driver. The large format Progressive Transition (PT) waveguide provides a 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
The enclosure is constructed of multi-ply birch coated in JBL's DuraFlex finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.
The AM7215/66, a member of the AM7215 family, will perform as either a bi-amped or passive cabinet, at the flick of a switch, making it versatile for many sound amplification applications, such as: performing arts facilities,theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, and themed entertainment venues. - 2265H Differential Drive low-frequency driver
- 2432H high-frequency compression driver
- Large PT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
In the Box JBL AM7215/66 2-Way Loudspeaker System with 1 x 15 " LF Speaker (Black) Limited 5-Year Warranty Brochure PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM7215 66 2-Way Loudspeaker System with 1 x 15 " LF Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM7215 Specs | Active or Passive | Passive | | Low Frequency Driver | 1 x JBL 2265H 15" (381 mm) Differential Drive driver with 3" (75 mm) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity: 98 dB SPL (1W @ 1m, within operational band) | | High Frequency Driver | JBL 2432H, 1.5" (38 mm ) exit compression driver, 3" (75 mm ) voice coil
Nominal Impedance: 8 ohms
Sensitivity: 114 dB SPL (1W @ 1m) | | Frequency Range | 34 Hz to 20 kHz (-10 dB) | | Frequency Response ± 3dB | 40 Hz to 18 kHz | | Coverage Pattern | 60° x 60° | | Coverage Modes | Bi-amp / Passive switchable | | Directivity Factor | 14.5 dB (Q) | | Directivity Index | 11.6 dB | | Crossover Point | 1.4 kHz (Passive) | | Transducer Power Rating | LF: 1000 W (4000 W peak), 2 hrs
750 W (3000 W peak), 100 hrs
HF: 100 W (400 W peak), 2 hrs | | Long-Term System Power Rating | Passive mode: 600 W (2400 W peak), 100 hrs (IEC) | | Maximum SPL | Bi-amp Mode:
LF: 128 dB cont avg (134 dB peak)
HF: 134 dB cont avg (140 dB peak)
Passive Mode:
124 dB cont avg (130 dB peak) | | System Sensitivity | Passive mode: 124 dB dB SPL (1W @ 1m) | | Horn Waveguide | PT-H66HF-1 | | Enclosure Material | Trapezoidal with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood | | Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware | | Finish | Black DuraFlex finish | | Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing | | Input Connection Type | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 0.2 sq" (5.2 sq mm)(10 AWG) wire or max width .375" (9 mm) spade lugs. Speakon in parallel with barrier strip for loop-through. | | Environmental Specifcations | Mil-Std 810; IP-x3 per IEC529 | | Dimensions | 30.8 16.5 19.8" (781 x 420 x 503 mm) | | Weight | 60 lb (27.2 kg) |
