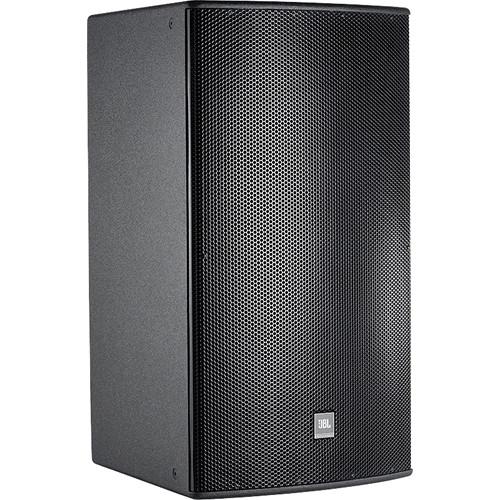

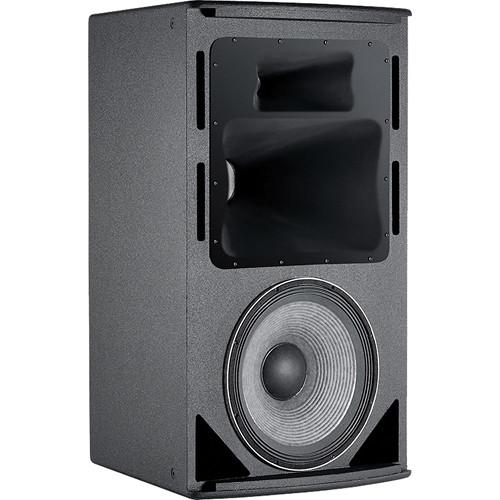

Product description The black AM7315/95 3-Way Loudspeaker System with 1 x 15" LF Speaker from JBL is a high-power, lightweight, 3-way, full-range loudspeaker. It is comprised of the JBL Differential Drive, dual voice coil and dual magnetic gap 2265H 15" low frequency driver, an 8" CMCD-82H cone midrange Differential Drive dual voice coil internal compression driver, and the 2432H high frequency 1.5" exit, 3" voice-coil compression driver. The large format Progressive Transition (PT) waveguide provides 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
The enclosure is constructed of multi-ply Finnish birch and is coated in JBL's DuraFlex finish, which is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with thirteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent black foam backing to provide additional driver protection and give a professional appearance.
The AM7315/95 will perform as either a bi- or tri-amped cabinet at the flick of a switch, making it versatile for many sound amplification applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance clubs, sports arenas, and themed entertainment venues. - 2265H Differential Drive 15" low-frequency driver
- CMCD-82H cone midrange compression driver with integral 8" diameter Differential Drive dual voice coil internal driver
- 2432H 1.5" exit high-frequency compression driver with 3" voice coil
- Large PT Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/tri-amp switchable
In the Box JBL AM7315/95 2-Way Loudspeaker System with 1 x 15" LF Speaker (Black) Limited 5-Year Warranty Brochure PDF 841.6kbfrecvrftddrqvbf Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM7315 95 2-Way Loudspeaker System with 1 x 15" LF Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM7315 Specs | Active or Passive | Passive | | Low Frequency Driver | 1 x JBL 2265H 15" (380 mm) Differential Drive driver with 3" (75 mm) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity: 97 dB SPL (1W @ 1m, within operational band) | | Mid Frequency Driver | 1 x JBL CMCD-82H cone midrange compression driver with integral 8" (200 mm) diameter Differential Drive dual voice-coil internal driver
Nominal Impedance: 8 ohms
Sensitivity: 108 dB SPL (1W @ 1m) | | High Frequency Driver | JBL 2432H, 1.5" (38 mm ) exit compression driver, 3" (75 mm ) voice coil
Nominal Impedance: 8 ohms
Sensitivity: 113 dB SPL (1W @ 1m) | | Frequency Range | 38 Hz to 20 kHz (-10 dB) | | Frequency Response ± 3dB | 45 Hz to 18 kHz | | Coverage Pattern | 90° x 50° | | Coverage Modes | Bi-amp / tri-amp switchable | | Directivity Factor | 11 dB (Q) | | Directivity Index | 10.5 dB | | Crossover Point | Switchable Modes: bi-amp / tri-amp respectively
300 Hz and 2.2 kHz | | Transducer Power Rating | LF:
1000 W (4000 W peak), 2 hrs
750 W (3000 W peak), 100 hrs
MF:
350 W (1400 W peak), 2 hrs
HF:
100 W (400 W peak), 2 hrs | | Long-Term System Power Rating | (IEC)
LF: 600 W (2400 W peak), 100 hrs
MF/HF: 200 W (800 W peak), 100 hrs | | Maximum SPL | LF: 127 dB-SPL cont avg (133 dB peak)
Tri-amp mode:
MF: 133 dB-SPL cont avg (139 dB peak)
HF: 133 dB-SPL cont avg (139 dB peak)
Bi-amp mode:

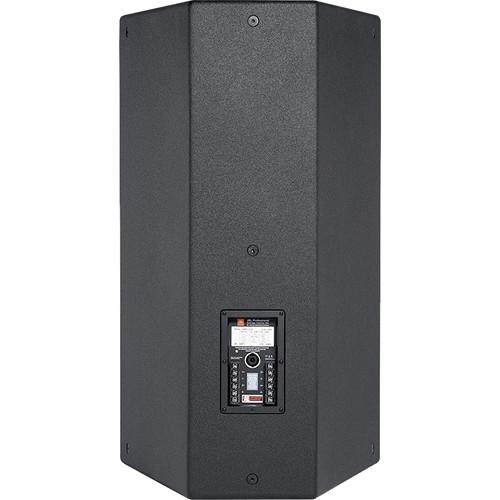

MF/HF: 133 dB-SPL cont avg (139 dB peak) | | System Sensitivity | Passive Sections: MF/HF Section in Bi-amp mode: 108 dB SPL (1W @ 1m) | | Horn Waveguide | PT-K95MH | | Enclosure Material | Trapezoidal with 15 degree side angles, 5/8" (16 mm) exterior grade 11-ply Finnish birch plywood | | Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware | | Finish | Black DuraFlex finish | | Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing | | Input Connection Type | NL8 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 0.2 sq" (5.2 sq mm) (10 AWG) wire or max width 0.375" (9 mm) spade lugs. Speakon in parallel with barrier strip for loop-through. | | Environmental Specifcations | Mil-Std 810; IP-x3 per IEC529 | | Dimensions | 38.1 x 22.1 x 25.9" (967 x 561 x 657 mm) | | Weight | 101 lb (45.8 kg) | | | | Package Weight | 101.0 lb | | Box Dimensions (LxWxH) | 38.1 x 25.9 x 22.1" |
