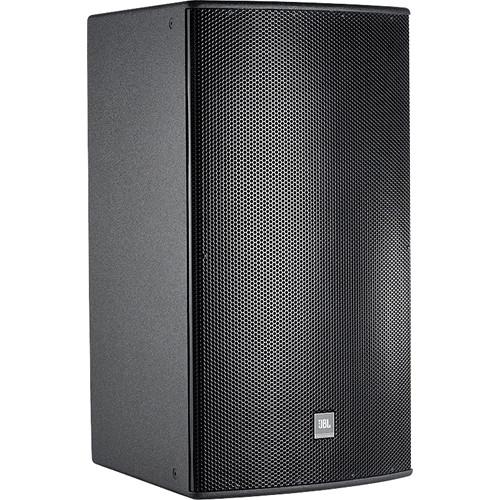

User Manual for JBL AM7316 64 High-Power 3-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL AM7316 64 High-Power 3-Way Loudspeaker
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL AM7316 64 High-Power 3-Way Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

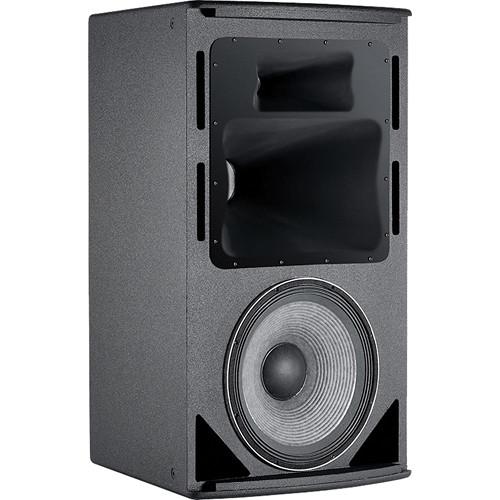

Product description The High-Power 3-Way Loudspeaker from JBL features a 15" Differential-Drive low-frequency driver, an 8" CMCD Cone Midrange-Compression Driver, and a 1.5" exit/3" voice-coil HF compression driver. The multi-band PT Progressive-Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap, and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. - 2265H Differential-drive low-frequency driver
- CMCD Cone midrange-compression driver provides low mid-range distortion, increased sensitivity, extended bandwidth, and improved phase coherency
- 2432H High-frequency compression driver
- PT Progressive-transition waveguide for pattern control with low distortion
- Bi-amp/tri-amp switchable
- Designed for use in venues such as auditoriums, performing art facilities, clubs, and sports events
In the Box JBL AM7316/64 High-Power 3-Way Loudspeaker (15", WRX) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AM7316 64 High-Power 3-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL AM7315/64 Specs | | | Configuration | 3-Way | | Total Power Capacity | LF:
1000 W RMS
4000 W Peak
MF:
350 W RMS
1400 W Peak
HF:
100 W RMS
400 W Peak Rated for 2 hours. For 100 hours - LF : 600 W / 2400 W Peak, MF/HF : 200 W / 800 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x Compression Driver with 1.5" / 38 mm Throat | | HF Voice Coil | 3" / 75 mm | | MF Driver | 1 x 8" / 200 mm Cone Compression Driver | | MF Voice Coil | Dual | | LF Driver | 1 x 15" / 380 mm Woofer | | | | Frequency Range | 38 Hz to 20 kHz -10 dB | | Frequency Response | 45 Hz to 18 kHz ±3 dB | | Maximum SPL | 127 dB SPL (LF, Continuous, Tri-Amp)
133 dB (LF, Peak, Tri-Amp)
133 dB SPL (MF, Continuous, Tri-Amp)
139 dB (MF, Peak, Tri-Amp)
135 dB SPL (HF, Continuous, Tri-Amp)
141 dB (HF, Peak, Tri-Amp)
127 dB SPL (Continuous)
133 dB (LF, Continuous, Bi-Amp)
133 dB SPL (Continuous)
139 dB (HF, Peak, Bi-Amp) | | Coverage Angle | 60° H x 40° V (Rotatable Horn) | | Directivity Index | 13 dB | | Speaker Sensitivity | 108 dB SPL
LF:
97 dB SPL
MF:
108 dB SPL
HF:

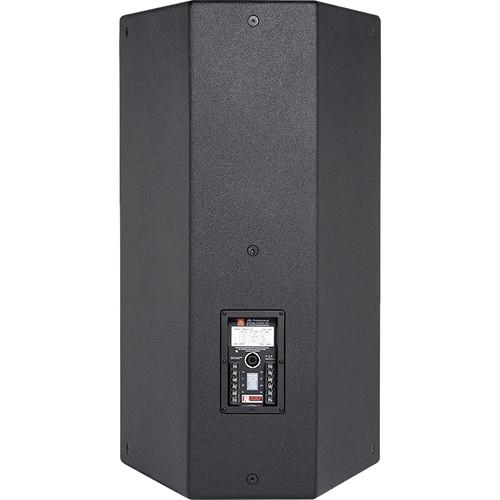

115 dB SPL | | | | Audio I/O | 1 x speakON NL8 Input
Barrier Strip Barrier Terminals accept up to 5.2 mm (10 AWG) wire or max width 0.375" / 9 mm spade lugs, speakON in parallel with Barrier Strip for loop through. | | | | Crossover | Low-Pass:
300 Hz
High-Pass:
2.3 kHz | | | | Mounting | 3 x M10 (Top)
3 x M10 (Bottom)
2 x M10 (Each Side)
3 x M10 (Rear) | | IP Rating | IP56 | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 38.1 x 22.1 x 25.9" / 967.0 x 561.0 x 657.0 mm | | Weight | 101 lb / 45.8 kg |
