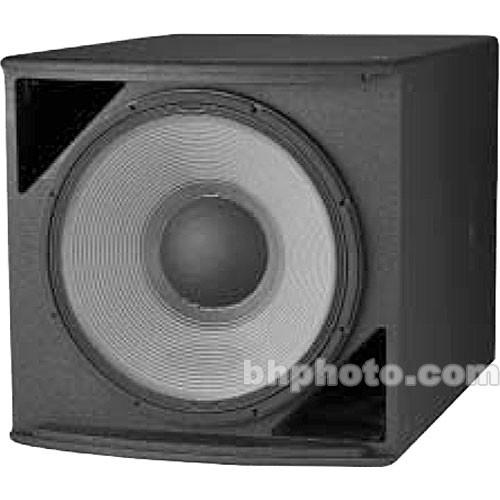

User Manual for JBL ASB-6118 - 18" 1200-Watt Suspension-Ready P.A. Subwoofer - Black Click to enlarge the picture
Contents of the user manual for the JBL ASB-6118 - 18" 1200-Watt Suspension-Ready
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL ASB-6118 - 18" 1200-Watt Suspension-Ready contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The black JBL ASB-6118 1200-Watt High Power Subwoofer is loaded with an 18" SVG low frequency driver in a front-loaded, vented cabinet configuration. The extended depth of the rectangular cabinet allows for increased low frequency bandwidth while maintaining a minimal frontal profile. The ASB-6118 enclosure is fitted with M10 threaded suspension points, and suits a variety of P.A. applications including theaters, auditoriums, performing arts centers, dance clubs and other array installations. - 18" 2242H SVG driver with 4" voice coil with (Super Vented Gap) cooling design for drivers
- Large vent area for high output with low distortion
- Arrays with various AE Series mid-high frequency 2-way modules
- 1200-watt program, 4800-watt peak power handling capacity
- Parallel Speakon and barrier strip connectors with loop-through feature
- Deep cabinet for extended low frequency bandwidth, minimum frontal profile
In the Box JBL ASB-6118 - 18" 1200-Watt Suspension-Ready P.A. Subwoofer - Black Limited 2-Year Warranty Brochure PDF 105.2kbffqzsyzetaudbwvrxedqxwwbbxfrysbauu Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL ASB-6118 - 18" 1200-Watt Suspension-Ready P.A. Subwoofer - Black in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL ASB6118 Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 1200 W RMS
4800 W Peak | | System Impedance | 8 Ohms | | | | LF Driver | 1 x 18" / 457 mm Woofer | | LF Voice Coil | 4" / 10.2 cm | | | | Frequency Range | 28 Hz to 1 kHz -10 dB | | Frequency Response | 35 Hz to 1 kHz ±3 dB | | Maximum SPL | 129 dB SPL (Continuous)
135 dB (Peak) | | Speaker Sensitivity | 98 dB SPL | | | | Audio I/O | 1 x speakON NL4 Input
1 x Barrier Strip Barrier Terminals accept up to 5.2 mm (10 AWG) wire or maximum width 9 mm spade lugs. | | | | Construction Material | Plywood | | Dimensions | 21.6 x 22.1 x 32.2" / 548.0 x 561.0 x 816.0 mm | | Weight | 98 lb / 44.5 kg | | | | Package Weight | 112.0 lb | | Box Dimensions (LxWxH) | 36.0 x 25.75 x 23.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
