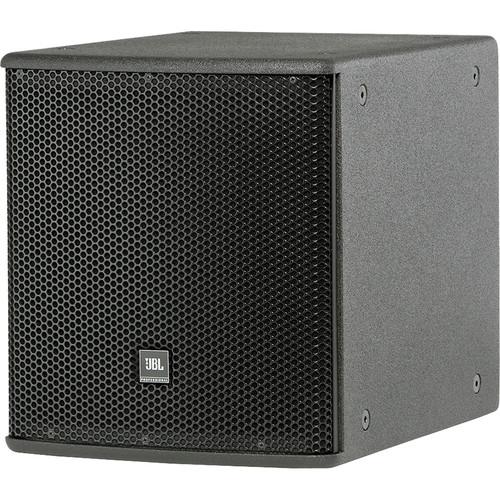

User Manual for JBL ASB6112-WRC Compact High-Power Single 12" Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL ASB6112-WRC Compact High-Power Single 12"
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL ASB6112-WRC Compact High-Power Single 12" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The ASB6112-WRC Compact High-Power Single 12" Subwoofer from JBL is designed to house the company's 2263H Differential-Drive dual-coil dual-gap 12" woofer. It is front-loaded, vented, and is constructed with a neodymium magnet transducer and a durable cone for maximum reliability and a long lifespan. The ASB6112-WRC features an exterior DuraFlex coating and an interior wood sealer for use in protected outdoor areas. - 2263H 12" Differential-Drive dual-voice coil dual-gap, neodymium magnet transducer
- 1000W continuous pink noise, 4000W peak power-handling capacity
- Can be used in protected outdoor areas
- Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays, or in combination with other AE-Series products
In the Box JBL ASB6112-WRC Compact High-Power Single 12" Subwoofer Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL ASB6112-WRC Compact High-Power Single 12" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL ASB6112 Specs | Frequency Range | 35 Hz to 1 kHz (-10 dB) | | Frequency Response ± 3dB | 43 Hz to 1 kHz | | Transducer Power Rating | 1000 W (4000 W peak), 2 hr | | Long-Term System Power Rating | 700 W (2800 W peak), 100 hr | | Maximum SPL | 40 to 300 Hz: 126 dB-SPL cont avg (132 dB peak) | | System Sensitivity | 40 to 300 Hz: 96 dB-SPL, 1 W (2.83 V) @ 3.3' / 1.0 m | | Nominal Impedance | 8 ohms | | Low Frequency Driver | 1 x 2263H, 12.0" / 304.8 mm diameter, 3.0" / 76.2 mm Dual-Coil Gap neodymium
Differential-Drive driver | | Enclosure | Rectangular cabinet, 0.6" / 16.0 mm exterior grade 11-ply birch plywood | | Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware | | Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier-strip terminals. Barrier terminals accept up to 0.2 in² / 5.2 mm² (10 AWG) wire or max width 0.4" / 9.0 mm spade lungs. Speakon in parallel with barrier strip for loop-through. | | Approvals and Compliance | IP55 per IEC 529
Mil-Std 810, IP-x3 per IEC529 | | Finish | Exterior: 0.1" / 1.5 mm DuraFlex coating
Interior: Wood sealer | | Grille | Powder-coated 14-gauge perforated steel, with acoustically transparent foam backing | | Dimensions | 16.0 x 14.5 x 19.0" / 406.0 x 369.0 x 483.0 mm | | Weight | 35.9 lb / 16.3 kg |
