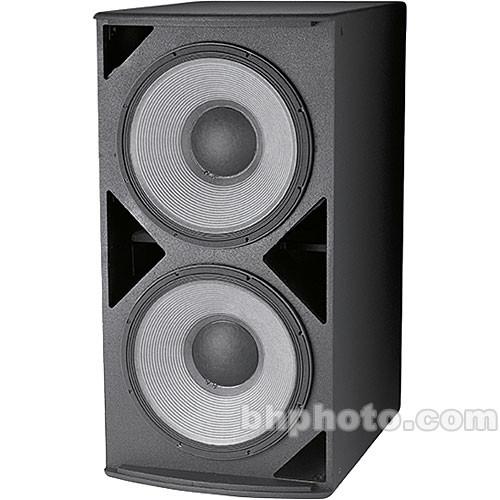

Product description The black ASB6128 High-Power Dual 18" 2400W Subwoofer from JBL is a high power subwoofer system comprised of two 18" Super Vented Gap (SVG) low frequency drivers in a front-loaded, vented configuration. The deep cabinet allows for extended low frequency bandwidth with minimum frontal profile. The rectangular cabinet is fitted with M10 threaded suspension points. The ASB6128 Subwoofer is suitable for performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance clubs, discotheques, sport facilities, and themed entertainment venues. - 2 x 18" 2242H Super Vented Gap (SVG) Driver
- Large vent area for high output with low distortion
- Parallel/Discrete switchable input mode
- Can be used in arrays with various AE series models
In the Box JBL ASB6128 High-Power Dual 18" 2400W Subwoofer (Black) Limited 5-Year Warranty Brochure PDF 104.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL ASB6128 High-Power Dual 18" 2400W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL ASB6128 Specs | | | Frequency Range | 28 Hz to 1 kHz, -10 dB (bi-amp mode, with recommended active tuning) | | Frequency Response | 35 Hz to 1 kHz, ±3 dB (bi-amp mode, with recommended active tuning) | | Input Modes | Drivers parallel / drivers discrete | | Transducer Power Rating | 2400 W (9600 W peak), 2 hours AES standard, one decade pink noise with 6 dB crest factor within device's operational band, free air. Standard AES 2 hour rating plus long-term 100 hour rating are specified for LF transducers | | Power Capacity | Long-Term System Power Rating: 1600 W (6400 W peak), 100 hours IEC standard, full bandwidth pink noise with 6 dB crest factor, 100 hours rating | | Maximum Sound Pressure Level (SPL) | 30 to 100 Hz: 136 dB-SPL continuous averaged (142 dB peak)
100 to 500 Hz: 136 dB-SPL cont averaged (142 dB peak) Calculated based on power rating and sensitivity, exclusive of power compression | | Sensitivity | 1W/1m:
30 Hz to 100 Hz: 102 dB
100 Hz to 500 Hz: 102 dB Half-space (2 π) loading, averaged in specified frequency band | | Impedance | 4 Ω in parallel-drive mode
2 x 8 Ω in discrete-drive mode | | | | Low Frequency Driver | 2 x JBL 2242H 18" (460 mm) SVG drivers with 4" (100 mm) voice coil | | | | Enclosure | Rectangular cabinet, 0.625" (16 mm) exterior grade 11-ply Finnish birch plywood | | Suspension | Attachment Points: 12 points (3 top, 3 bottom, 2 each side, 2 rear), M10 threaded hardware | | Finish | DuraFlex finish | | Grille | Powder coated 14-gauge perforated steel, with acoustically transparent black foam backing | | Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
Barrier terminals accept up to 10 AWG (5.2 mm2) wire or 0.375" (9 mm) maximum width spade lugs
Speakon in parallel with barrier strip for loop-through | | Environmental | Mil-Std 810; IP-x3 per IEC529 | | Dimensions | 43.1 x 22.1 x 32.2" (109.4 x 56.1 x 81.6 cm) (vertical orientation) | | Weight | 161 lb (73 kg) | | | | Package Weight | 180.0 lb | | Box Dimensions (LxWxH) | 45.1 x 34.2 x 24.1" |
