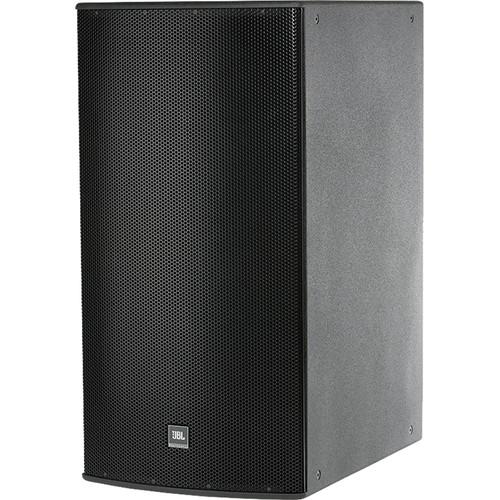

Product description The ASB7128-WRX Ultra Long-Excursion High-Power Dual-18" Subwoofer from JBL is designed to house the company's 2269H Ultra Long-Excursion 18" Differential-Drive woofer. It is front-loaded, vented, and constructed with a neodymium magnet transducer, dual voice coils, and dual gaps. The woofer is capable of a peak-to-peak maximum excursion of 3.5" and features a durable composite cone for high excursion and a long lifespan. The ASB7128-WRX features an exterior fiberglass finish, corners wrapped in fiberglass cloth for maximum structural reinforcement, and an interior gelcoat seal for use in extreme environments and when directly exposed to the outdoors. - 2 x 2269H 18" Differential-Drive dual-voice dual-gap, neodymium magnet transducers
- 4000W continuous pink noise, 16000W peak power-handling capacity
- Large vent area for high output with low distortion
- Parallel/discrete switchable-input mode
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE-Series products
In the Box JBL ASB7128-WRX Ultra Long-Excursion High-Power Dual-18" Subwoofer Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL ASB7128-WRX Ultra Long-Excursion High-Power Dual-18" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL ASB7128 Specs | Frequency Range | 20 Hz to 1 kHz (-10 dB) | | Frequency Response ± 3dB | 25 Hz to 1 kHz | | Transducer Power Rating | 4000 W (16000 W peak), 2 hr | | Input Modes | Drivers parallel / drivers discrete | | Long-Term System Power Rating | 2400 W (9600 W peak), 100 hr | | Maximum SPL | 25 Hz to 200 Hz: 135 dB-SPL cont average (141 dB peak) | | System Sensitivity | 25 Hz to 200 Hz: 99 dB-SPL, 1 W (2.0 V) @ 3.3' / 1.0 m | | Nominal Impedance | 4 ohms in parallel-drive mode
2 x 8 ohms in discrete-drive mode | | Low Frequency Driver | 2 x 2269H, 18.0" / 457.2 mm diameter, 4.0" / 101.6 mm Dual-Coil Dual-Gap neodymium Differental-Drive, VGC drivers | | Enclosure | Rectangular cabinet, 0.6" / 16.0 mm exterior grade 11-ply birch plywood | | Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware | | Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier-strip terminals. Barrier terminals accept up to 0.2 in² / 5.2 mm² (10 AWG) wire or max width 0.4" / 9.0 mm spade lugs. Speakon in parallel with barrier strip for loop-through. | | Approvals and Compliance | IP56 per IEC 529
Mil-Std 810; IP-x3 per IEC529 | | Finish | Exterior: 0.1" / 1.5 mm fiberglass, corners wrapped with fiberglass cloth for maximum structural reinforcement
Interior: gelcoat-sealed | | Grille | Powder-coated 14-gauge perforated steel, with acoustically transparent foam backing | | Dimensions | 43.0 x 22.0 x 32.1" / 1,092.0 x 560.0 x 815.0 mm | | Weight | 158.5 lb / 71.9 kg |
