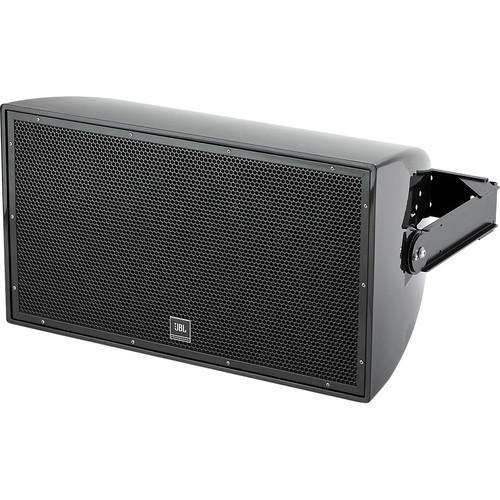

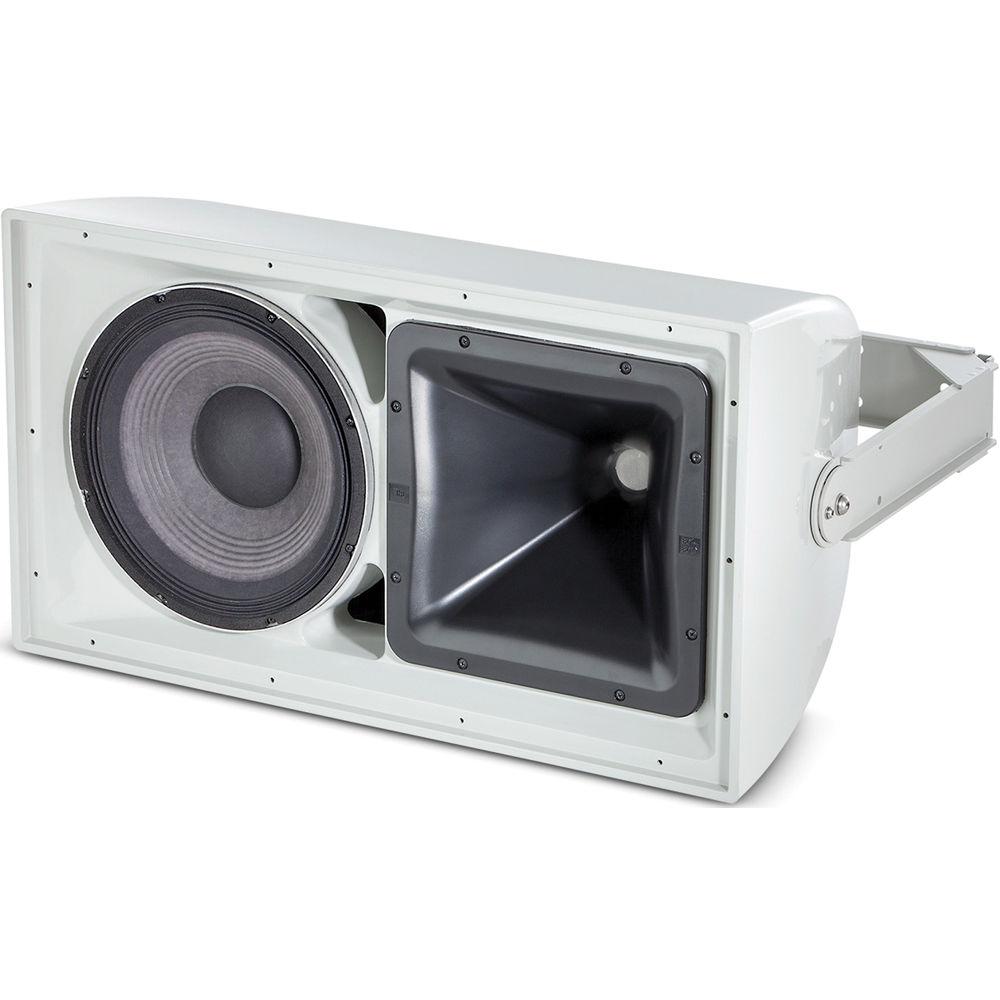

Product description The black AW266 High Power 2-Way All-Weather Loudspeaker with 12" LF from JBL is designed as a high power, lightweight, 2-way, full-range loudspeaker system The system is comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H low-frequency driver and a 2432H high frequency 1.5" exit voice-coil compression driver. The large format progressive transition wave-guide provides 60 x 60° coverage and the speaker is equipped with a 400W transformer for 70/100V applications. The enclosure is constructed of multi-layer glass composite and braced to maximize low-frequency performance. The 16-gauge stainless steel grille is backed with open cell foam and stainless steel mesh for protection against the environment. - Weather-resistant fiberglass enclosure
- Can be used in vertical or horizontal position
In the Box JBL AW266 High Power 2-Way All-Weather Loudspeaker with 12" LF (Black) U-Bracket Limited 5-Year Warranty Guides & Manuals dsffbqxyztvrrcfqbvbxzraabyexb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL AW266 High Power 2-Way All-Weather Loudspeaker with 12" LF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JBL AW266 High Power 2-Way All-Weather Loudspeaker with 12" LF can be downloaded in PDF format at the link stated below.
Technical parametersJBL AW266 Specs | Driver | Low Frequency Driver: 1 x JBL 2262H 12" (300 mm) Differential Drive driver with 3" (75 mm) dual voice coil
High Frequency Driver: JBL 2432H 1.5" (38 mm) exit compression driver with 3" (75 mm) voice coil | | Crossover Frequency | 1.1 kHz | | Frequency Range | 40 Hz - 20 kHz | | Frequency Response ± 3dB | 51 Hz - 18 kHz | | Coverage Pattern | 60 x 60° | | Directivity Factor | 15.8 | | Directivity Index | 12 dB | | Impedance | 8 ohms | | Long-Term System Power Rating | 500 W (200 W peak), 100 hours | | Sensitivity | Systen: 98 dB
LF Driver: 96 dB SPL
HF Driver: 113 dB SPL | | Maximum Sound Pressure Level (SPL) | 126 dB | | Transformer Taps | 70 V: 400 W, 200 W, 100 W >br> 100 V: 400 W, 200 W | | Connectors | Barrier strip terminals | | Enclosure Material | Hand-laminated fiberglass | | Dimensions (HxWxD) | 16.1 x 28.8 x 17.8" / 409.0 x 732.0 x 452.0 mm (in horizontal cabinet orientation) | | Weight | 55.5 lb / 25.2 kg | | | | Package Weight | 71.4 lb | | Box Dimensions (LxWxH) | 32.0 x 20.0 x 19.0" |
